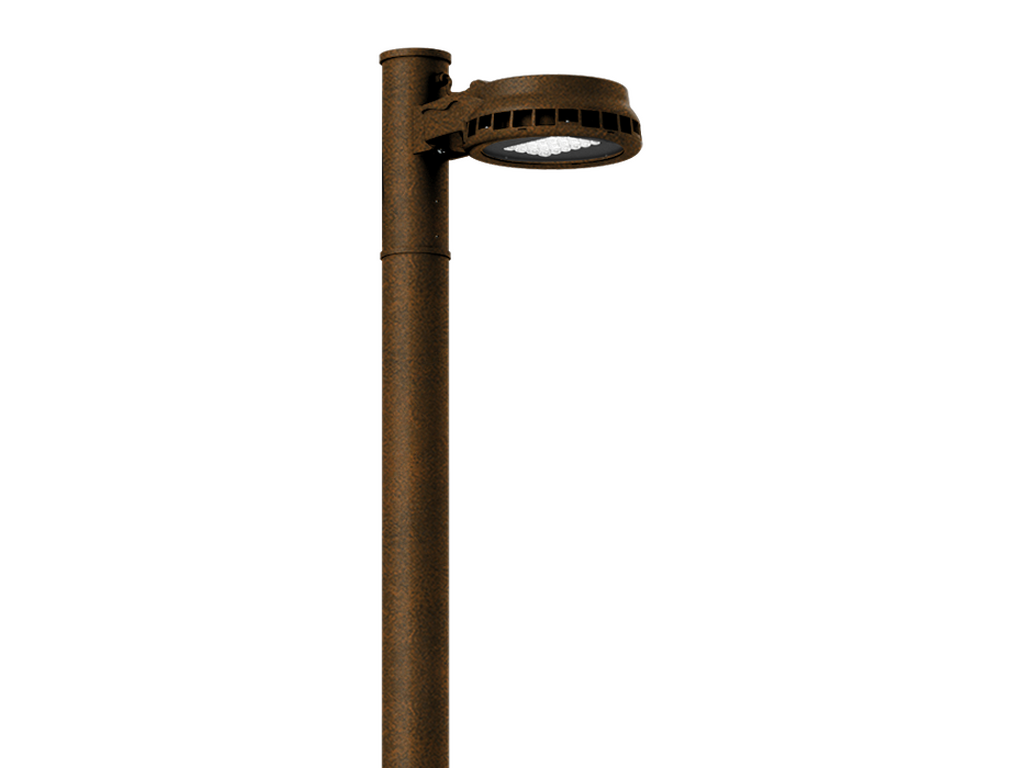

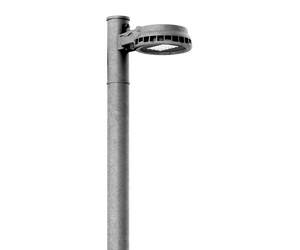

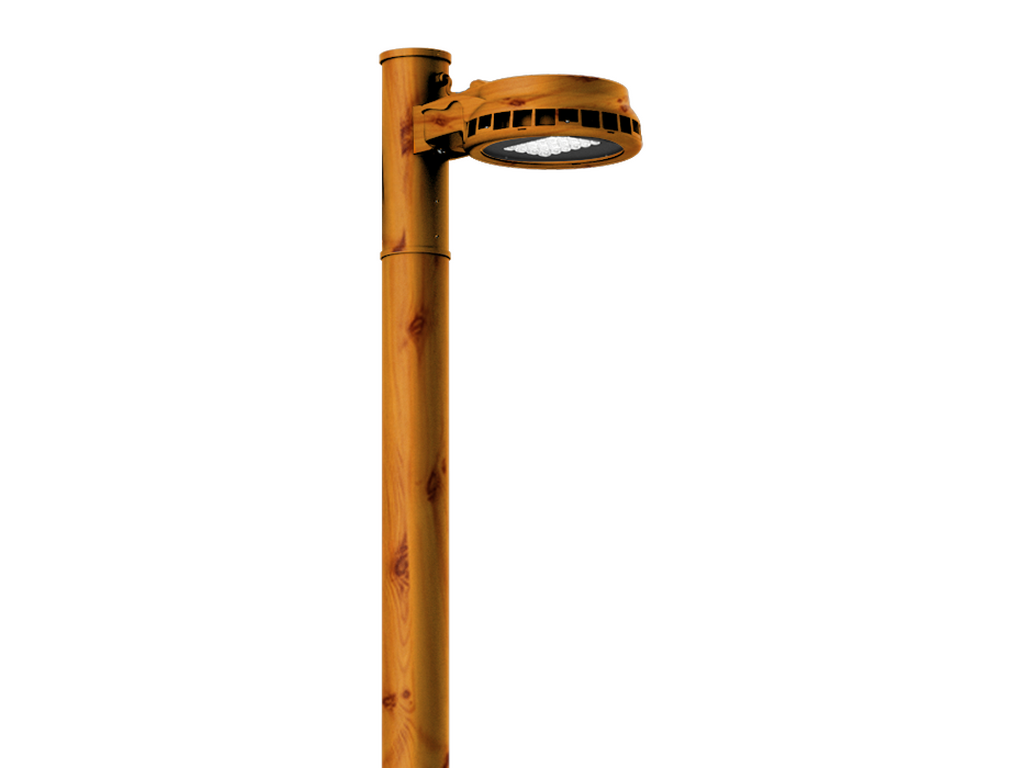

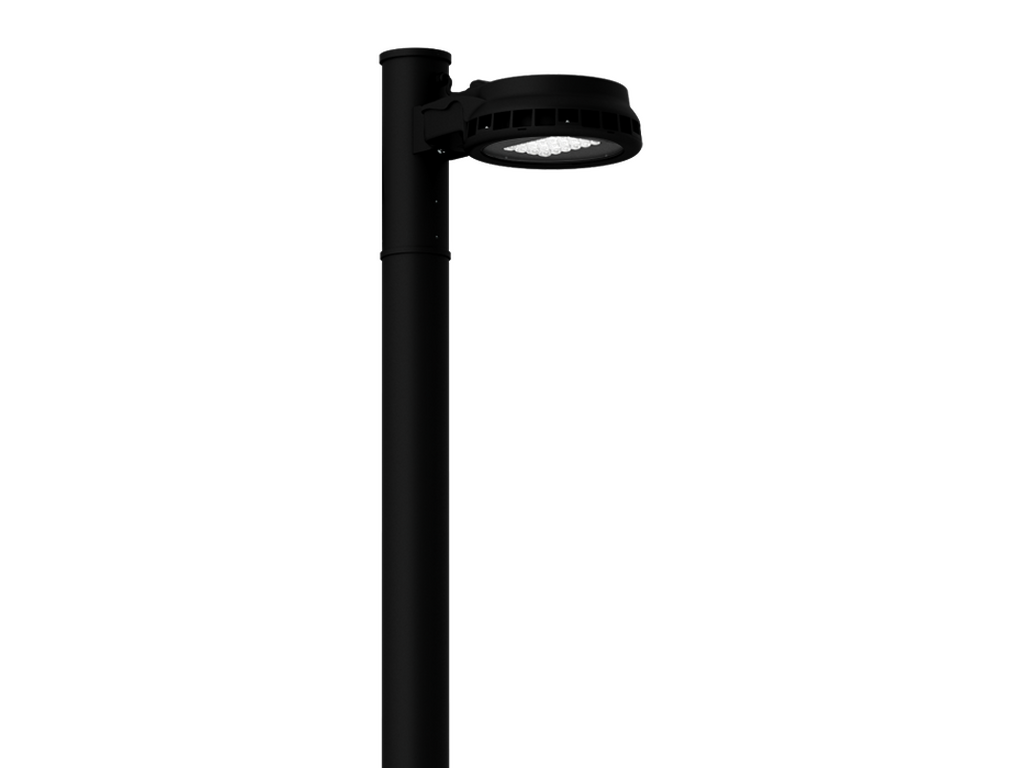

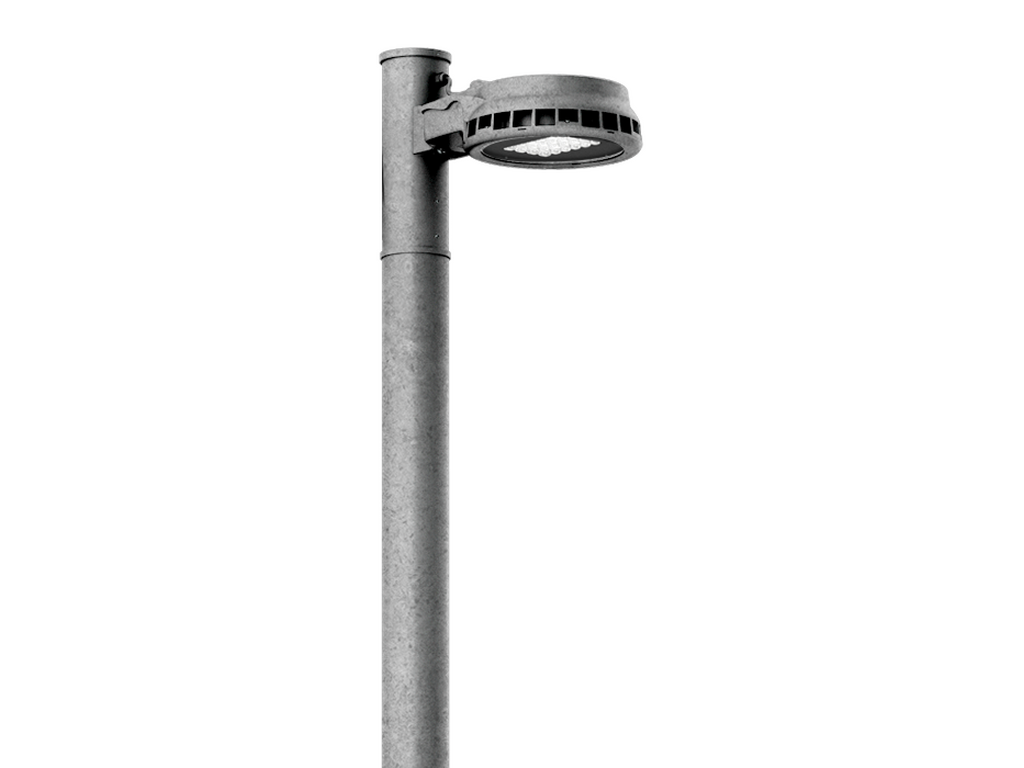

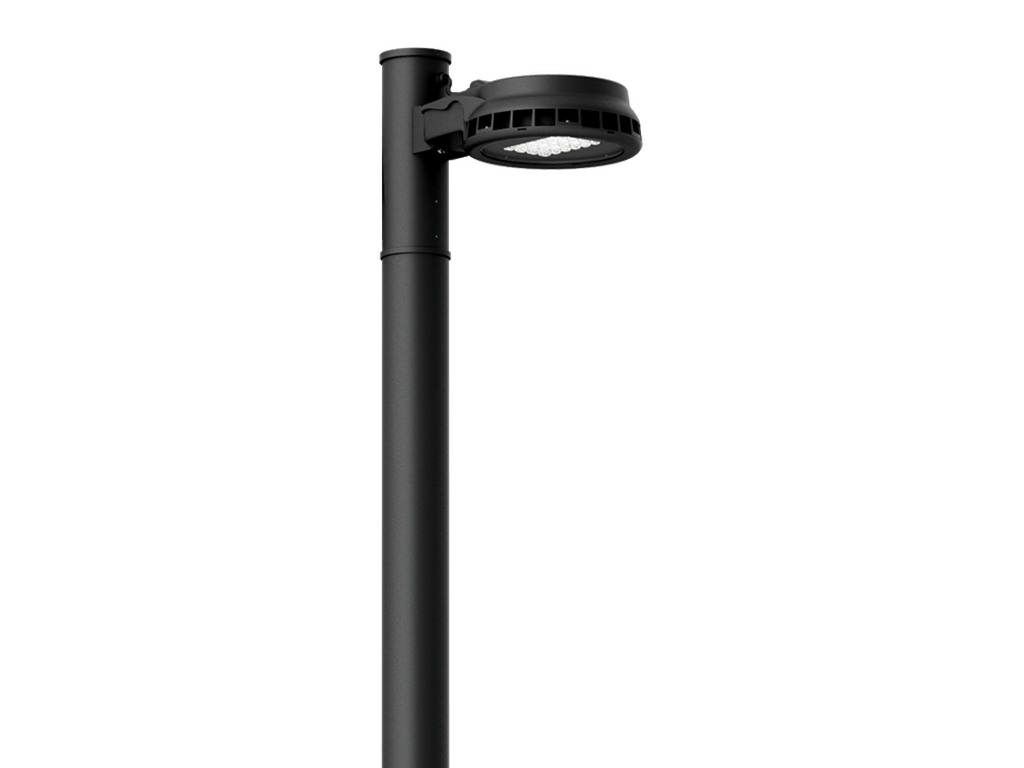

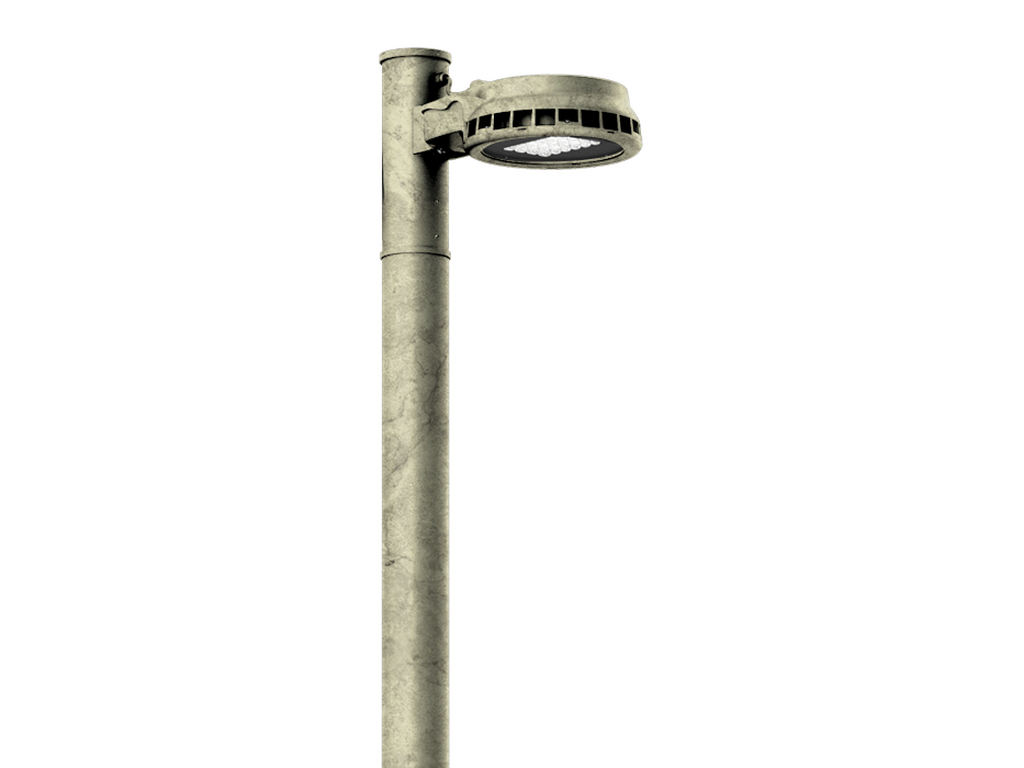

QUANTUM 2QA-21024QUANTUM
1 side
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
24 LED
Power (W)
82 W
Lumen (lm)
7498 - 8664 lm
Efficacy (lm/W)
91 - 106 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, ME
Optic value
147°x55°, 141°x75°, 96°x82°, 136°x58°
CCT / CRI
3000K, 4000K
Bug
B1-U0-G1, B2-U0-G1, B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
97
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

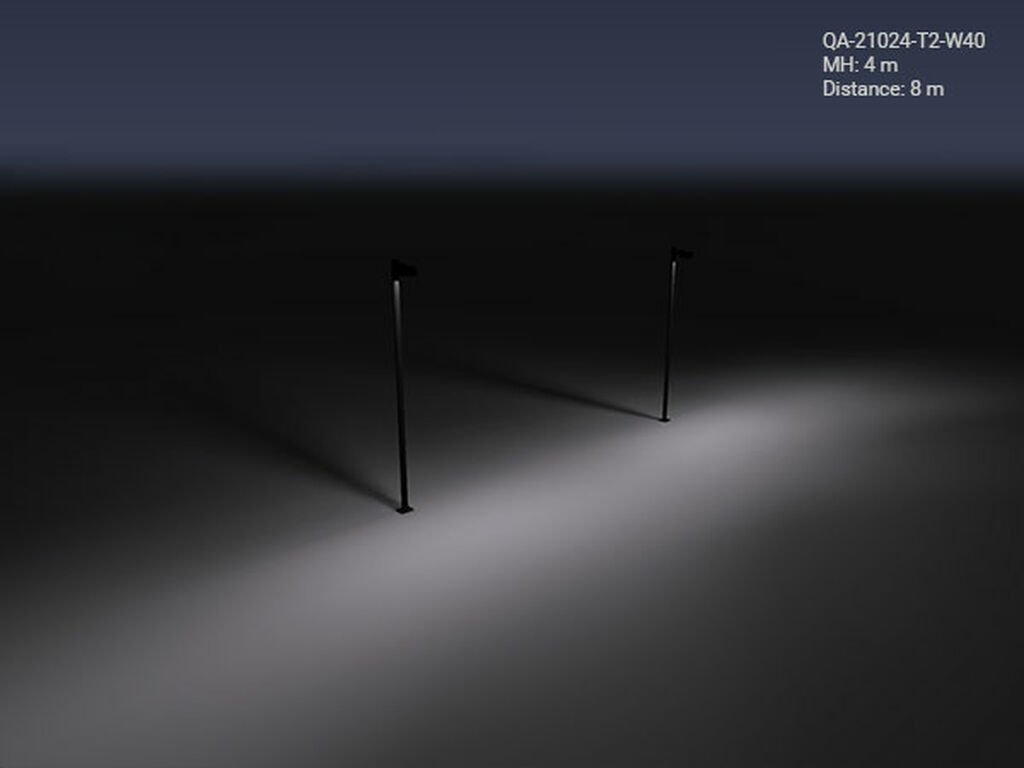

T2 (147°x55°)
T3 (141°x75°)
T4 (96°x82°)
ME (136°x58°)
