LIGMAN QUANTUM 2 QA-50015.

QUANTUM 2QA-50015Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

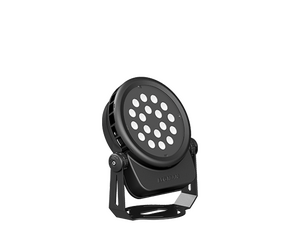

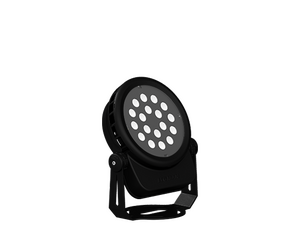

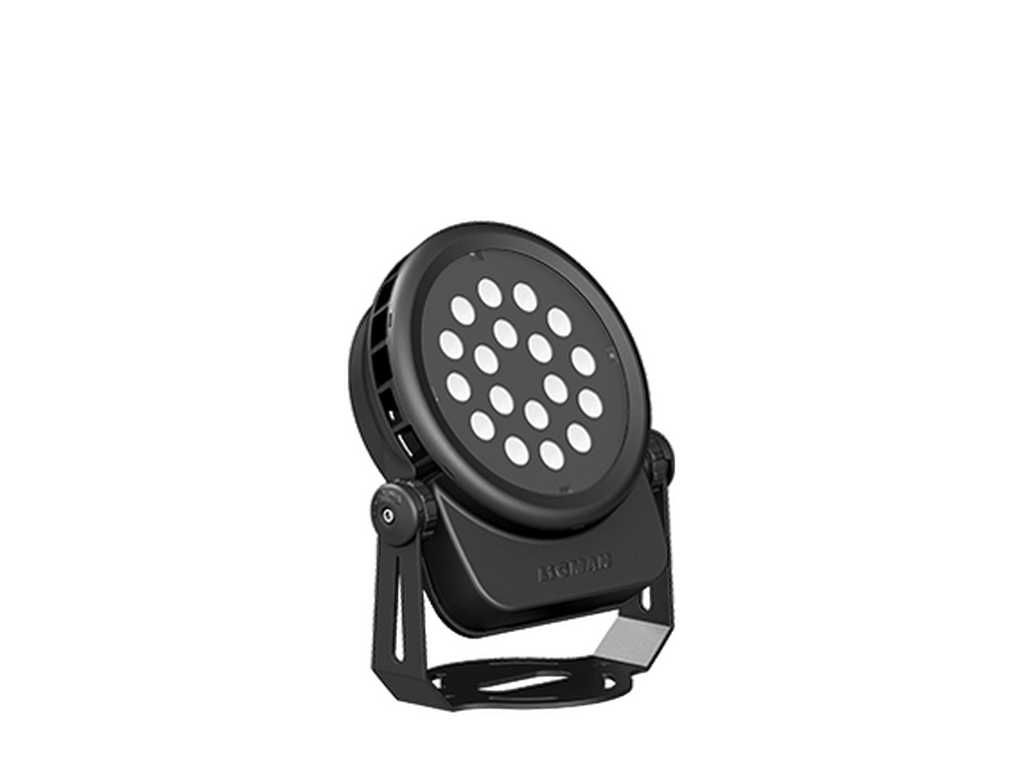

QUANTUM 2Black
QUANTUM 2Dark Grey

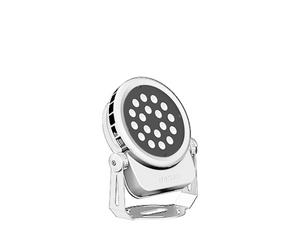

QUANTUM 2White

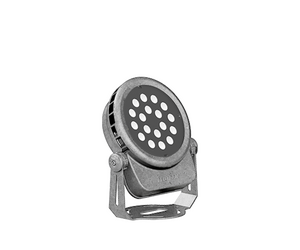

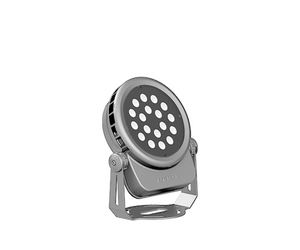

QUANTUM 2Matt Silver
QUANTUM 2Bronze
QUANTUM 2Concrete - Urban
QUANTUM 2Softscape - Urban

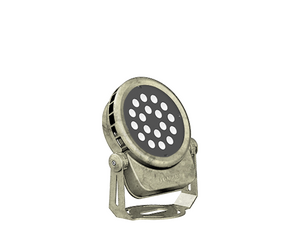

QUANTUM 2Stone - Urban

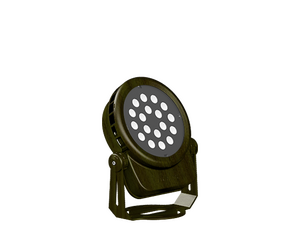

QUANTUM 2Corten - Urban

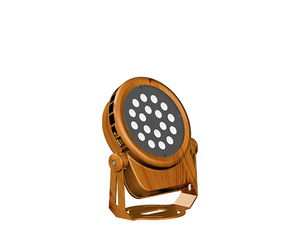

QUANTUM 2Oak - Woodland

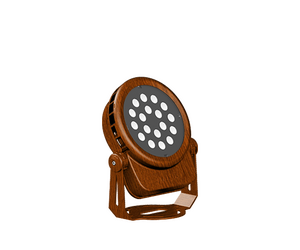

QUANTUM 2Walnut - Woodland
QUANTUM 2Pine - Woodland
QUANTUM 2Black
QUANTUM 2Dark Grey
QUANTUM 2White
QUANTUM 2Matt Silver
QUANTUM 2Bronze
QUANTUM 2Concrete - Urban
QUANTUM 2Softscape - Urban
QUANTUM 2Stone - Urban
QUANTUM 2Corten - Urban
QUANTUM 2Oak - Woodland
QUANTUM 2Walnut - Woodland
QUANTUM 2Pine - Woodland
Medium - RGBW
BISCEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
18 LED
Power (W)
77 W
Lumen (lm)
2900 - 3580 lm
Efficacy (lm/W)
38 - 46 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
20°, 35°, 25° x 48°
CCT / CRI
RGBW30, RGBW40
Bug
B3-U1-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.5 kg
Operating temperature
-20 °C to 40 °C
Cable
Three IP68 connectors supplied with 0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (20°)
M (35°)
E (25° x 48°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: QA-50015-N-30-DMXRDM-01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-N-30-DMXRDM-02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-N-30-DMXRDM-03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-N-30-DMXRDM-05
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-N-30-DMXRDM-06
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-N-30-DMXRDM-SU01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-N-30-DMXRDM-SU02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-N-30-DMXRDM-SU03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-N-30-DMXRDM-SU04
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-N-30-DMXRDM-SW01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-N-30-DMXRDM-SW02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-N-30-DMXRDM-SW03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: QA-50015-N-40-DMXRDM-01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-N-40-DMXRDM-02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-N-40-DMXRDM-03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-N-40-DMXRDM-05
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-N-40-DMXRDM-06
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-N-40-DMXRDM-SU01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-N-40-DMXRDM-SU02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-N-40-DMXRDM-SU03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-N-40-DMXRDM-SU04
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-N-40-DMXRDM-SW01
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-N-40-DMXRDM-SW02
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-N-40-DMXRDM-SW03
Lumen (lm): 3580 lm
Optic: N
Optic value: 20°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: QA-50015-M-30-DMXRDM-01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-M-30-DMXRDM-02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-M-30-DMXRDM-03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-M-30-DMXRDM-05
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-M-30-DMXRDM-06
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-M-30-DMXRDM-SU01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-M-30-DMXRDM-SU02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-M-30-DMXRDM-SU03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-M-30-DMXRDM-SU04
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-M-30-DMXRDM-SW01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-M-30-DMXRDM-SW02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-M-30-DMXRDM-SW03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: QA-50015-M-40-DMXRDM-01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-M-40-DMXRDM-02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-M-40-DMXRDM-03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-M-40-DMXRDM-05
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-M-40-DMXRDM-06
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-M-40-DMXRDM-SU01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-M-40-DMXRDM-SU02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-M-40-DMXRDM-SU03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-M-40-DMXRDM-SU04
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-M-40-DMXRDM-SW01
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-M-40-DMXRDM-SW02
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-M-40-DMXRDM-SW03
Lumen (lm): 3012 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: QA-50015-E-30-DMXRDM-01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-E-30-DMXRDM-02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-E-30-DMXRDM-03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-E-30-DMXRDM-05
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-E-30-DMXRDM-06
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-E-30-DMXRDM-SU01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-E-30-DMXRDM-SU02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-E-30-DMXRDM-SU03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-E-30-DMXRDM-SU04
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-E-30-DMXRDM-SW01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-E-30-DMXRDM-SW02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-E-30-DMXRDM-SW03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: QA-50015-E-40-DMXRDM-01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: QA-50015-E-40-DMXRDM-02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: QA-50015-E-40-DMXRDM-03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: QA-50015-E-40-DMXRDM-05
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: QA-50015-E-40-DMXRDM-06
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: QA-50015-E-40-DMXRDM-SU01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: QA-50015-E-40-DMXRDM-SU02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: QA-50015-E-40-DMXRDM-SU03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: QA-50015-E-40-DMXRDM-SU04
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: QA-50015-E-40-DMXRDM-SW01
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: QA-50015-E-40-DMXRDM-SW02
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: QA-50015-E-40-DMXRDM-SW03
Lumen (lm): 2900 lm
Optic: E
Optic value: 25° x 48°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland

ACCESSORY

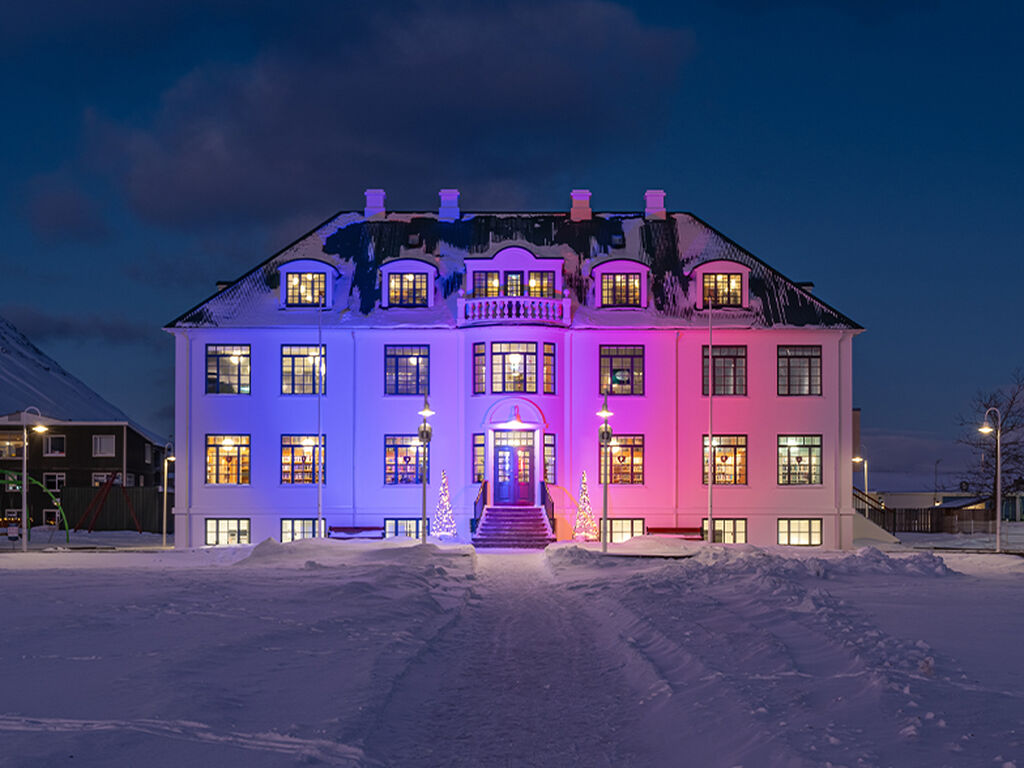

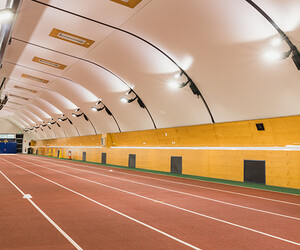

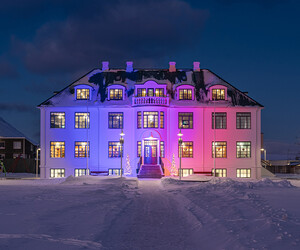

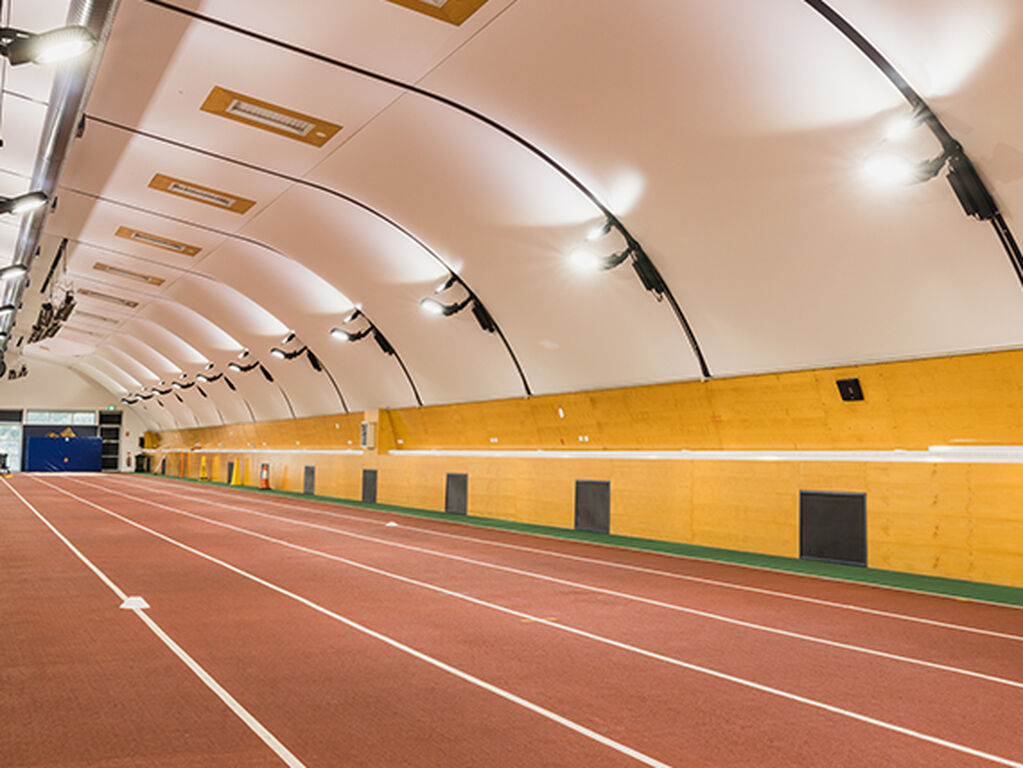

PROJECT REFERENCE (QUANTUM Floodlights, projectors)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
