LIGMAN STEAMER 2 SE-90012-LC.

STEAMER 2SE-90012-LCSTEAMER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

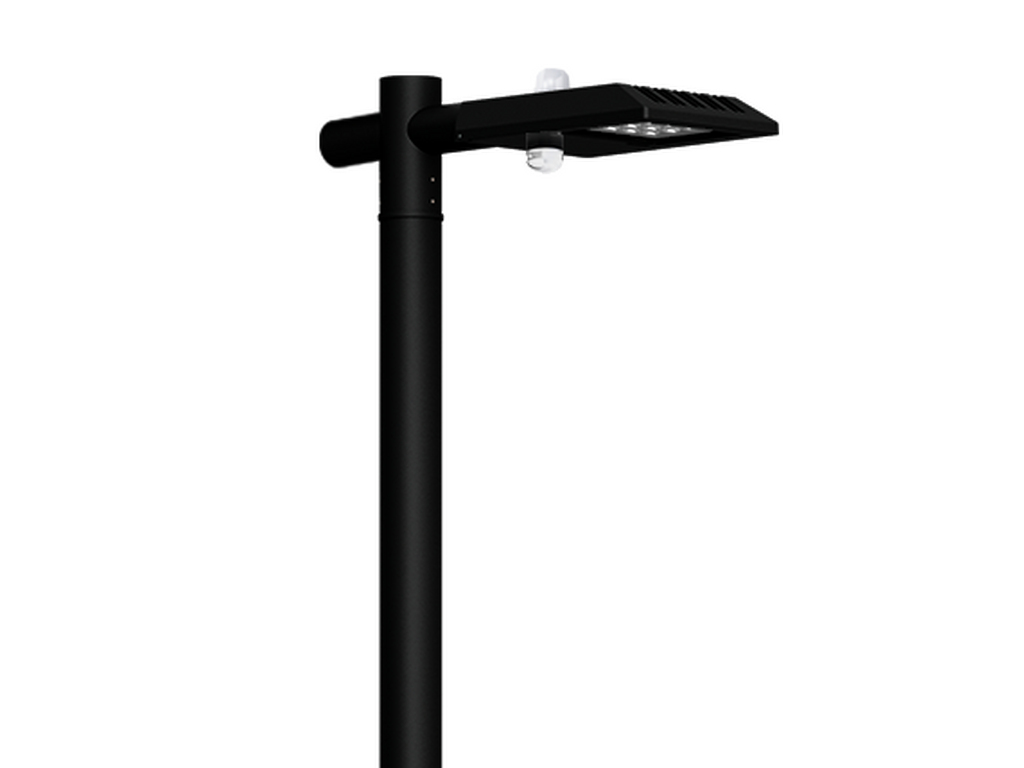

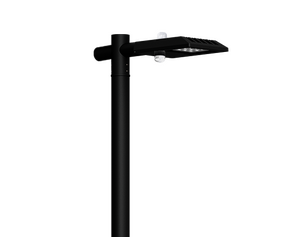

STEAMER 2Black
STEAMER 2Dark Grey

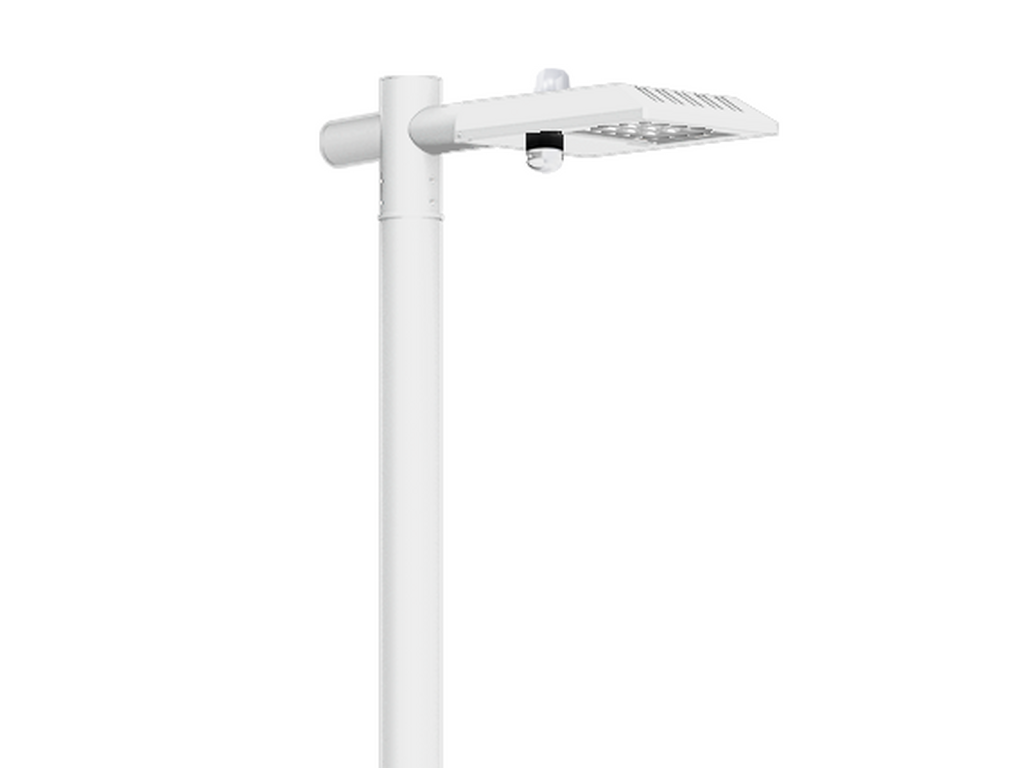

STEAMER 2White
STEAMER 2Matt Silver

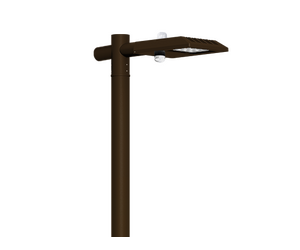

STEAMER 2Bronze
STEAMER 2Concrete - Urban
STEAMER 2Softscape - Urban
STEAMER 2Stone - Urban

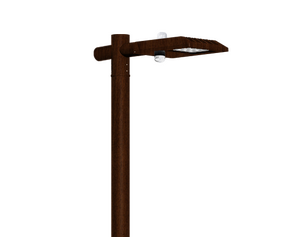

STEAMER 2Corten - Urban
STEAMER 2Oak - Woodland

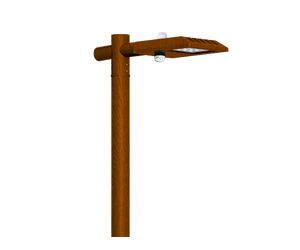

STEAMER 2Walnut - Woodland

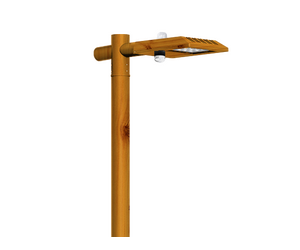

STEAMER 2Pine - Woodland
STEAMER 2Black
STEAMER 2Dark Grey
STEAMER 2White
STEAMER 2Matt Silver
STEAMER 2Bronze
STEAMER 2Concrete - Urban
STEAMER 2Softscape - Urban
STEAMER 2Stone - Urban
STEAMER 2Corten - Urban
STEAMER 2Oak - Woodland
STEAMER 2Walnut - Woodland
STEAMER 2Pine - Woodland
Rectangular - Large - LIGHTCONNECT™
CEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 x 24 LED
Power (W)
209 W
Lumen (lm)
24479 - 28297 lm
Efficacy (lm/W)
117 - 135 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 105°x115°, 136°x51°, 119°x86°, 102°x74°, 137°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (105°x115°)
T2 (136°x51°)
T3 (119°x86°)
T4 (102°x74°)
ME (137°x58°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: SE-90012-LC-M-8030-DA-01
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-M-8030-DA-02
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-M-8030-DA-03
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-M-8030-DA-05
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-M-8030-DA-06
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-M-8030-DA-SU01
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-M-8030-DA-SU02
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-M-8030-DA-SU03
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-M-8030-DA-SU04
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-M-8030-DA-SW01
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-M-8030-DA-SW02
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-M-8030-DA-SW03
Lumen (lm): 26343 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-M-8040-DA-01
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-M-8040-DA-02
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-M-8040-DA-03
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-M-8040-DA-05
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-M-8040-DA-06
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-M-8040-DA-SU01
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-M-8040-DA-SU02
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-M-8040-DA-SU03
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-M-8040-DA-SU04
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-M-8040-DA-SW01
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-M-8040-DA-SW02
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-M-8040-DA-SW03
Lumen (lm): 28232 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-W-8030-DA-01
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-W-8030-DA-02
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-W-8030-DA-03
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-W-8030-DA-05
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-W-8030-DA-06
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-W-8030-DA-SU01
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-W-8030-DA-SU02
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-W-8030-DA-SU03
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-W-8030-DA-SU04
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-W-8030-DA-SW01
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-W-8030-DA-SW02
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-W-8030-DA-SW03
Lumen (lm): 25623 lm
Optic: W
Optic value: 57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-W-8040-DA-01
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-W-8040-DA-02
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-W-8040-DA-03
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-W-8040-DA-05
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-W-8040-DA-06
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-W-8040-DA-SU01
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-W-8040-DA-SU02
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-W-8040-DA-SU03
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-W-8040-DA-SU04
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-W-8040-DA-SW01
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-W-8040-DA-SW02
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-W-8040-DA-SW03
Lumen (lm): 27460 lm
Optic: W
Optic value: 57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-EW-8030-DA-01
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-EW-8030-DA-02
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-EW-8030-DA-03
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-EW-8030-DA-05
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-EW-8030-DA-06
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-EW-8030-DA-SU01
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-EW-8030-DA-SU02
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-EW-8030-DA-SU03
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-EW-8030-DA-SU04
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-EW-8030-DA-SW01
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-EW-8030-DA-SW02
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-EW-8030-DA-SW03
Lumen (lm): 26404 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-EW-8040-DA-01
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-EW-8040-DA-02
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-EW-8040-DA-03
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-EW-8040-DA-05
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-EW-8040-DA-06
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-EW-8040-DA-SU01
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-EW-8040-DA-SU02
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-EW-8040-DA-SU03
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-EW-8040-DA-SU04
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-EW-8040-DA-SW01
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-EW-8040-DA-SW02
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-EW-8040-DA-SW03
Lumen (lm): 28297 lm
Optic: EW
Optic value: 105°x115°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T2-8030-DA-01
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T2-8030-DA-02
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T2-8030-DA-03
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T2-8030-DA-05
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T2-8030-DA-06
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T2-8030-DA-SU01
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T2-8030-DA-SU02
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T2-8030-DA-SU03
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T2-8030-DA-SU04
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T2-8030-DA-SW01
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T2-8030-DA-SW02
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T2-8030-DA-SW03
Lumen (lm): 25231 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T2-8040-DA-01
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T2-8040-DA-02
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T2-8040-DA-03
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T2-8040-DA-05
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T2-8040-DA-06
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T2-8040-DA-SU01
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T2-8040-DA-SU02
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T2-8040-DA-SU03
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T2-8040-DA-SU04
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T2-8040-DA-SW01
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T2-8040-DA-SW02
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T2-8040-DA-SW03
Lumen (lm): 27040 lm
Optic: T2
Optic value: 136°x51°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T3-8030-DA-01
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T3-8030-DA-02
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T3-8030-DA-03
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T3-8030-DA-05
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T3-8030-DA-06
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T3-8030-DA-SU01
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T3-8030-DA-SU02
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T3-8030-DA-SU03
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T3-8030-DA-SU04
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T3-8030-DA-SW01
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T3-8030-DA-SW02
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T3-8030-DA-SW03
Lumen (lm): 24617 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T3-8040-DA-01
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T3-8040-DA-02
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T3-8040-DA-03
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T3-8040-DA-05
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T3-8040-DA-06
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T3-8040-DA-SU01
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T3-8040-DA-SU02
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T3-8040-DA-SU03
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T3-8040-DA-SU04
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T3-8040-DA-SW01
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T3-8040-DA-SW02
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T3-8040-DA-SW03
Lumen (lm): 26382 lm
Optic: T3
Optic value: 119°x86°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T4-8030-DA-01
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T4-8030-DA-02
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T4-8030-DA-03
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T4-8030-DA-05
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T4-8030-DA-06
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T4-8030-DA-SU01
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T4-8030-DA-SU02
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T4-8030-DA-SU03
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T4-8030-DA-SU04
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T4-8030-DA-SW01
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T4-8030-DA-SW02
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T4-8030-DA-SW03
Lumen (lm): 25065 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-T4-8040-DA-01
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-T4-8040-DA-02
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-T4-8040-DA-03
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-T4-8040-DA-05
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-T4-8040-DA-06
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-T4-8040-DA-SU01
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-T4-8040-DA-SU02
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-T4-8040-DA-SU03
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-T4-8040-DA-SU04
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-T4-8040-DA-SW01
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-T4-8040-DA-SW02
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-T4-8040-DA-SW03
Lumen (lm): 26862 lm
Optic: T4
Optic value: 102°x74°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-ME-8030-DA-01
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-ME-8030-DA-02
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-ME-8030-DA-03
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-ME-8030-DA-05
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-ME-8030-DA-06
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-ME-8030-DA-SU01
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-ME-8030-DA-SU02
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-ME-8030-DA-SU03
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-ME-8030-DA-SU04
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-ME-8030-DA-SW01
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-ME-8030-DA-SW02
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-ME-8030-DA-SW03
Lumen (lm): 24479 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: SE-90012-LC-ME-8040-DA-01
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: SE-90012-LC-ME-8040-DA-02
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: SE-90012-LC-ME-8040-DA-03
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: SE-90012-LC-ME-8040-DA-05
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: SE-90012-LC-ME-8040-DA-06
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: SE-90012-LC-ME-8040-DA-SU01
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: SE-90012-LC-ME-8040-DA-SU02
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: SE-90012-LC-ME-8040-DA-SU03
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: SE-90012-LC-ME-8040-DA-SU04
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: SE-90012-LC-ME-8040-DA-SW01
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: SE-90012-LC-ME-8040-DA-SW02
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: SE-90012-LC-ME-8040-DA-SW03
Lumen (lm): 26234 lm
Optic: ME
Optic value: 137°x58°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (STEAMER Street & area lighting luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
