LIGMAN STEAMER 2 SE-90012.

STEAMER 2SE-90012STEAMER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

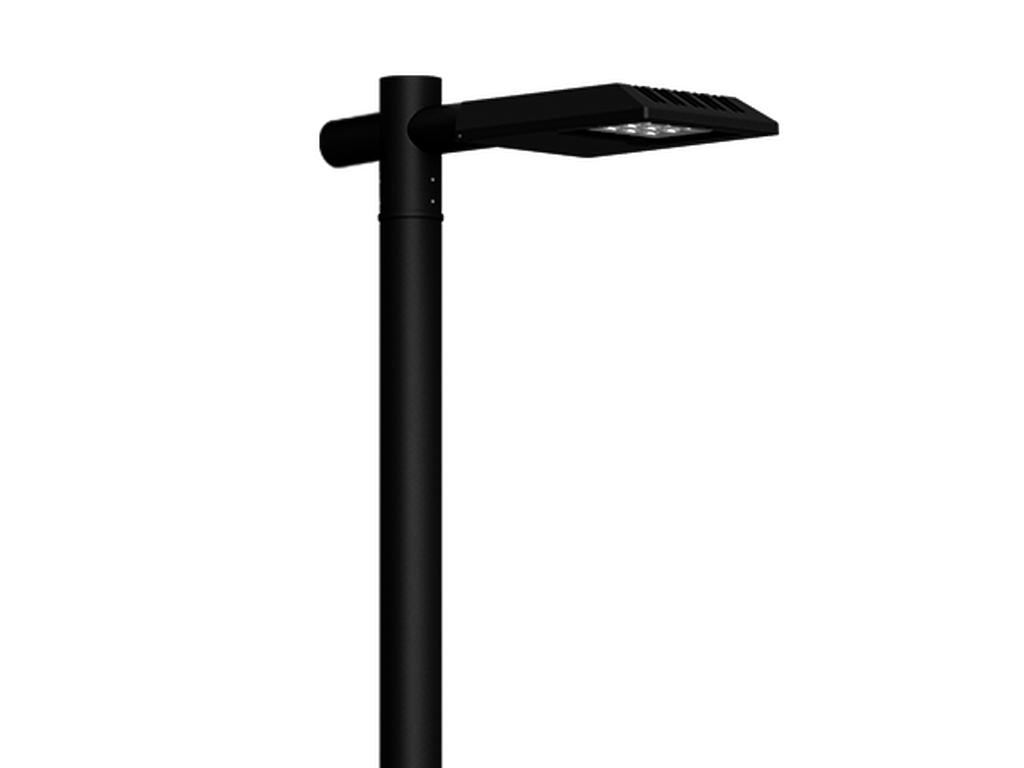

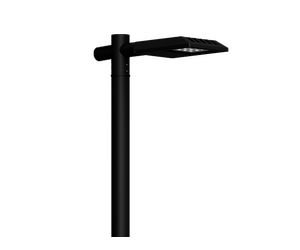

STEAMER 2Black

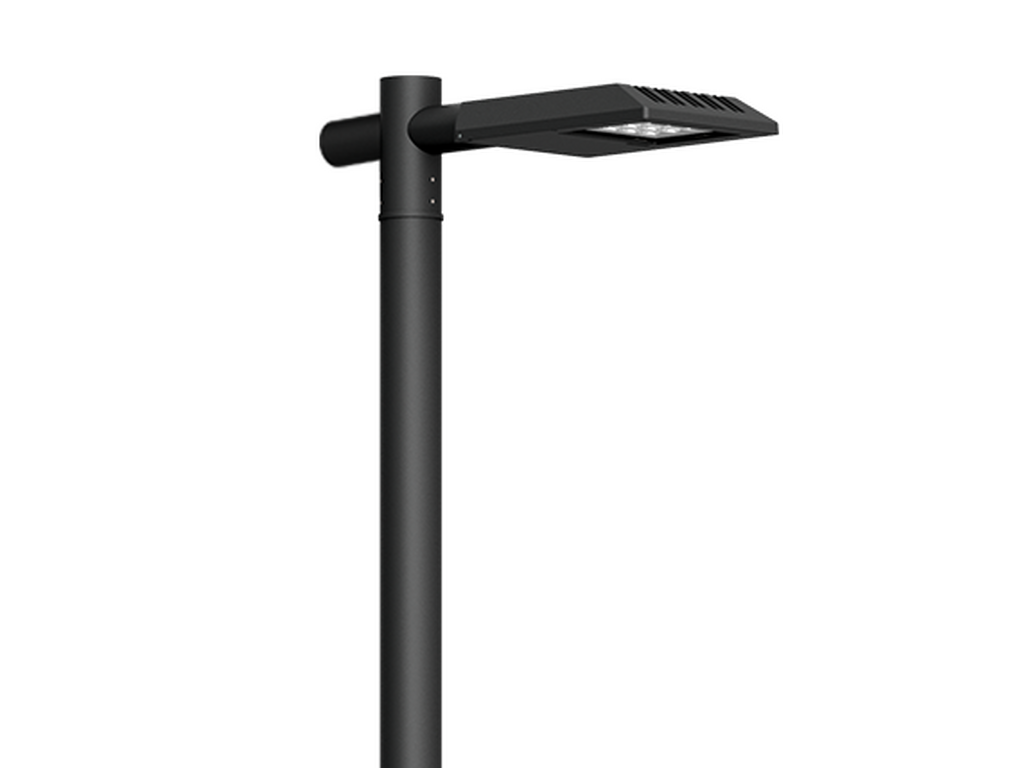

STEAMER 2Dark Grey

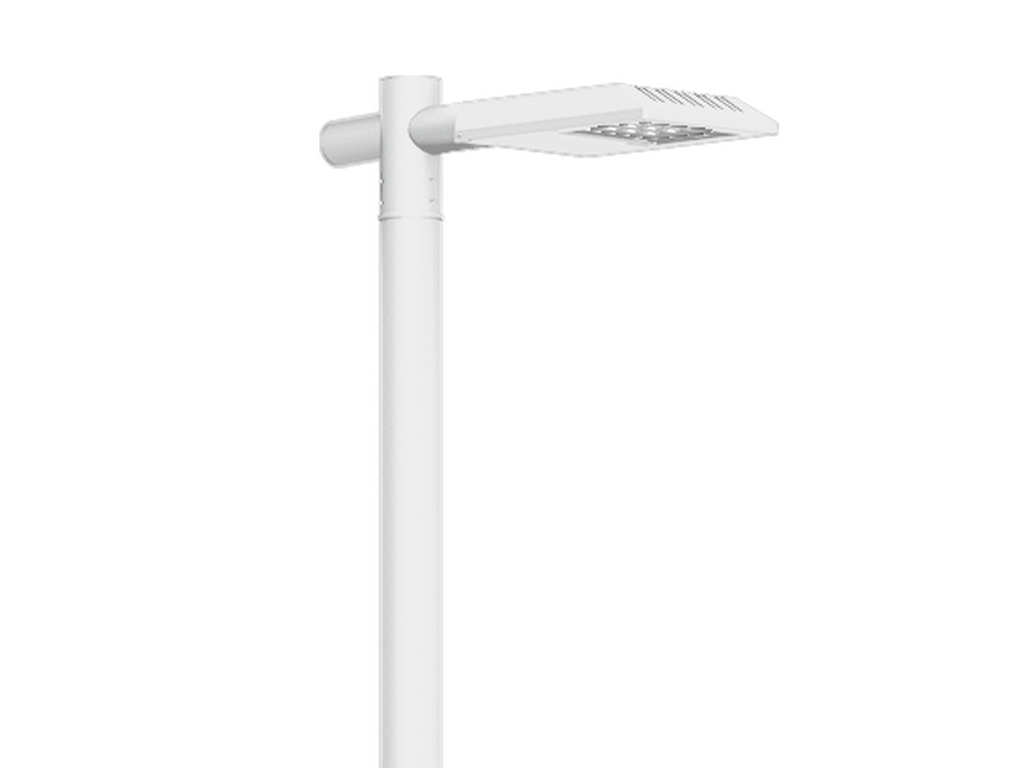

STEAMER 2White

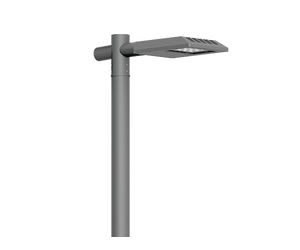

STEAMER 2Matt Silver
STEAMER 2Bronze
STEAMER 2Concrete - Urban
STEAMER 2Softscape - Urban

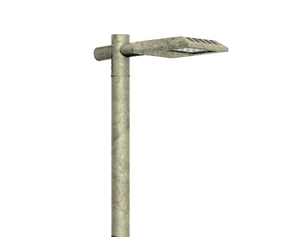

STEAMER 2Stone - Urban

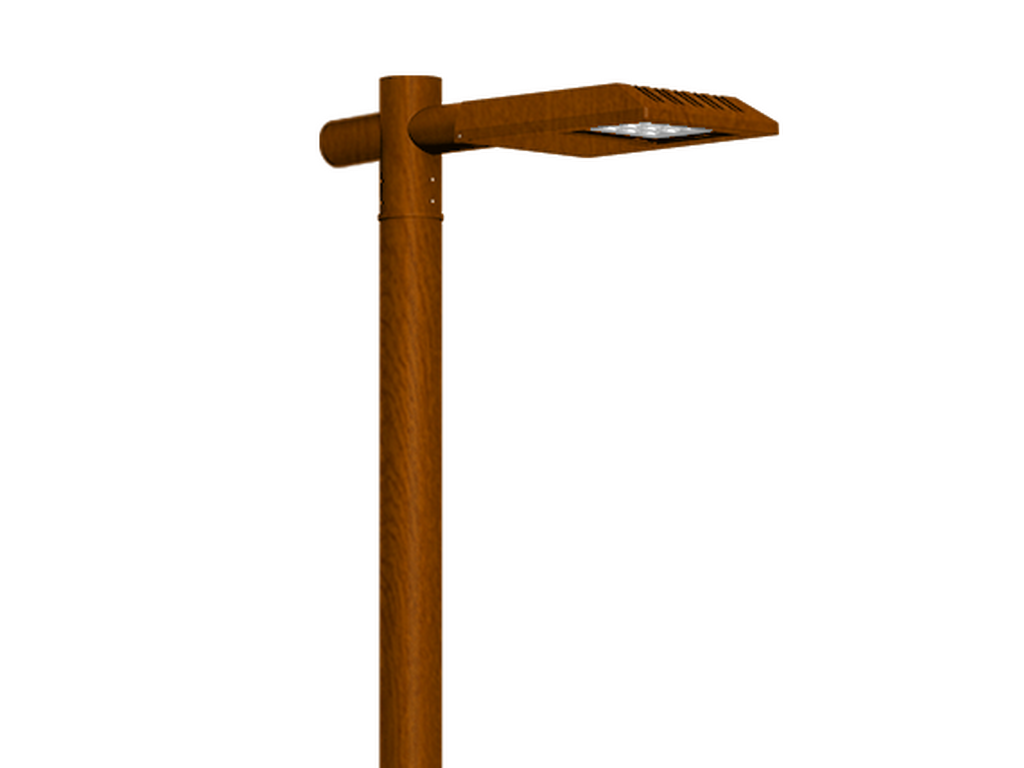

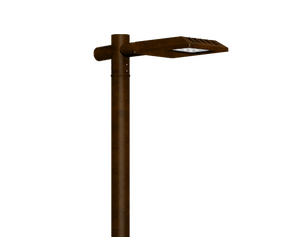

STEAMER 2Corten - Urban
STEAMER 2Oak - Woodland
STEAMER 2Walnut - Woodland

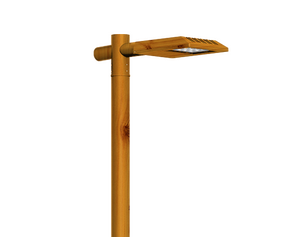

STEAMER 2Pine - Woodland

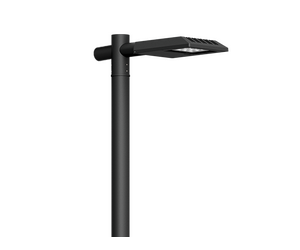

STEAMER 2Black

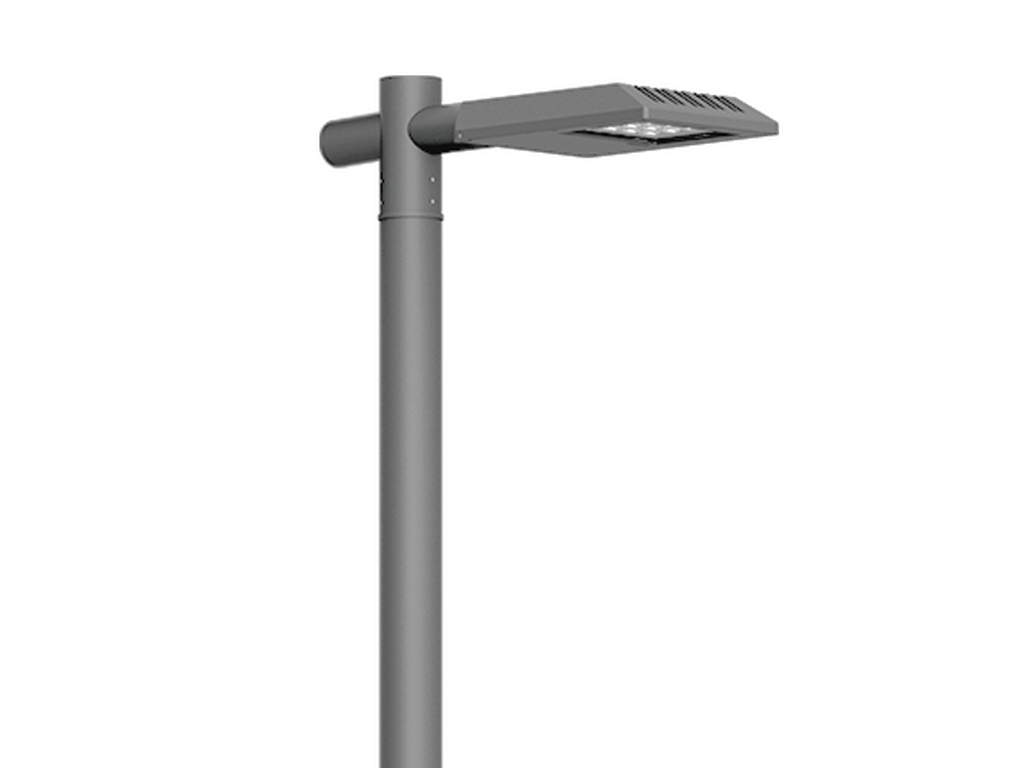

STEAMER 2Dark Grey
STEAMER 2White
STEAMER 2Matt Silver

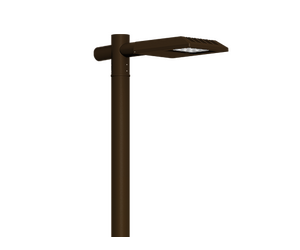

STEAMER 2Bronze

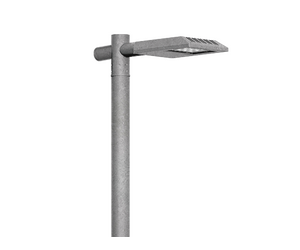

STEAMER 2Concrete - Urban
STEAMER 2Softscape - Urban
STEAMER 2Stone - Urban

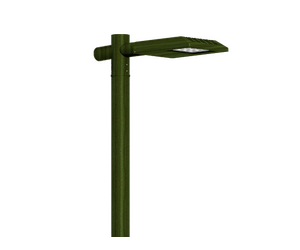

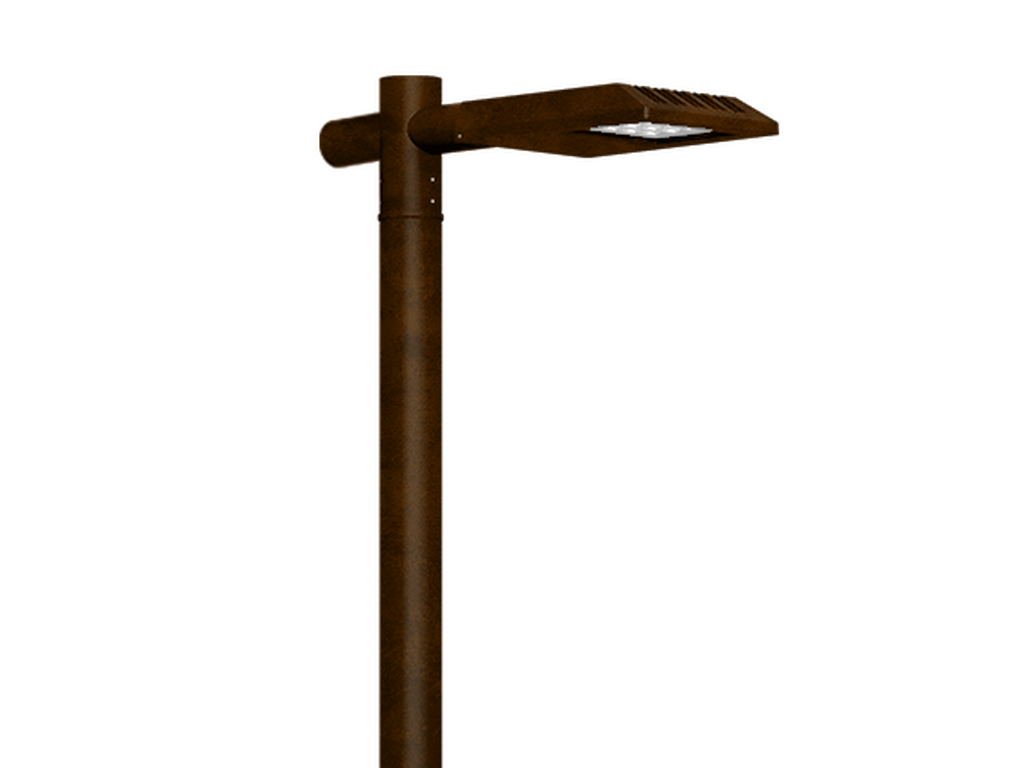

STEAMER 2Corten - Urban
STEAMER 2Oak - Woodland

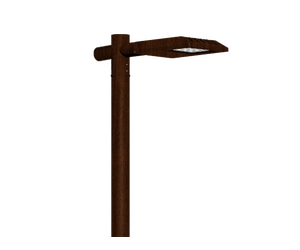

STEAMER 2Walnut - Woodland

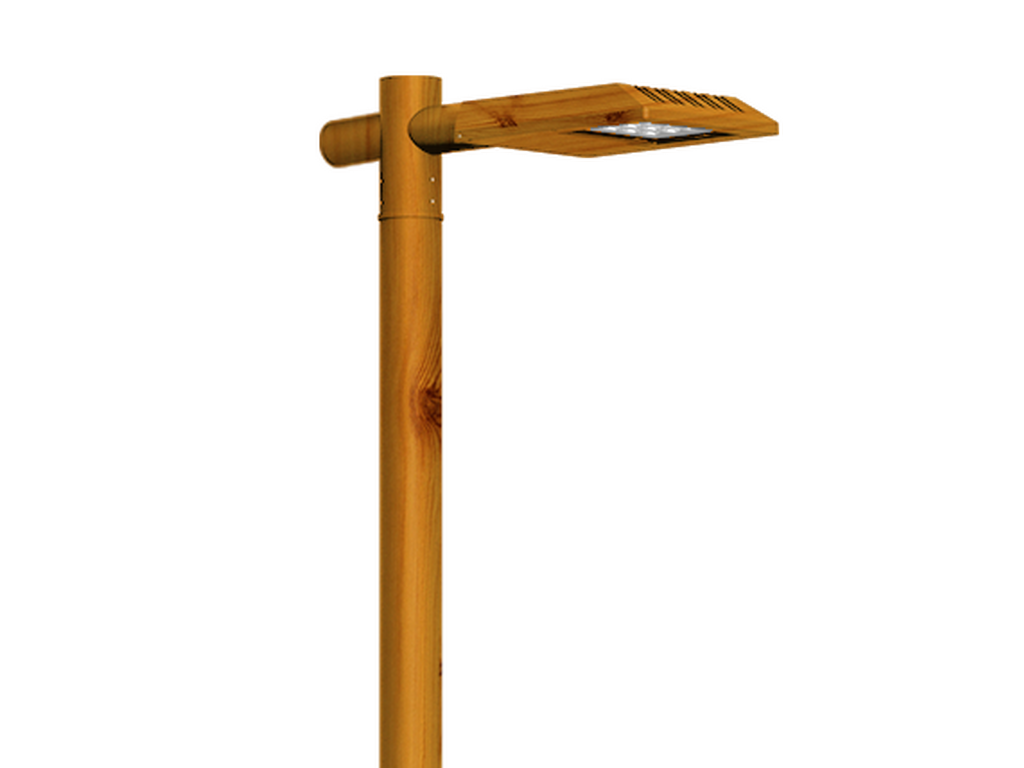

STEAMER 2Pine - Woodland
Rectangular - Large
CEBISClass IIP66IK08

Technical information

Material
Aluminium
Light source
96 LED
Power (W)
209 W
Lumen (lm)
23616 - 28820 lm
Efficacy (lm/W)
113 - 138 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 105°x115°, 136°x51°, 119°x86°, 102°x74°, 137°x58°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U0-G3, B4-U0-G1, B5-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.7 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.063
Cable
One IP68 connector supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic
M (30°)
W (57°)
EW (105°x115°)
T2 (136°x51°)
T3 (119°x86°)
T4 (102°x74°)
ME (137°x58°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (STEAMER Street & area lighting luminaires)
