LIGMAN TANGO 30 TA-31872.

TANGO 30TA-31872TANGO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
TANGO 30
TANGO 30
TANGO 30
TANGO 30

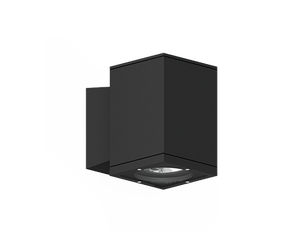

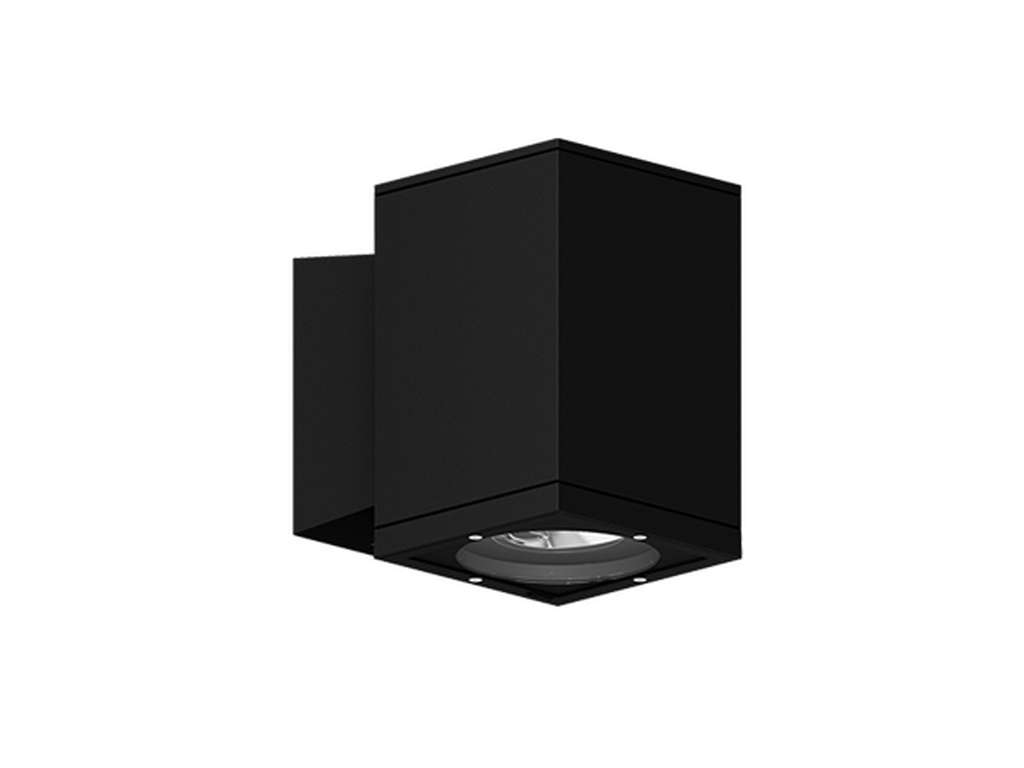

TANGO 30Black
TANGO 30Dark Grey

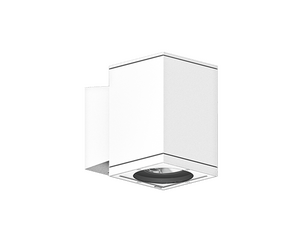

TANGO 30White

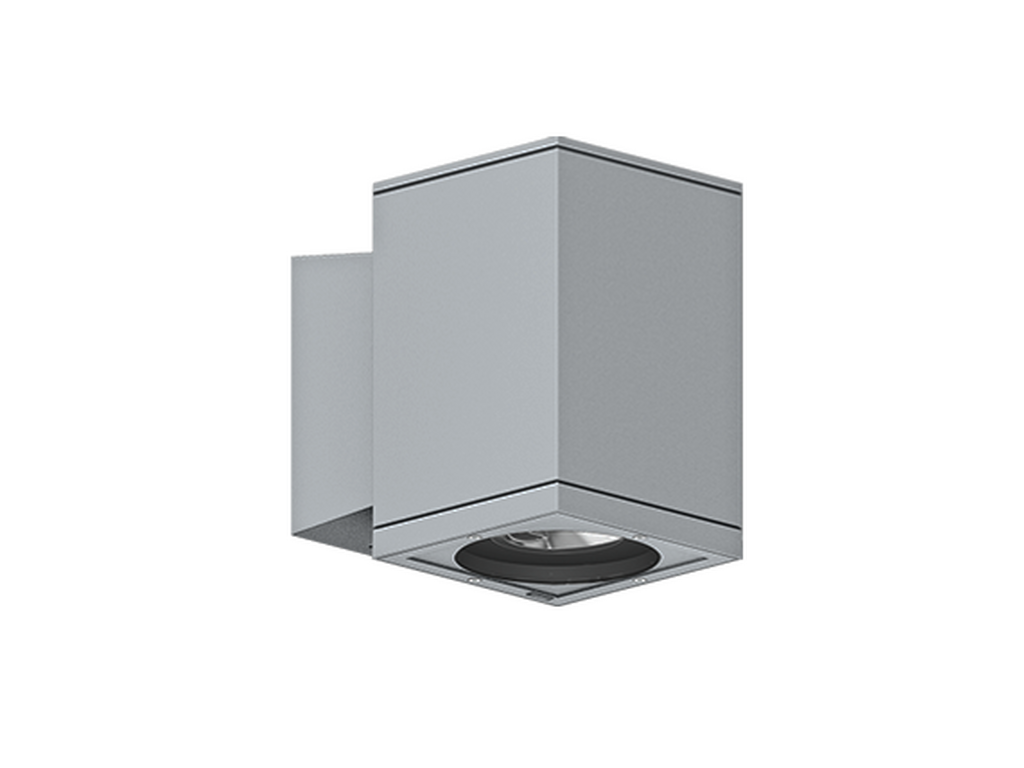

TANGO 30Matt Silver

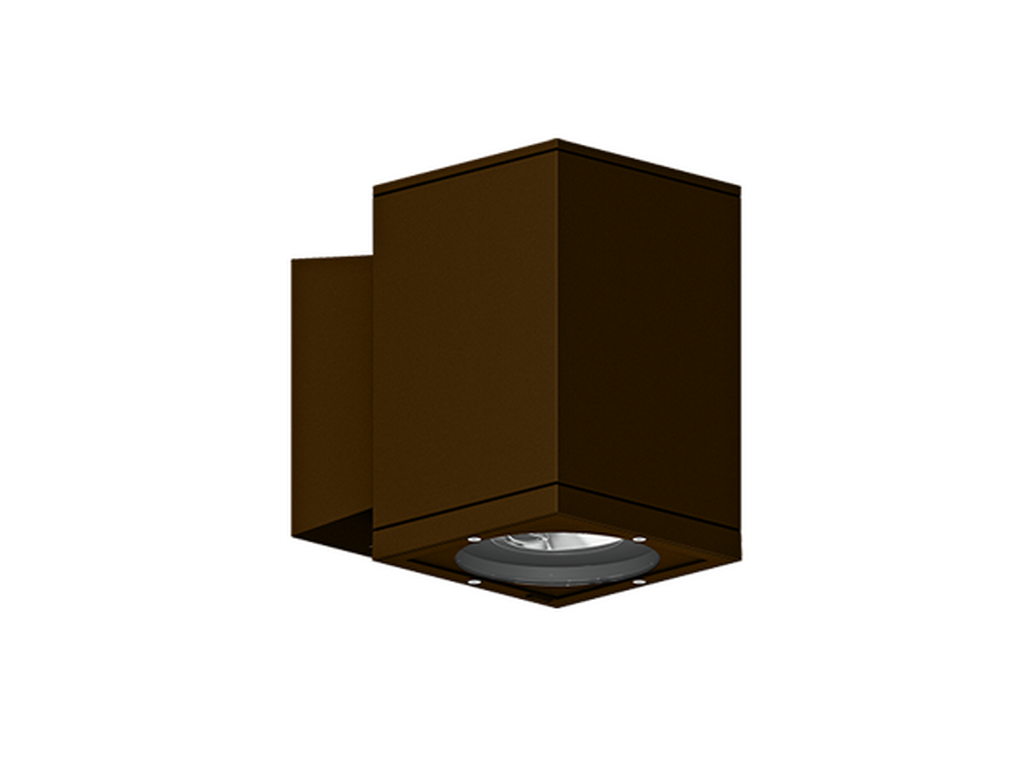

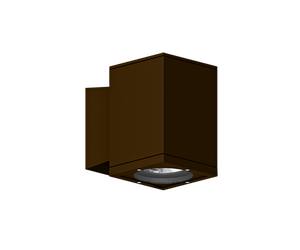

TANGO 30Bronze
TANGO 30Concrete - Urban
TANGO 30Softscape - Urban

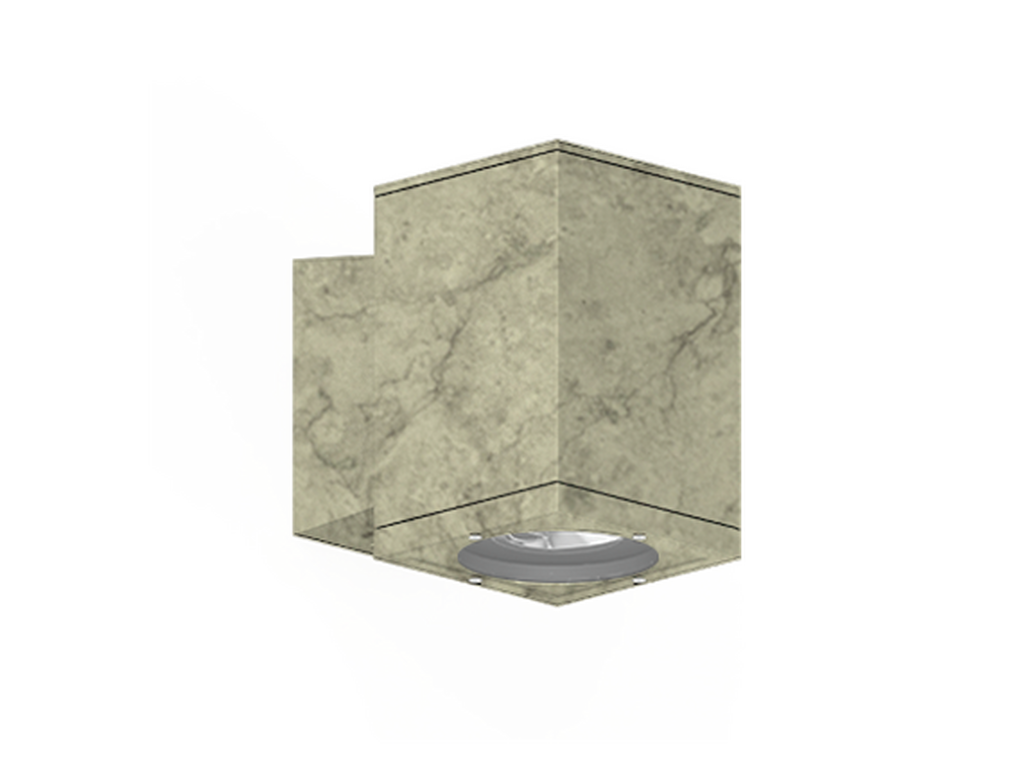

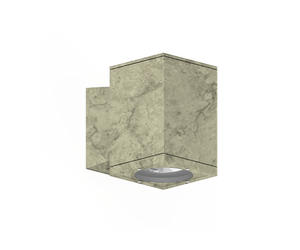

TANGO 30Stone - Urban

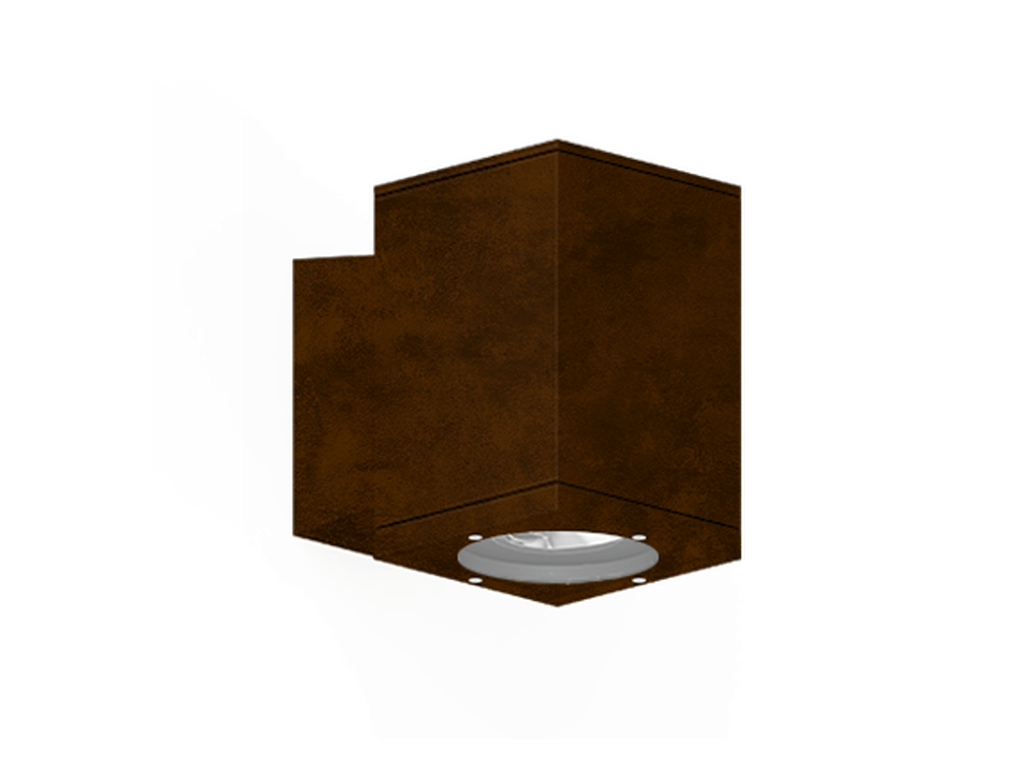

TANGO 30Corten - Urban
TANGO 30Oak - Woodland

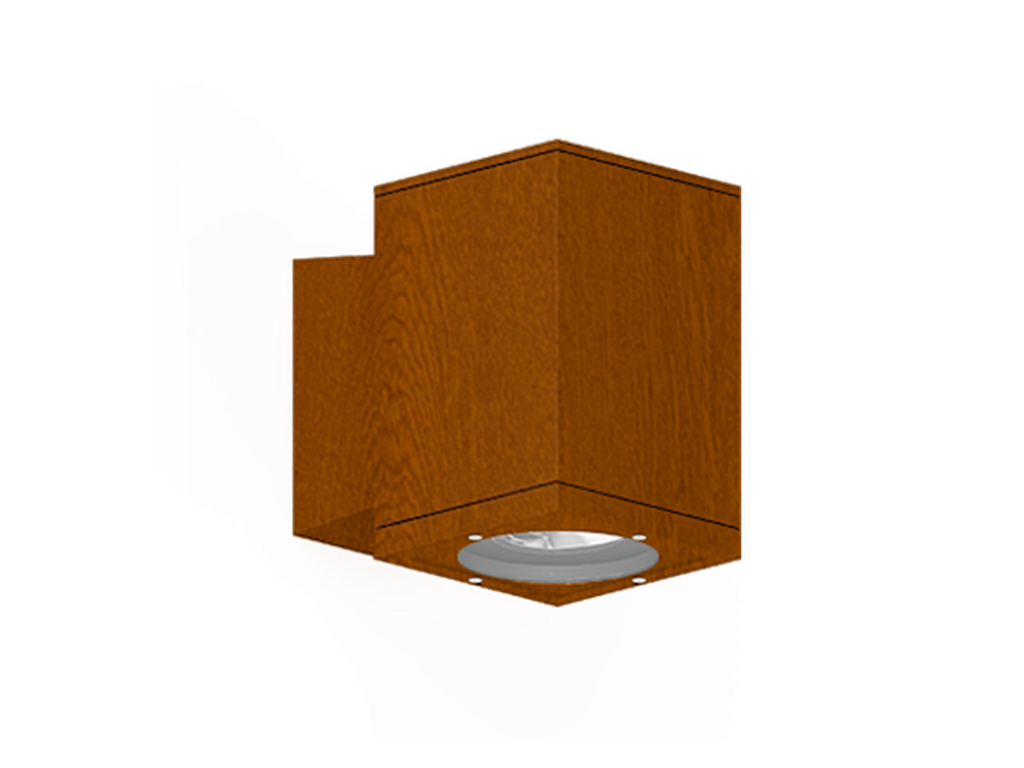

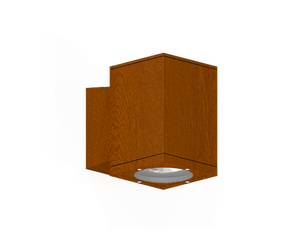

TANGO 30Walnut - Woodland

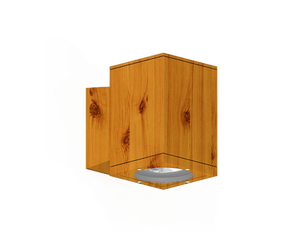

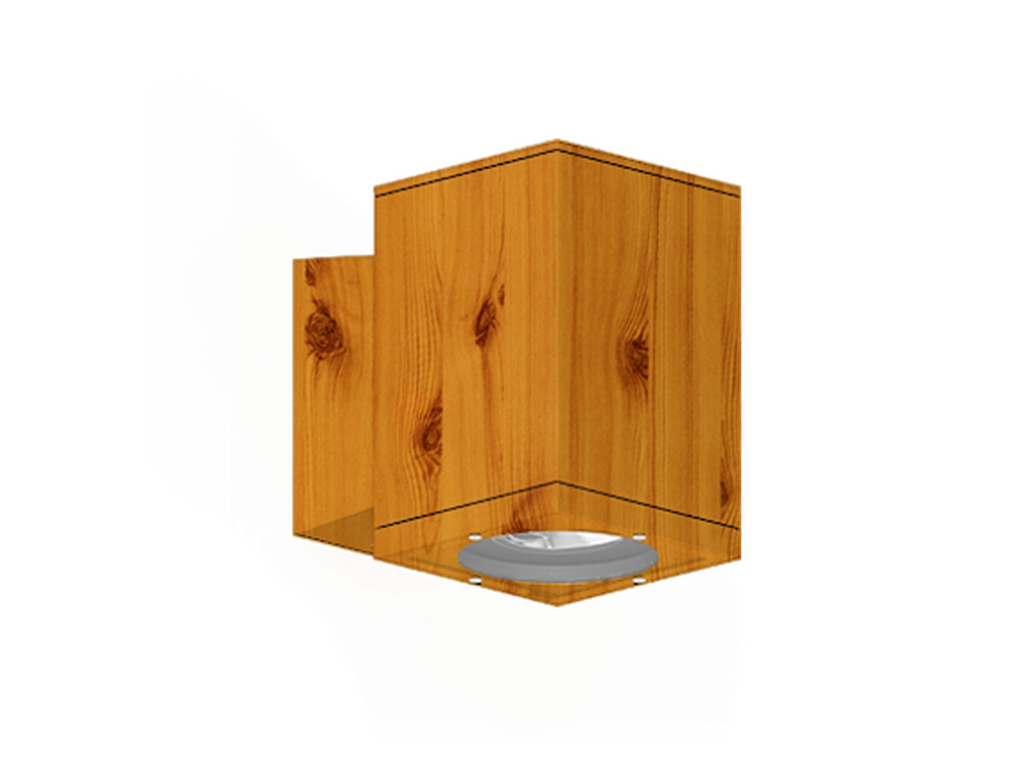

TANGO 30Pine - Woodland
TANGO 30
TANGO 30
TANGO 30
TANGO 30
TANGO 30Black
TANGO 30Dark Grey
TANGO 30White
TANGO 30Matt Silver
TANGO 30Bronze
TANGO 30Concrete - Urban
TANGO 30Softscape - Urban
TANGO 30Stone - Urban
TANGO 30Corten - Urban
TANGO 30Oak - Woodland
TANGO 30Walnut - Woodland
TANGO 30Pine - Woodland

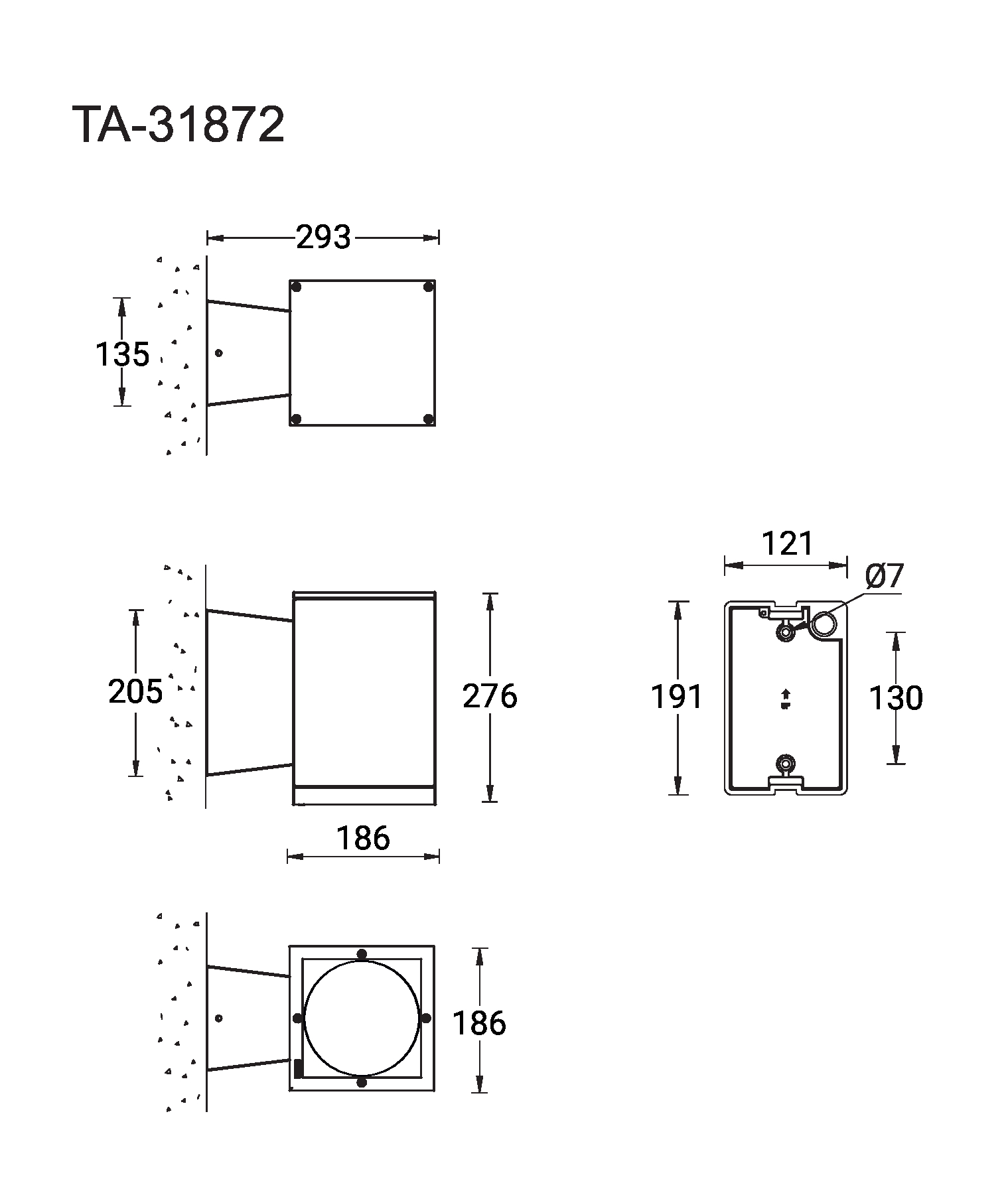

186x186 mm - 274 mm - Down - Square
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
1 COB
Power (W)
29 W
Lumen (lm)
2535 - 2668 lm
Efficacy (lm/W)
87 - 92 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
AS
Optic value
46°x56°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

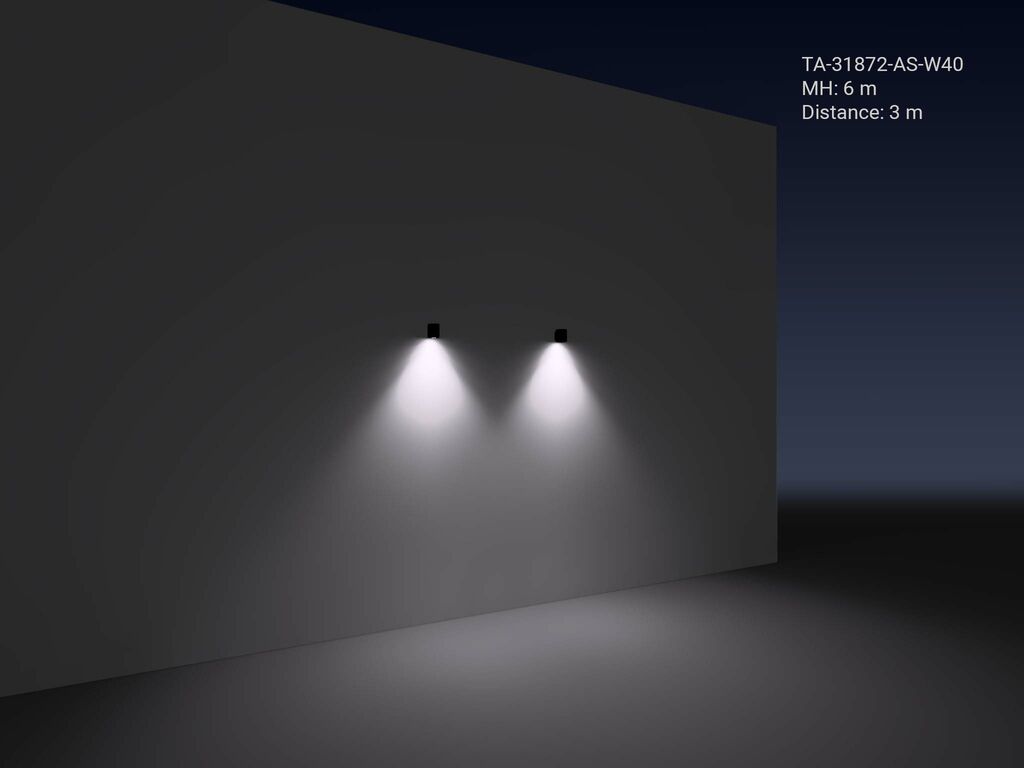

Light effect

Optic
AS (46°x56°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: TA-31872-AS-8030-ND-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: TA-31872-AS-8030-ND-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: TA-31872-AS-8030-ND-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: TA-31872-AS-8030-ND-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: TA-31872-AS-8030-ND-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: TA-31872-AS-8030-ND-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8030-ND-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8030-ND-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: TA-31872-AS-8030-ND-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: TA-31872-AS-8030-ND-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8030-ND-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8030-ND-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: TA-31872-AS-8040-ND-01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: TA-31872-AS-8040-ND-02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: TA-31872-AS-8040-ND-03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: TA-31872-AS-8040-ND-05
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: TA-31872-AS-8040-ND-06
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: TA-31872-AS-8040-ND-SU01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8040-ND-SU02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8040-ND-SU03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: TA-31872-AS-8040-ND-SU04
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: TA-31872-AS-8040-ND-SW01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8040-ND-SW02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8040-ND-SW03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: TA-31872-AS-8030-DI-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: TA-31872-AS-8030-DI-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: TA-31872-AS-8030-DI-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: TA-31872-AS-8030-DI-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: TA-31872-AS-8030-DI-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: TA-31872-AS-8030-DI-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8030-DI-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8030-DI-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: TA-31872-AS-8030-DI-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: TA-31872-AS-8030-DI-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8030-DI-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8030-DI-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: TA-31872-AS-8040-DI-01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: TA-31872-AS-8040-DI-02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: TA-31872-AS-8040-DI-03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: TA-31872-AS-8040-DI-05
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: TA-31872-AS-8040-DI-06
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: TA-31872-AS-8040-DI-SU01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8040-DI-SU02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8040-DI-SU03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: TA-31872-AS-8040-DI-SU04
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: TA-31872-AS-8040-DI-SW01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8040-DI-SW02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8040-DI-SW03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: TA-31872-AS-8030-DA-01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: TA-31872-AS-8030-DA-02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: TA-31872-AS-8030-DA-03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: TA-31872-AS-8030-DA-05
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: TA-31872-AS-8030-DA-06
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: TA-31872-AS-8030-DA-SU01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8030-DA-SU02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8030-DA-SU03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: TA-31872-AS-8030-DA-SU04
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: TA-31872-AS-8030-DA-SW01
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8030-DA-SW02
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8030-DA-SW03
Lumen (lm): 2535 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: TA-31872-AS-8040-DA-01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: TA-31872-AS-8040-DA-02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: TA-31872-AS-8040-DA-03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: TA-31872-AS-8040-DA-05
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: TA-31872-AS-8040-DA-06
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: TA-31872-AS-8040-DA-SU01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: TA-31872-AS-8040-DA-SU02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: TA-31872-AS-8040-DA-SU03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: TA-31872-AS-8040-DA-SU04
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: TA-31872-AS-8040-DA-SW01
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: TA-31872-AS-8040-DA-SW02
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: TA-31872-AS-8040-DA-SW03
Lumen (lm): 2668 lm
Optic: AS
Optic value: 46°x56°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

Accessory

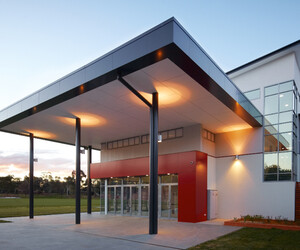

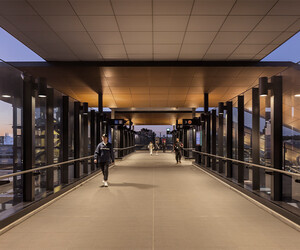

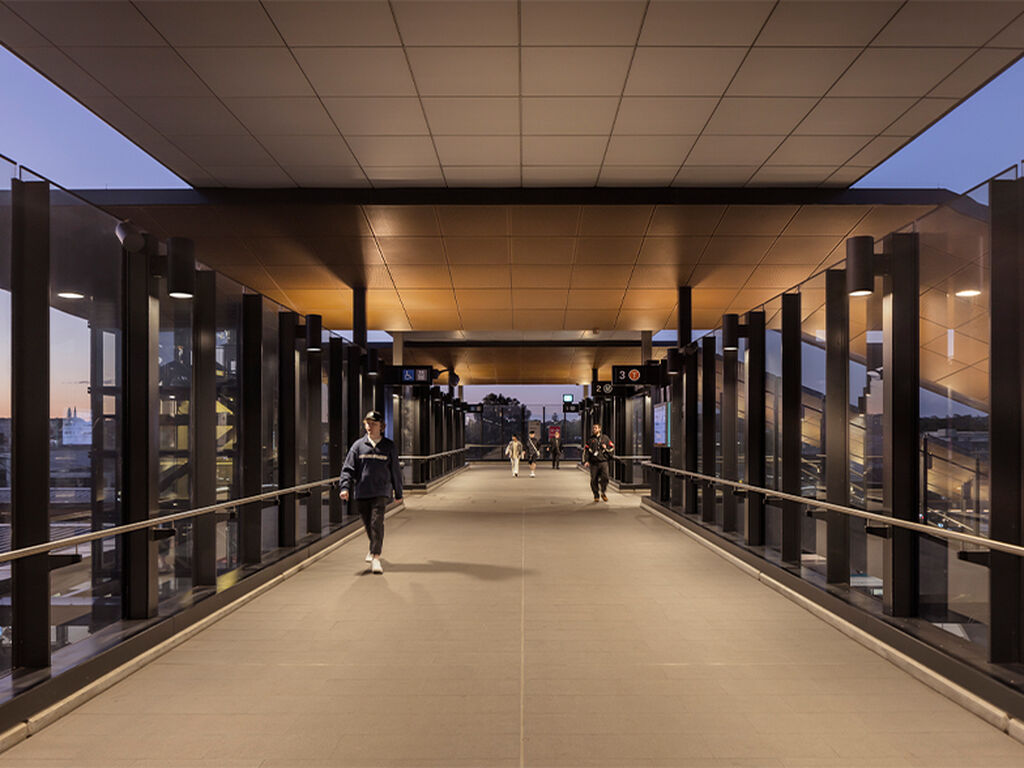

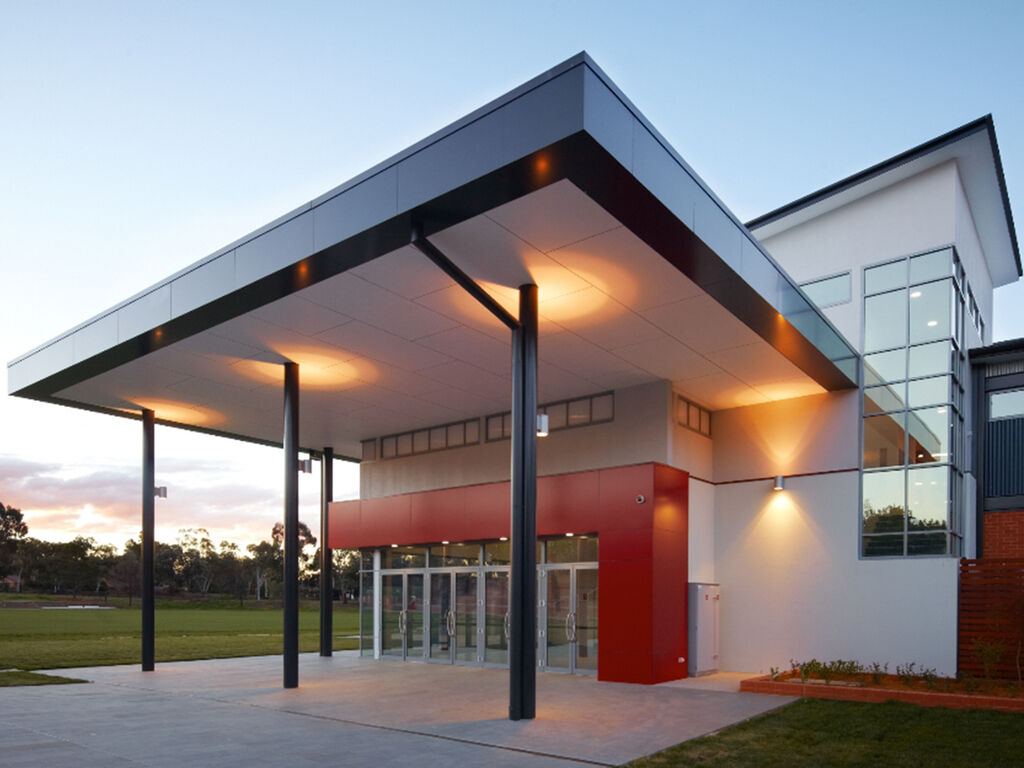

Project reference (TANGO Surface facade luminaires)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
