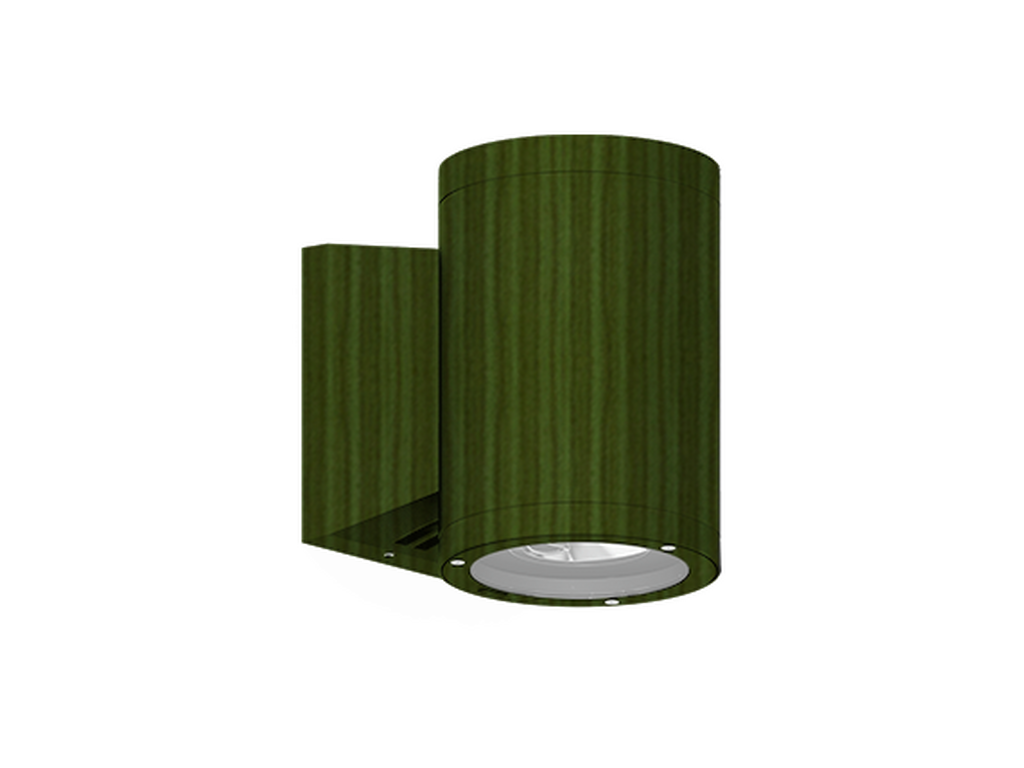

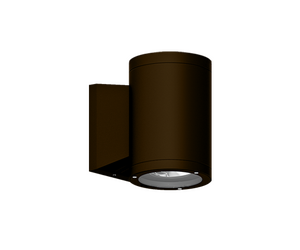

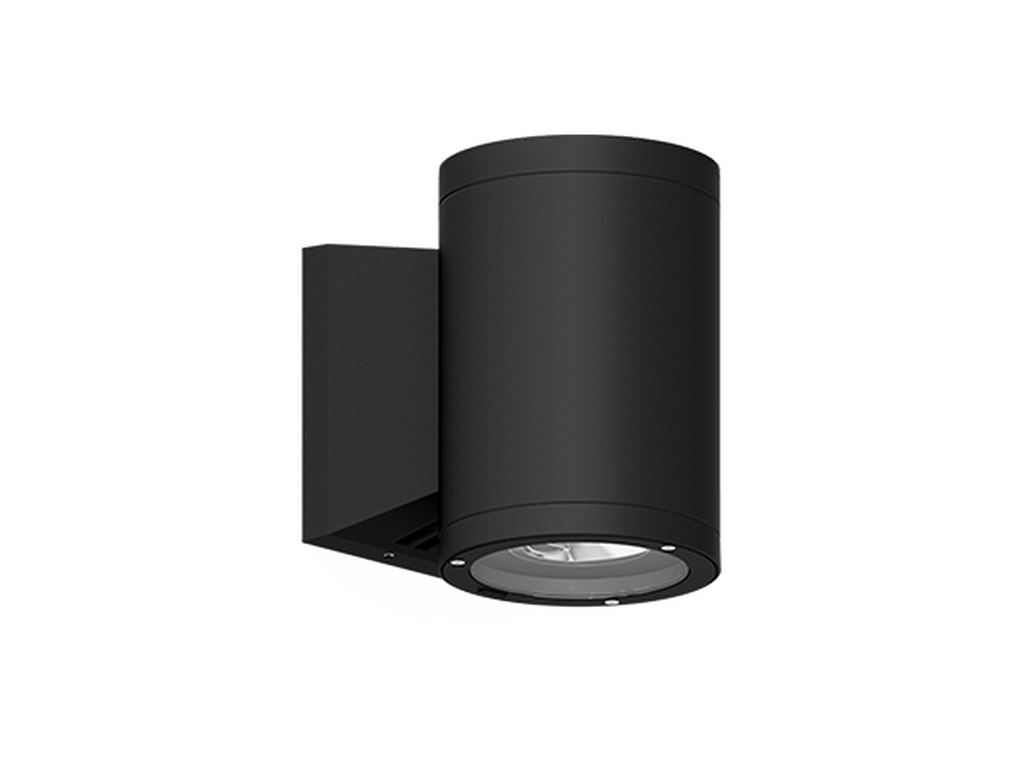

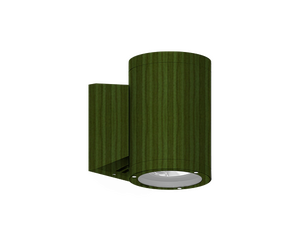

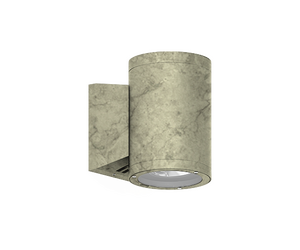

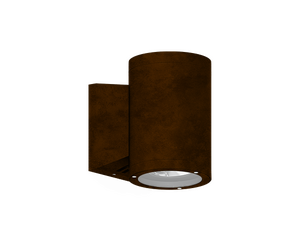

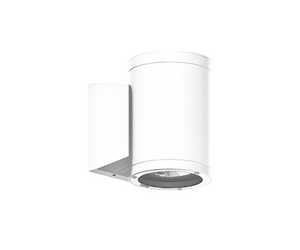

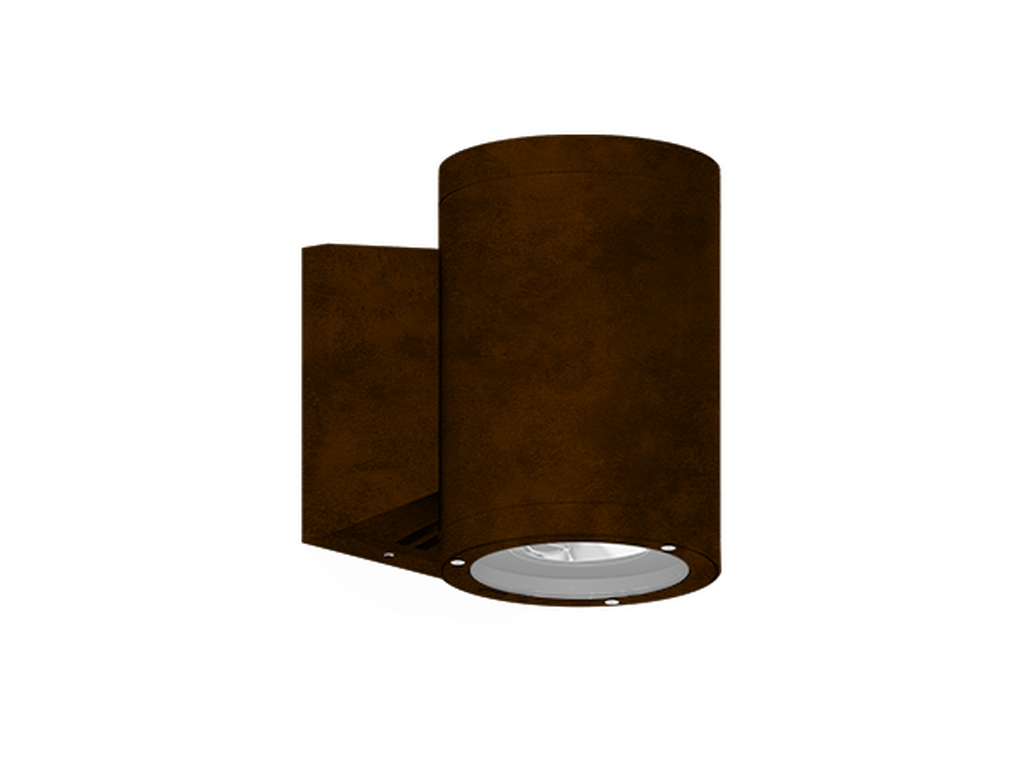

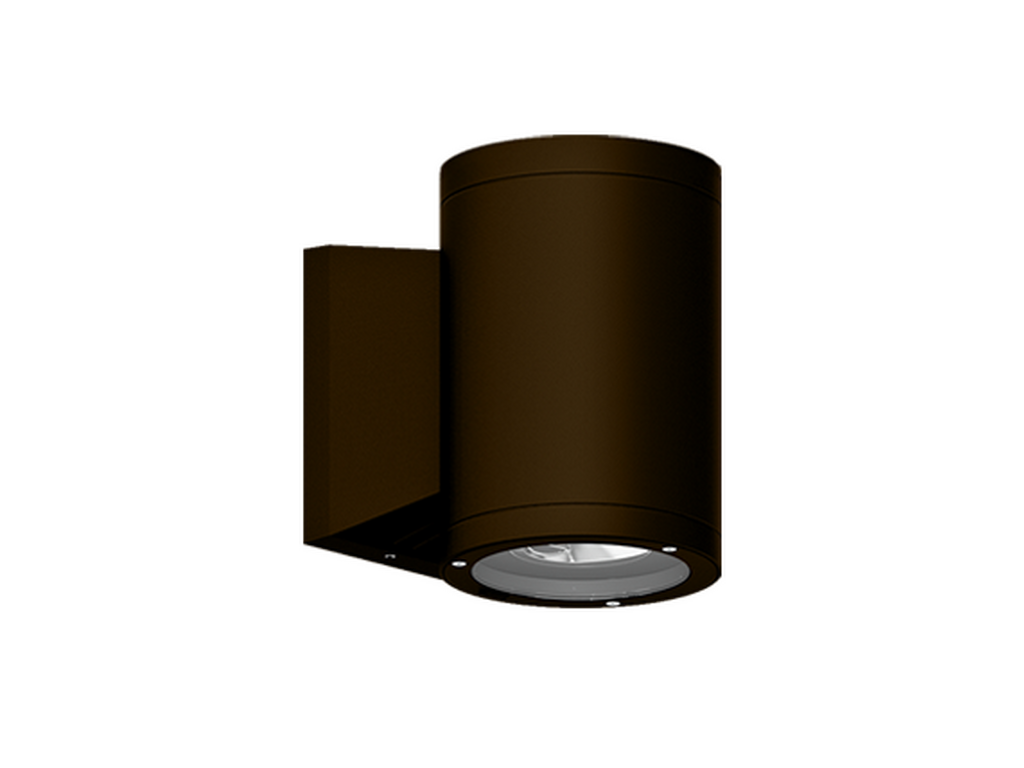

TANGO 31TA-31881TANGO

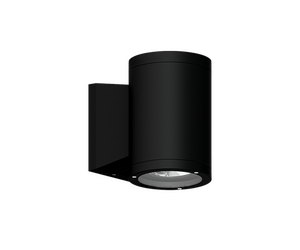

Black
Dark Grey
White
Matt Silver
Bronze

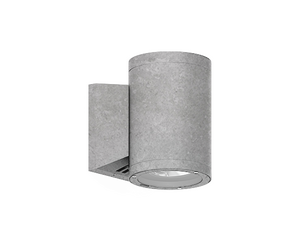

Concrete - Urban
Softscape - Urban
Stone - Urban

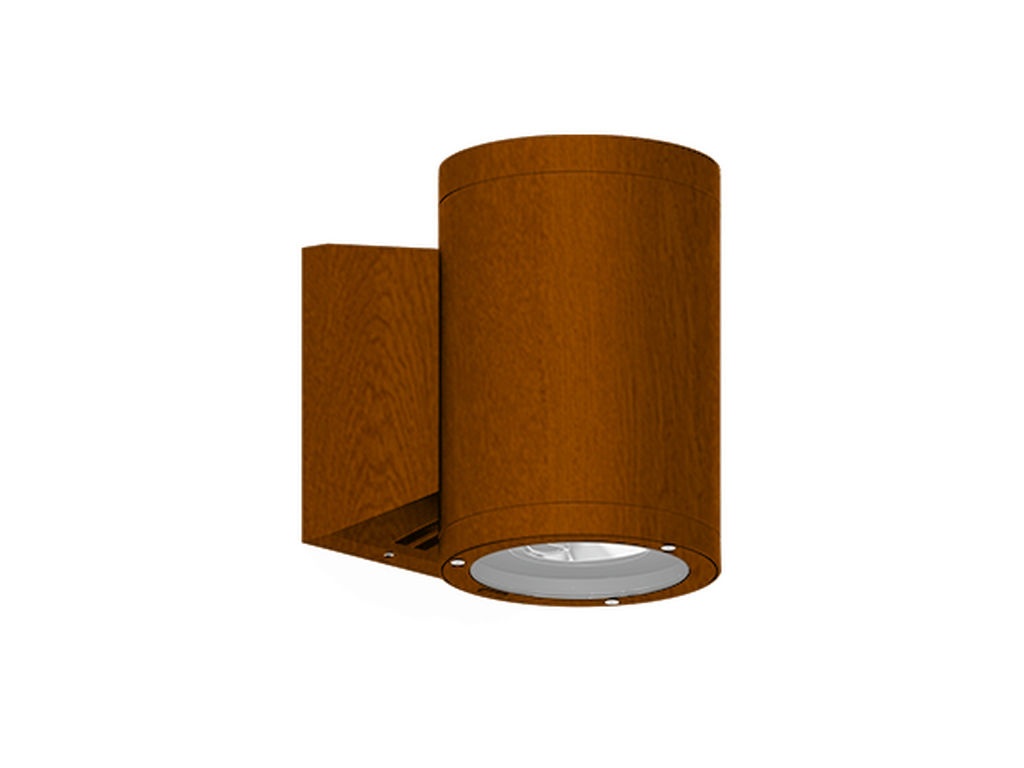

Corten - Urban
Oak - Woodland

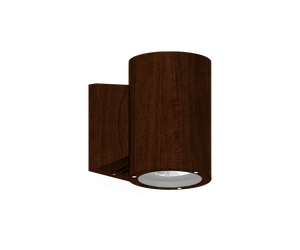

Walnut - Woodland

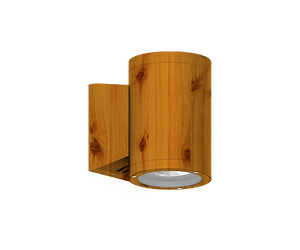

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø186 - 288 mm - Down (Optic) & Up (Optic 2nd) - Round
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
16 & 16 LED
Power (W)
70 W
Lumen (lm)
6952 - 7820 lm
Efficacy (lm/W)
99 - 112 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
140°x46°, 139°x68°, 90°x76°
Optic (2nd)
T2, T3, T4
Optic (2nd) Value
140°x46°, 139°x68°, 90°x76°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U5-G1
ULR
49%, 50%, 51%
ULOR
49%, 50%, 51%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.4 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
T2 (140°x46°) / T2 (140°x46°)
T2 (140°x46°) / T3 (139°x68°)
T2 (140°x46°) / T4 (90°x76°)
T3 (139°x68°) / T2 (140°x46°)
T3 (139°x68°) / T3 (139°x68°)
T3 (139°x68°) / T4 (90°x76°)
T4 (90°x76°) / T2 (140°x46°)
T4 (90°x76°) / T3 (139°x68°)
T4 (90°x76°) / T4 (90°x76°)
