LIGMAN UTAH ECO 1 UT-50571.

UTAH ECO 1UT-50571

(Version 2)

Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

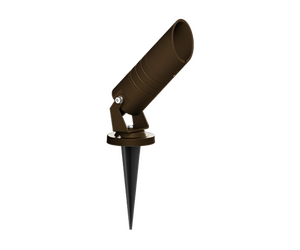

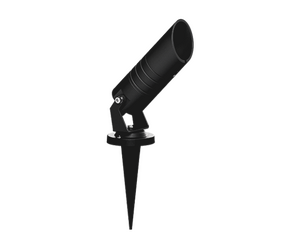

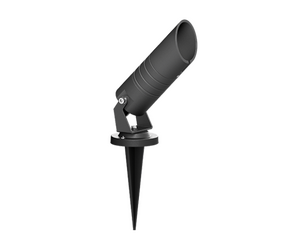

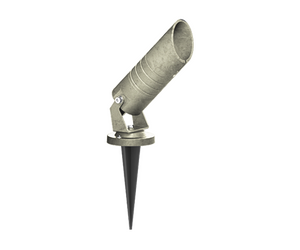

UTAH ECO 1Black
UTAH ECO 1Dark Grey
UTAH ECO 1White
UTAH ECO 1Matt Silver
UTAH ECO 1Bronze
UTAH ECO 1Concrete - Urban
UTAH ECO 1Softscape - Urban
UTAH ECO 1Stone - Urban
UTAH ECO 1Corten - Urban
UTAH ECO 1Oak - Woodland
UTAH ECO 1Walnut - Woodland
UTAH ECO 1Pine - Woodland
UTAH ECO 1Black
UTAH ECO 1Dark Grey
UTAH ECO 1White
UTAH ECO 1Matt Silver
UTAH ECO 1Bronze
UTAH ECO 1Concrete - Urban
UTAH ECO 1Softscape - Urban
UTAH ECO 1Stone - Urban
UTAH ECO 1Corten - Urban
UTAH ECO 1Oak - Woodland
UTAH ECO 1Walnut - Woodland
UTAH ECO 1Pine - Woodland
Integral control gear - With spike / anti-glare visor - Class I
CEClass IIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 LED
Power (W)
6 W
Lumen (lm)
356 - 374 lm
Efficacy (lm/W)
71 - 75 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M
Optic value
24°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0
CIE flux code nº3
99
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.27 kg.
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000

LIGHT EFFECT

Optic
M (24°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: UT-50571-M-8030-ND-01
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: UT-50571-M-8030-ND-02
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: UT-50571-M-8030-ND-03
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: UT-50571-M-8030-ND-05
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: UT-50571-M-8030-ND-06
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: UT-50571-M-8030-ND-SU01
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: UT-50571-M-8030-ND-SU02
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: UT-50571-M-8030-ND-SU03
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: UT-50571-M-8030-ND-SU04
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: UT-50571-M-8030-ND-SW01
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: UT-50571-M-8030-ND-SW02
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: UT-50571-M-8030-ND-SW03
Lumen (lm): 356 lm
Optic: M
Optic value: 24°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: UT-50571-M-8040-ND-01
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: UT-50571-M-8040-ND-02
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: UT-50571-M-8040-ND-03
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: UT-50571-M-8040-ND-05
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: UT-50571-M-8040-ND-06
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: UT-50571-M-8040-ND-SU01
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: UT-50571-M-8040-ND-SU02
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: UT-50571-M-8040-ND-SU03
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: UT-50571-M-8040-ND-SU04
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: UT-50571-M-8040-ND-SW01
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: UT-50571-M-8040-ND-SW02
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: UT-50571-M-8040-ND-SW03
Lumen (lm): 374 lm
Optic: M
Optic value: 24°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

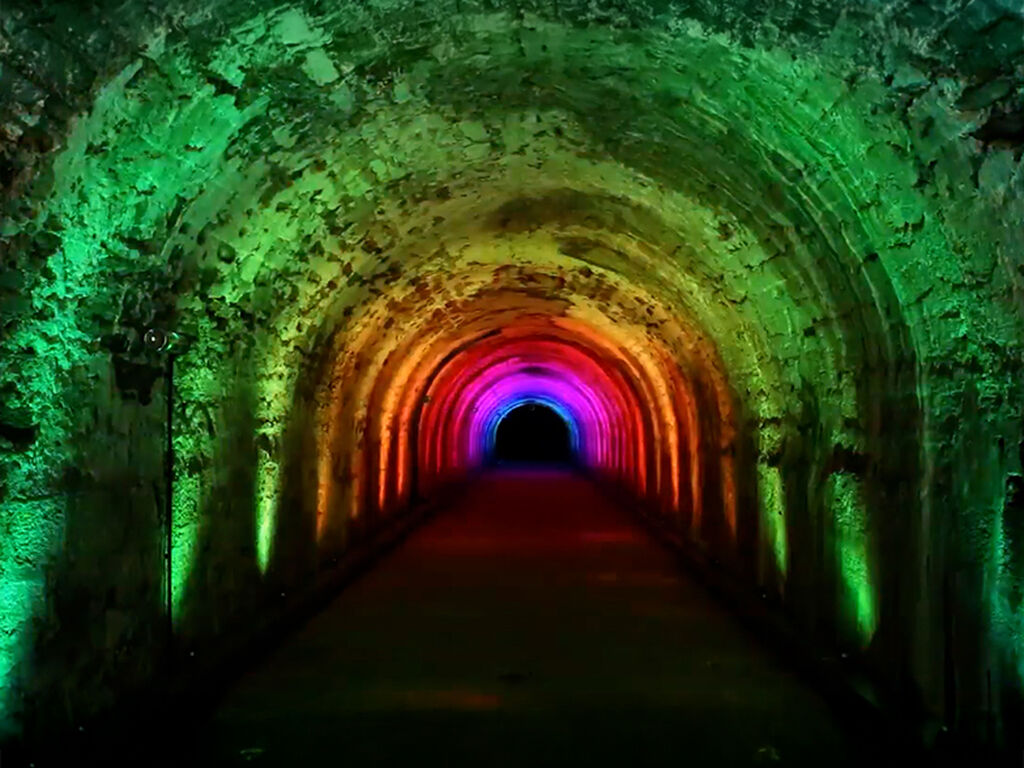

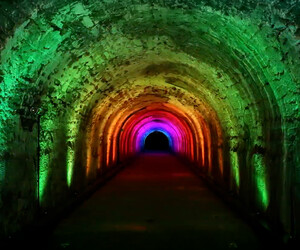

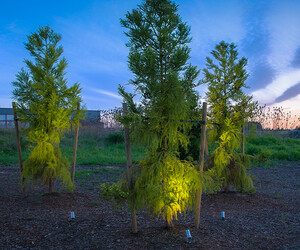

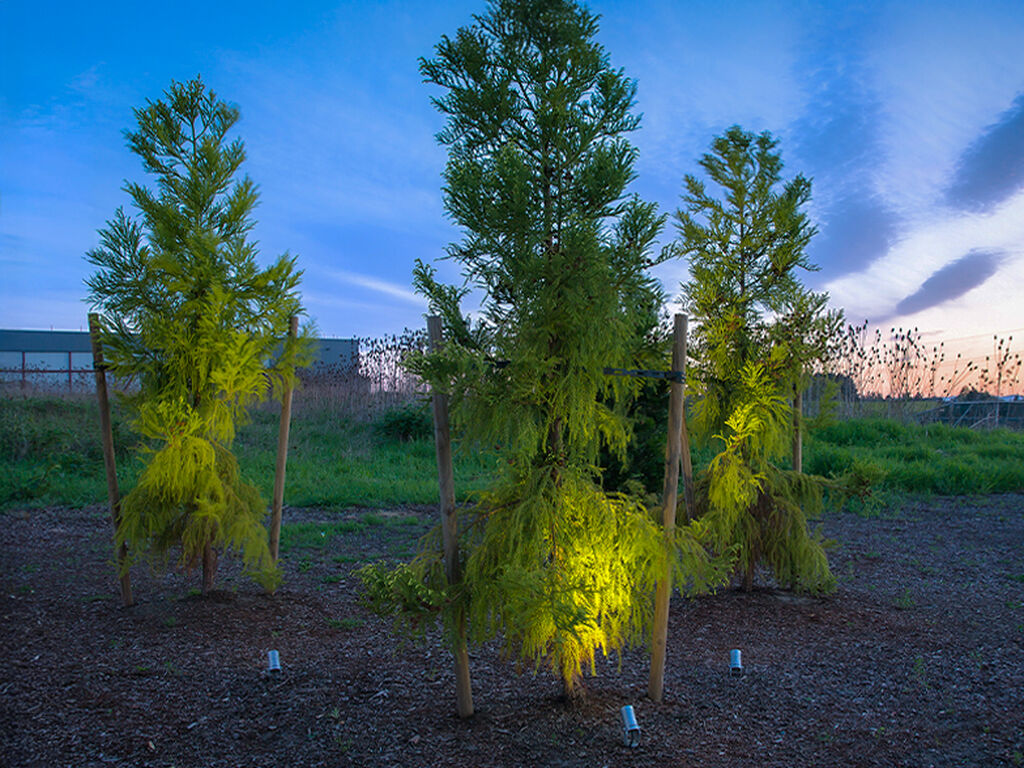

PROJECT REFERENCE (UTAH Floodlights, projectors)
