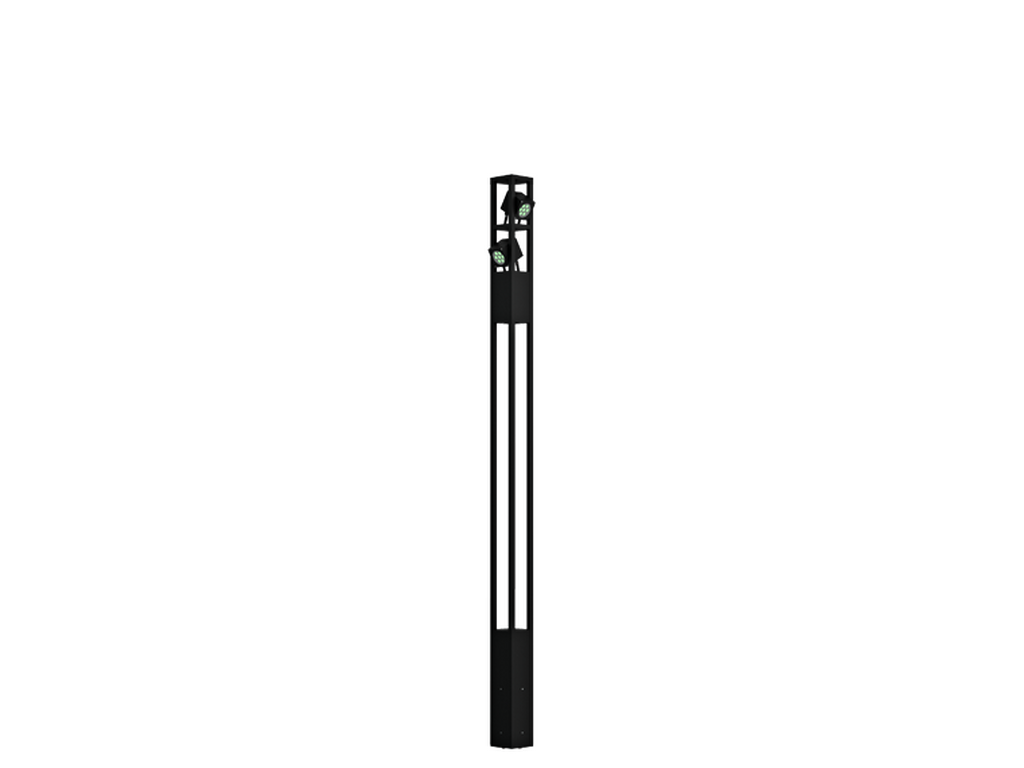

LIGMAN VANCOUVER 16 VA-20112.

VANCOUVER 16VA-20112VANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

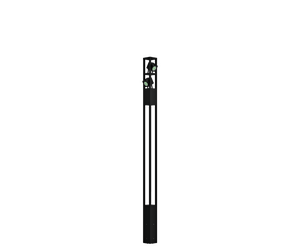

VANCOUVER 16Black

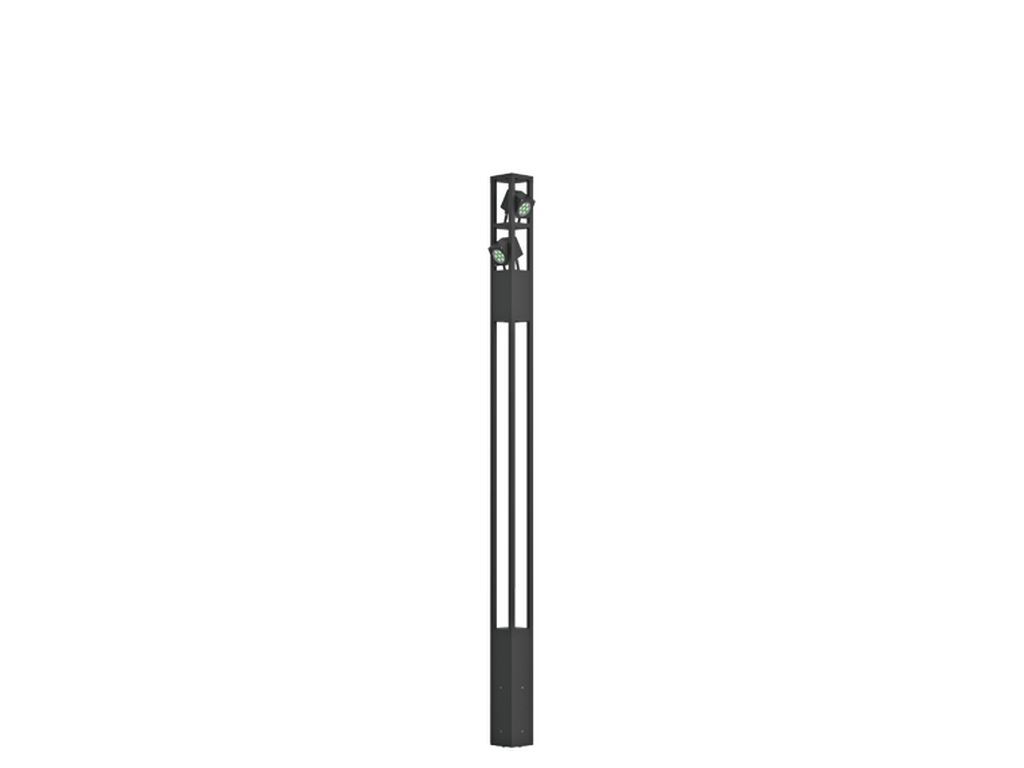

VANCOUVER 16Dark Grey

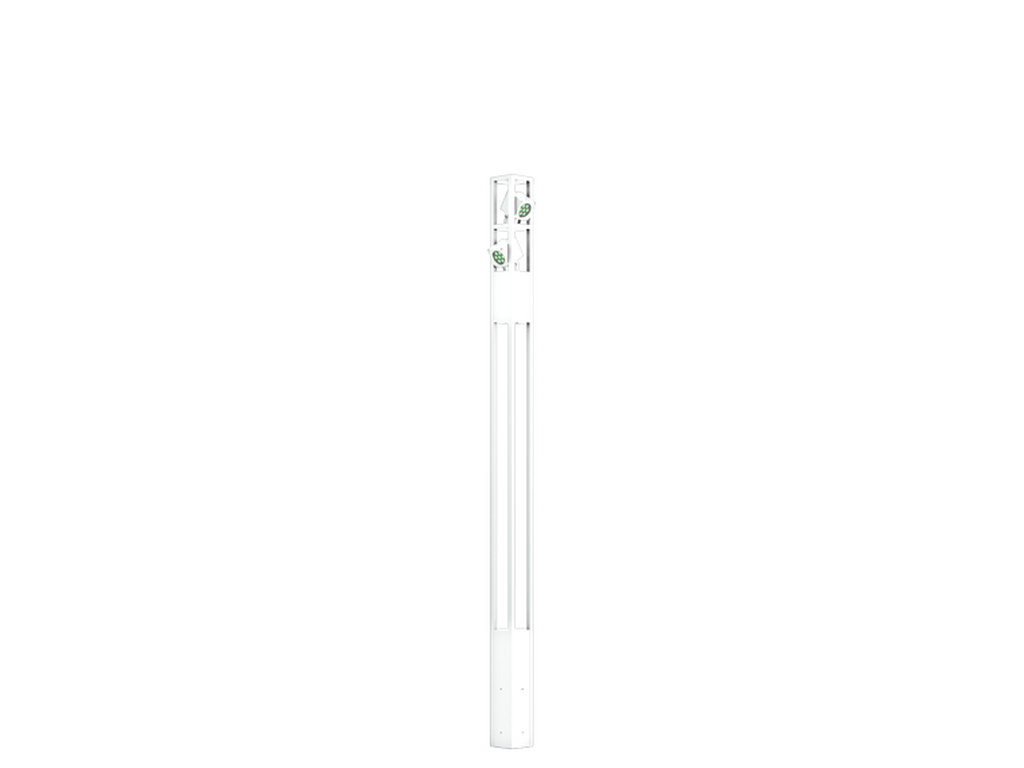

VANCOUVER 16White
VANCOUVER 16Matt Silver

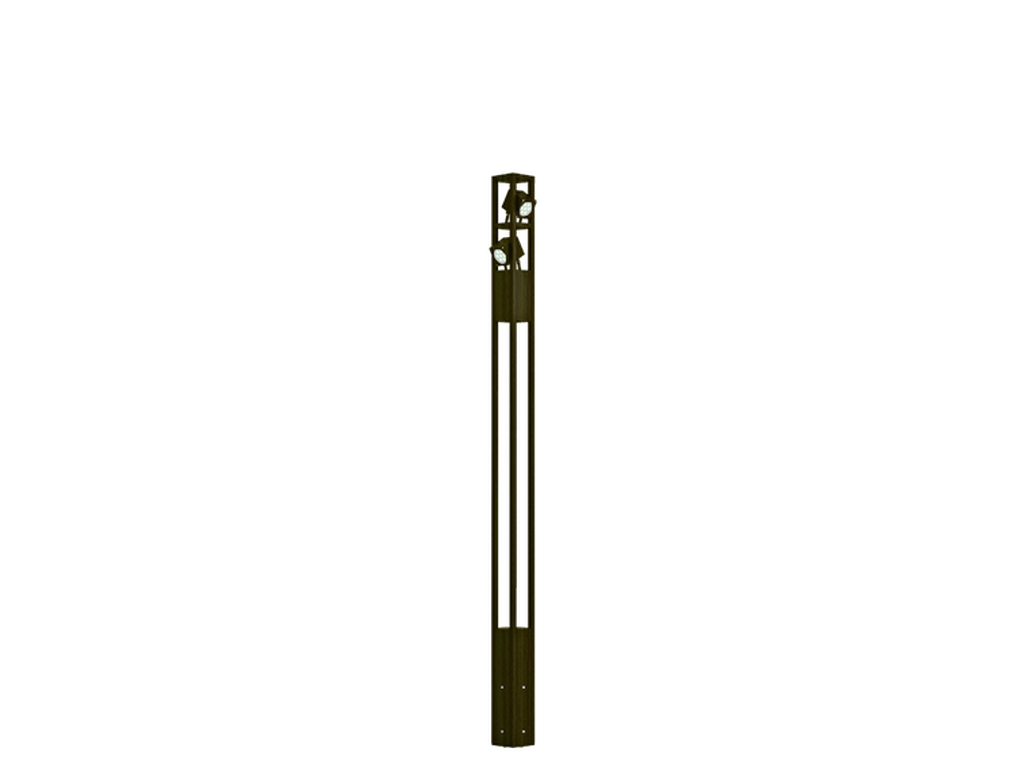

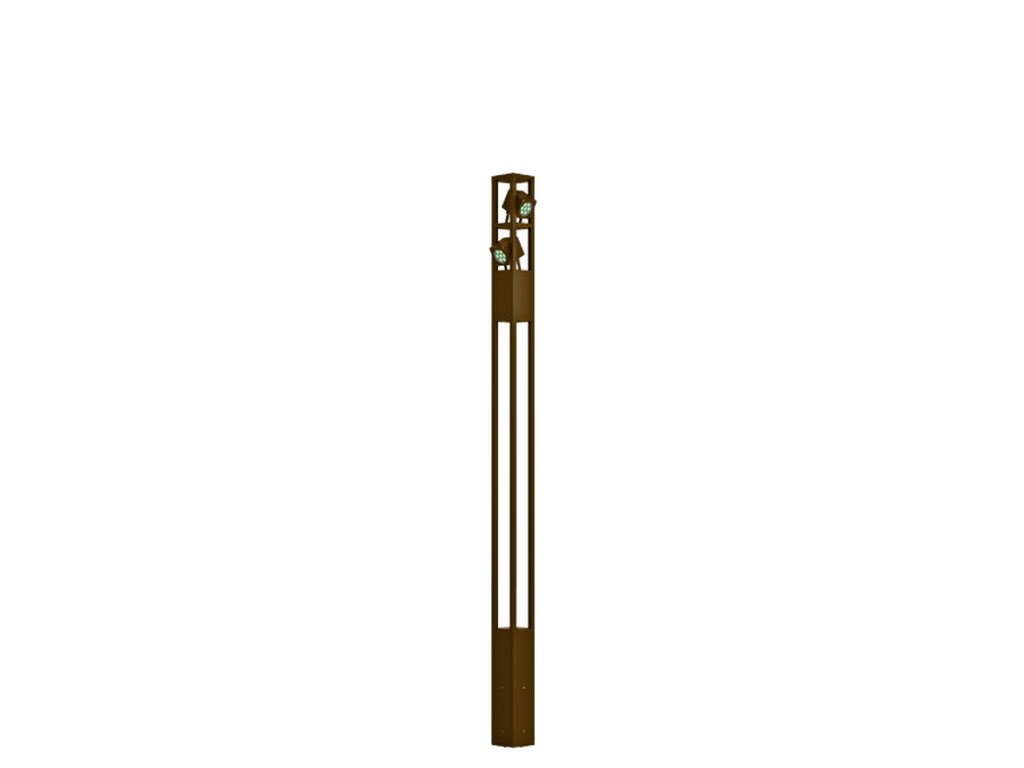

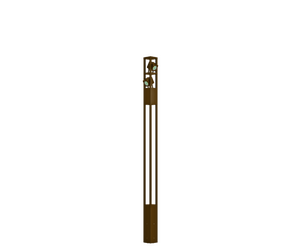

VANCOUVER 16Bronze
VANCOUVER 16Concrete - Urban
VANCOUVER 16Softscape - Urban

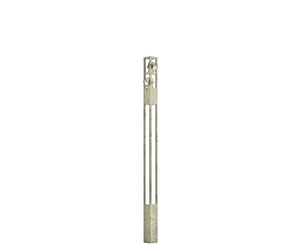

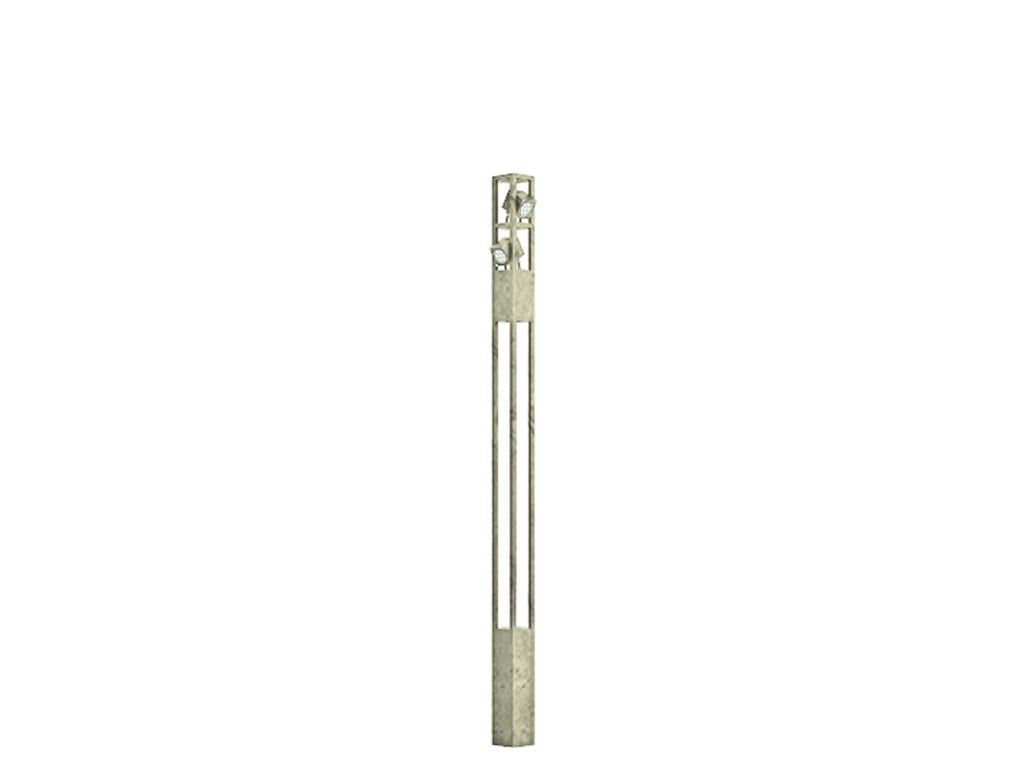

VANCOUVER 16Stone - Urban

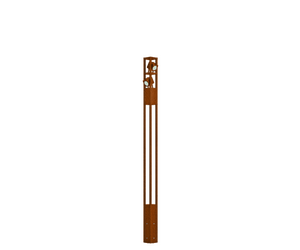

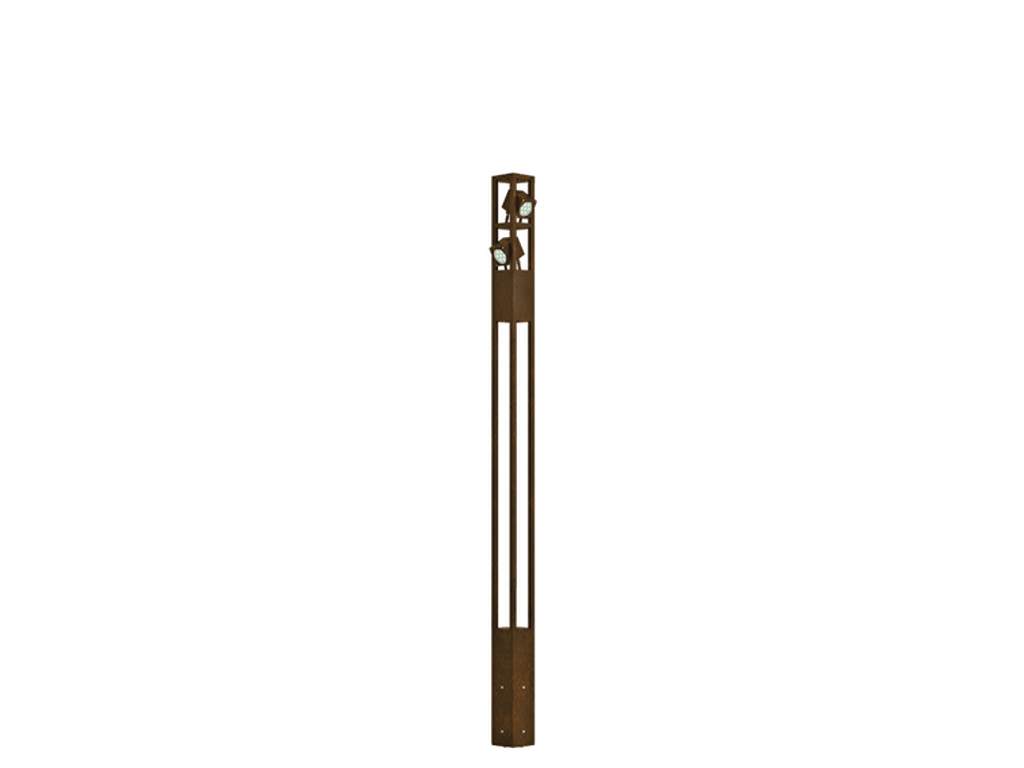

VANCOUVER 16Corten - Urban
VANCOUVER 16Oak - Woodland

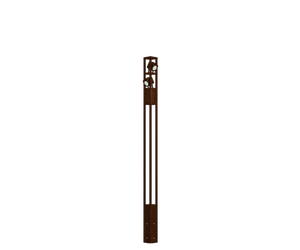

VANCOUVER 16Walnut - Woodland

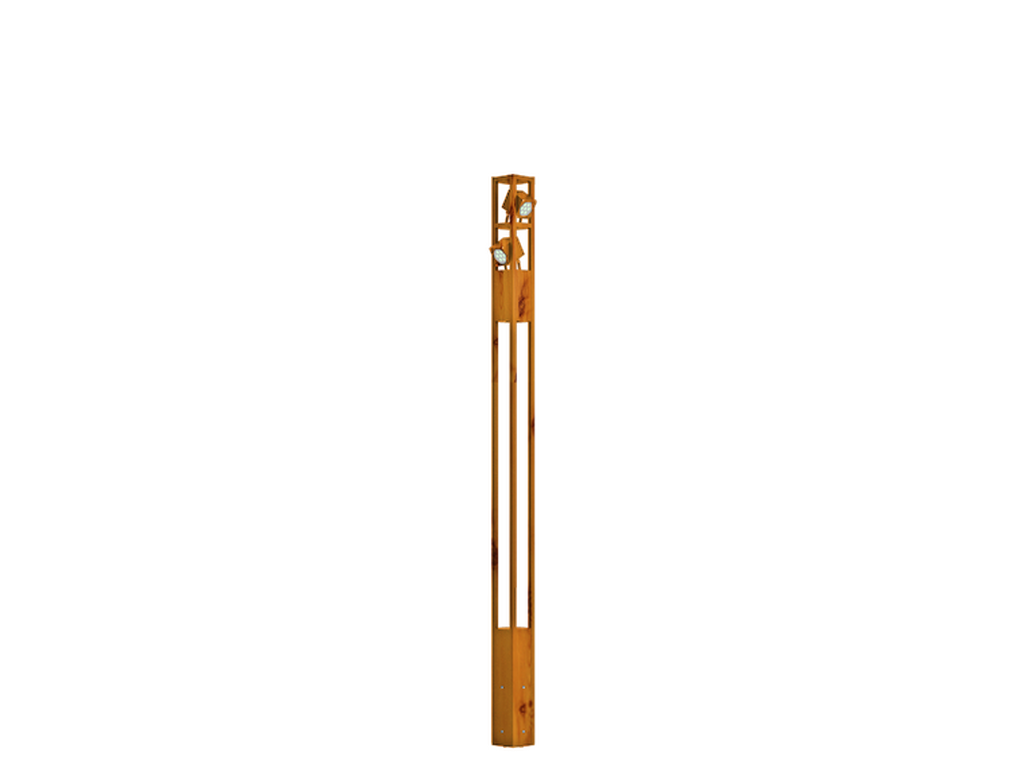

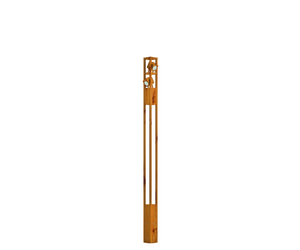

VANCOUVER 16Pine - Woodland
VANCOUVER 16Black

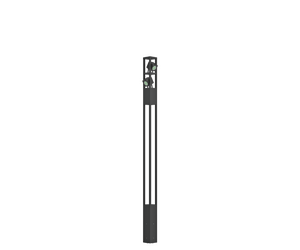

VANCOUVER 16Dark Grey

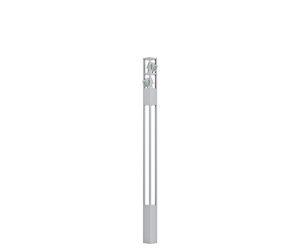

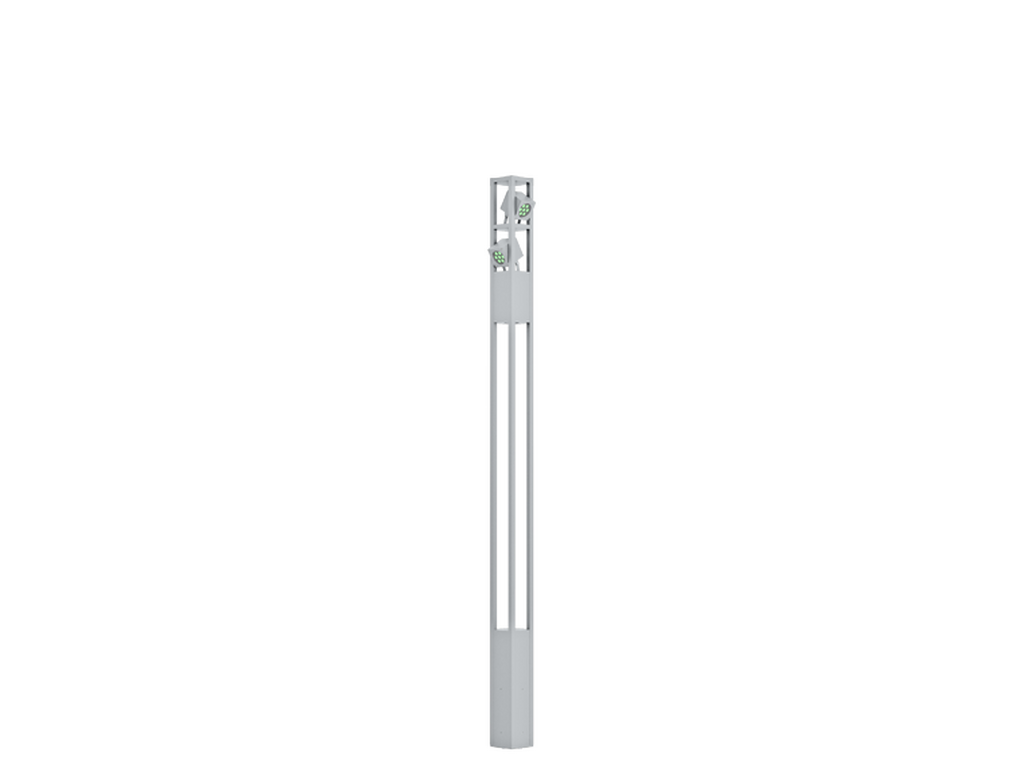

VANCOUVER 16White
VANCOUVER 16Matt Silver
VANCOUVER 16Bronze
VANCOUVER 16Concrete - Urban
VANCOUVER 16Softscape - Urban
VANCOUVER 16Stone - Urban
VANCOUVER 16Corten - Urban
VANCOUVER 16Oak - Woodland
VANCOUVER 16Walnut - Woodland
VANCOUVER 16Pine - Woodland
240x240 mm - 4400 mm - No decorative pattern (Optic) - 2 projectors (Optic 2nd ) IP66 - RGBW
CERETILAPClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
7 LED & 2 x 7 LED (Projectors)
Power (W)
99 W
Lumen (lm)
3042 - 4053 lm
Efficacy (lm/W)
31 - 41 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
21°, 35°, 48°x26°
Optic (2nd)
N, M, E
Optic (2nd) Value
21°, 35°, 48°x26°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0, B2-U0-G0
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
60.4 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.644
Cable
One IP68 connector supplied with 0.3 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
