LIGMAN VANCOUVER 29 VA-30032.

VANCOUVER 29VA-30032VANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

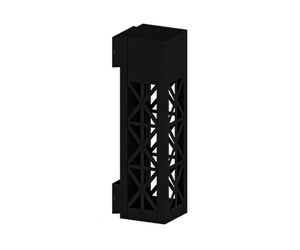

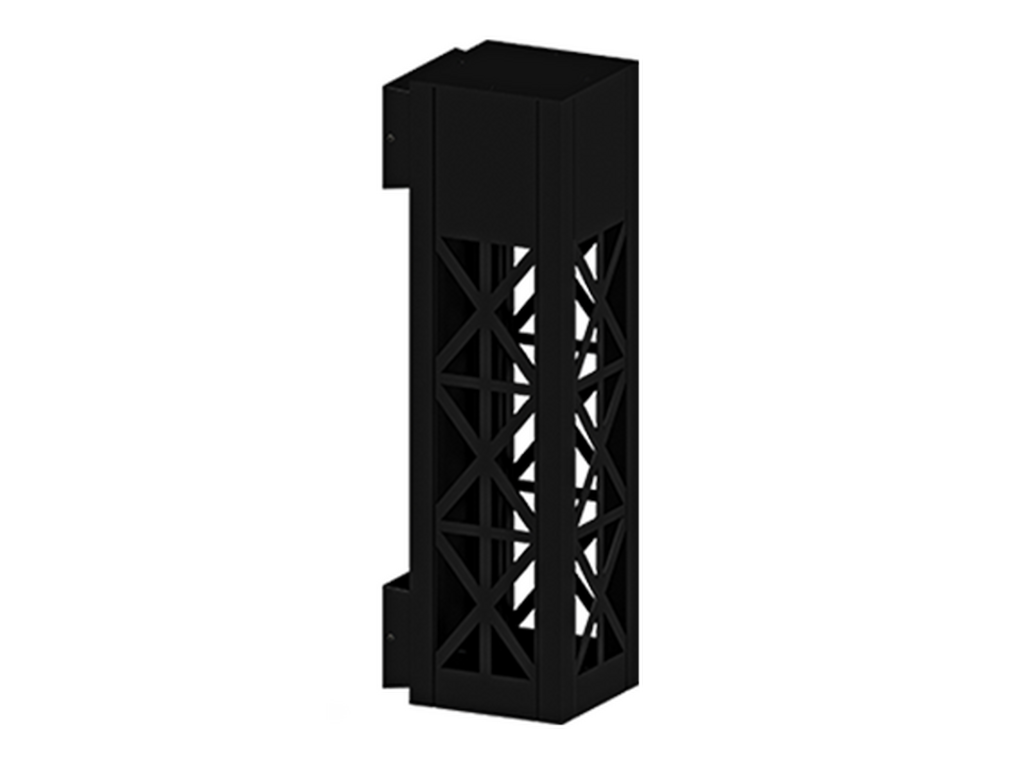

VANCOUVER 29Black

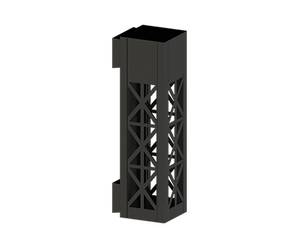

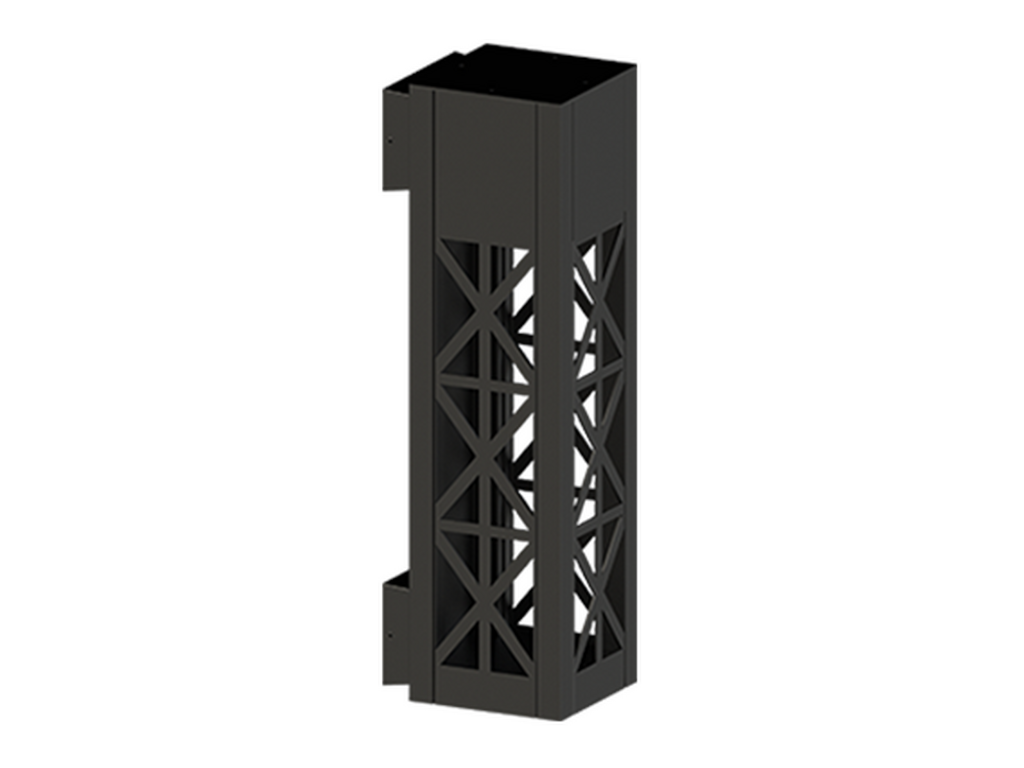

VANCOUVER 29Dark Grey

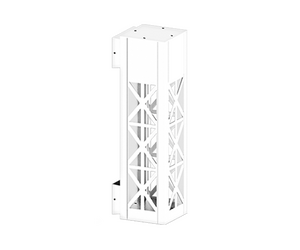

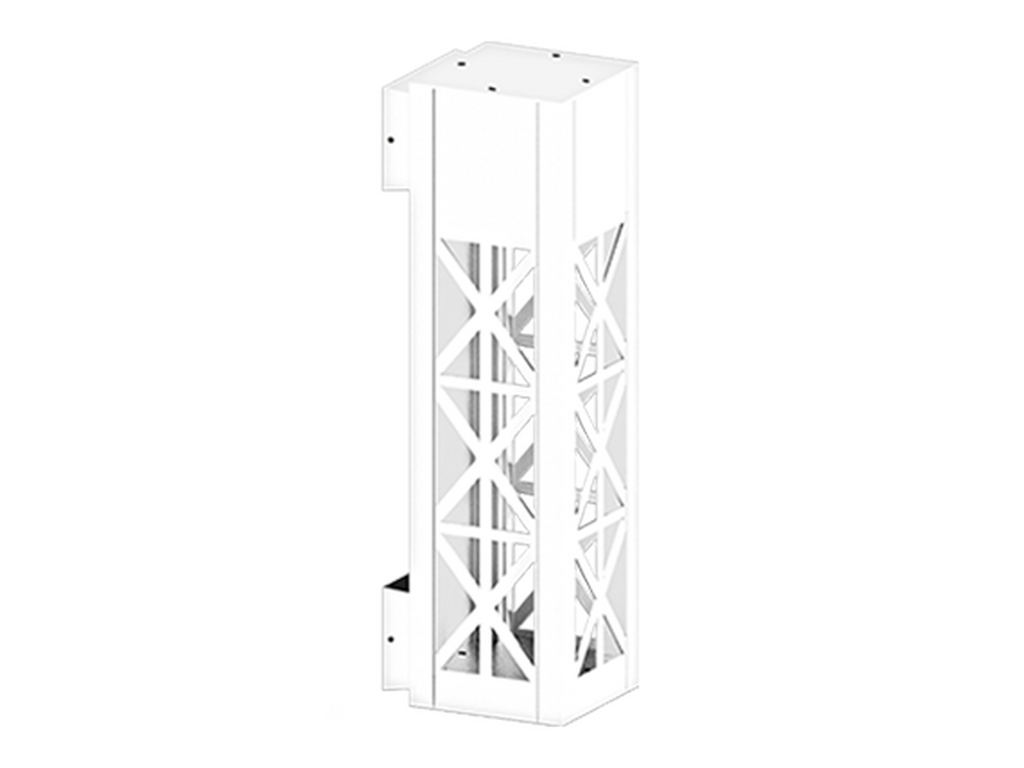

VANCOUVER 29White

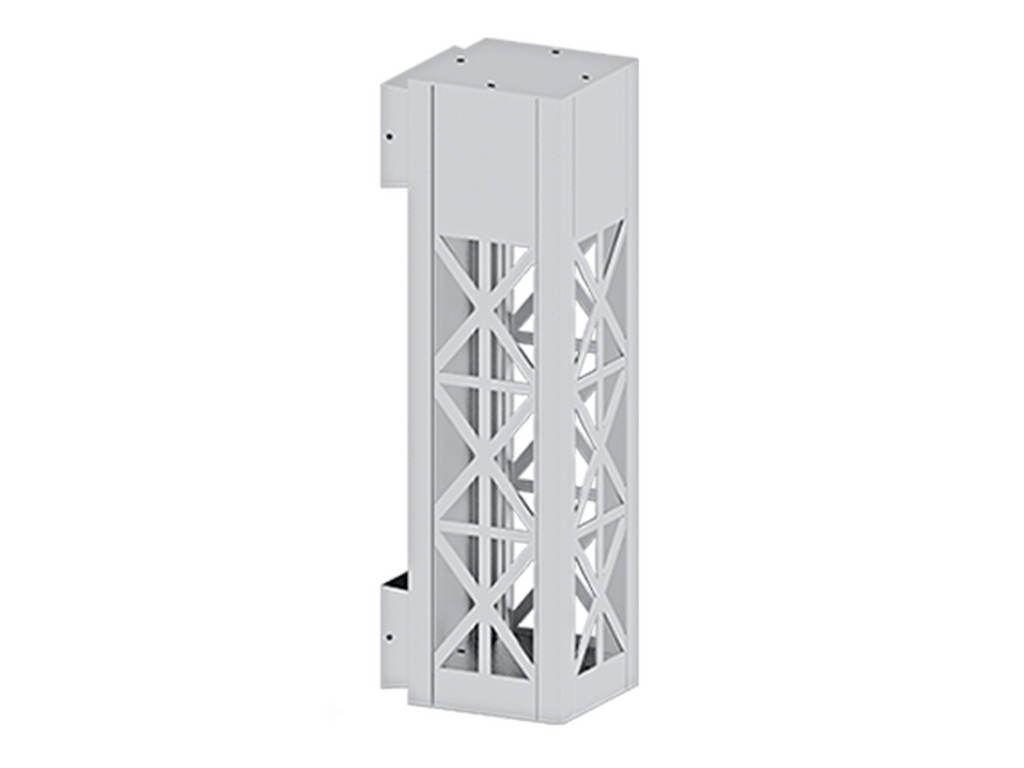

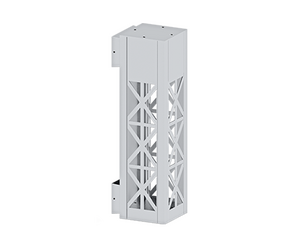

VANCOUVER 29Matt Silver
VANCOUVER 29Bronze

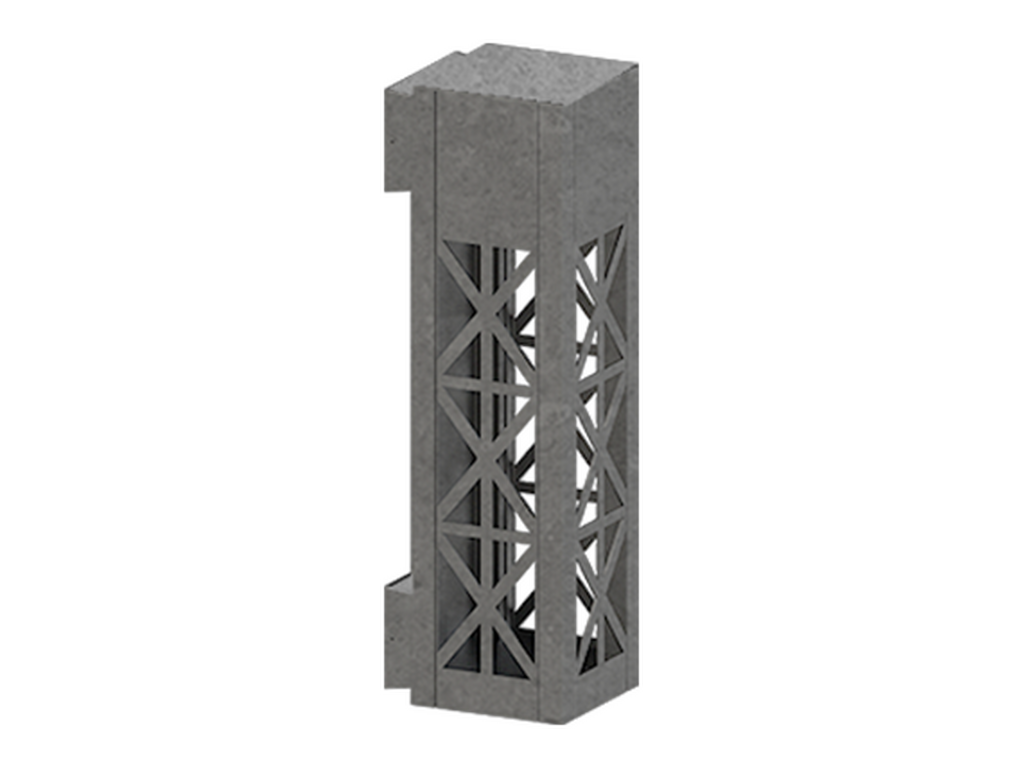

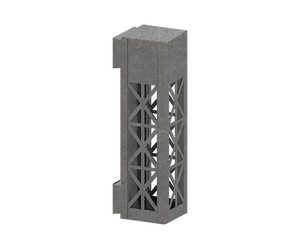

VANCOUVER 29Concrete - Urban
VANCOUVER 29Softscape - Urban
VANCOUVER 29Stone - Urban

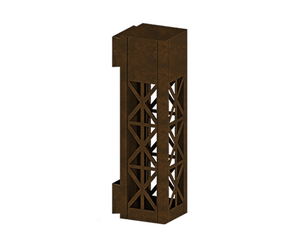

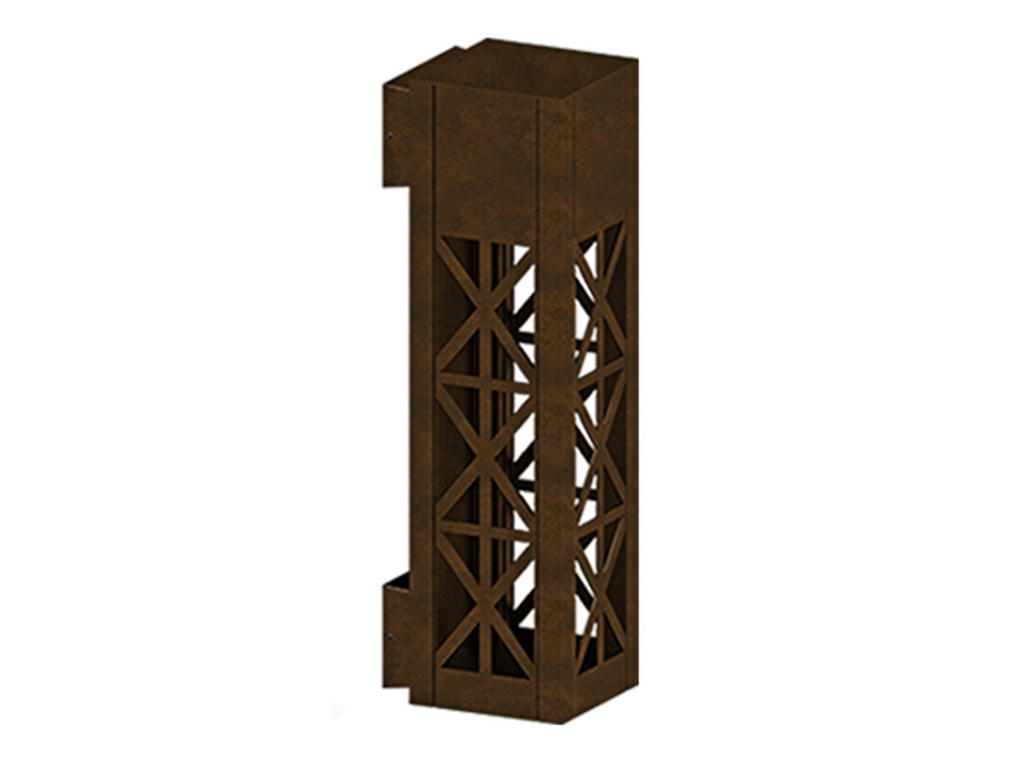

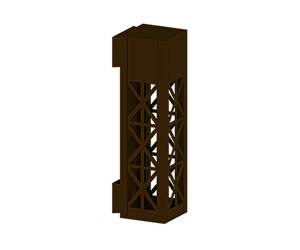

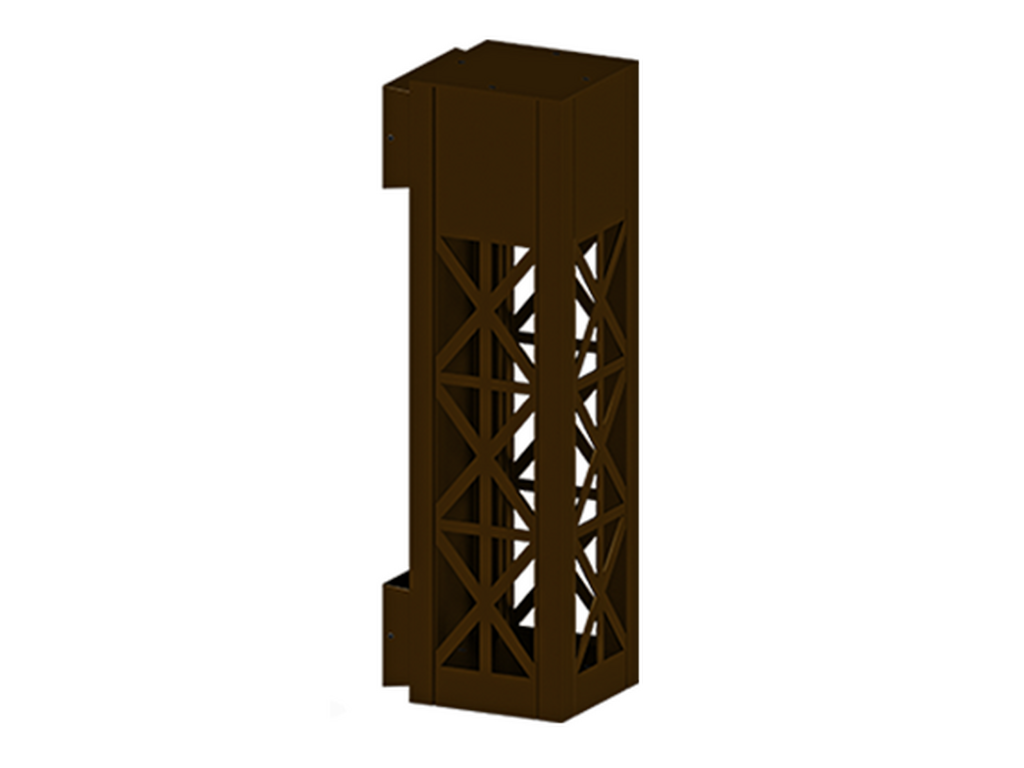

VANCOUVER 29Corten - Urban

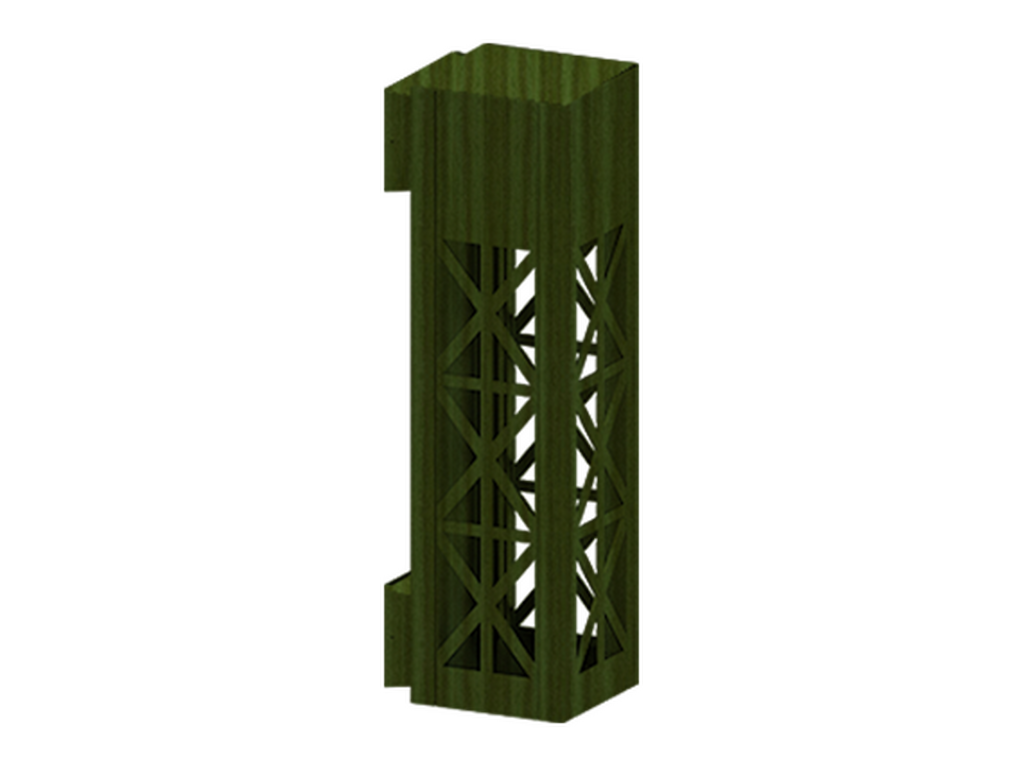

VANCOUVER 29Oak - Woodland

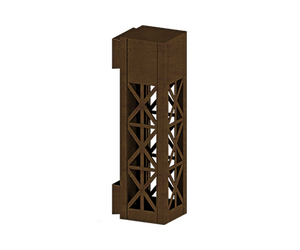

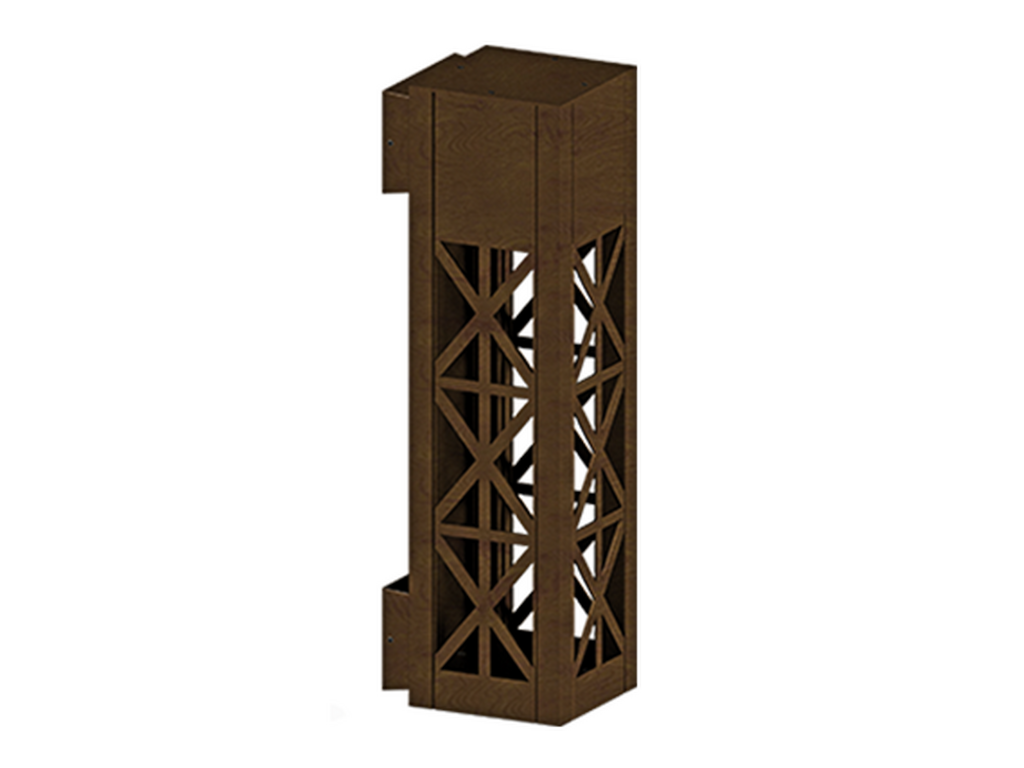

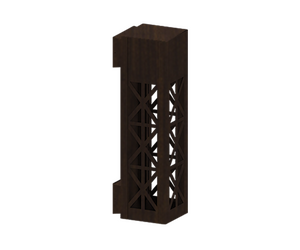

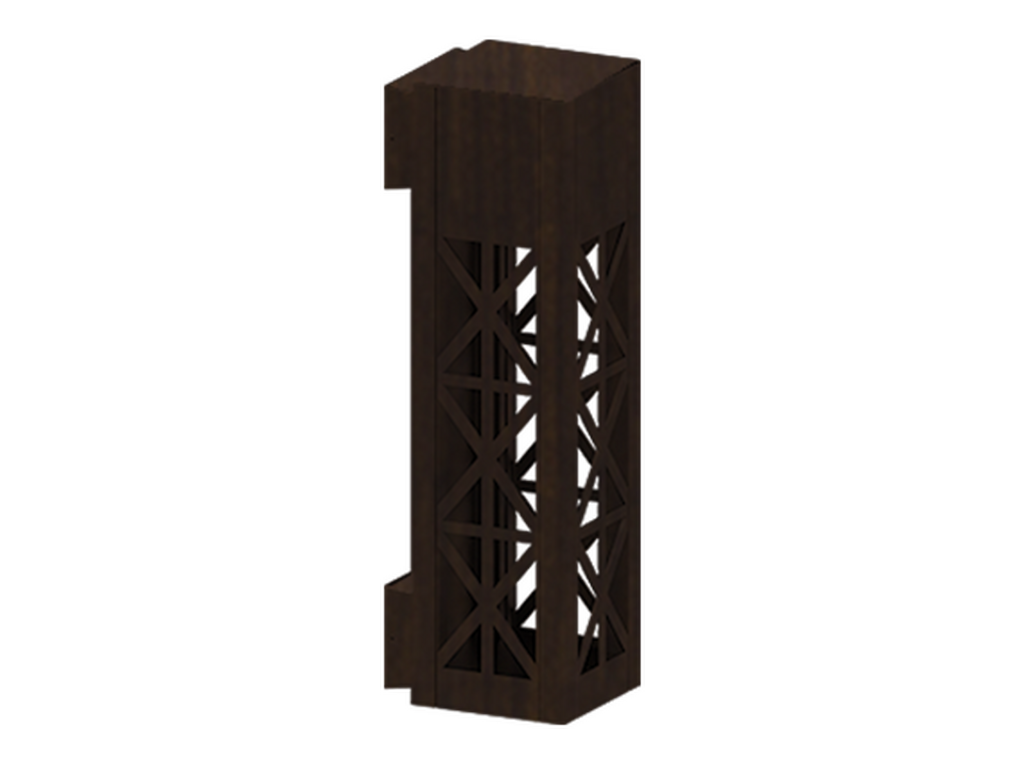

VANCOUVER 29Walnut - Woodland

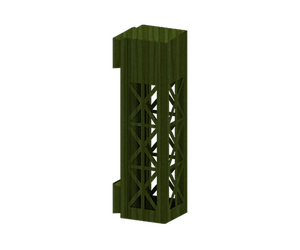

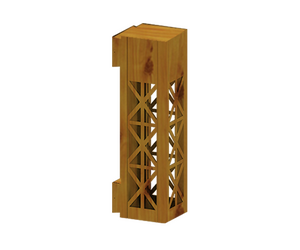

VANCOUVER 29Pine - Woodland
VANCOUVER 29Black
VANCOUVER 29Dark Grey
VANCOUVER 29White
VANCOUVER 29Matt Silver
VANCOUVER 29Bronze
VANCOUVER 29Concrete - Urban
VANCOUVER 29Softscape - Urban
VANCOUVER 29Stone - Urban
VANCOUVER 29Corten - Urban
VANCOUVER 29Oak - Woodland
VANCOUVER 29Walnut - Woodland
VANCOUVER 29Pine - Woodland
240x240 mm - 1000 mm - Decorative pattern type 2 - RGBW
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
7 LED
Power (W)
33 W
Lumen (lm)
1158 lm
Efficacy (lm/W)
35 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
56°
CCT / CRI
RGBW30, RGBW40
Bug
B0-U1-G1
ULR
0%
ULOR
0%
CIE flux code nº3
99
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15.8 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens

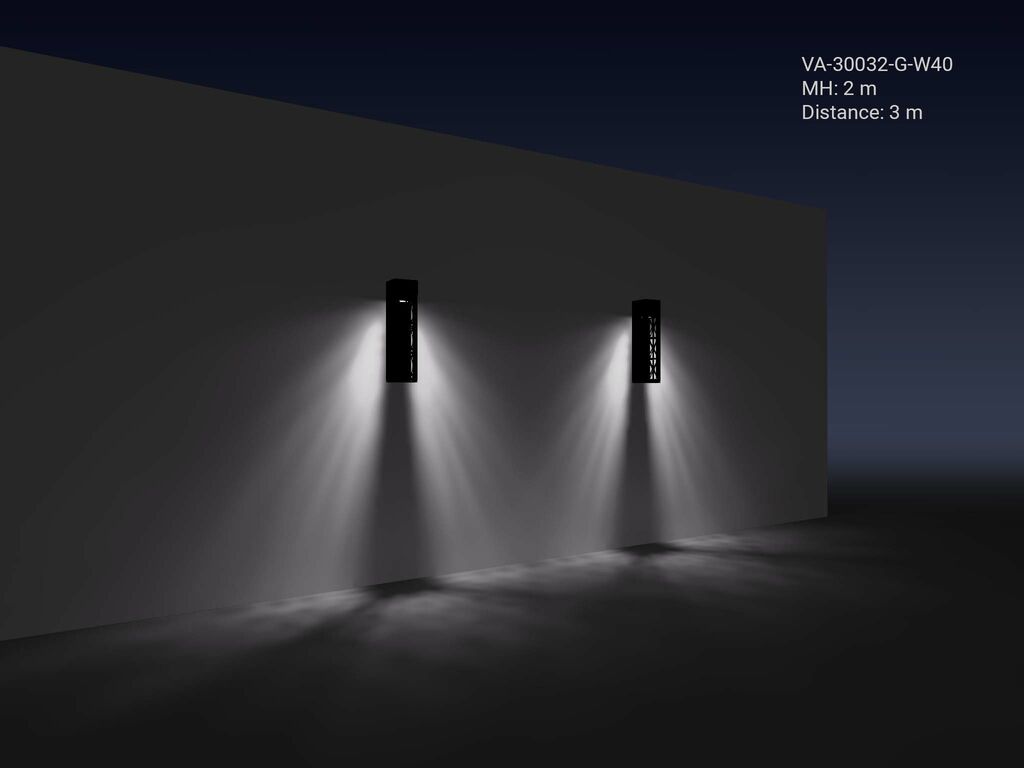

LIGHT EFFECT

Optic
G (56°)
G (56°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VA-30032-30-DMX-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-30032-30-DMX-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-30032-30-DMX-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-30032-30-DMX-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-30032-30-DMX-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-30032-30-DMX-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-30032-30-DMX-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-30032-30-DMX-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-30032-30-DMX-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-30032-30-DMX-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-30032-30-DMX-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-30032-30-DMX-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-30032-40-DMX-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-30032-40-DMX-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-30032-40-DMX-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-30032-40-DMX-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-30032-40-DMX-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-30032-40-DMX-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-30032-40-DMX-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-30032-40-DMX-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-30032-40-DMX-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-30032-40-DMX-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-30032-40-DMX-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-30032-40-DMX-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-30032-30-DMXRDM-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-30032-30-DMXRDM-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-30032-30-DMXRDM-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-30032-30-DMXRDM-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-30032-30-DMXRDM-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-30032-30-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-30032-30-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-30032-30-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-30032-30-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-30032-30-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-30032-30-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-30032-30-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-30032-40-DMXRDM-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-30032-40-DMXRDM-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-30032-40-DMXRDM-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-30032-40-DMXRDM-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-30032-40-DMXRDM-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-30032-40-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-30032-40-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-30032-40-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-30032-40-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-30032-40-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-30032-40-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-30032-40-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-30032-G-30-DMXRDM-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-30032-G-30-DMXRDM-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-30032-G-30-DMXRDM-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-30032-G-30-DMXRDM-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-30032-G-30-DMXRDM-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-30032-G-30-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-30032-G-30-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-30032-G-30-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-30032-G-30-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-30032-G-30-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-30032-G-30-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-30032-G-30-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-30032-G-40-DMXRDM-01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-30032-G-40-DMXRDM-02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-30032-G-40-DMXRDM-03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-30032-G-40-DMXRDM-05
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-30032-G-40-DMXRDM-06
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-30032-G-40-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-30032-G-40-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-30032-G-40-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-30032-G-40-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-30032-G-40-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-30032-G-40-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-30032-G-40-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: G
Optic value: 56°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (VANCOUVER Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
