LIGMAN VANCOUVER 46 VA-20221-LC.

VANCOUVER 46VA-20221-LCVANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

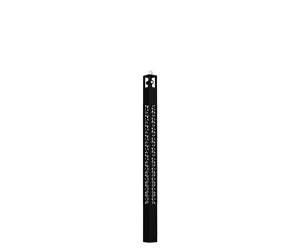

VANCOUVER 46Black
VANCOUVER 46Dark Grey
VANCOUVER 46White
VANCOUVER 46Matt Silver

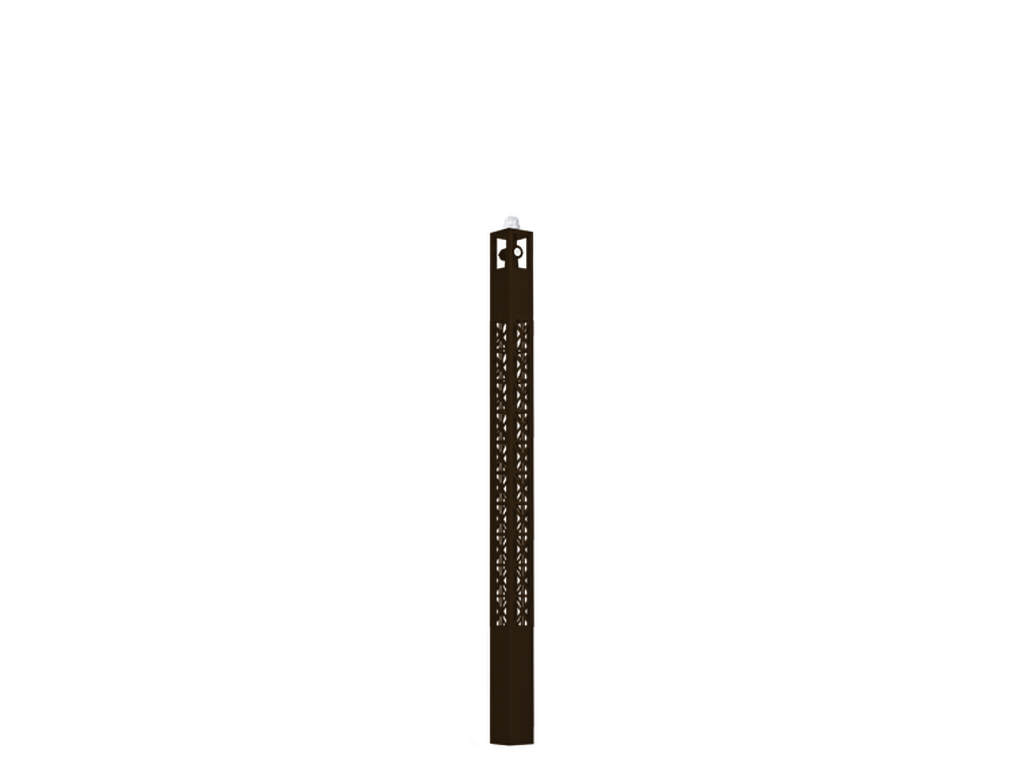

VANCOUVER 46Bronze

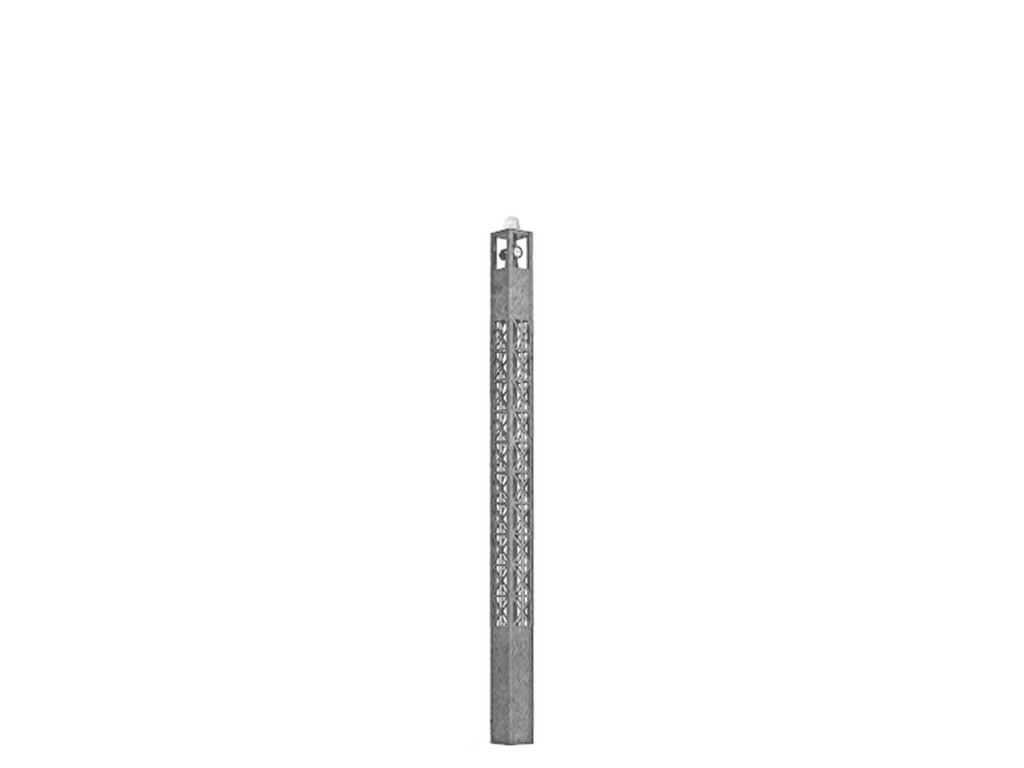

VANCOUVER 46Concrete - Urban
VANCOUVER 46Softscape - Urban

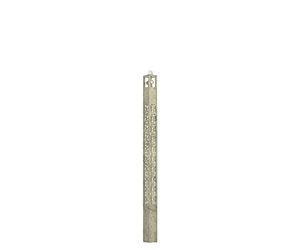

VANCOUVER 46Stone - Urban

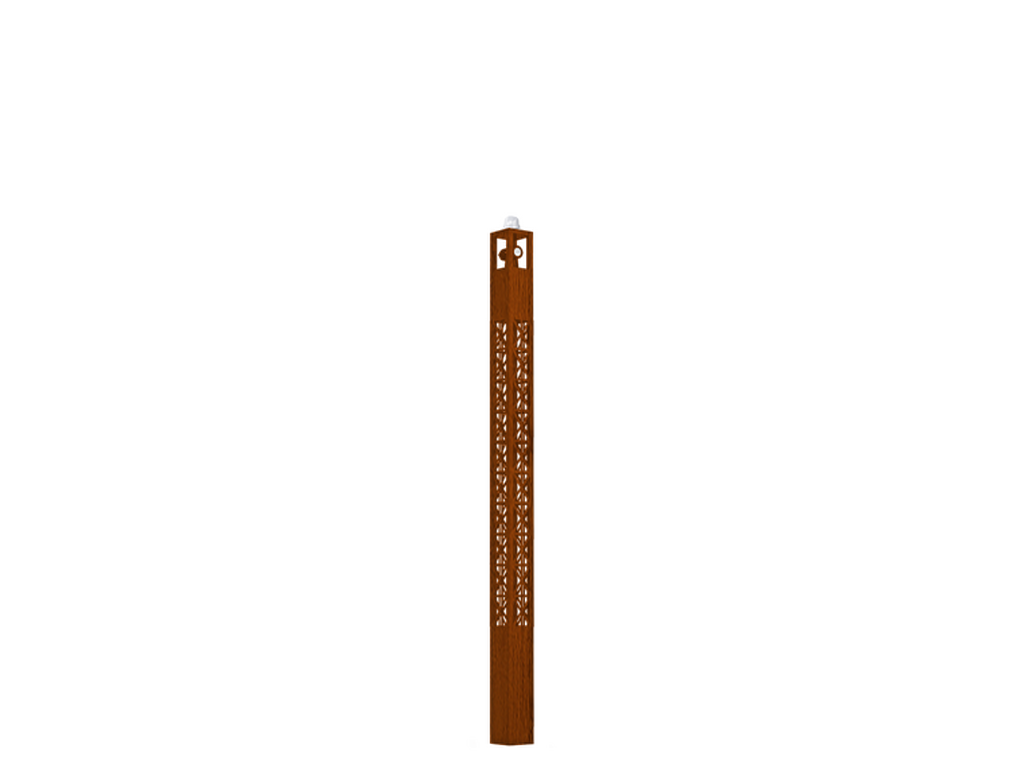

VANCOUVER 46Corten - Urban

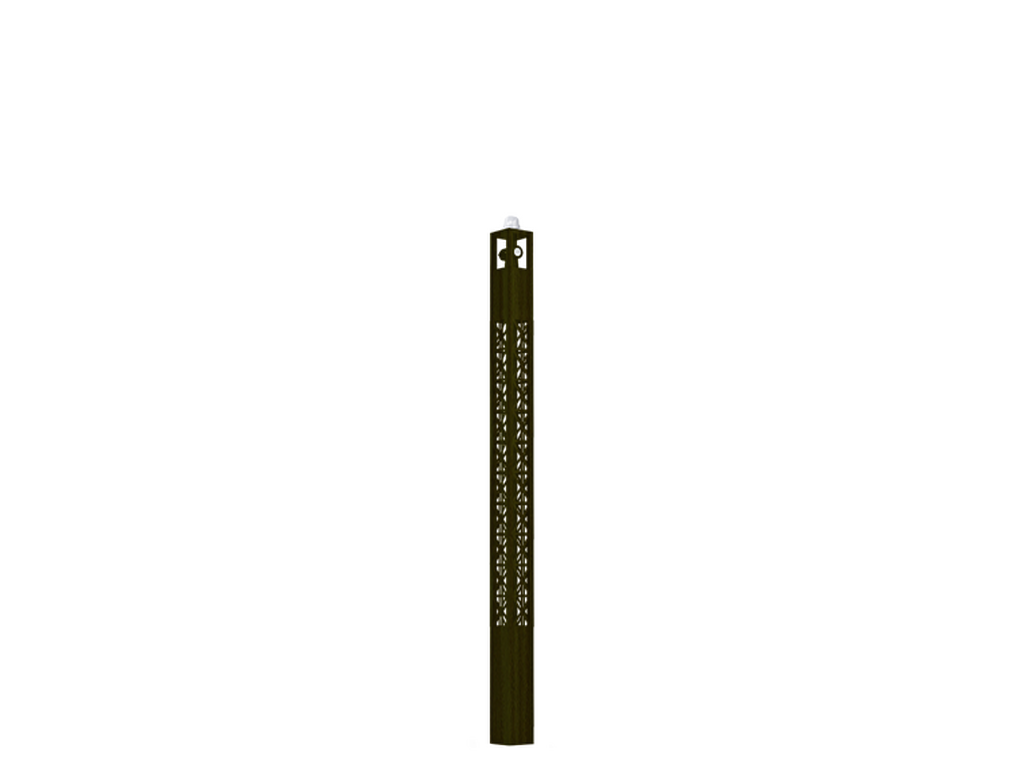

VANCOUVER 46Oak - Woodland
VANCOUVER 46Walnut - Woodland
VANCOUVER 46Pine - Woodland
VANCOUVER 46Black
VANCOUVER 46Dark Grey

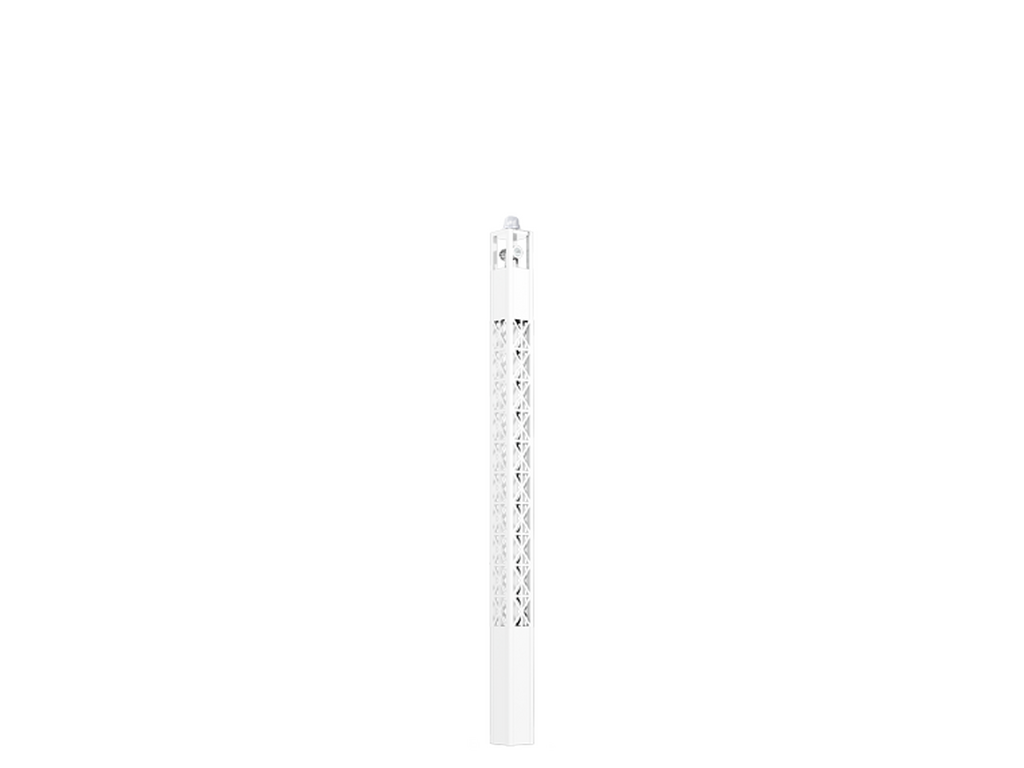

VANCOUVER 46White
VANCOUVER 46Matt Silver
VANCOUVER 46Bronze
VANCOUVER 46Concrete - Urban
VANCOUVER 46Softscape - Urban
VANCOUVER 46Stone - Urban
VANCOUVER 46Corten - Urban
VANCOUVER 46Oak - Woodland

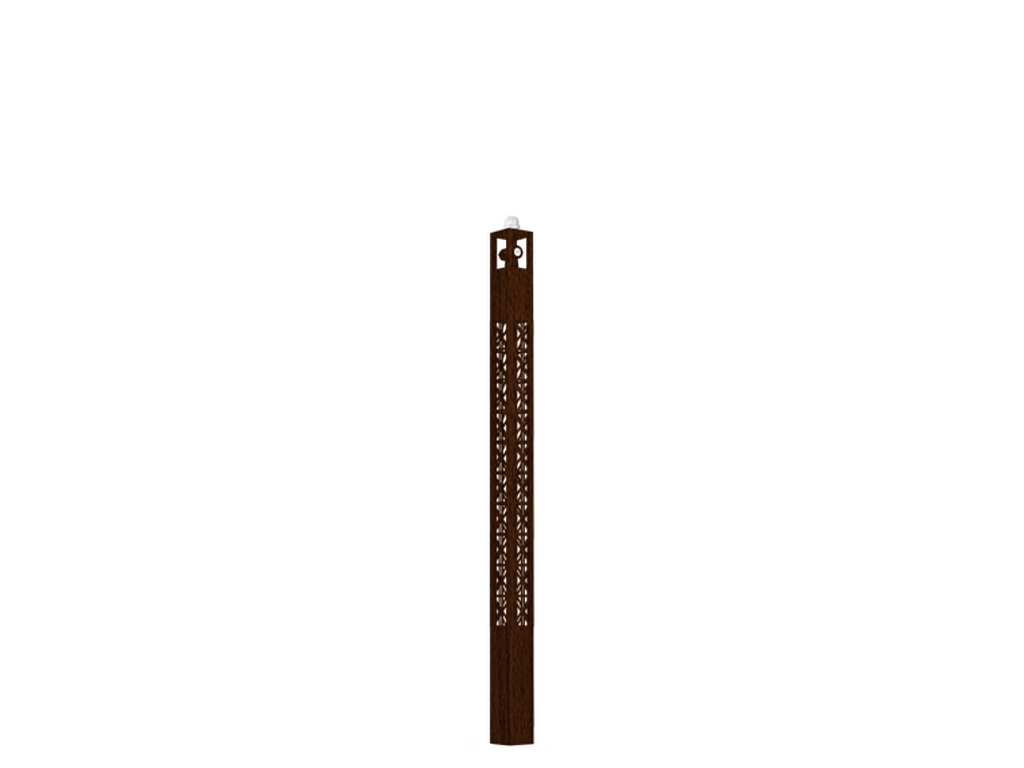

VANCOUVER 46Walnut - Woodland
VANCOUVER 46Pine - Woodland
240x240 mm - 4070 mm - Decorative pattern type 2 (Optic) - 1 projector (Optic 2nd ) - LIGHTCONNECT™
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB & 1 COB (Projector)
Power (W)
61 W
Lumen (lm)
4188 - 5892 lm
Efficacy (lm/W)
69 - 74 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
134˚
CCT / CRI
3000K CRI80, 4000K CRI80
ULR
2%
ULOR
2%
CIE flux code nº3
94
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
52.4 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
1.154
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (134˚) / M (23°)
G (134˚) / W (32°)
G (134˚) / VW (43°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

PROJECT REFERENCE (VANCOUVER Light columns)
