LIGMAN VEKTER 12 VK-20004.

VEKTER 12VK-20004VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

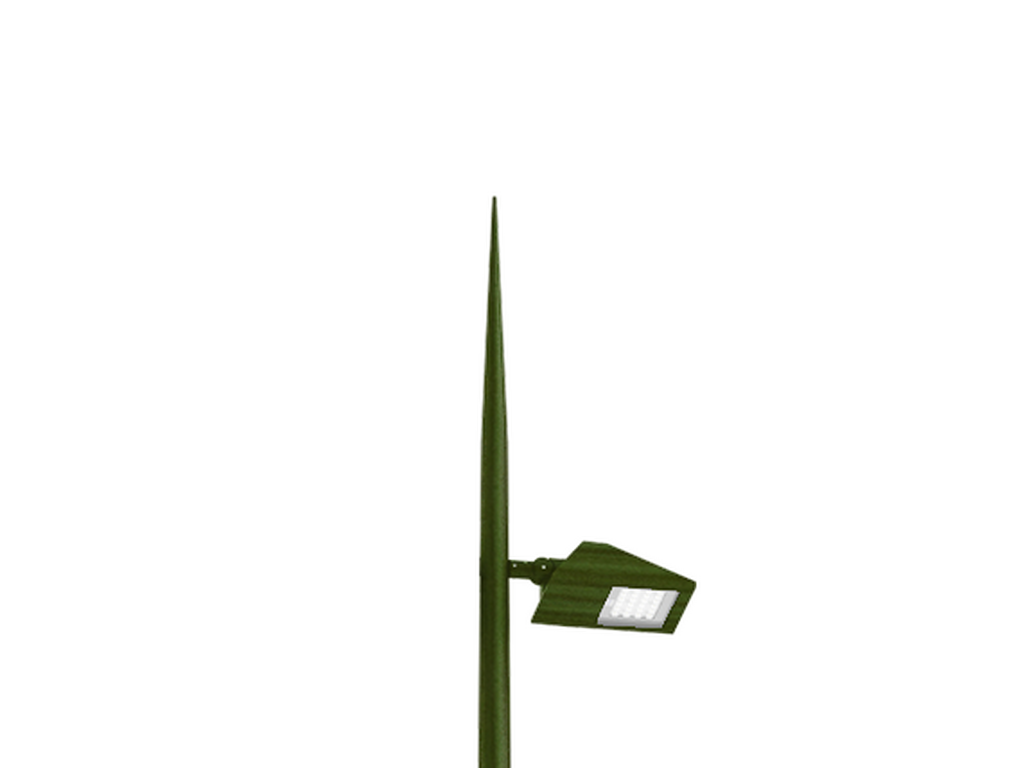

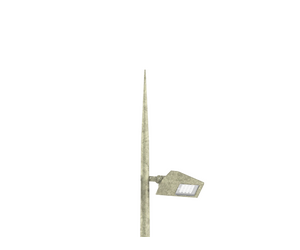

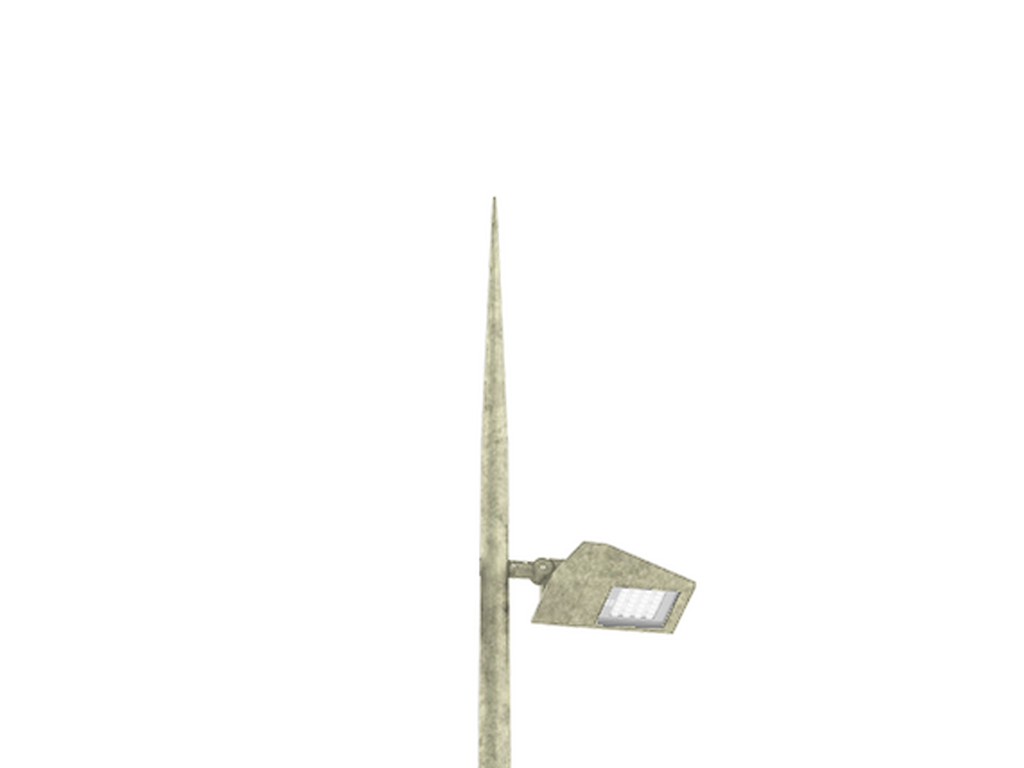

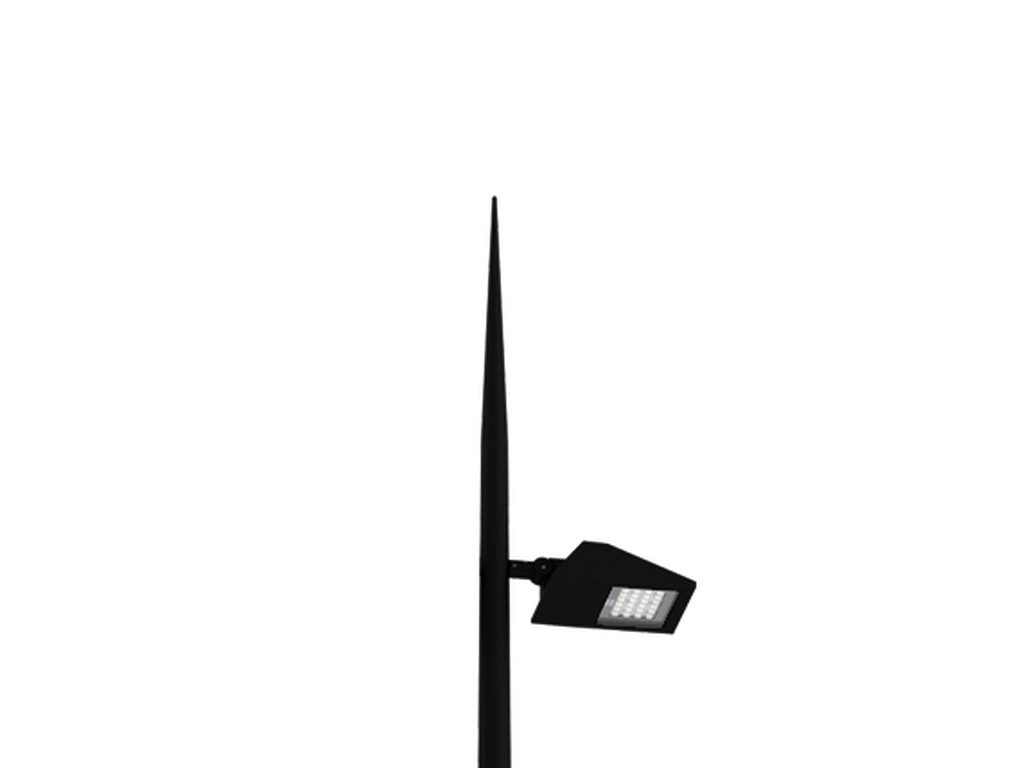

VEKTER 12Black
VEKTER 12Dark Grey
VEKTER 12White
VEKTER 12Matt Silver
VEKTER 12Bronze
VEKTER 12Concrete - Urban
VEKTER 12Softscape - Urban
VEKTER 12Stone - Urban
VEKTER 12Corten - Urban
VEKTER 12Oak - Woodland
VEKTER 12Walnut - Woodland
VEKTER 12Pine - Woodland
VEKTER 12Black
VEKTER 12Dark Grey
VEKTER 12White
VEKTER 12Matt Silver
VEKTER 12Bronze
VEKTER 12Concrete - Urban
VEKTER 12Softscape - Urban
VEKTER 12Stone - Urban
VEKTER 12Corten - Urban
VEKTER 12Oak - Woodland
VEKTER 12Walnut - Woodland
VEKTER 12Pine - Woodland
1 side - Supplied with specific 4 m cylindrical, tapered galvanised steel pole: SPT140118-VK
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
56 W
Lumen (lm)
6104 - 6954 lm
Efficacy (lm/W)
113 - 129 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
31°, 53°, 119°, 144°x50°, 139°x68°, 97°x77°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
54.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

LIGHT EFFECT

Optic

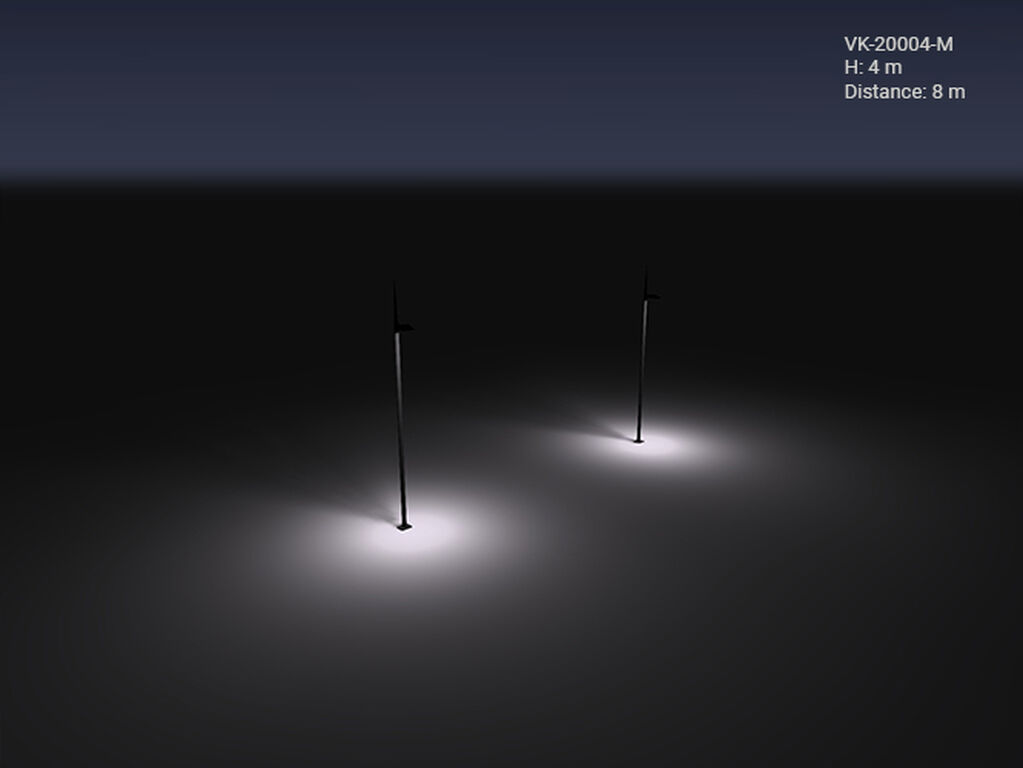

M (31°)
W (53°)
EW (119°)
T2 (144°x50°)
T3 (139°x68°)
T4 (97°x77°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VK-20004-M-8030-ND-01
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-M-8030-ND-02
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-M-8030-ND-03
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-M-8030-ND-05
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-M-8030-ND-06
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-M-8030-ND-SU01
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-M-8030-ND-SU02
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-M-8030-ND-SU03
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-M-8030-ND-SU04
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-M-8030-ND-SW01
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-M-8030-ND-SW02
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-M-8030-ND-SW03
Lumen (lm): 6419 lm
Optic: M
Optic value: 31°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-M-8040-ND-01
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-M-8040-ND-02
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-M-8040-ND-03
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-M-8040-ND-05
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-M-8040-ND-06
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-M-8040-ND-SU01
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-M-8040-ND-SU02
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-M-8040-ND-SU03
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-M-8040-ND-SU04
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-M-8040-ND-SW01
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-M-8040-ND-SW02
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-M-8040-ND-SW03
Lumen (lm): 6879 lm
Optic: M
Optic value: 31°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-W-8030-ND-01
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-W-8030-ND-02
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-W-8030-ND-03
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-W-8030-ND-05
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-W-8030-ND-06
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-W-8030-ND-SU01
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-W-8030-ND-SU02
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-W-8030-ND-SU03
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-W-8030-ND-SU04
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-W-8030-ND-SW01
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-W-8030-ND-SW02
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-W-8030-ND-SW03
Lumen (lm): 6308 lm
Optic: W
Optic value: 53°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-W-8040-ND-01
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-W-8040-ND-02
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-W-8040-ND-03
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-W-8040-ND-05
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-W-8040-ND-06
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-W-8040-ND-SU01
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-W-8040-ND-SU02
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-W-8040-ND-SU03
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-W-8040-ND-SU04
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-W-8040-ND-SW01
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-W-8040-ND-SW02
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-W-8040-ND-SW03
Lumen (lm): 6760 lm
Optic: W
Optic value: 53°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-EW-8030-ND-01
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-EW-8030-ND-02
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-EW-8030-ND-03
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-EW-8030-ND-05
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-EW-8030-ND-06
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-EW-8030-ND-SU01
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-EW-8030-ND-SU02
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-EW-8030-ND-SU03
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-EW-8030-ND-SU04
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-EW-8030-ND-SW01
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-EW-8030-ND-SW02
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-EW-8030-ND-SW03
Lumen (lm): 6489 lm
Optic: EW
Optic value: 119°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-EW-8040-ND-01
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-EW-8040-ND-02
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-EW-8040-ND-03
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-EW-8040-ND-05
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-EW-8040-ND-06
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-EW-8040-ND-SU01
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-EW-8040-ND-SU02
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-EW-8040-ND-SU03
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-EW-8040-ND-SU04
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-EW-8040-ND-SW01
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-EW-8040-ND-SW02
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-EW-8040-ND-SW03
Lumen (lm): 6954 lm
Optic: EW
Optic value: 119°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T2-8030-ND-01
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T2-8030-ND-02
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T2-8030-ND-03
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T2-8030-ND-05
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T2-8030-ND-06
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T2-8030-ND-SU01
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T2-8030-ND-SU02
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T2-8030-ND-SU03
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T2-8030-ND-SU04
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T2-8030-ND-SW01
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T2-8030-ND-SW02
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T2-8030-ND-SW03
Lumen (lm): 6275 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T2-8040-ND-01
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T2-8040-ND-02
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T2-8040-ND-03
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T2-8040-ND-05
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T2-8040-ND-06
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T2-8040-ND-SU01
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T2-8040-ND-SU02
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T2-8040-ND-SU03
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T2-8040-ND-SU04
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T2-8040-ND-SW01
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T2-8040-ND-SW02
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T2-8040-ND-SW03
Lumen (lm): 6725 lm
Optic: T2
Optic value: 144°x50°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T3-8030-ND-01
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T3-8030-ND-02
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T3-8030-ND-03
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T3-8030-ND-05
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T3-8030-ND-06
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T3-8030-ND-SU01
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T3-8030-ND-SU02
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T3-8030-ND-SU03
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T3-8030-ND-SU04
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T3-8030-ND-SW01
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T3-8030-ND-SW02
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T3-8030-ND-SW03
Lumen (lm): 6107 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T3-8040-ND-01
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T3-8040-ND-02
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T3-8040-ND-03
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T3-8040-ND-05
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T3-8040-ND-06
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T3-8040-ND-SU01
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T3-8040-ND-SU02
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T3-8040-ND-SU03
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T3-8040-ND-SU04
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T3-8040-ND-SW01
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T3-8040-ND-SW02
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T3-8040-ND-SW03
Lumen (lm): 6545 lm
Optic: T3
Optic value: 139°x68°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T4-8030-ND-01
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T4-8030-ND-02
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T4-8030-ND-03
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T4-8030-ND-05
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T4-8030-ND-06
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T4-8030-ND-SU01
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T4-8030-ND-SU02
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T4-8030-ND-SU03
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T4-8030-ND-SU04
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T4-8030-ND-SW01
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T4-8030-ND-SW02
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T4-8030-ND-SW03
Lumen (lm): 6104 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VK-20004-T4-8040-ND-01
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VK-20004-T4-8040-ND-02
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VK-20004-T4-8040-ND-03
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VK-20004-T4-8040-ND-05
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VK-20004-T4-8040-ND-06
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VK-20004-T4-8040-ND-SU01
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VK-20004-T4-8040-ND-SU02
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VK-20004-T4-8040-ND-SU03
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VK-20004-T4-8040-ND-SU04
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VK-20004-T4-8040-ND-SW01
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VK-20004-T4-8040-ND-SW02
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VK-20004-T4-8040-ND-SW03
Lumen (lm): 6542 lm
Optic: T4
Optic value: 97°x77°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (VEKTER Street & area lighting luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
