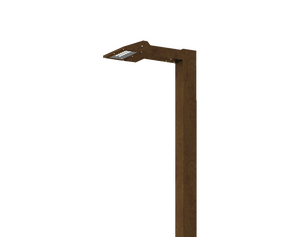

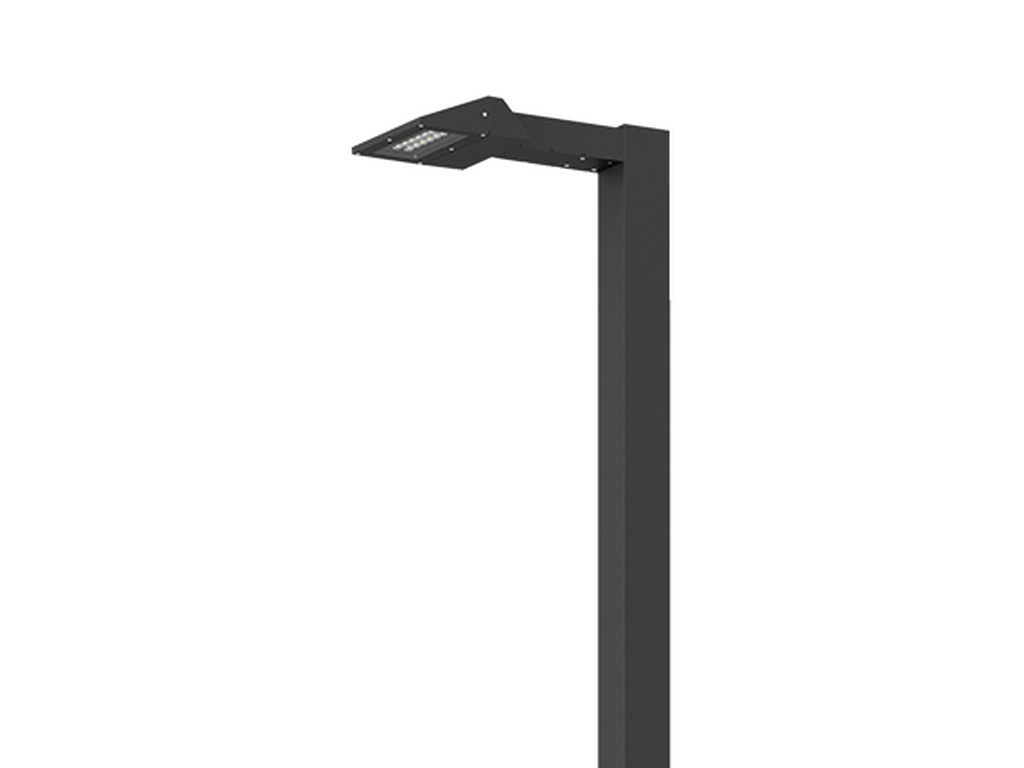

LIGMAN VEKTER 25 VK-90041.

VEKTER 25VK-90041VEKTER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

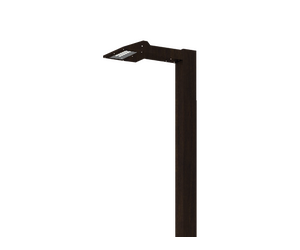

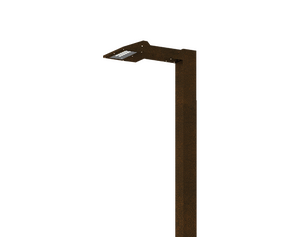

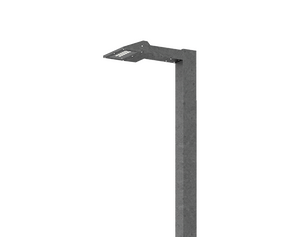

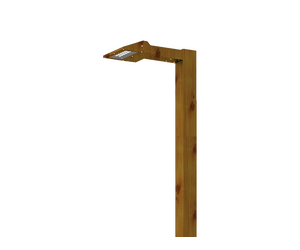

VEKTER 25
VEKTER 25
VEKTER 25
VEKTER 25
VEKTER 25Black
VEKTER 25Dark Grey
VEKTER 25White
VEKTER 25Matt Silver
VEKTER 25Bronze
VEKTER 25Concrete - Urban
VEKTER 25Softscape - Urban
VEKTER 25Stone - Urban
VEKTER 25Corten - Urban
VEKTER 25Oak - Woodland
VEKTER 25Walnut - Woodland
VEKTER 25Pine - Woodland
VEKTER 25
VEKTER 25
VEKTER 25
VEKTER 25
VEKTER 25Black
VEKTER 25Dark Grey
VEKTER 25White
VEKTER 25Matt Silver
VEKTER 25Bronze
VEKTER 25Concrete - Urban
VEKTER 25Softscape - Urban
VEKTER 25Stone - Urban
VEKTER 25Corten - Urban
VEKTER 25Oak - Woodland
VEKTER 25Walnut - Woodland
VEKTER 25Pine - Woodland
1 side - Supplied with specific 4 m square, straight aluminium pole: APC140102-VK
CEClass IIP65IK08

Technical information

Material
Aluminium
Light source
12 LED
Power (W)
20 W
Lumen (lm)
2330 - 2732 lm
Efficacy (lm/W)
123 - 144 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 109°, 139°x60°, 123°x87°, 106°x72°, 140°x62°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B1-U0-G1, B2-U0-G0
ULR
0%, <1%
ULOR
0%, <1%
CIE flux code nº3
97, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.0 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.035
Cable
One cable gland supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

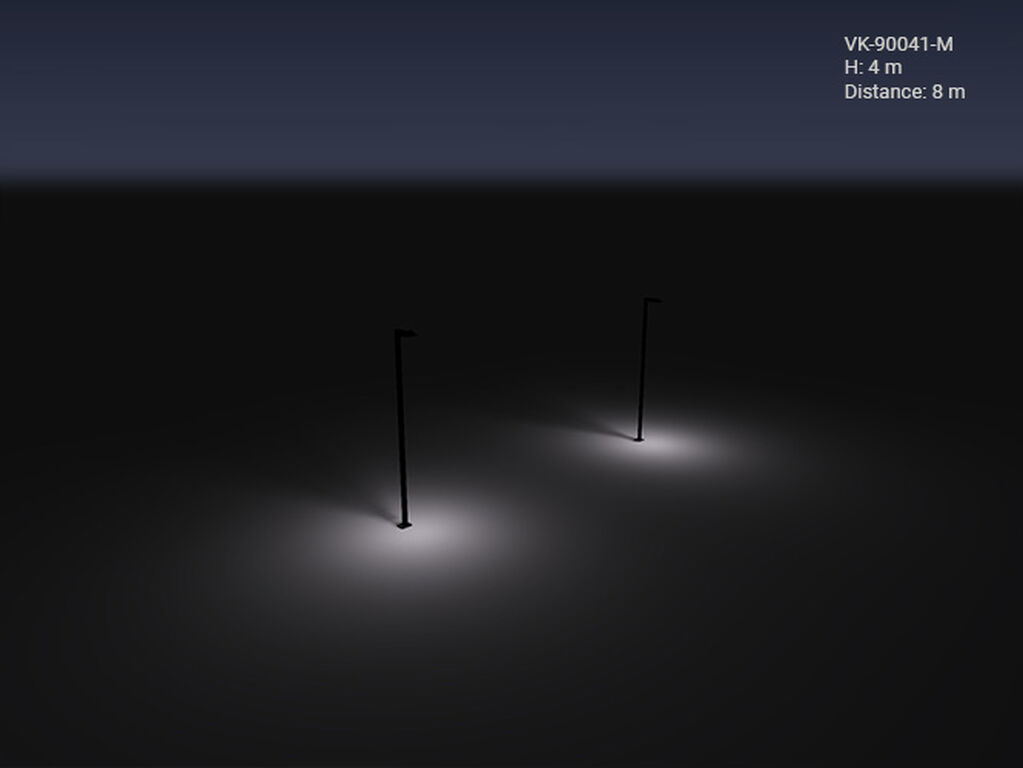

Light effect

Optic
M (30°)
W (56°)
EW (109°)
T2 (139°x60°)
T3 (123°x87°)
T4 (106°x72°)
ME (140°x62°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Pole (required)

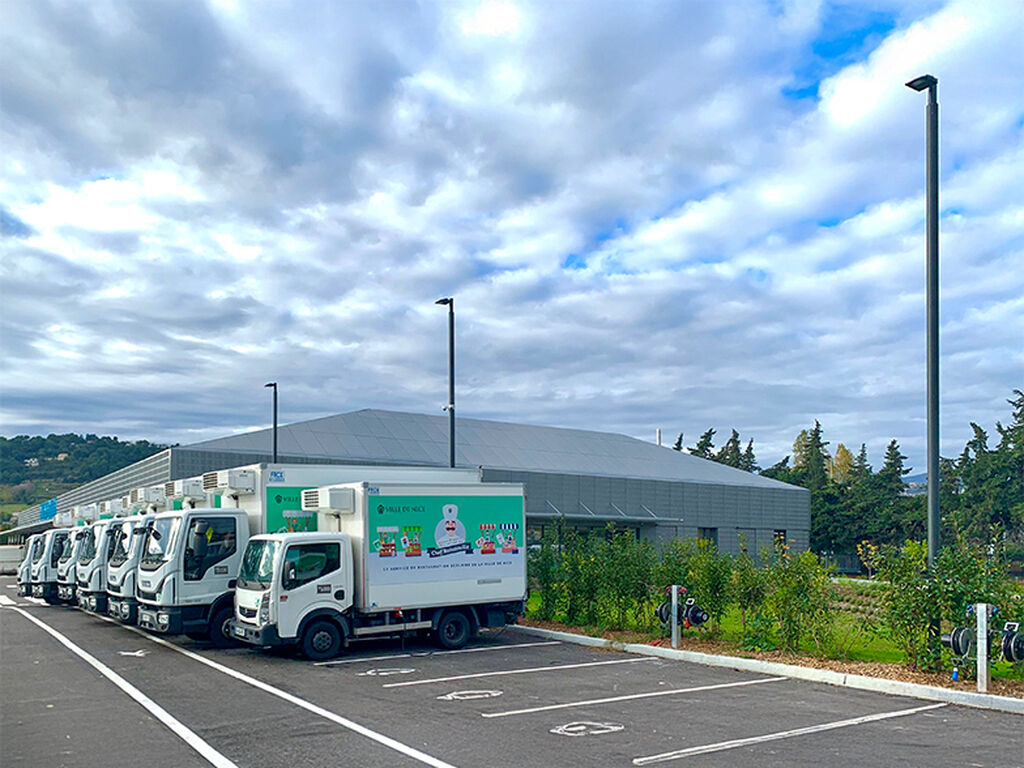

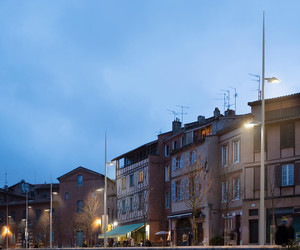

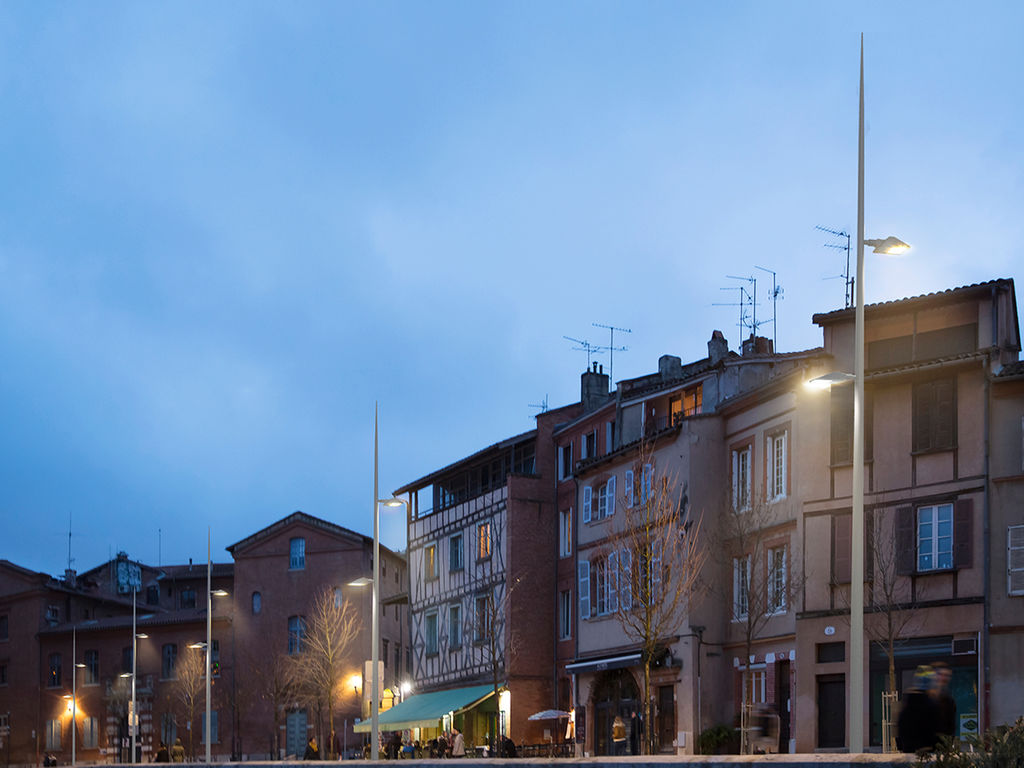

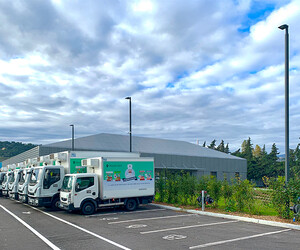

Project reference (VEKTER Street & area lighting luminaires)
