LIGMAN ABACUS 7 AB-30041.

ABACUS 7AB-30041ABACUS

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

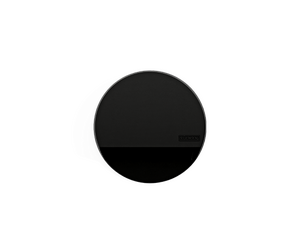

ABACUS 7Black

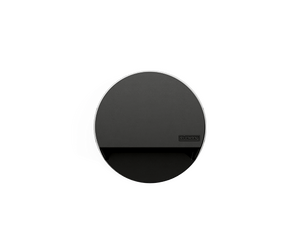

ABACUS 7Dark Grey

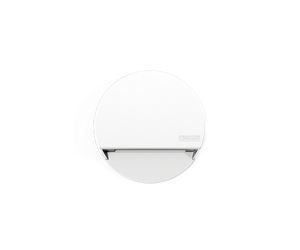

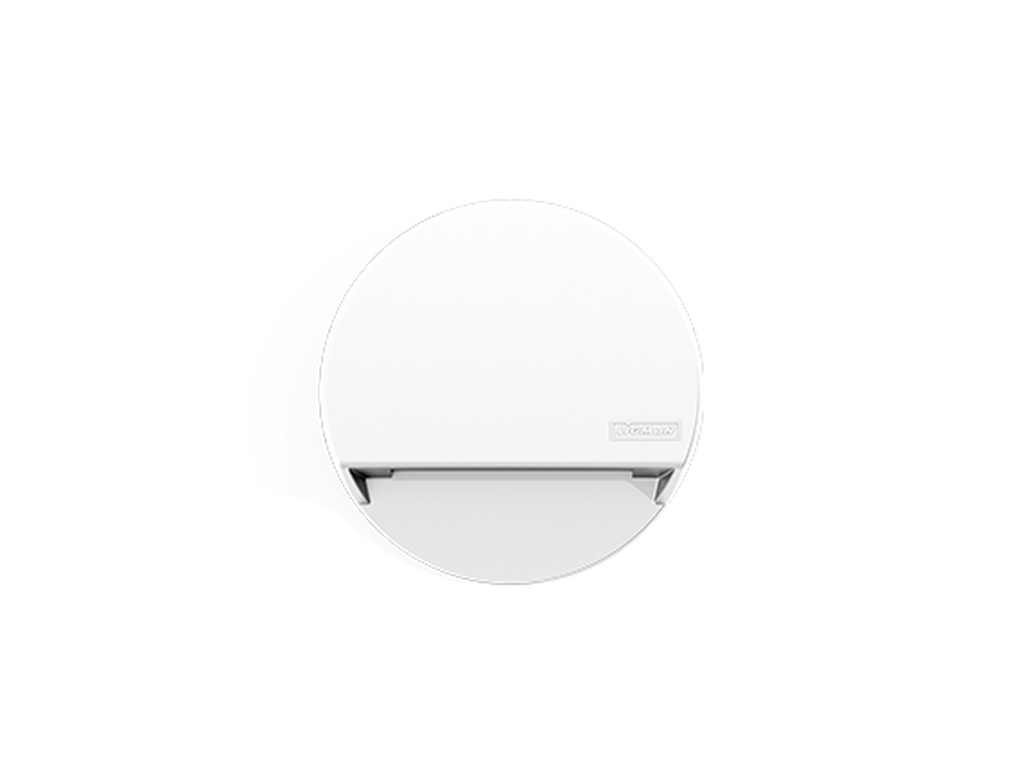

ABACUS 7White

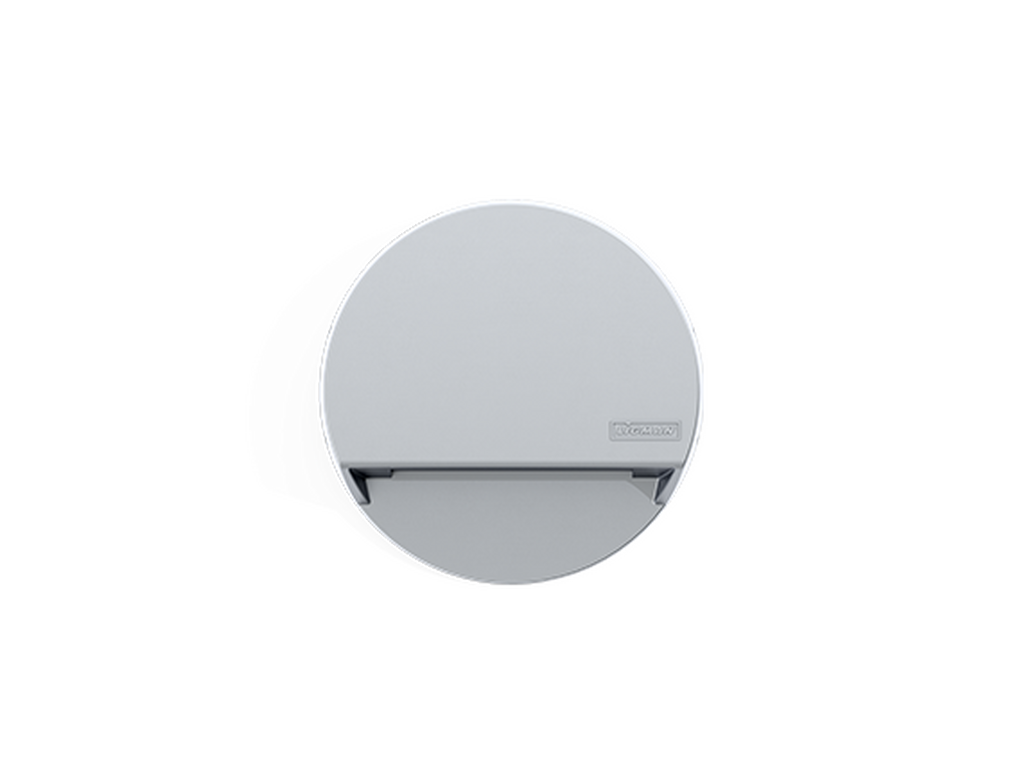

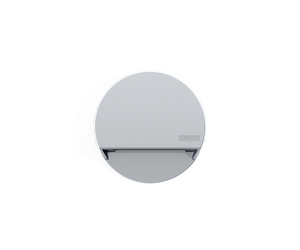

ABACUS 7Matt Silver

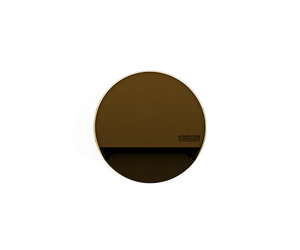

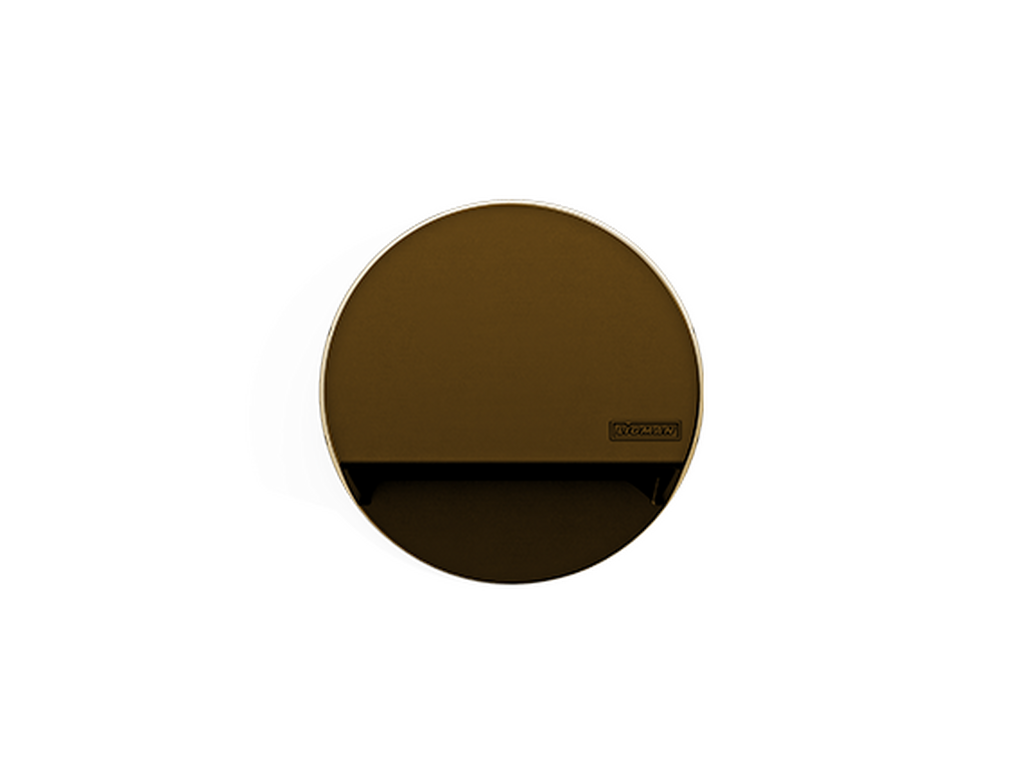

ABACUS 7Bronze

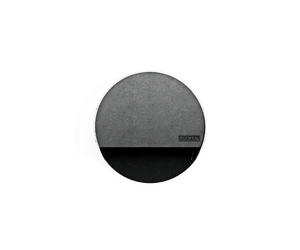

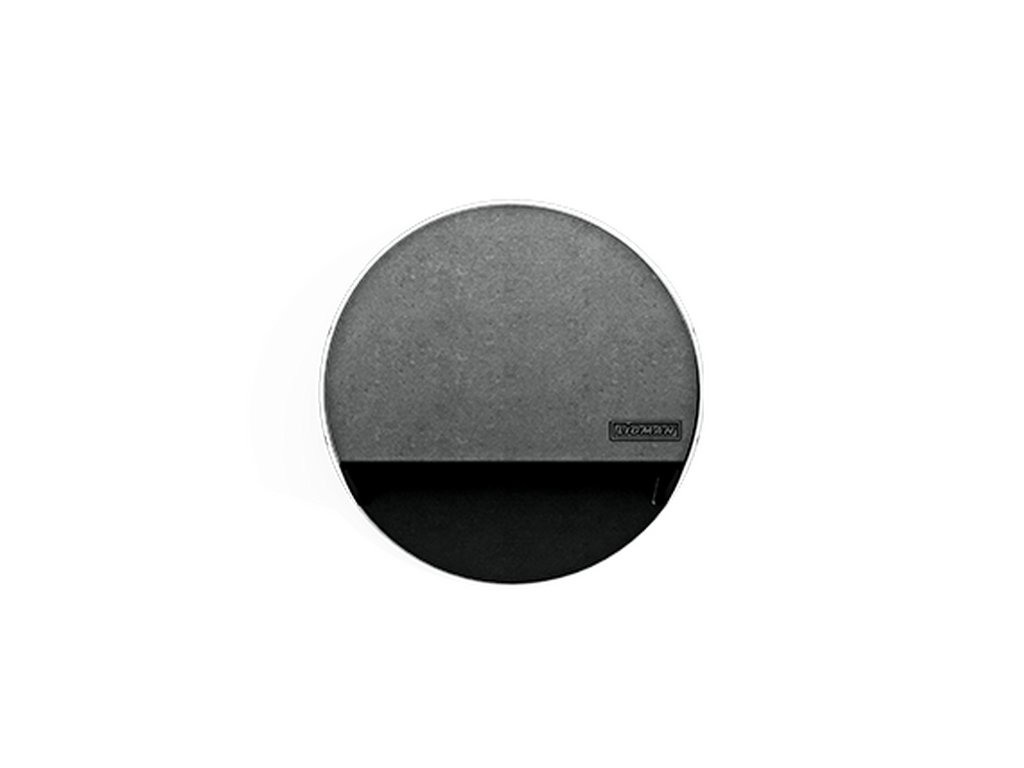

ABACUS 7Concrete - Urban
ABACUS 7Softscape - Urban

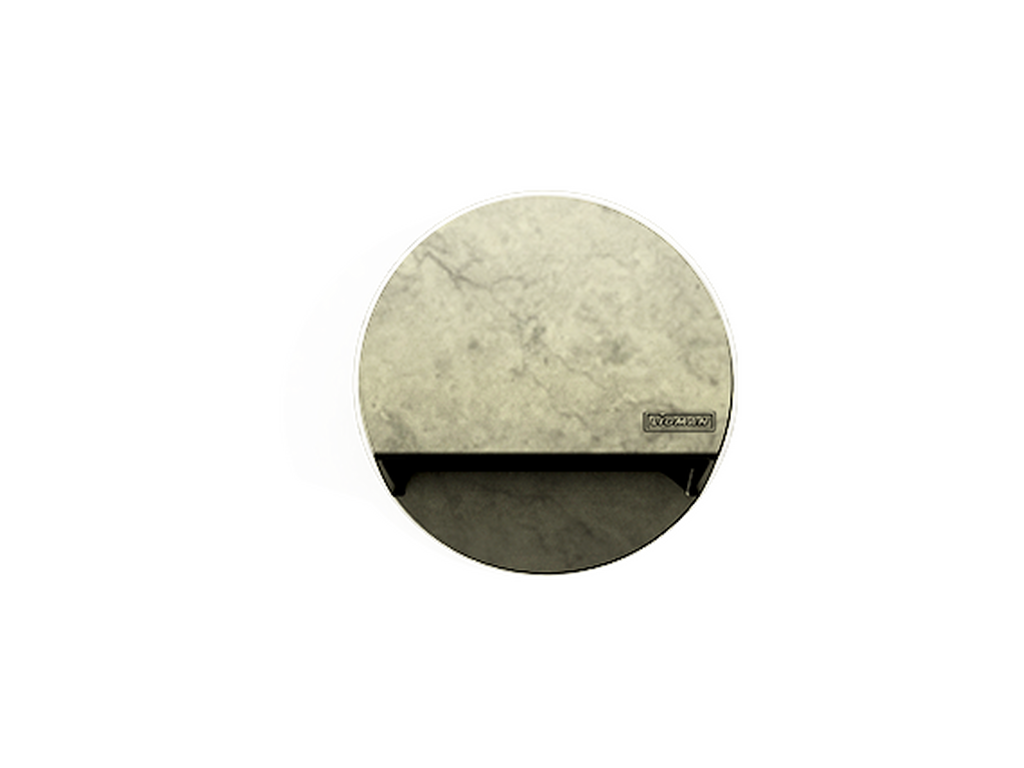

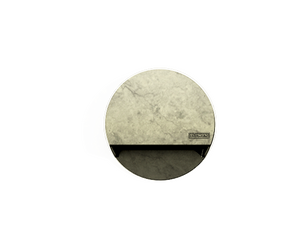

ABACUS 7Stone - Urban

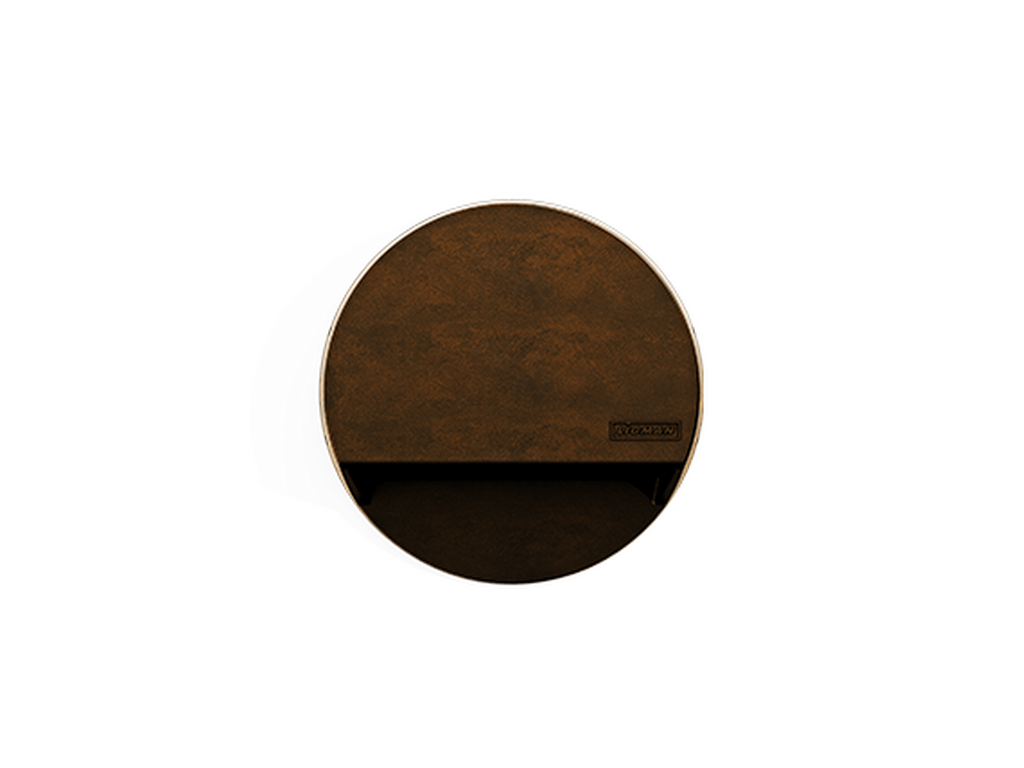

ABACUS 7Corten - Urban
ABACUS 7Oak - Woodland

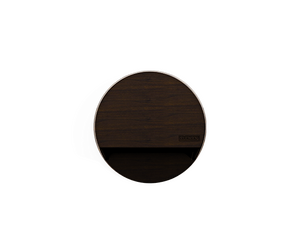

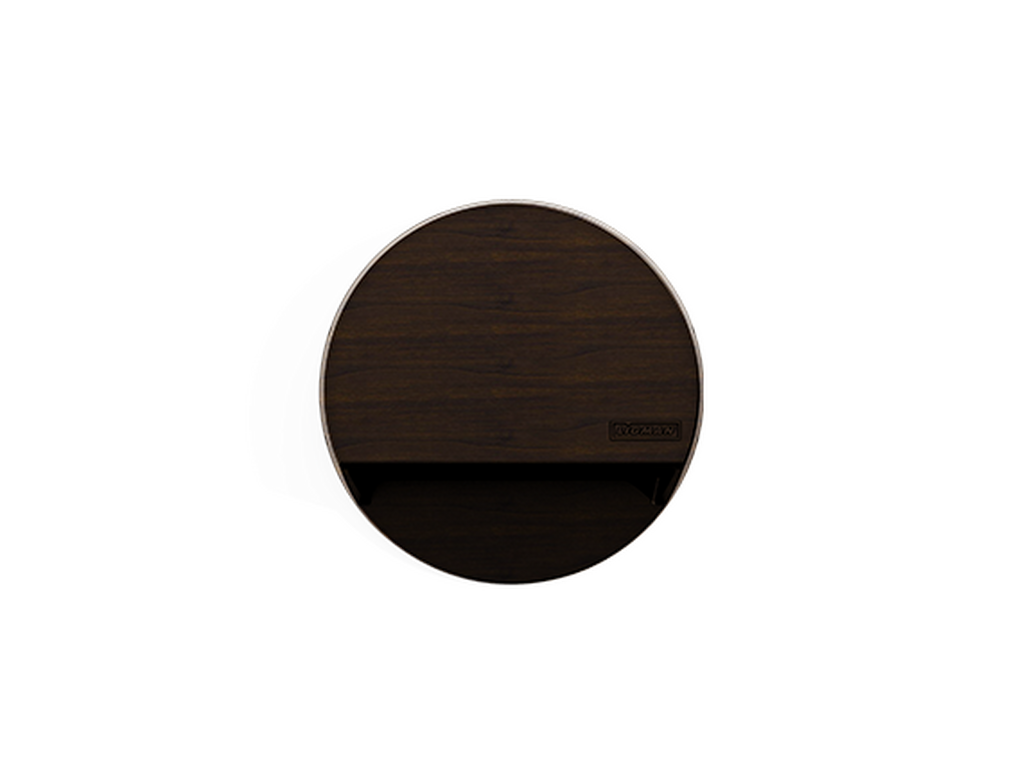

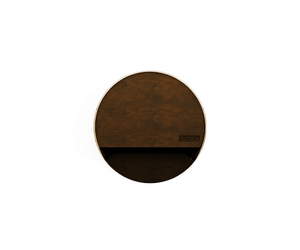

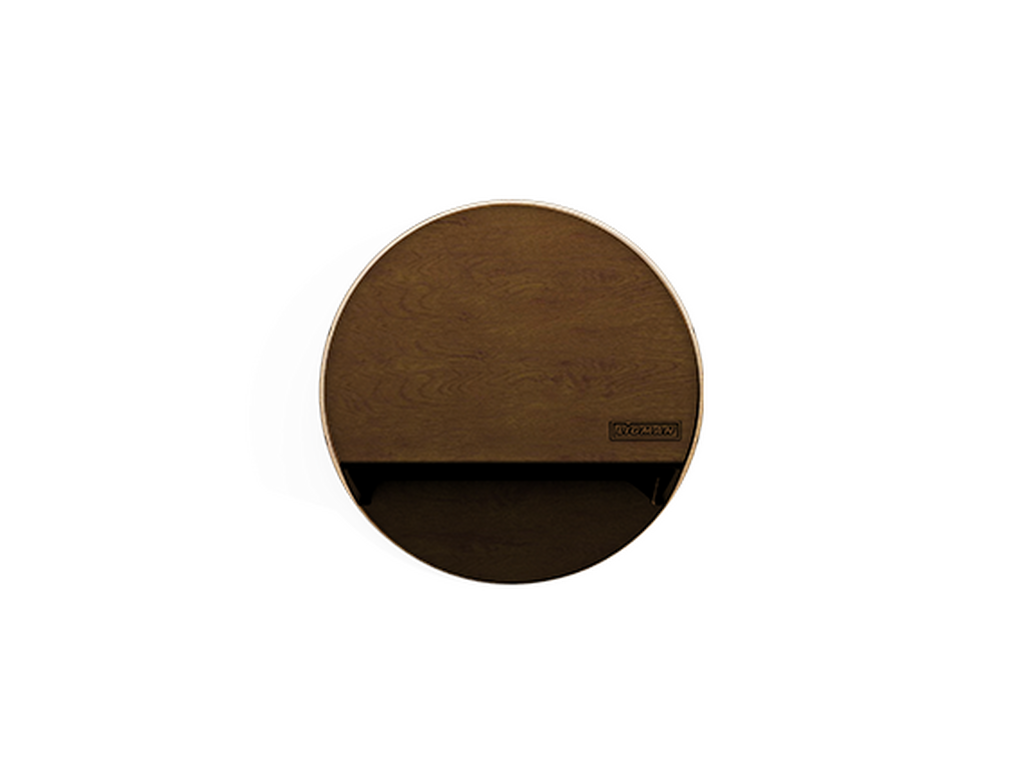

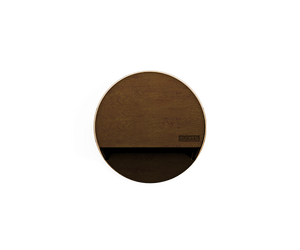

ABACUS 7Walnut - Woodland

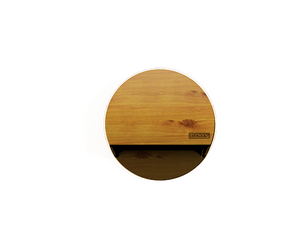

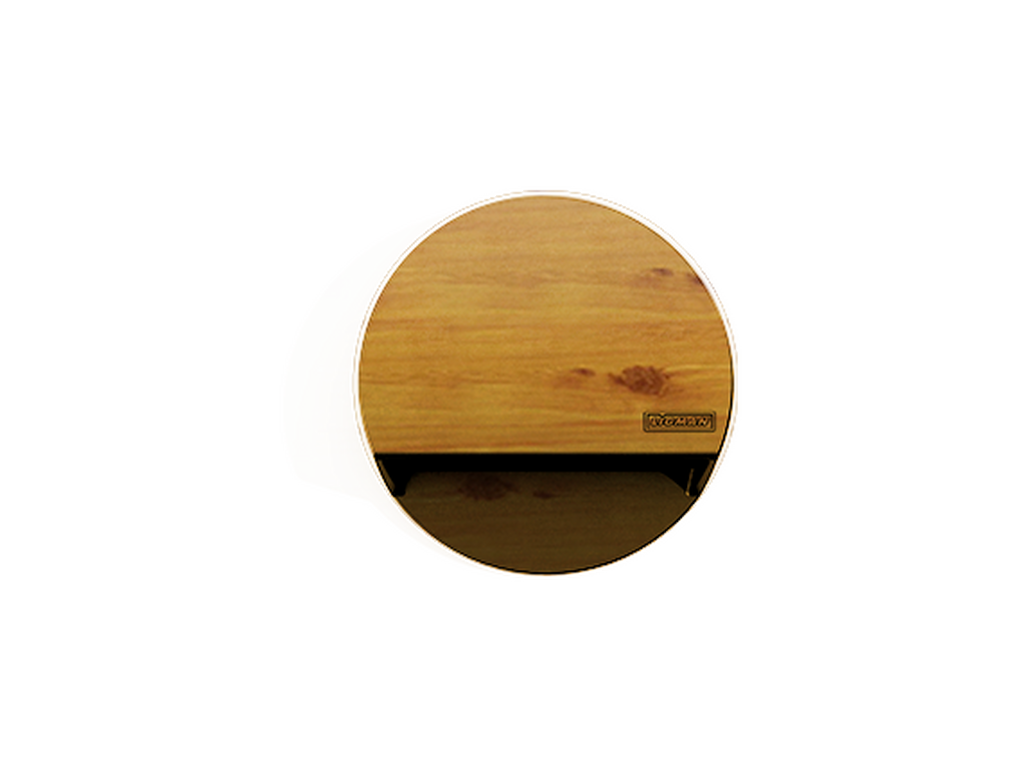

ABACUS 7Pine - Woodland
ABACUS 7Black
ABACUS 7Dark Grey
ABACUS 7White
ABACUS 7Matt Silver
ABACUS 7Bronze
ABACUS 7Concrete - Urban
ABACUS 7Softscape - Urban
ABACUS 7Stone - Urban
ABACUS 7Corten - Urban
ABACUS 7Oak - Woodland
ABACUS 7Walnut - Woodland
ABACUS 7Pine - Woodland
Small
BISCERETILAPClass IIP65IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (W)
7 W
Lumen (lm)
315 - 329 lm
Efficacy (lm/W)
45 - 47 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
92°x55°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULR
1%
ULOR
1%
CIE flux code nº3
98
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.9 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Frosted glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

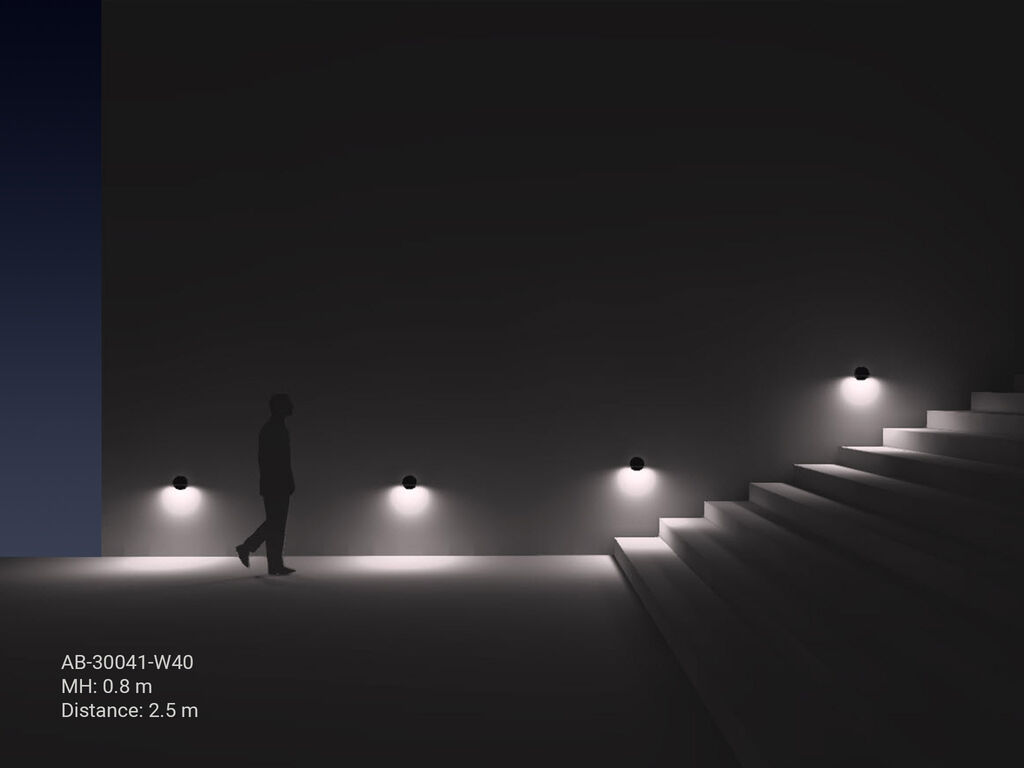

LIGHT EFFECT

Optic
G (92°x55°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AB-30041-G-8030-ND-01
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AB-30041-G-8030-ND-02
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AB-30041-G-8030-ND-03
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AB-30041-G-8030-ND-05
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AB-30041-G-8030-ND-06
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AB-30041-G-8030-ND-SU01
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AB-30041-G-8030-ND-SU02
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AB-30041-G-8030-ND-SU03
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AB-30041-G-8030-ND-SU04
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AB-30041-G-8030-ND-SW01
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AB-30041-G-8030-ND-SW02
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AB-30041-G-8030-ND-SW03
Lumen (lm): 315 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: AB-30041-G-8040-ND-01
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: AB-30041-G-8040-ND-02
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: AB-30041-G-8040-ND-03
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: AB-30041-G-8040-ND-05
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: AB-30041-G-8040-ND-06
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: AB-30041-G-8040-ND-SU01
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: AB-30041-G-8040-ND-SU02
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: AB-30041-G-8040-ND-SU03
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: AB-30041-G-8040-ND-SU04
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: AB-30041-G-8040-ND-SW01
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: AB-30041-G-8040-ND-SW02
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: AB-30041-G-8040-ND-SW03
Lumen (lm): 329 lm
Optic: G
Optic value: 92°x55°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ABACUS Surface facade luminaires)
