JANET 2JA-60811 (Version 1)
Recessed underwater projectors
Without remote box IP-rated - With remote driver / recessing box - Constant current (CC) 700 mA
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
5 LED
Power (W)
11 W
Lumen (lm)
1240 - 1726 lm
Efficacy (lm/W)
113 - 157 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 15 VDC
Optic
N, M, W
Optic value
23°, 34°, 42°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V
Product colours
Stainless Steel
Weight
1.6 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

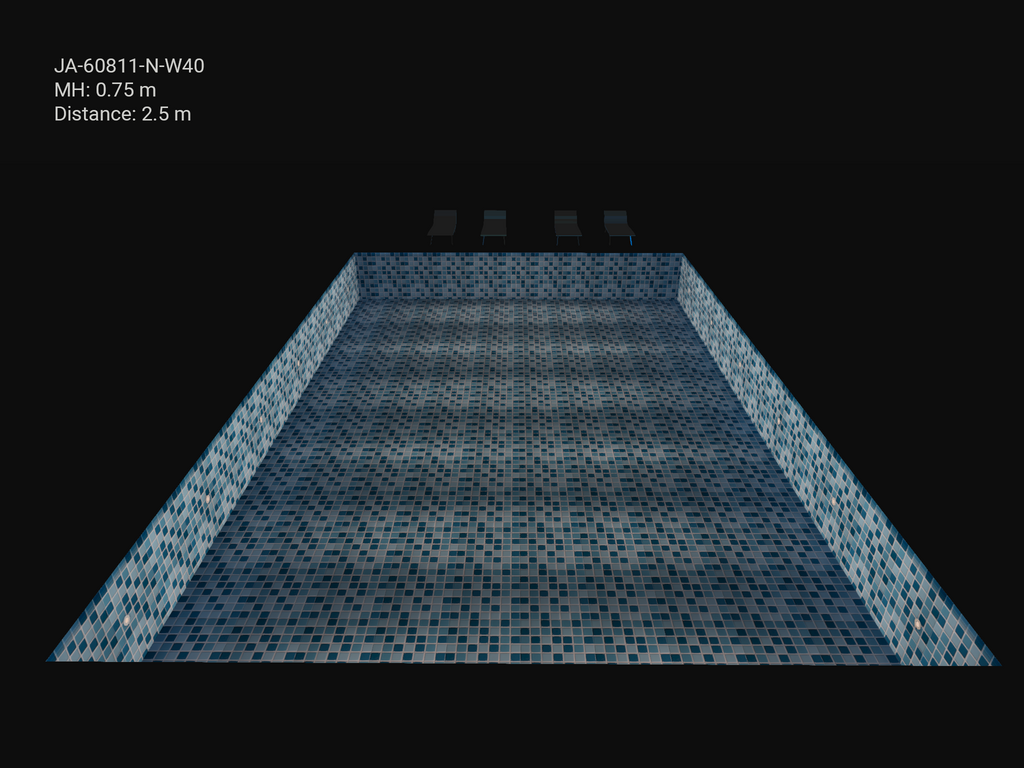

LIGHT EFFECT
Optic
N (23°)
M (34°)
W (42°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: JA-60811-N-8027-ND-00
Lumen (lm): 1612 lm
Optic: N
Optic value: 23°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-N-8030-ND-00
Lumen (lm): 1612 lm
Optic: N
Optic value: 23°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-N-8040-ND-00
Lumen (lm): 1726 lm
Optic: N
Optic value: 23°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-N-8027-DI-00
Lumen (lm): 1612 lm
Optic: N
Optic value: 23°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-N-8030-DI-00
Lumen (lm): 1612 lm
Optic: N
Optic value: 23°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-N-8040-DI-00
Lumen (lm): 1726 lm
Optic: N
Optic value: 23°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-M-8027-ND-00
Lumen (lm): 1465 lm
Optic: M
Optic value: 34°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-M-8030-ND-00
Lumen (lm): 1465 lm
Optic: M
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-M-8040-ND-00
Lumen (lm): 1569 lm
Optic: M
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-M-8027-DI-00
Lumen (lm): 1465 lm
Optic: M
Optic value: 34°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-M-8030-DI-00
Lumen (lm): 1465 lm
Optic: M
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-M-8040-DI-00
Lumen (lm): 1569 lm
Optic: M
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-W-8027-ND-00
Lumen (lm): 1240 lm
Optic: W
Optic value: 42°
CCT / CRI: 2700K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-W-8030-ND-00
Lumen (lm): 1240 lm
Optic: W
Optic value: 42°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-W-8040-ND-00
Lumen (lm): 1328 lm
Optic: W
Optic value: 42°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60811-W-8027-DI-00
Lumen (lm): 1240 lm
Optic: W
Optic value: 42°
CCT / CRI: 2700K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-W-8030-DI-00
Lumen (lm): 1240 lm
Optic: W
Optic value: 42°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: JA-60811-W-8040-DI-00
Lumen (lm): 1328 lm
Optic: W
Optic value: 42°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
