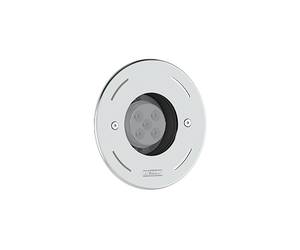

JANET 3JA-60822 (Version 1)
Recessed underwater projectors
Without remote driver - With recessing box - Constant voltage (CV) 24 V
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
5 LED
Power (W)
11 W
Lumen (lm)
1057 - 1290 lm
Efficacy (lm/W)
96 - 117 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W
Optic value
22°, 30°, 48°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Stainless Steel
Weight
1.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

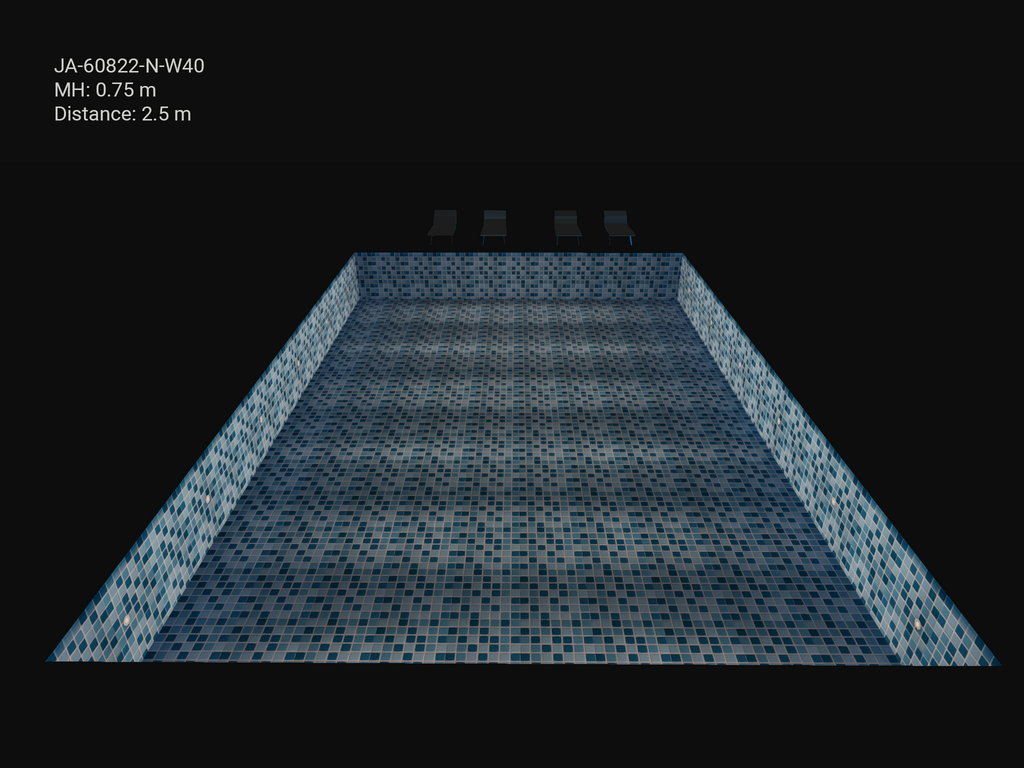

LIGHT EFFECT
Optic
N (22°)
M (30°)
W (48°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: JA-60822-N-8030-ND-00
Lumen (lm): 1226 lm
Optic: N
Optic value: 22°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60822-N-8040-ND-00
Lumen (lm): 1290 lm
Optic: N
Optic value: 22°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60822-M-8030-ND-00
Lumen (lm): 1110 lm
Optic: M
Optic value: 30°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60822-M-8040-ND-00
Lumen (lm): 1169 lm
Optic: M
Optic value: 30°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60822-W-8030-ND-00
Lumen (lm): 1057 lm
Optic: W
Optic value: 48°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: JA-60822-W-8040-ND-00
Lumen (lm): 1113 lm
Optic: W
Optic value: 48°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
