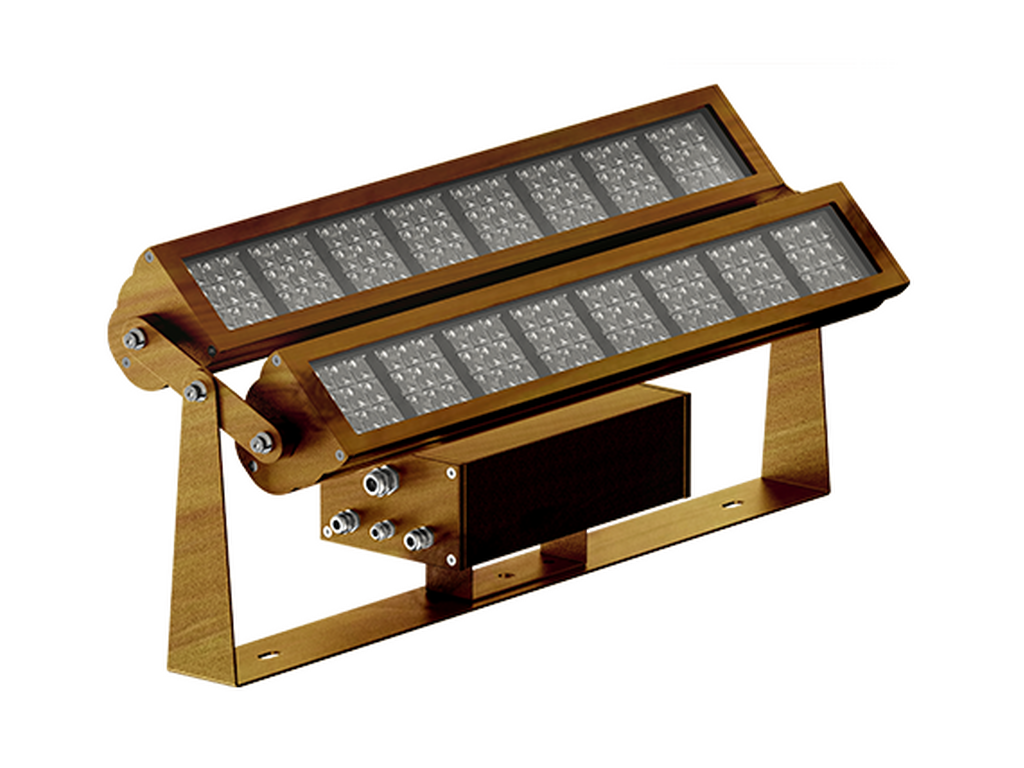

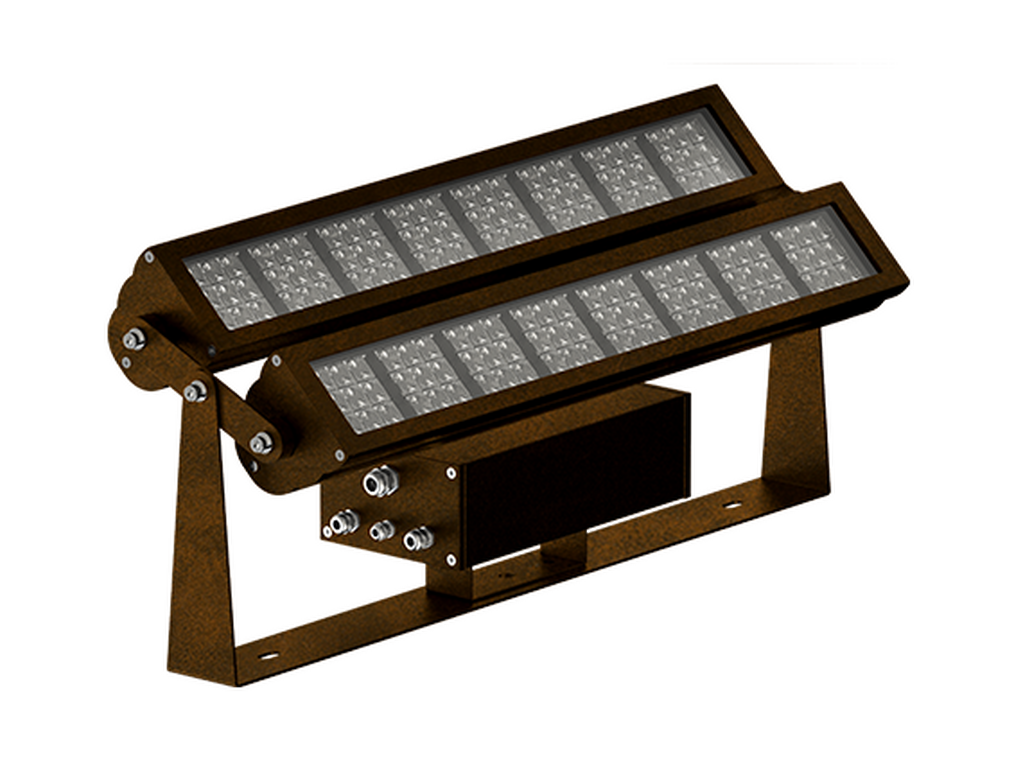

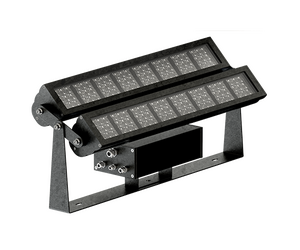

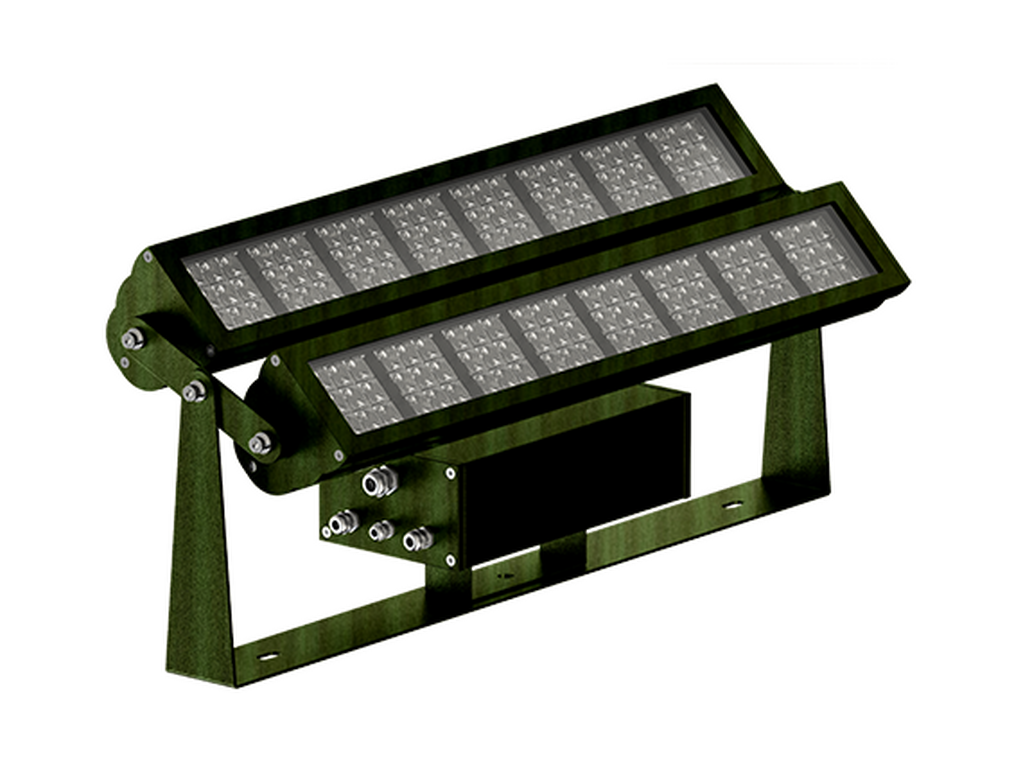

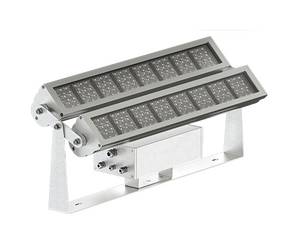

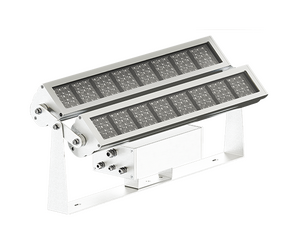

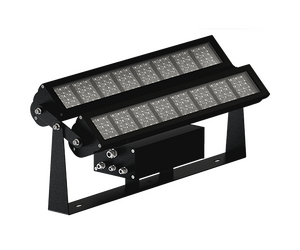

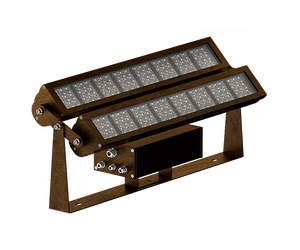

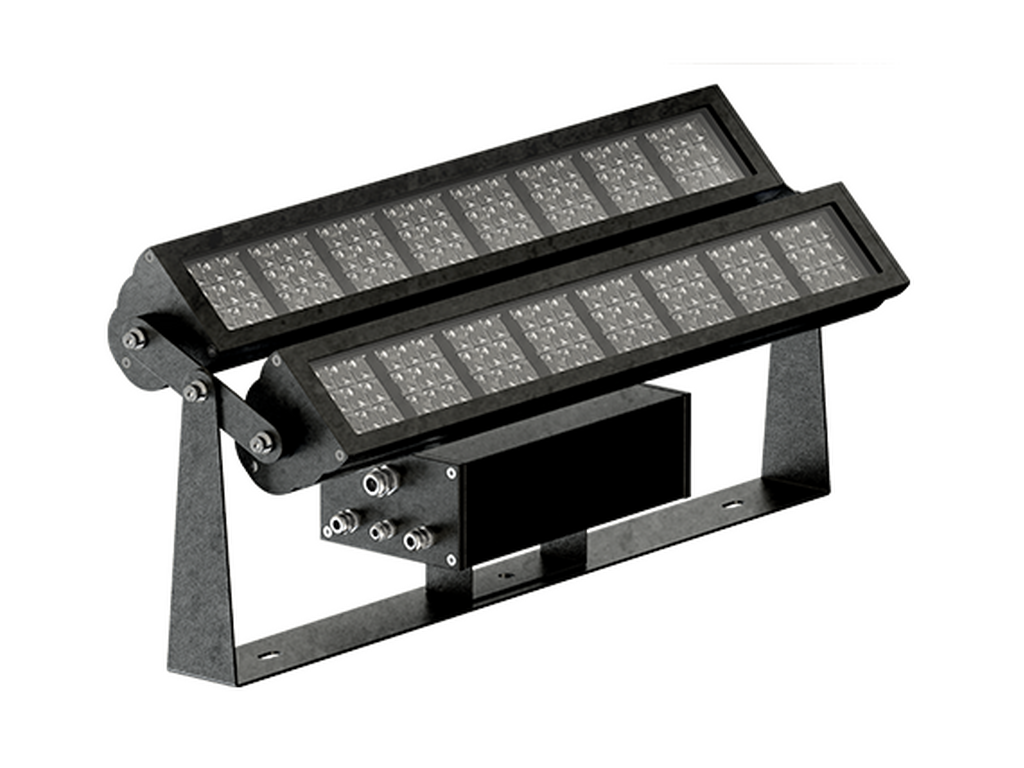

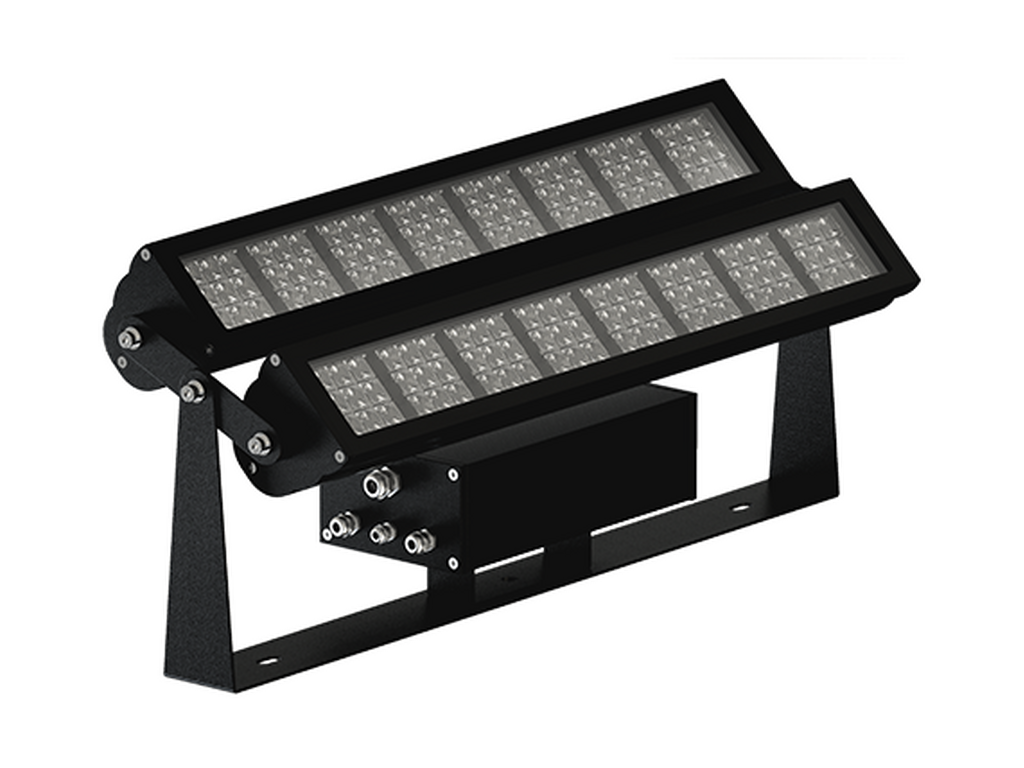

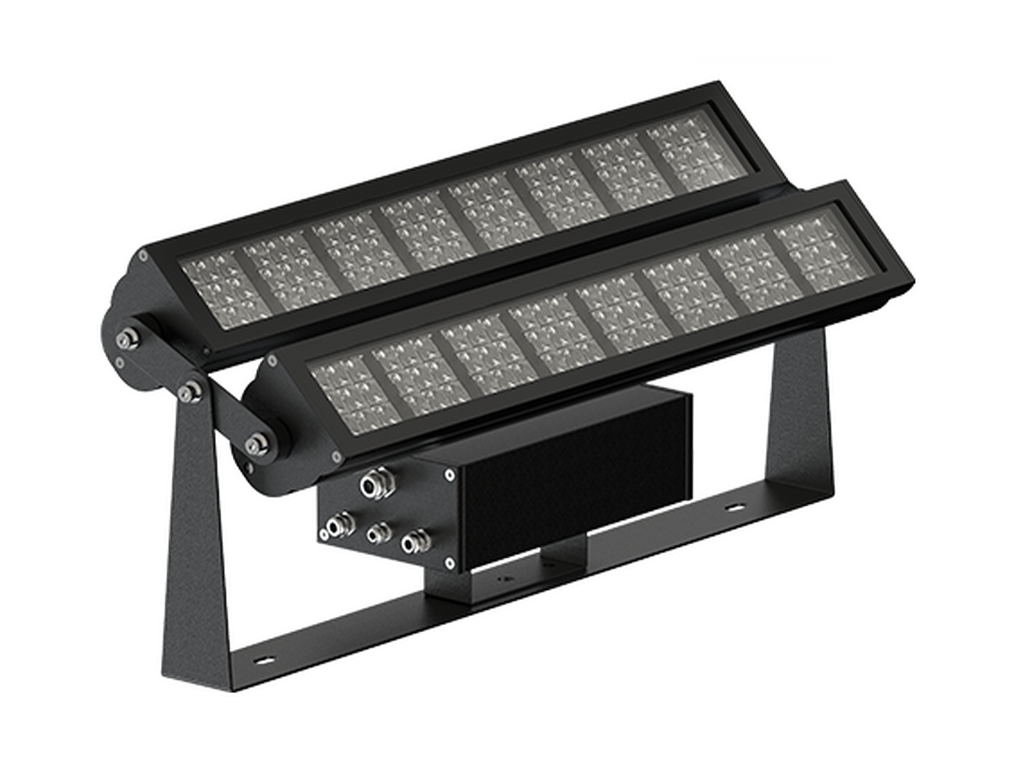

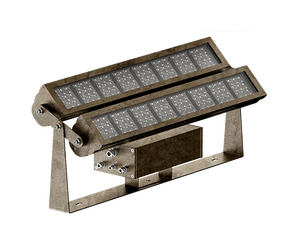

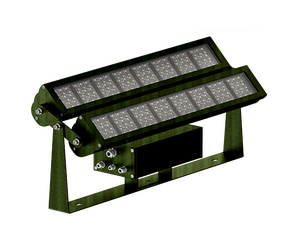

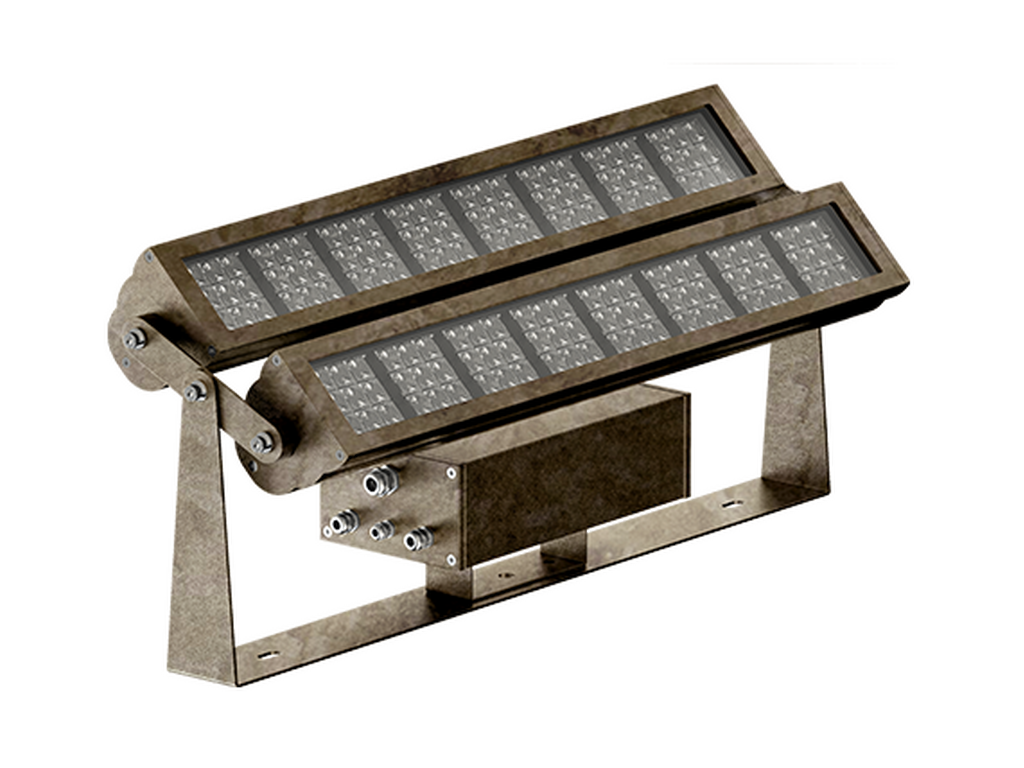

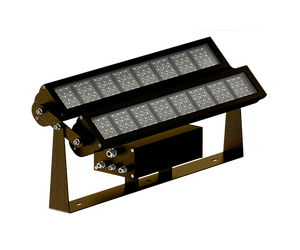

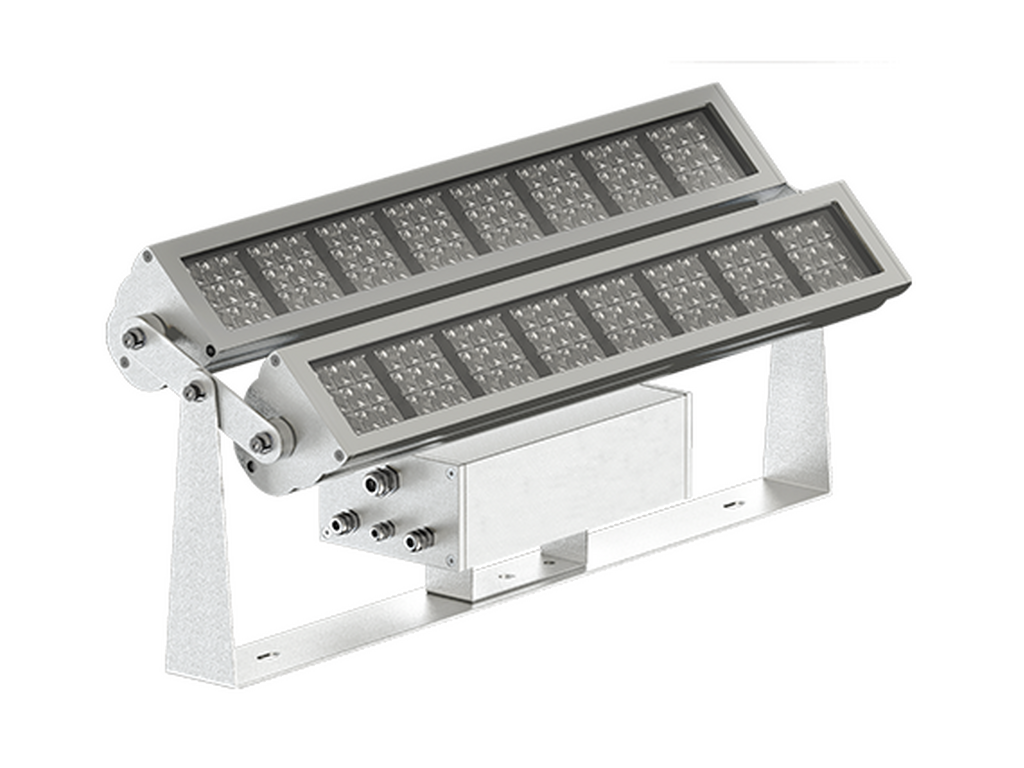

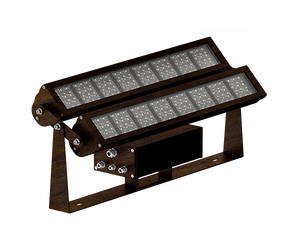

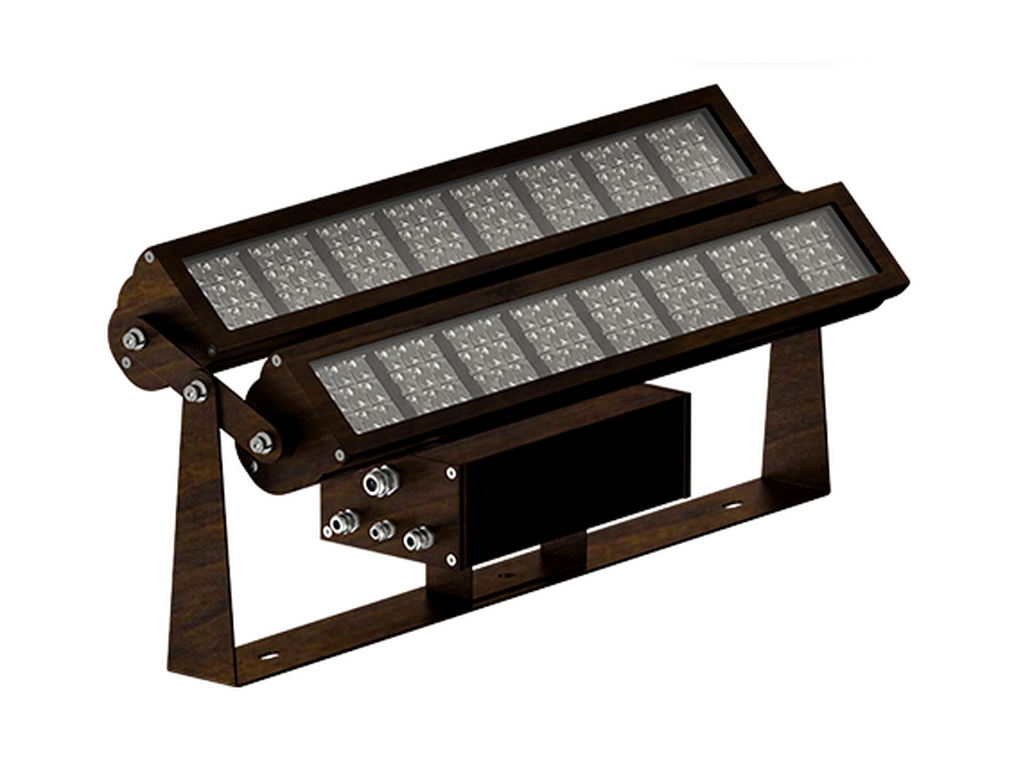

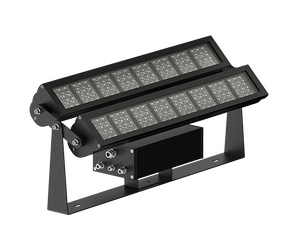

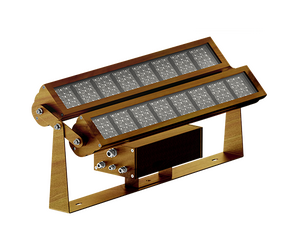

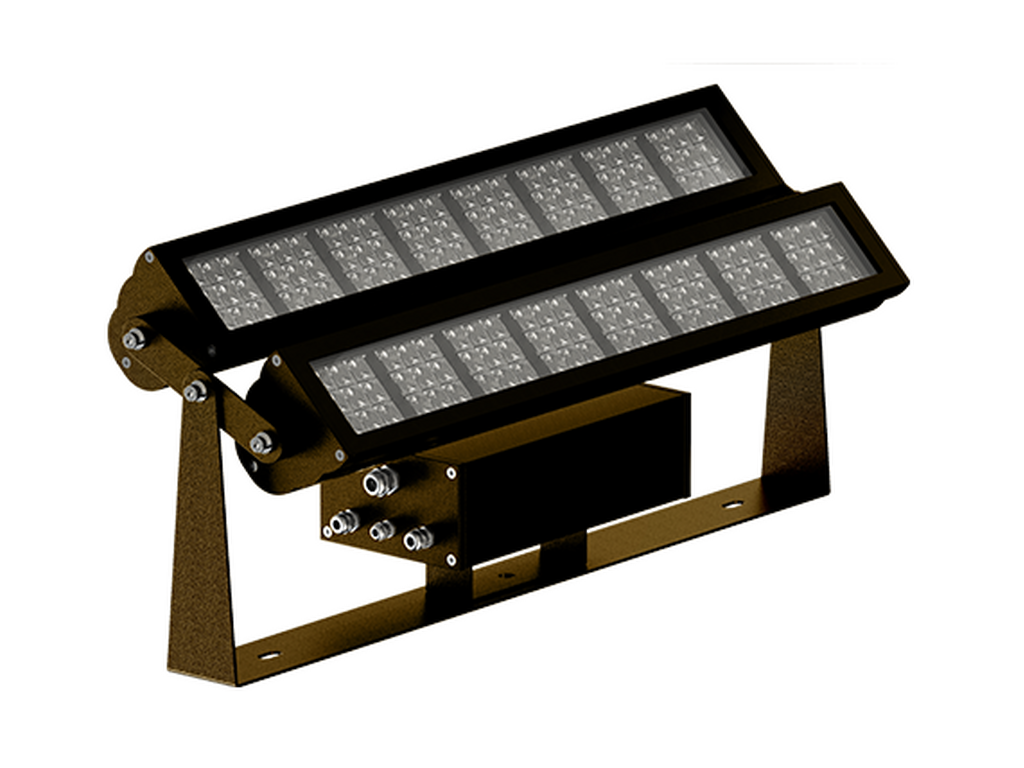

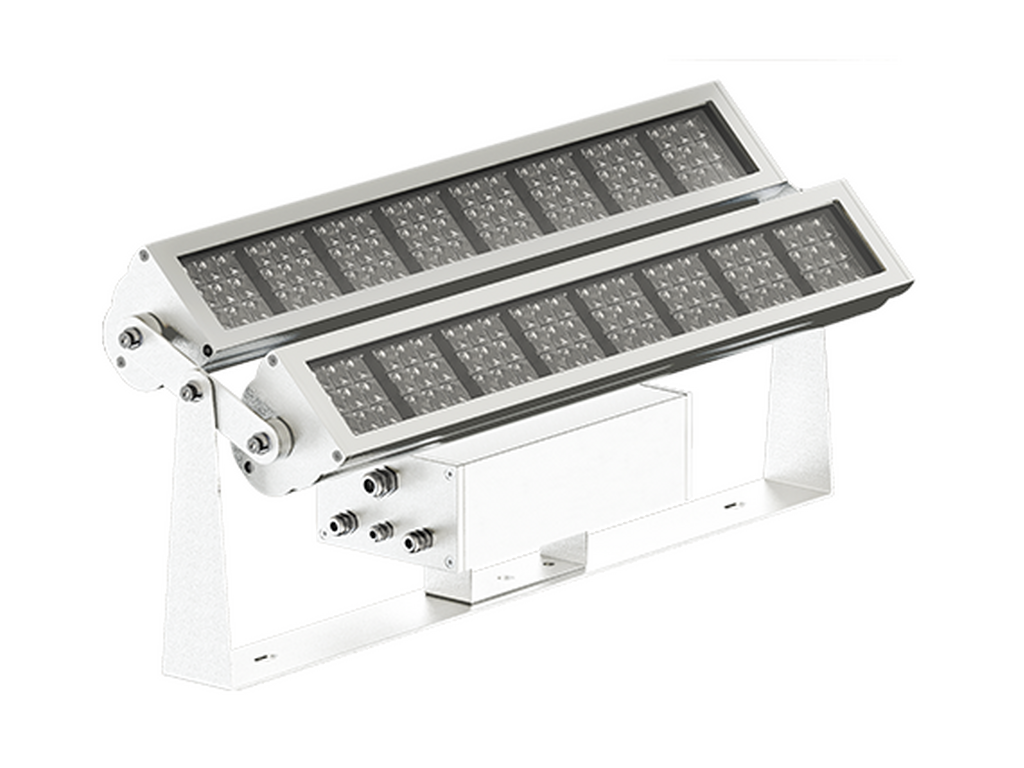

KWH 12KWH-50052Floodlights, projectors
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Large - 2 heads - RGBW
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 80 LED
Power (W)
146 W
Lumen (lm)
8802 - 11270 lm
Efficacy (lm/W)
60 - 77 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
9°, 16°, 33°, 64°x72°, 10°x43°
CCT / CRI
RGBW30, RGBW40
Bug
B3-U0-G0, B4-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
18 kg
Operating temperature
-20 °C to 40 °C
Cable
Three IP68 connectors supplied with 0.2 m of 3x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
N (9°)
M (16°)
W (33°)
VW (64°x72°)
E (10°x43°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
