LIGMAN LEEDS 3 LEE-30041.

LEEDS 3LEE-30041LEEDS

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

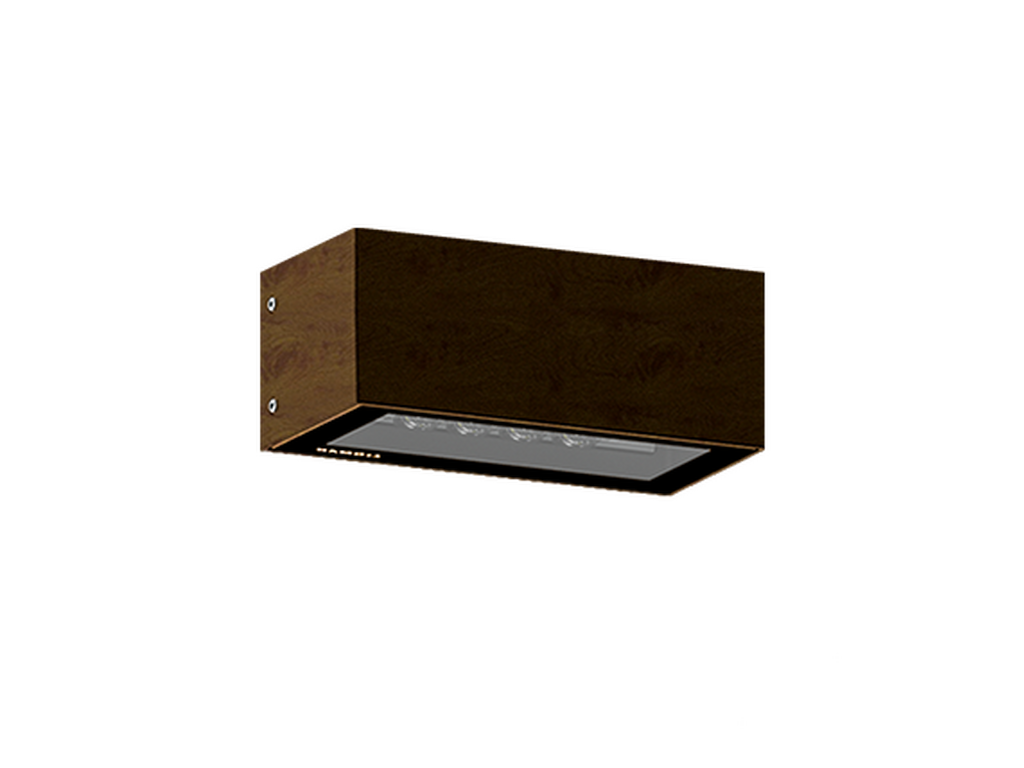

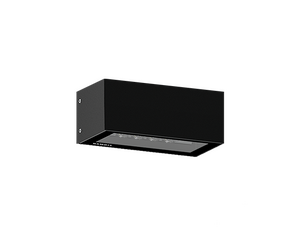

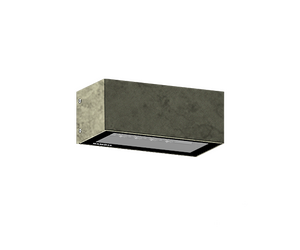

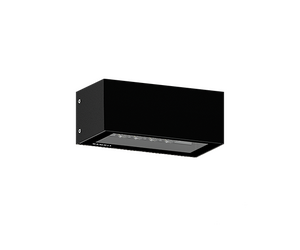

LEEDS 3Black

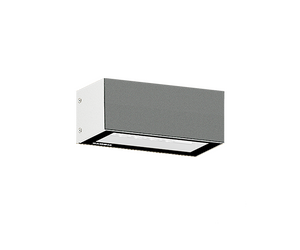

LEEDS 3Dark Grey

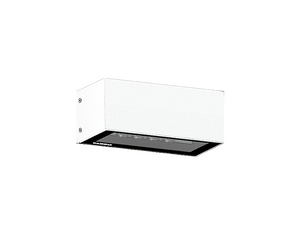

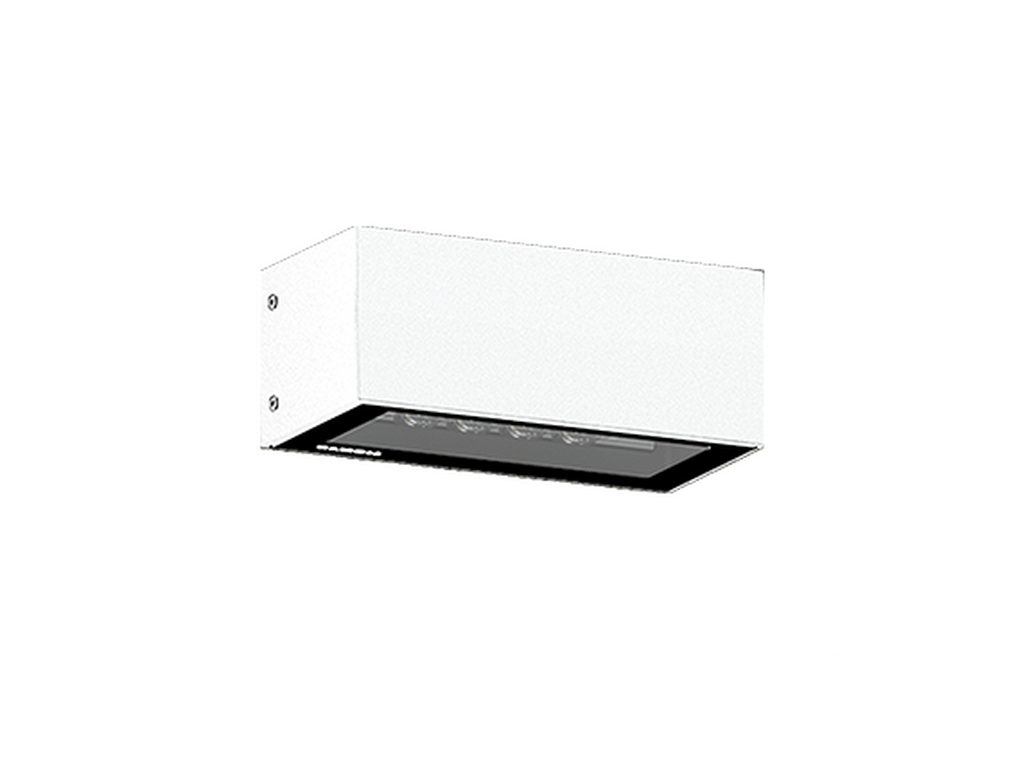

LEEDS 3White
LEEDS 3Matt Silver
LEEDS 3Bronze
LEEDS 3Concrete - Urban
LEEDS 3Softscape - Urban
LEEDS 3Stone - Urban

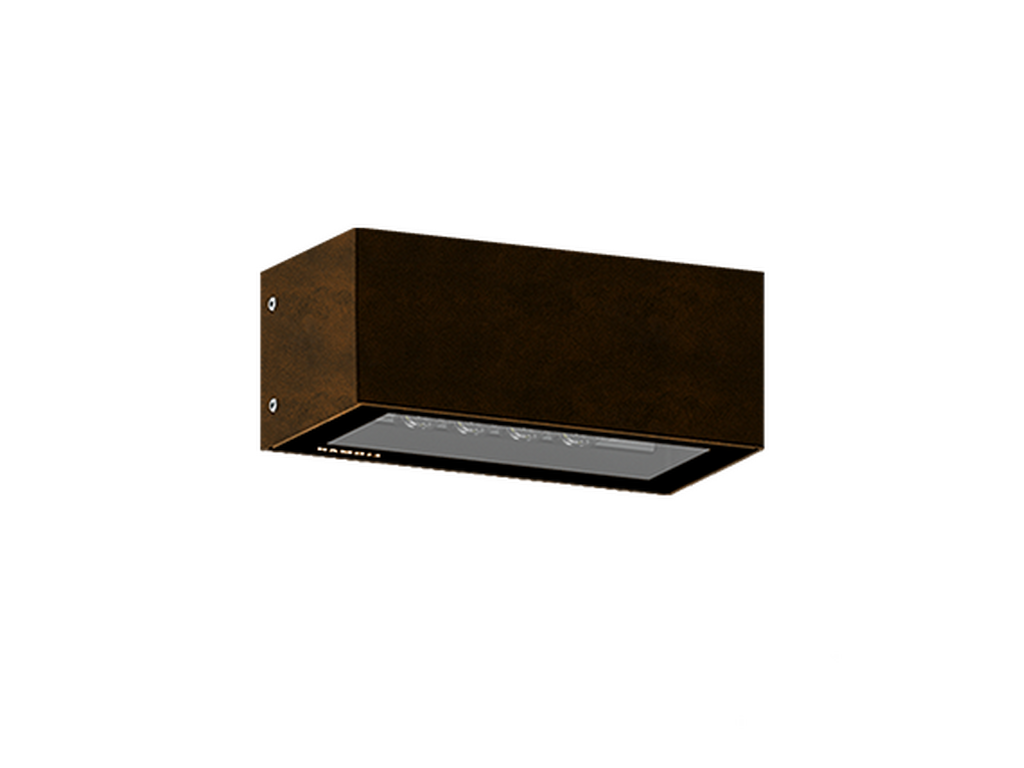

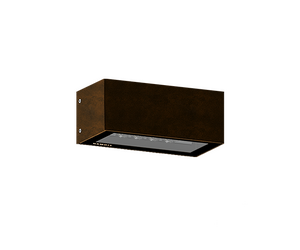

LEEDS 3Corten - Urban

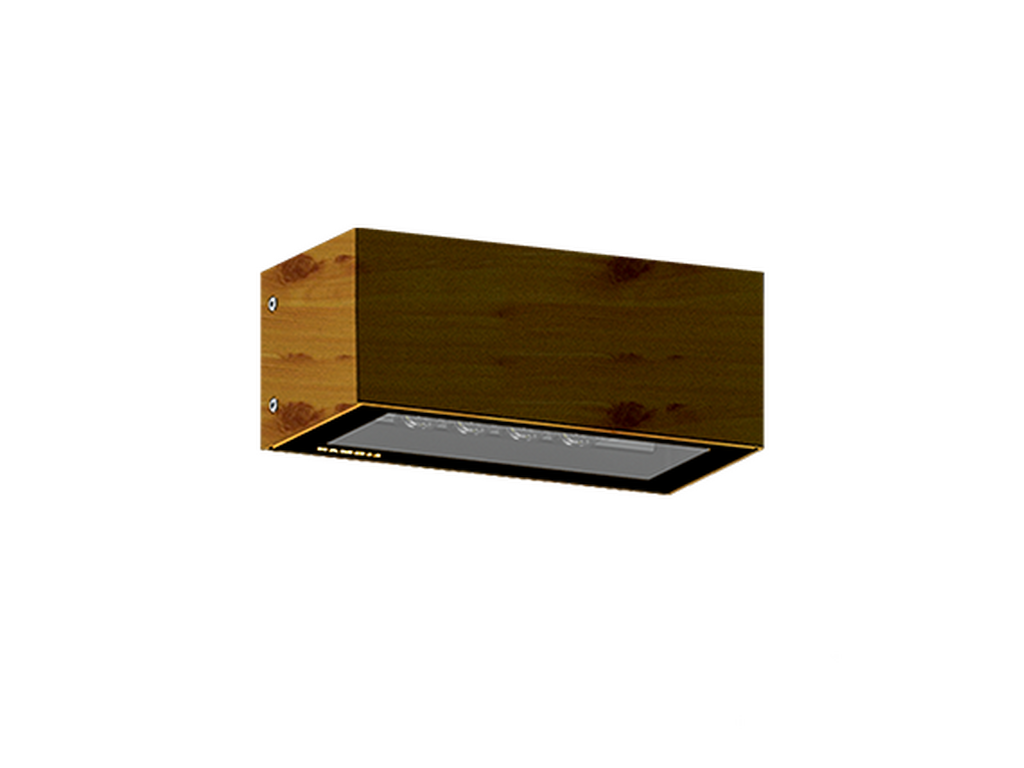

LEEDS 3Oak - Woodland
LEEDS 3Walnut - Woodland
LEEDS 3Pine - Woodland
LEEDS 3Black
LEEDS 3Dark Grey
LEEDS 3White
LEEDS 3Matt Silver
LEEDS 3Bronze
LEEDS 3Concrete - Urban
LEEDS 3Softscape - Urban
LEEDS 3Stone - Urban
LEEDS 3Corten - Urban
LEEDS 3Oak - Woodland
LEEDS 3Walnut - Woodland
LEEDS 3Pine - Woodland
Down (Optic) & Up (Optic 2nd) - Rectangular
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
8 & 8 LED
Power (W)
26 W
Lumen (lm)
2606 - 3350 lm
Efficacy (lm/W)
100 - 129 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 56°, 104°x111°, 56°x139°, 86°x124°, 89°x106°, 61°x139°
Optic (2nd)
M, W, EW, T2, T3, T4, ME
Optic (2nd) Value
30°, 56°, 104°x111°, 56°x139°, 86°x124°, 89°x106°, 61°x139°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U5-G0, B1-U5-G0, B2-U5-G0
ULR
47%, 48%, 49%, 50%, 51%, 52%, 53%
ULOR
47%, 48%, 49%, 50%, 51%, 52%, 53%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.8 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°) / M (30°)
M (30°) / W (56°)
M (30°) / EW (104°x111°)
M (30°) / T2 (56°x139°)
M (30°) / T3 (86°x124°)
M (30°) / T4 (89°x106°)
M (30°) / ME (61°x139°)
W (56°) / M (30°)
W (56°) / W (56°)
W (56°) / EW (104°x111°)
W (56°) / T2 (56°x139°)
W (56°) / T3 (86°x124°)
W (56°) / T4 (89°x106°)
W (56°) / ME (61°x139°)
EW (104°x111°) / M (30°)
EW (104°x111°) / W (56°)
EW (104°x111°) / EW (104°x111°)
EW (104°x111°) / T2 (56°x139°)
EW (104°x111°) / T3 (86°x124°)
EW (104°x111°) / T4 (89°x106°)
EW (104°x111°) / ME (61°x139°)
T2 (56°x139°) / M (30°)
T2 (56°x139°) / W (56°)
T2 (56°x139°) / EW (104°x111°)
T2 (56°x139°) / T2 (56°x139°)
T2 (56°x139°) / T3 (86°x124°)
T2 (56°x139°) / T4 (89°x106°)
T2 (56°x139°) / ME (61°x139°)
T3 (86°x124°) / M (30°)
T3 (86°x124°) / W (56°)
T3 (86°x124°) / EW (104°x111°)
T3 (86°x124°) / T2 (56°x139°)
T3 (86°x124°) / T3 (86°x124°)
T3 (86°x124°) / T4 (89°x106°)
T3 (86°x124°) / ME (61°x139°)
T4 (89°x106°) / M (30°)
T4 (89°x106°) / W (56°)
T4 (89°x106°) / EW (104°x111°)
T4 (89°x106°) / T2 (56°x139°)
T4 (89°x106°) / T3 (86°x124°)
T4 (89°x106°) / T4 (89°x106°)
T4 (89°x106°) / ME (61°x139°)
ME (61°x139°) / M (30°)
ME (61°x139°) / W (56°)
ME (61°x139°) / EW (104°x111°)
ME (61°x139°) / T2 (56°x139°)
ME (61°x139°) / T3 (86°x124°)
ME (61°x139°) / T4 (89°x106°)
ME (61°x139°) / ME (61°x139°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

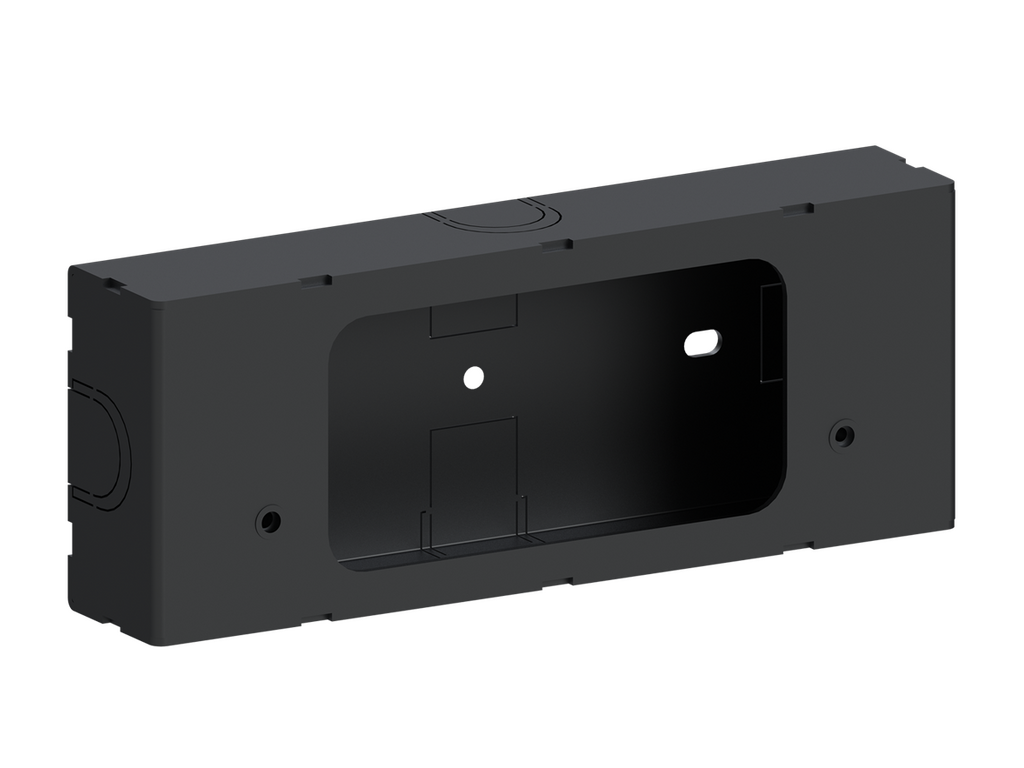

ACCESSORY

PROJECT REFERENCE (LEEDS Surface facade luminaires)
