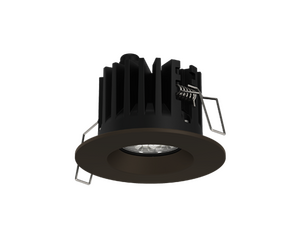

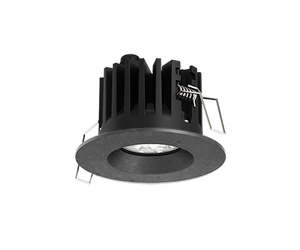

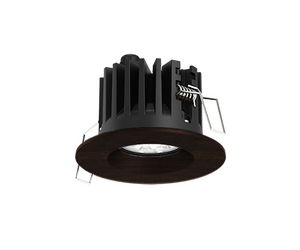

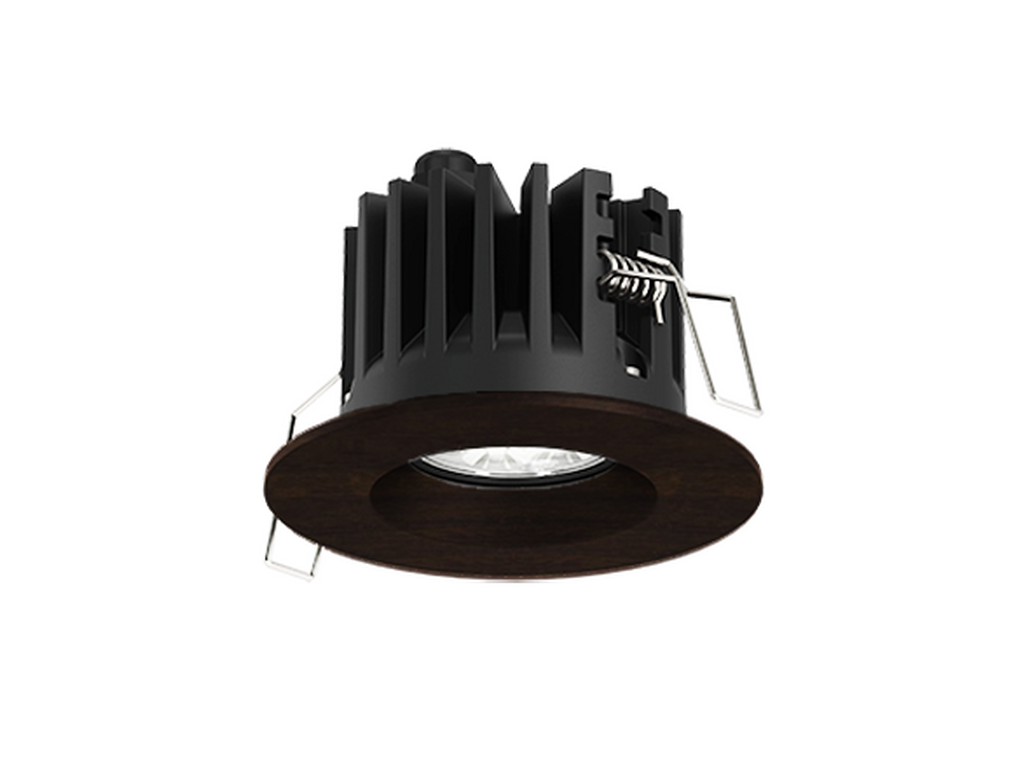

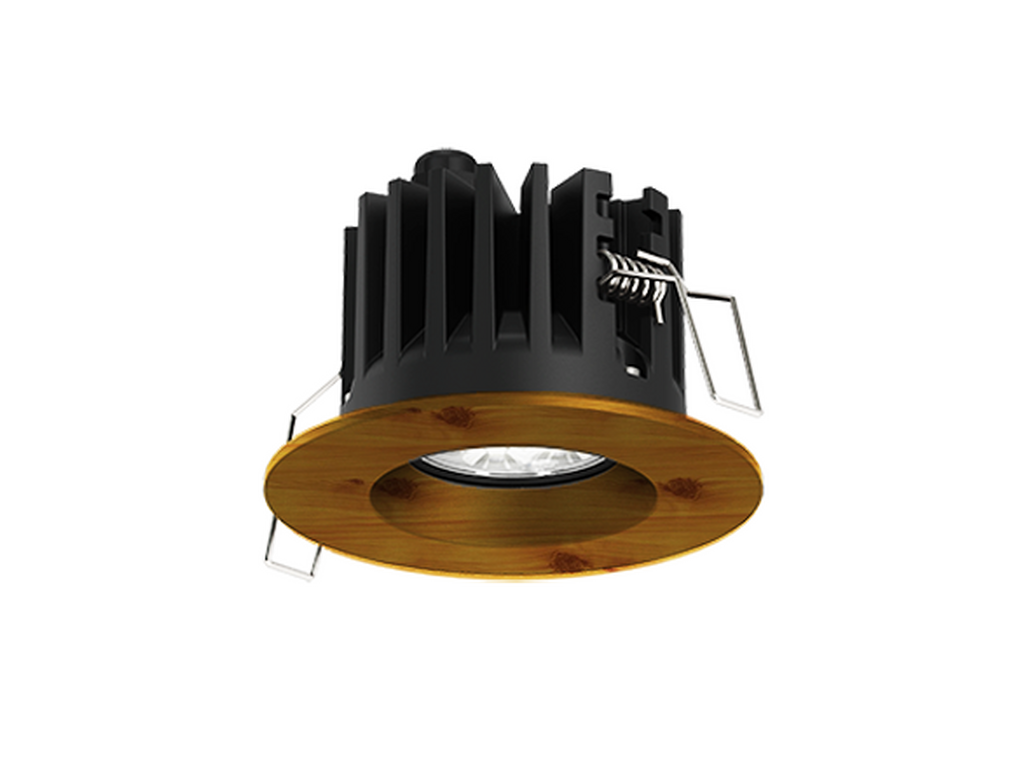

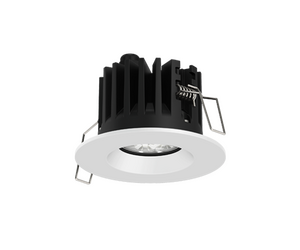

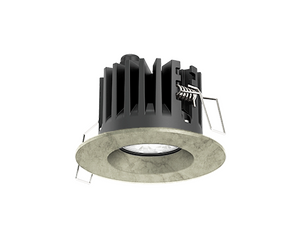

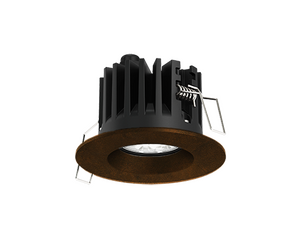

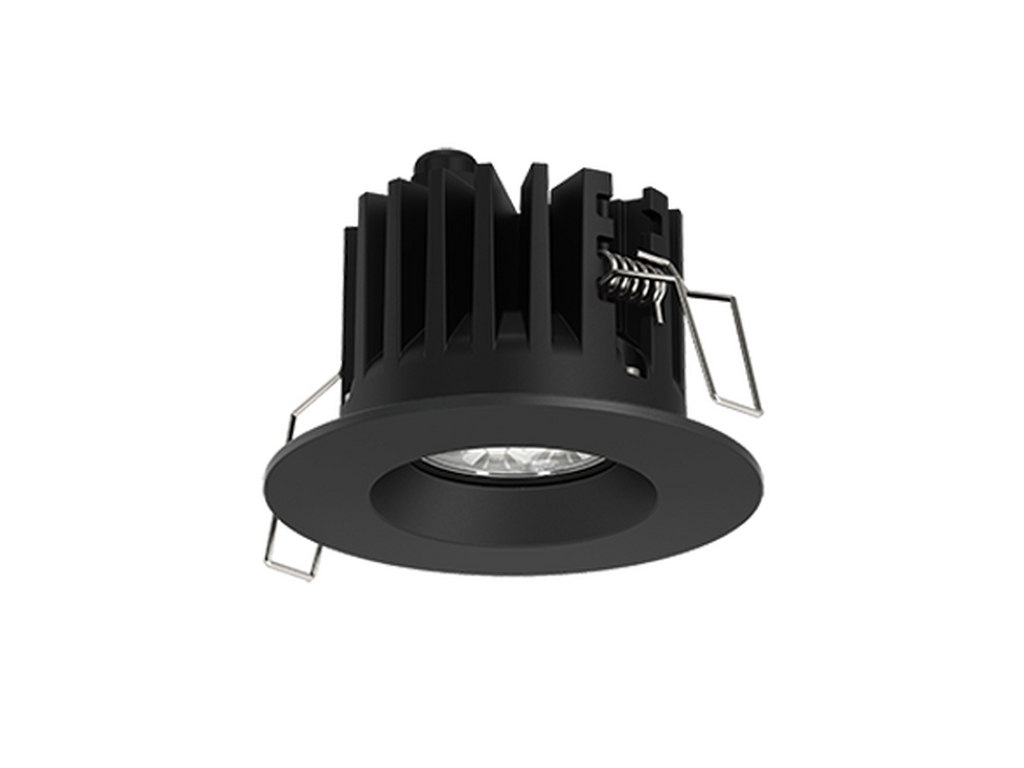

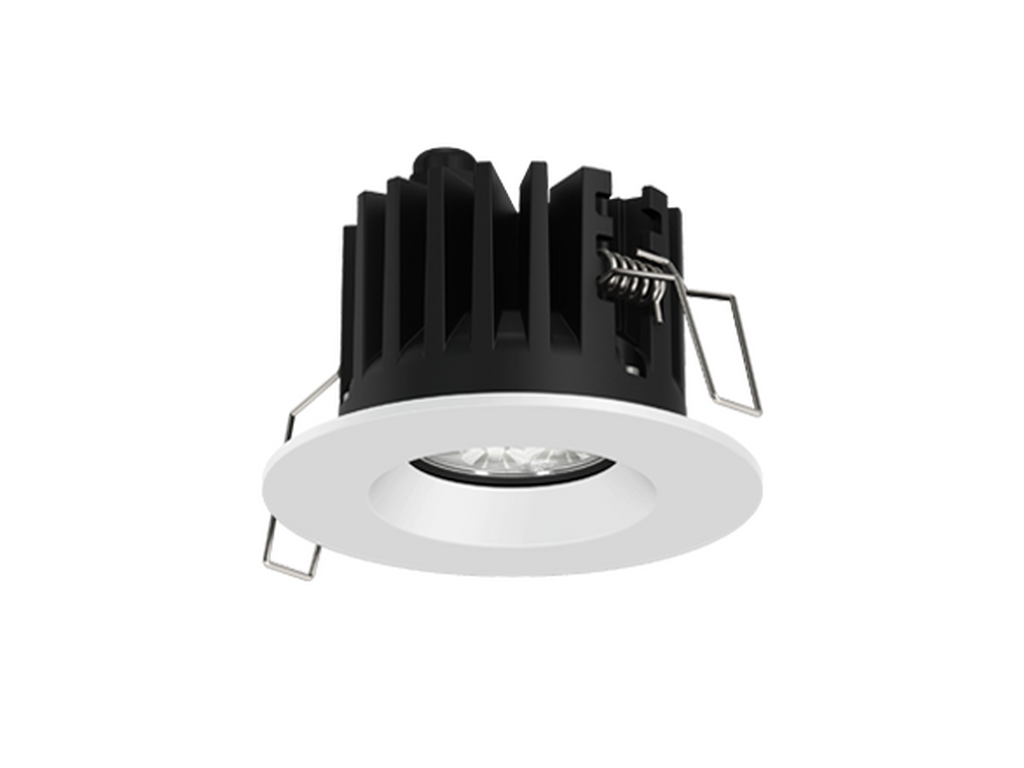

MUNICH 1MUN-80001Recessed exterior downlights
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland

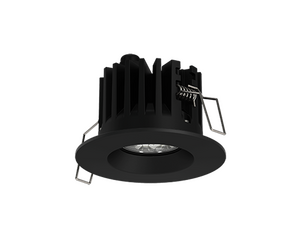

Black
Dark Grey
White

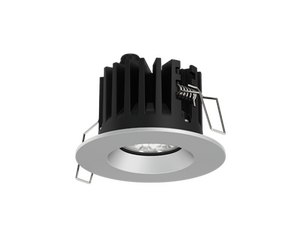

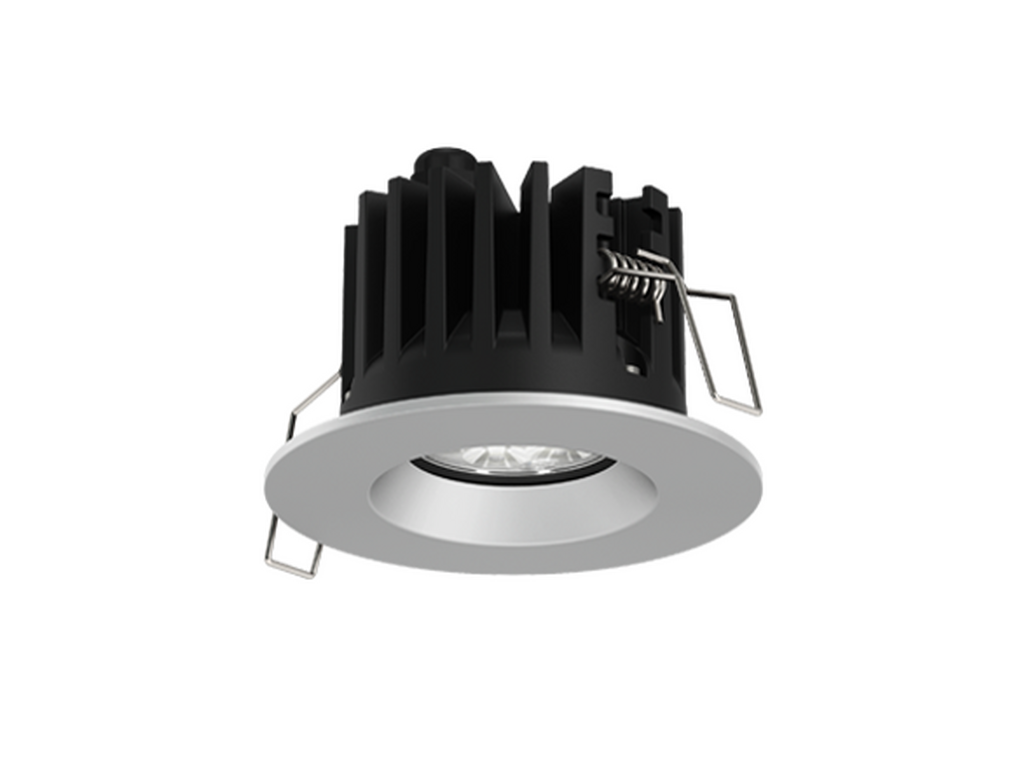

Matt Silver

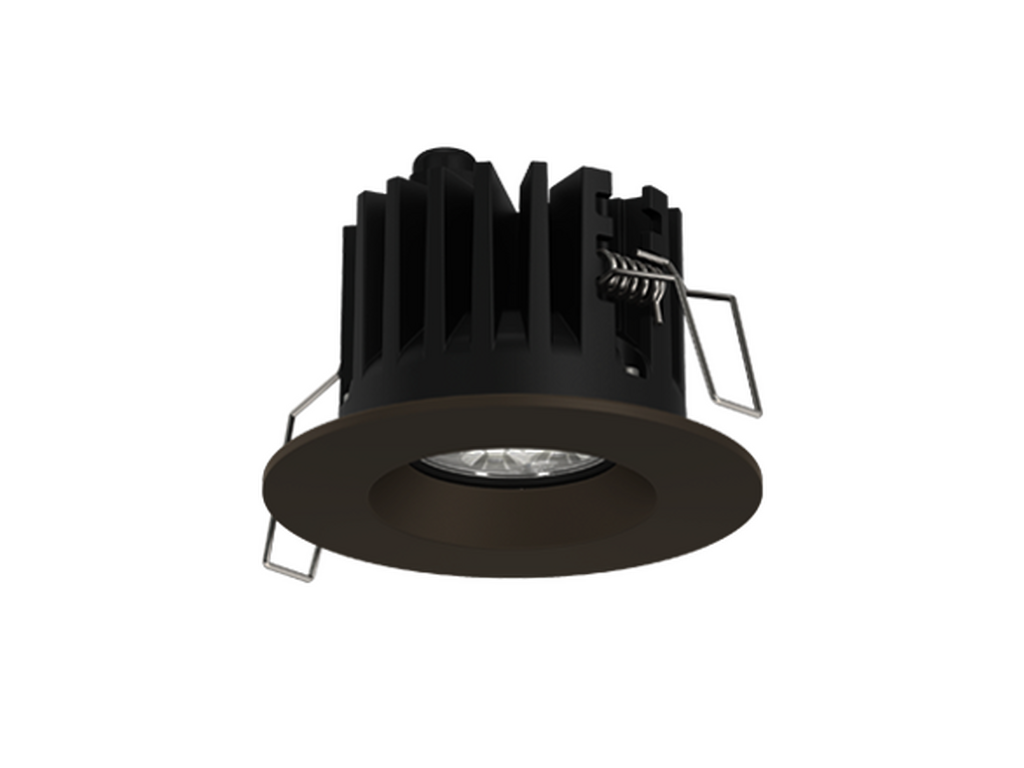

Bronze
Concrete - Urban
Softscape - Urban

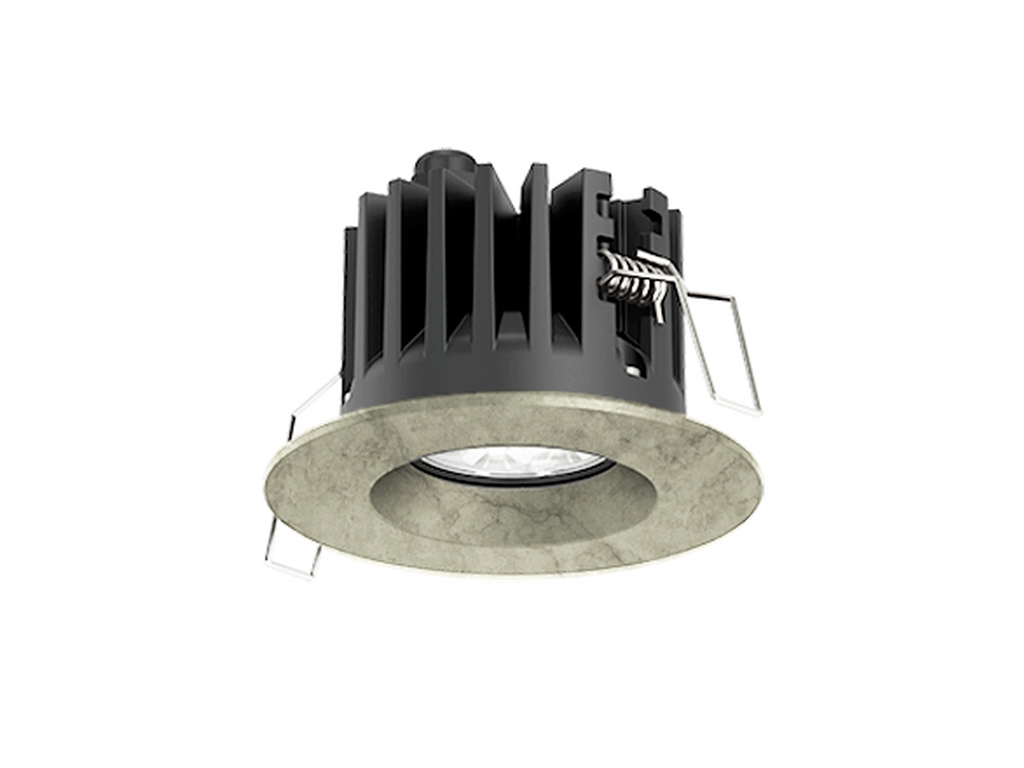

Stone - Urban

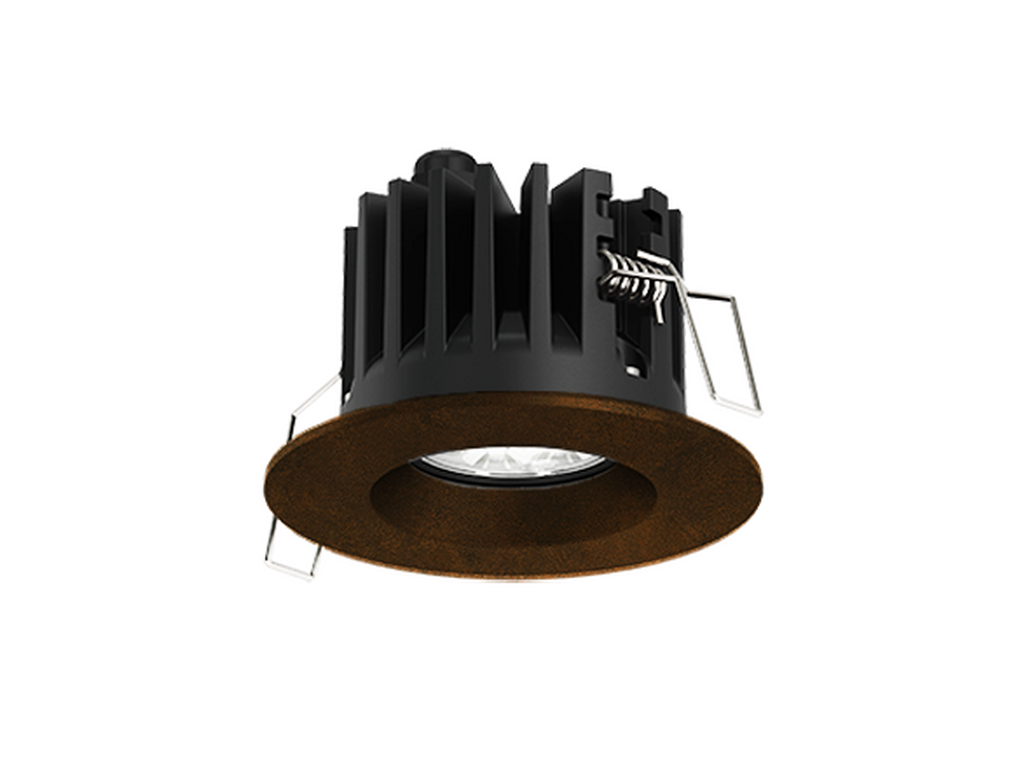

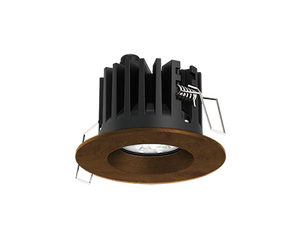

Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandWith remote driver
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
7 LED (N,M), 1 LED (W, VW)
Power (W)
12 W
Lumen (lm)
509 - 1038 lm
Efficacy (lm/W)
46 - 87 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
500 mA, 21 VDC
Optic
N, M, W, VW
Optic value
14°, 25°, 34°, 60°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.40 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000, 120,000
Lifetime L80B10 (hours)
> 109,000, 120,000
Lifetime L80B50 (hours)
> 109,000, 120,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

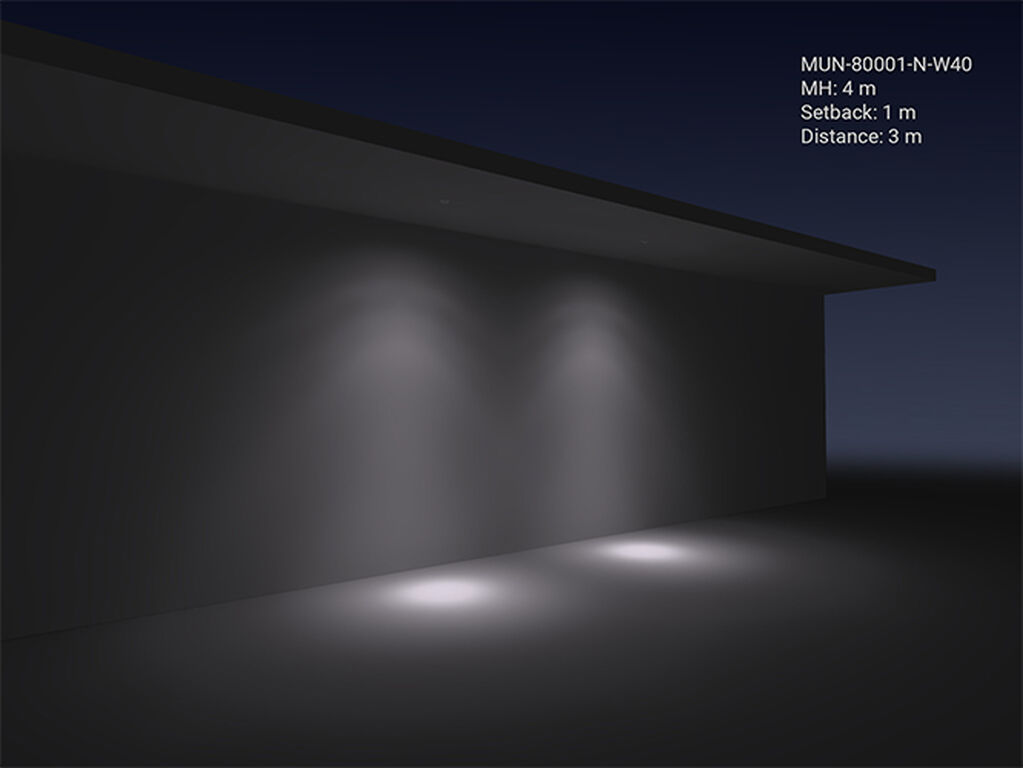

LIGHT EFFECT
Optic
N (14°)
M (25°)
W (34°)
VW (60°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
