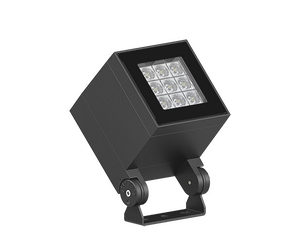

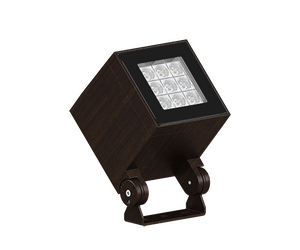

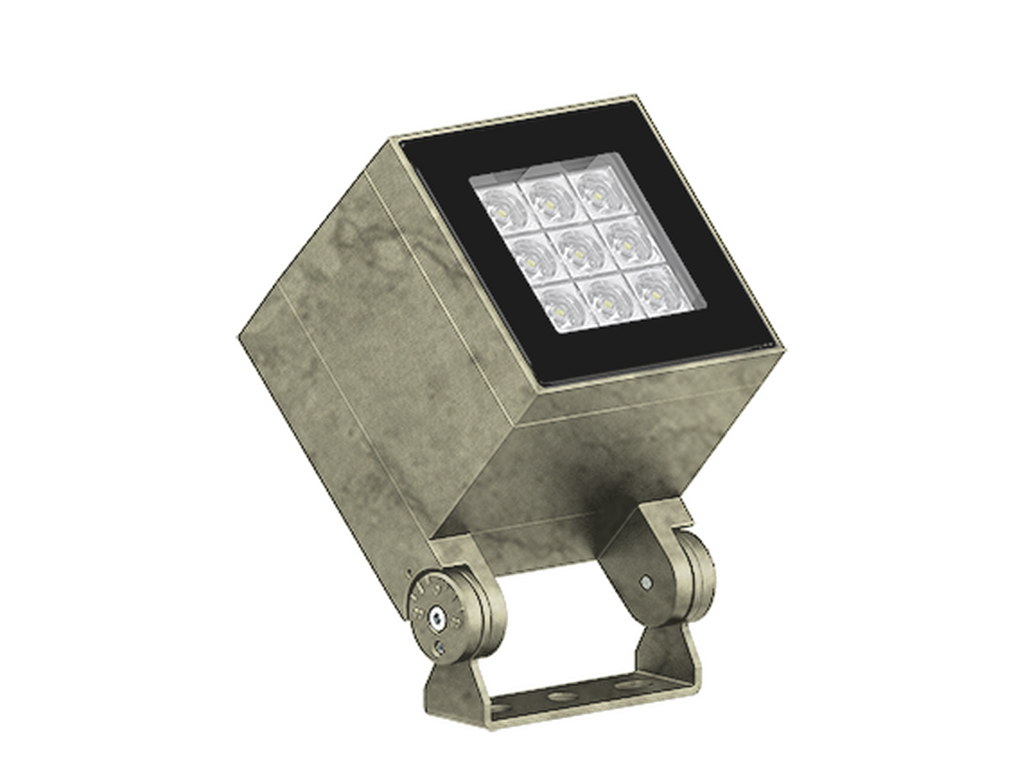

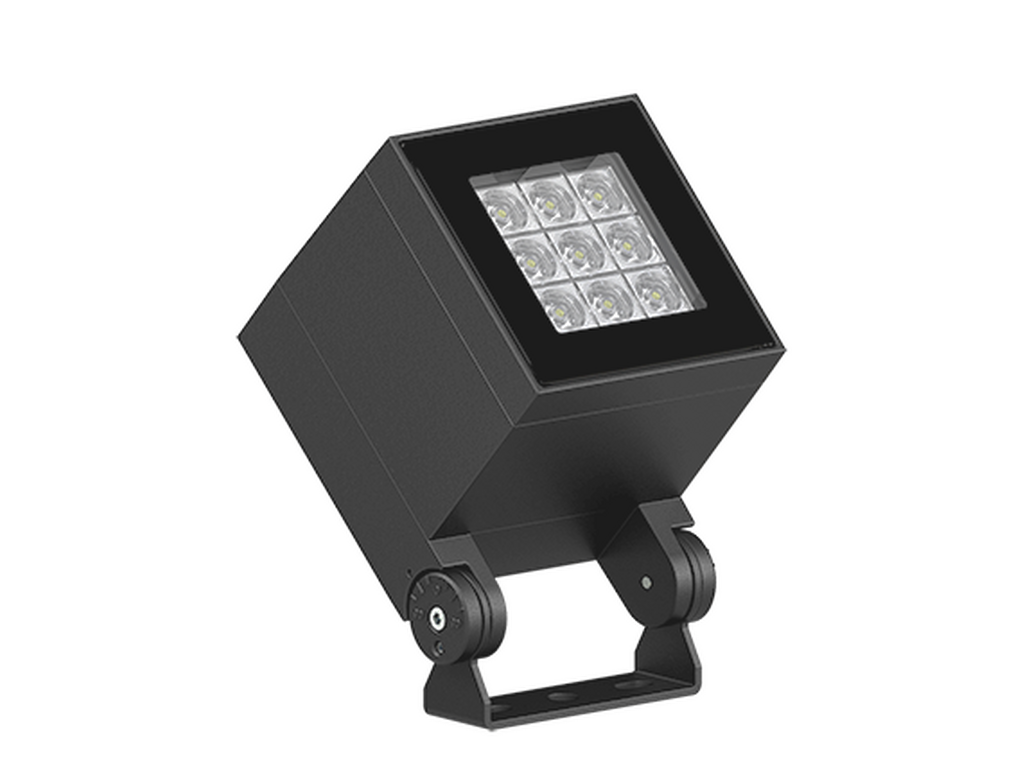

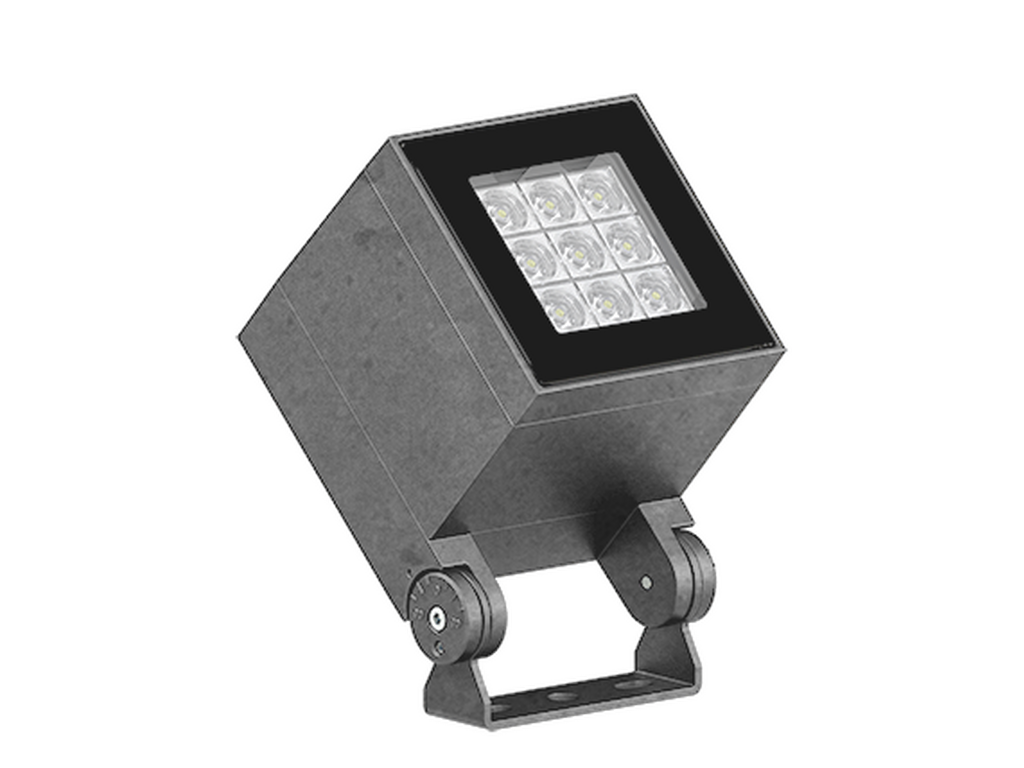

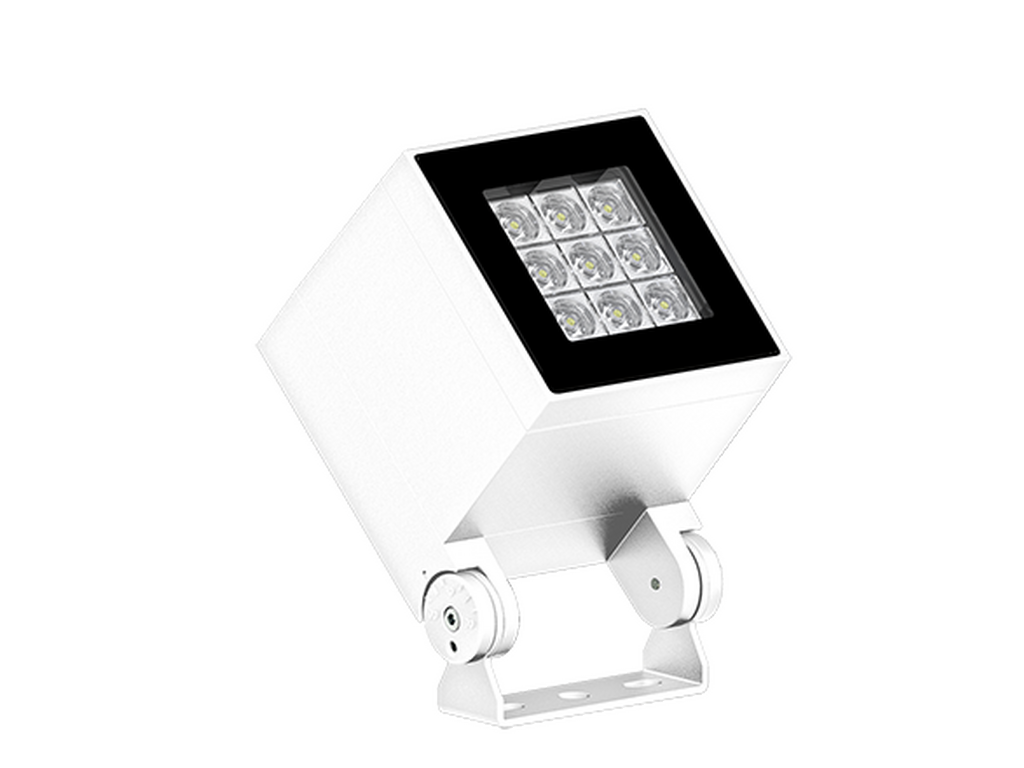

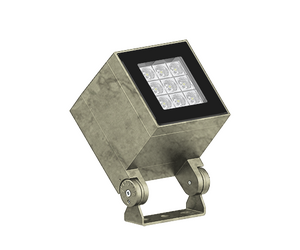

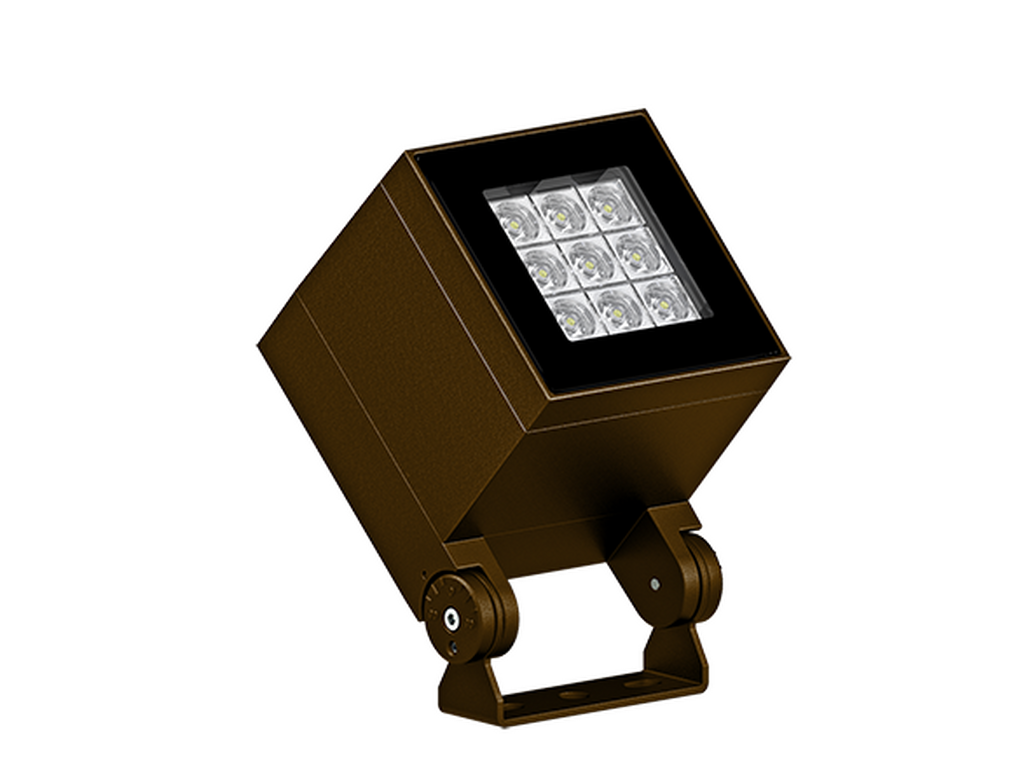

NORDSTROM 3NOD-50021Floodlights, projectors

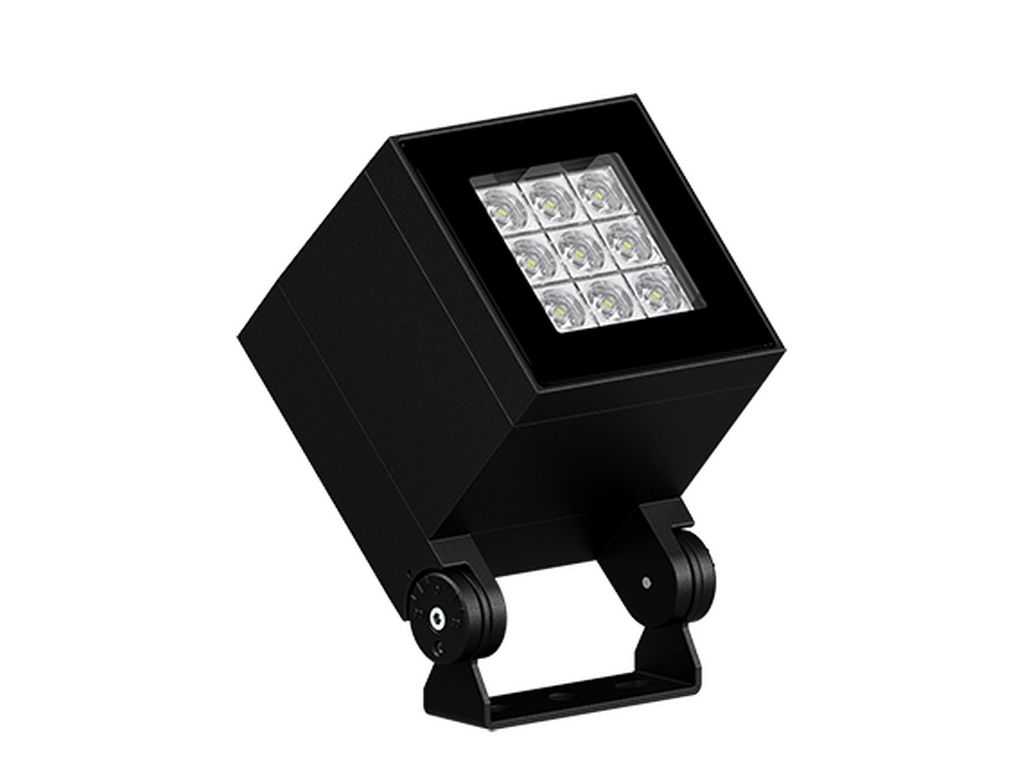

Black
Dark Grey
White

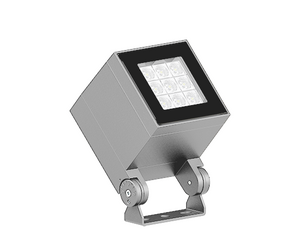

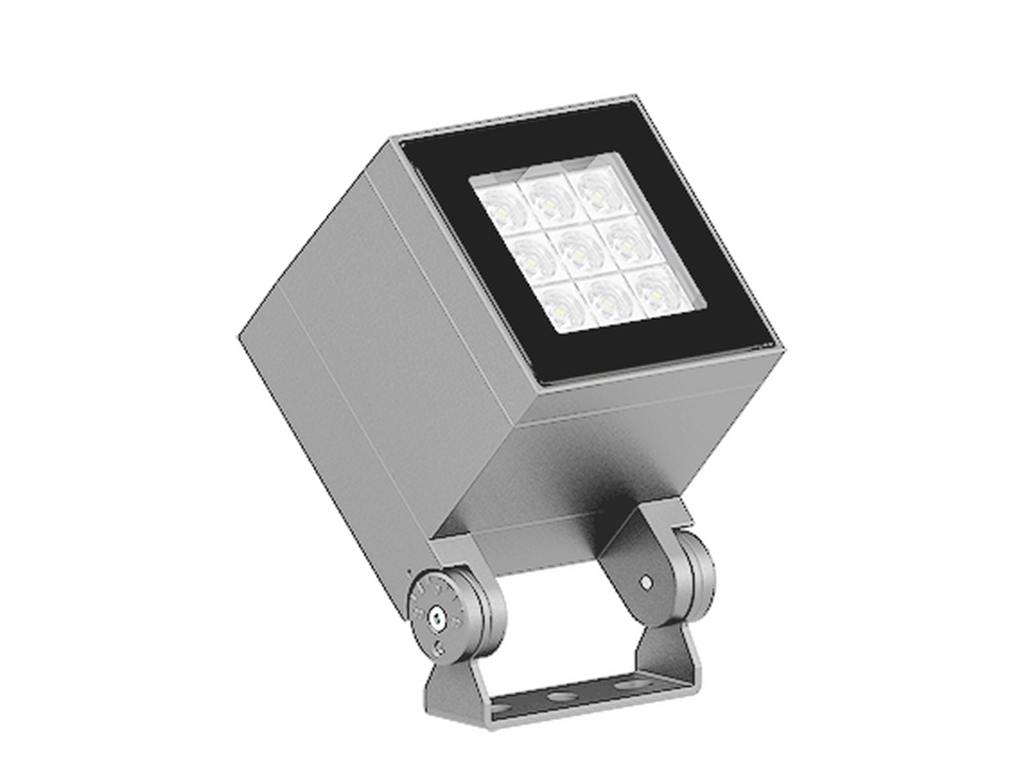

Matt Silver
Bronze

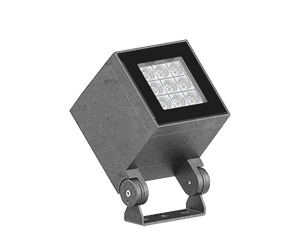

Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland

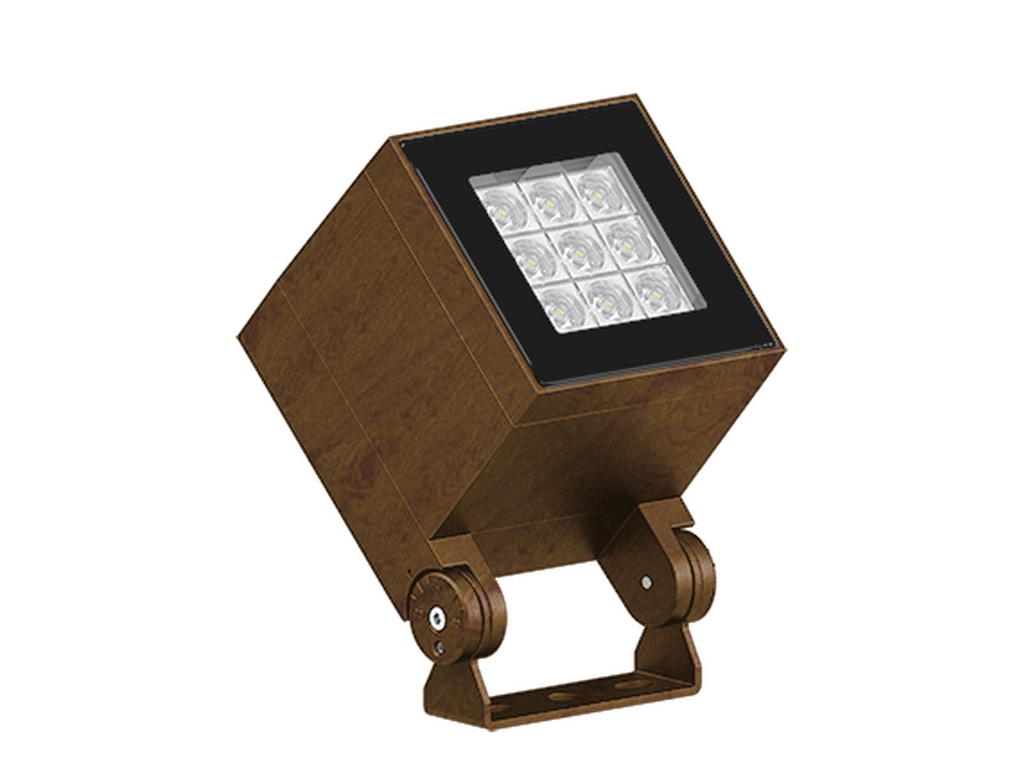

Walnut - Woodland

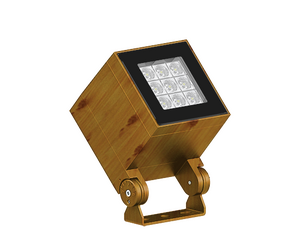

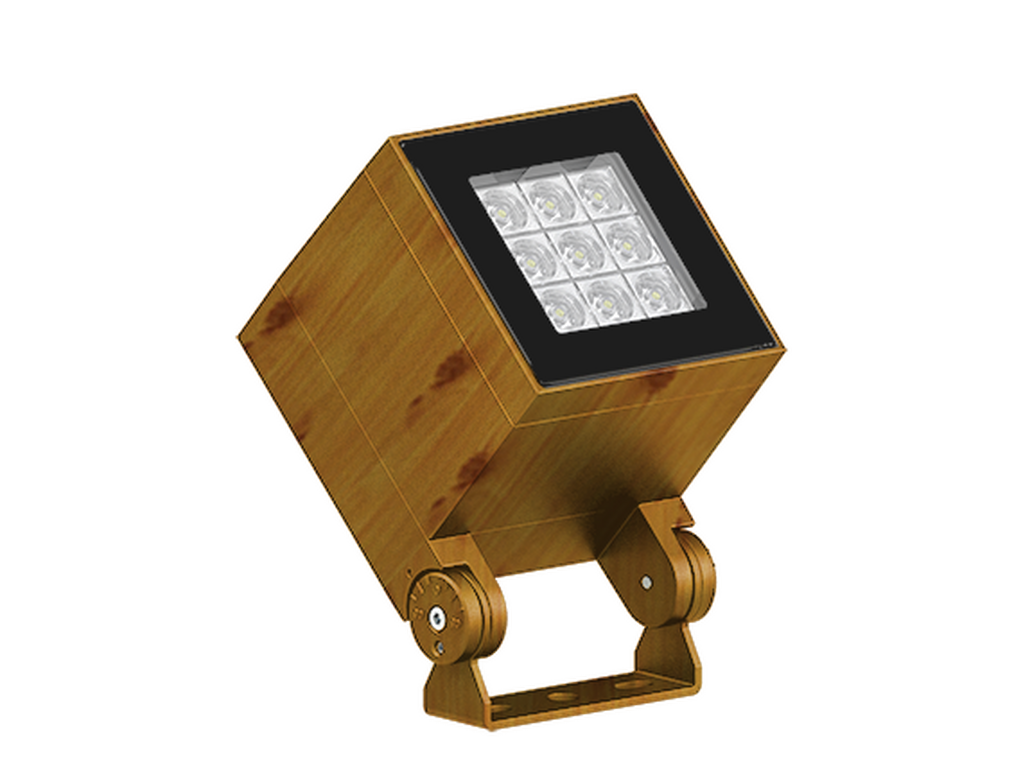

Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandIntegral control gear - 120x120 mm - Class I
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
9 LED
Power (W)
21 W
Lumen (lm)
1921 - 2364 lm
Efficacy (lm/W)
91 - 113 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW, E
Optic value
10°, 17°, 34°, 70°, 43°x11°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G0, B3-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.7 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
AR Tracker
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
N (10°)
M (17°)
W (34°)
VW (70°)
E (43°x11°)
