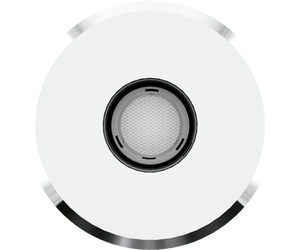

OREGON 1
Without remote box IP-rated - With remote driver / recessing box - Constant current (CC) 500 mA
CERETILAPClass IIIIP68IK09

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
1 LED
Power (W)
2 W
Lumen (lm)
191 - 201 lm
Efficacy (lm/W)
96 - 101 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
500 mA, 3 VDC
Optic
N
Optic value
22°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
0.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 109,000
Lifetime L80B10 (hours)
> 109,000
Lifetime L80B50 (hours)
> 109,000

LIGHT EFFECT

Optic
N (22°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: OR-60895-N-8030-ND-00
Lumen (lm): 191 lm
Optic: N
Optic value: 22°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: OR-60895-N-8040-ND-00
Lumen (lm): 201 lm
Optic: N
Optic value: 22°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: OR-60895-N-8030-DI-00
Lumen (lm): 191 lm
Optic: N
Optic value: 22°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: OR-60895-N-8040-DI-00
Lumen (lm): 201 lm
Optic: N
Optic value: 22°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: OR-60895-N-8030-DA-00
Lumen (lm): 191 lm
Optic: N
Optic value: 22°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: OR-60895-N-8040-DA-00
Lumen (lm): 201 lm
Optic: N
Optic value: 22°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel

ACCESSORY

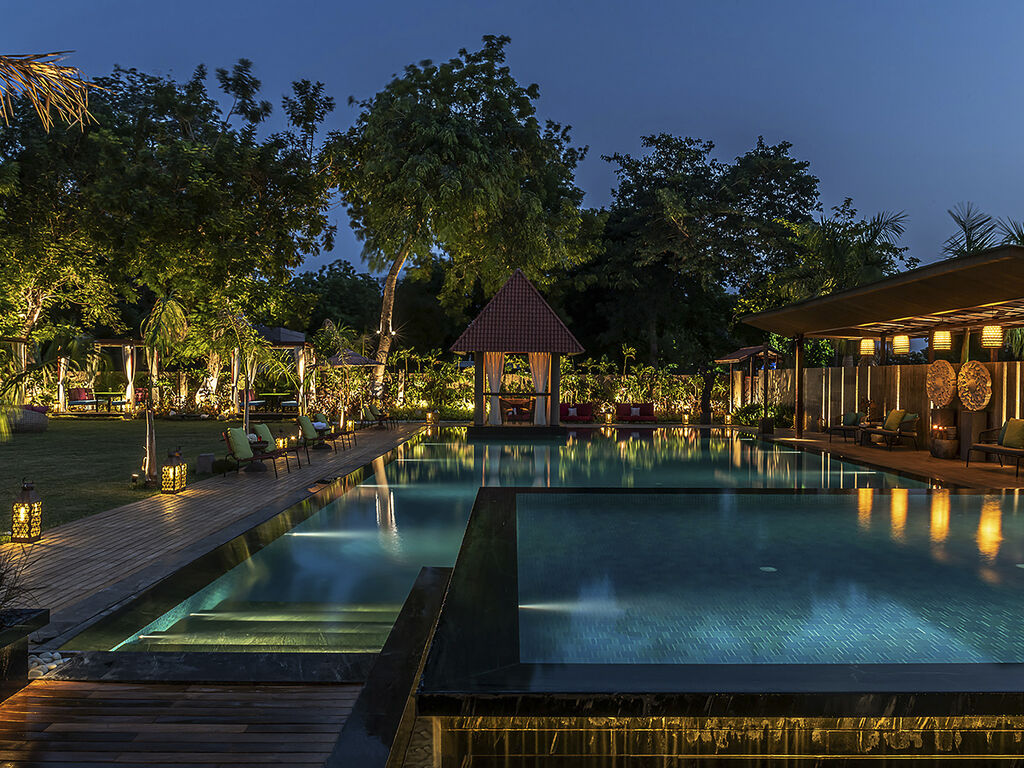

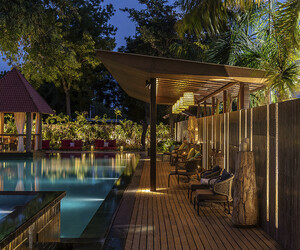

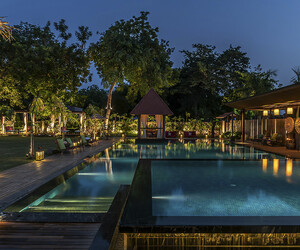

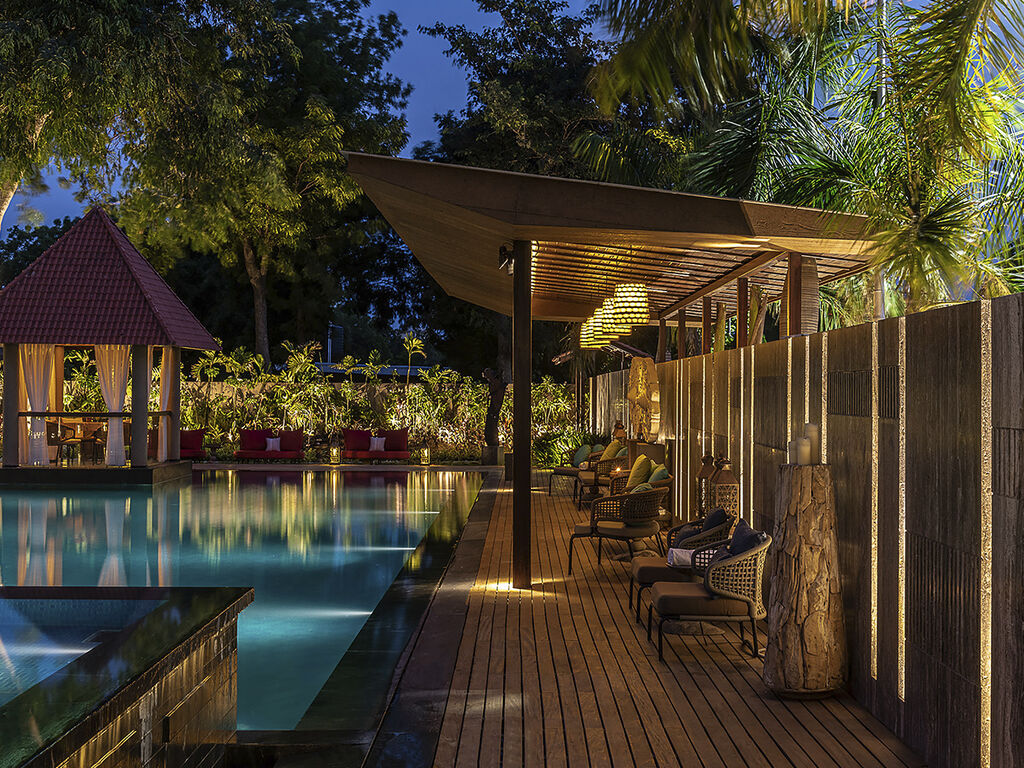

PROJECT REFERENCE (OREGON Recessed underwater projectors)
