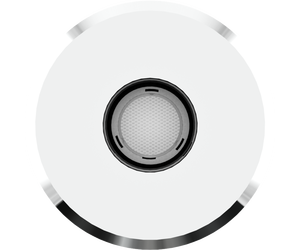

OREGON 1OR-60896 (Version 1)
Recessed underwater projectors
Without remote driver - With recessing box - Constant voltage (CV) 24 V - RGBW
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
1 LED
Power (W)
5 W
Lumen (lm)
224 lm
Efficacy (lm/W)
45 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
M
Optic value
33°
CCT / CRI
RGBW30, RGBW40
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
0.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 5x0.75 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

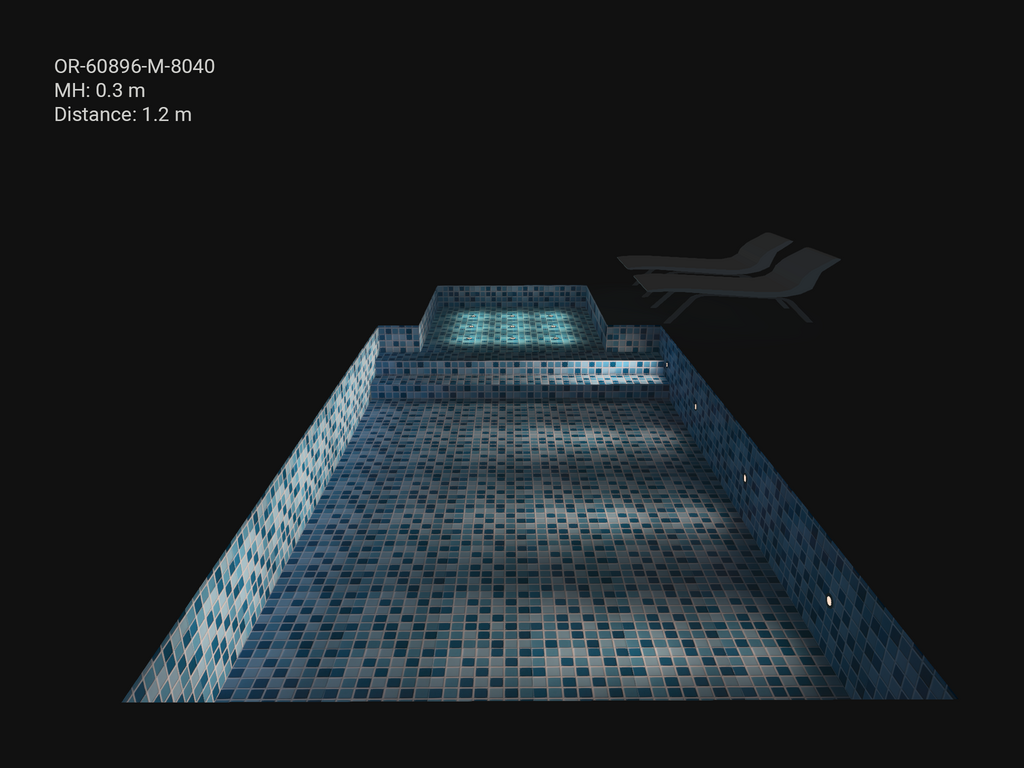

LIGHT EFFECT
Optic
M (33°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: OR-60896-M-30-DMX-00
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: OR-60896-M-40-DMX-00
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: OR-60896-M-30-DMXRDM-00
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: OR-60896-M-40-DMXRDM-00
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
