LIGMAN POWERVISION 5 PW59-GP042.

POWERVISION 5PW59-GP042Recessed low bay luminaires

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

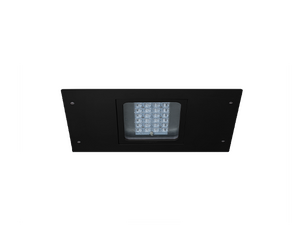

POWERVISION 5Black
POWERVISION 5Dark Grey

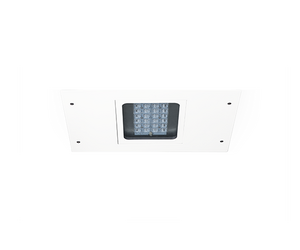

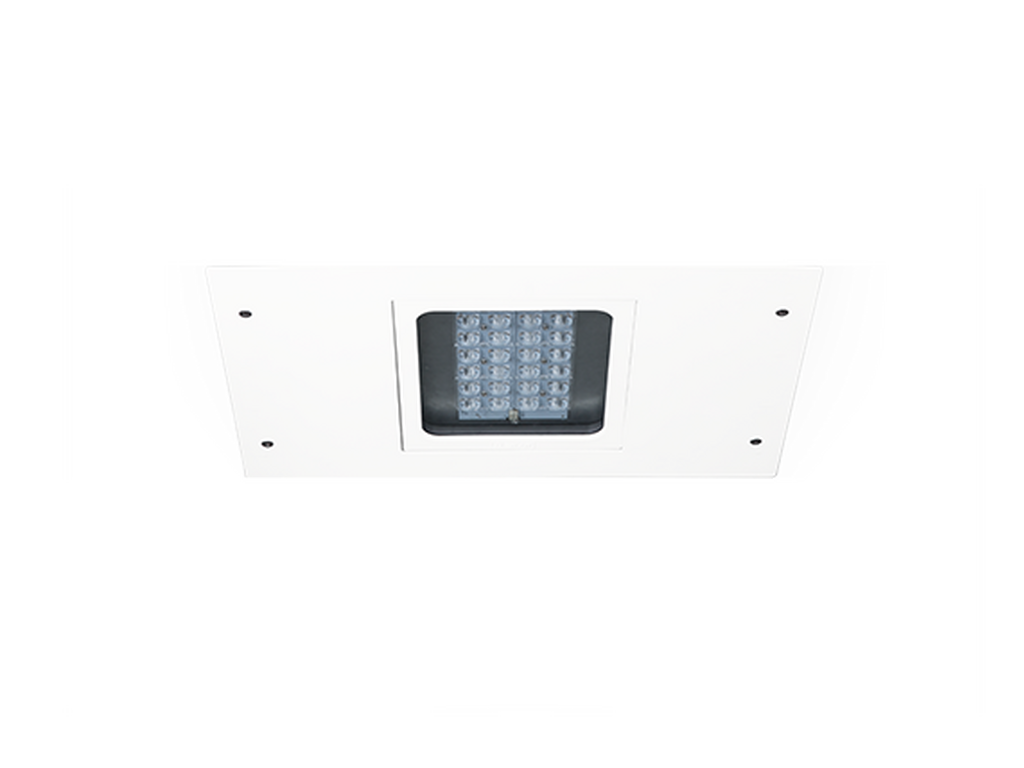

POWERVISION 5White

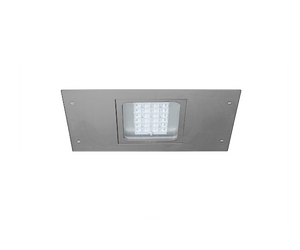

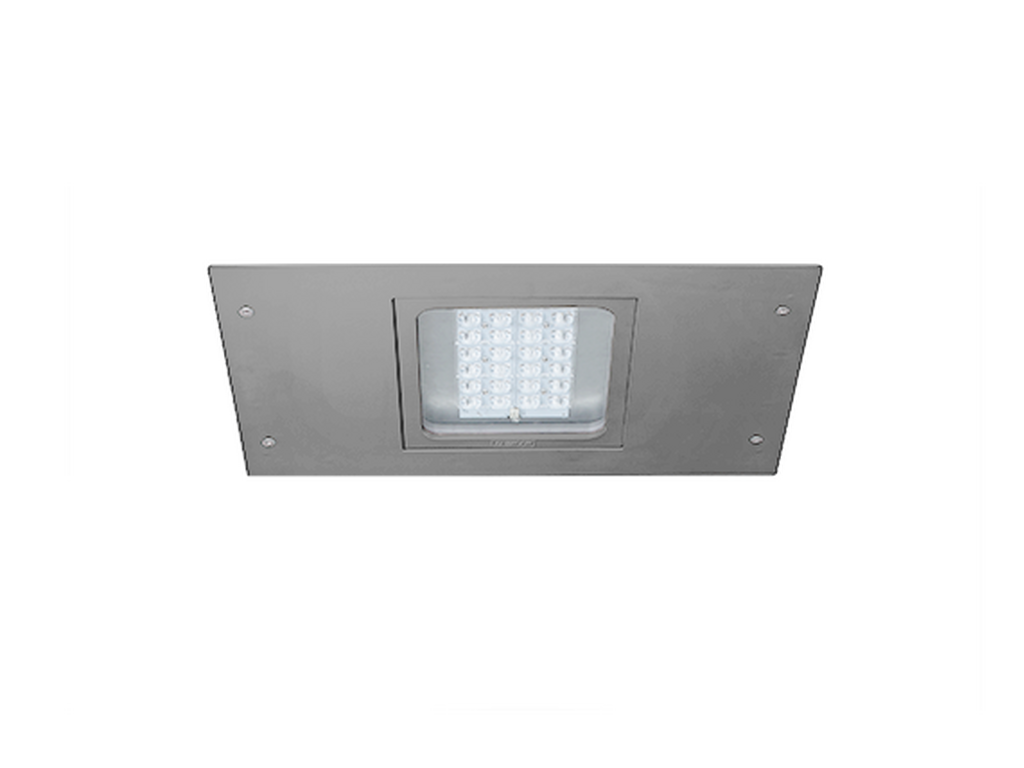

POWERVISION 5Matt Silver

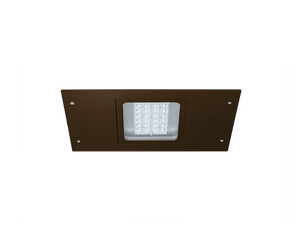

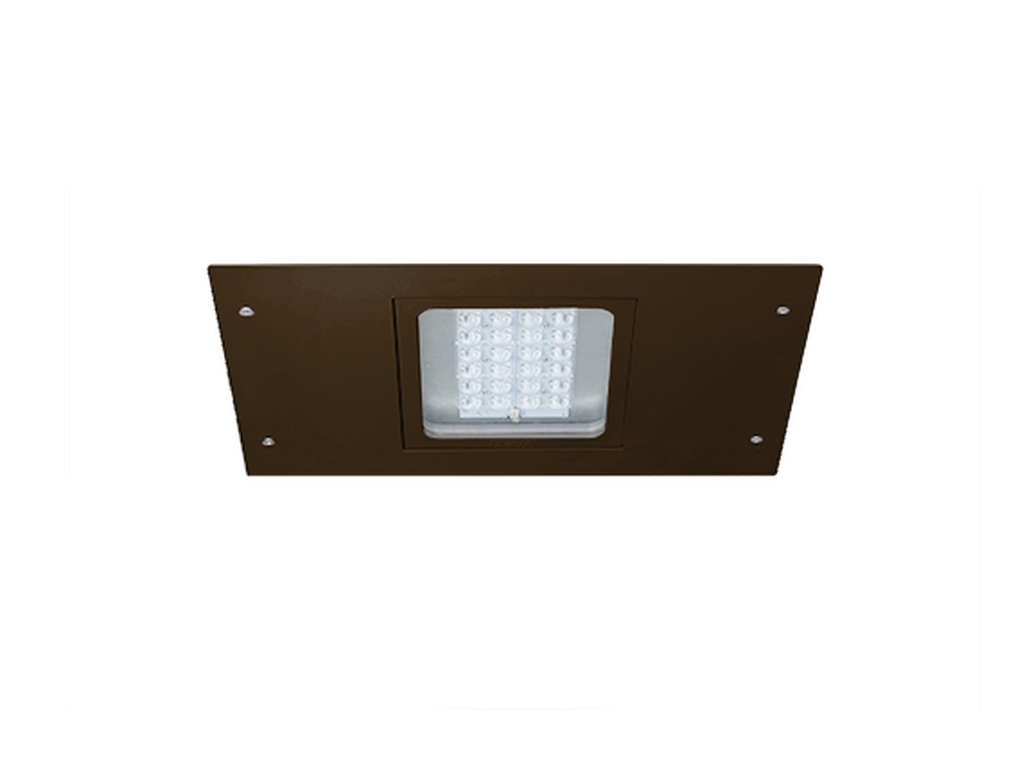

POWERVISION 5Bronze

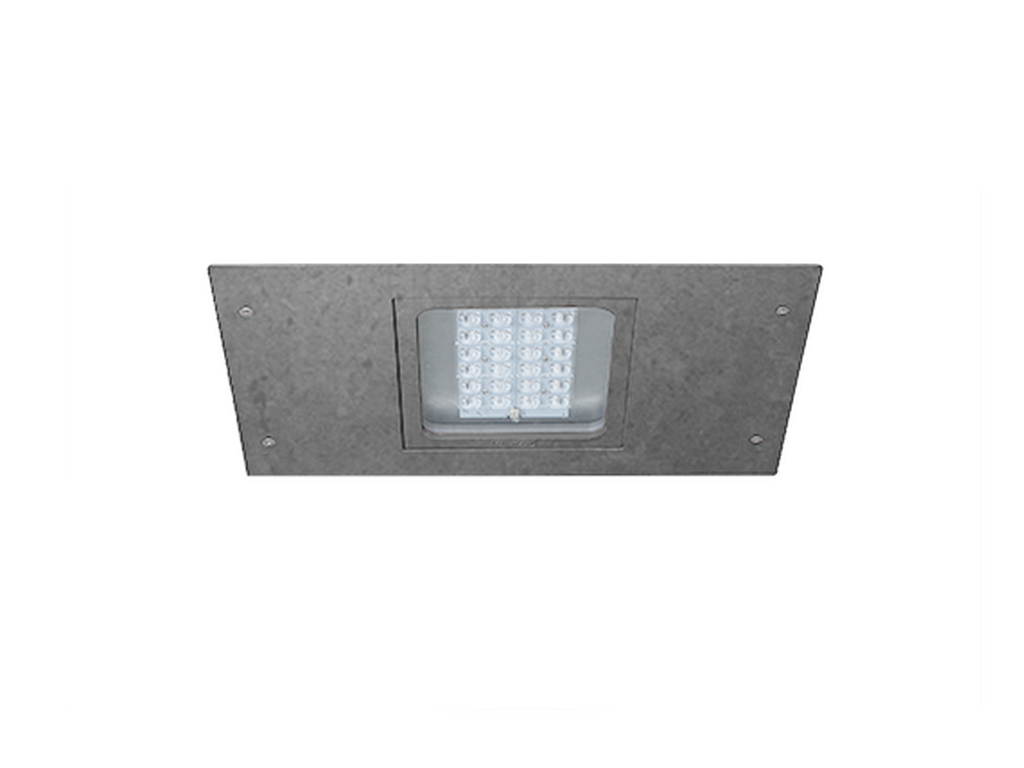

POWERVISION 5Concrete - Urban

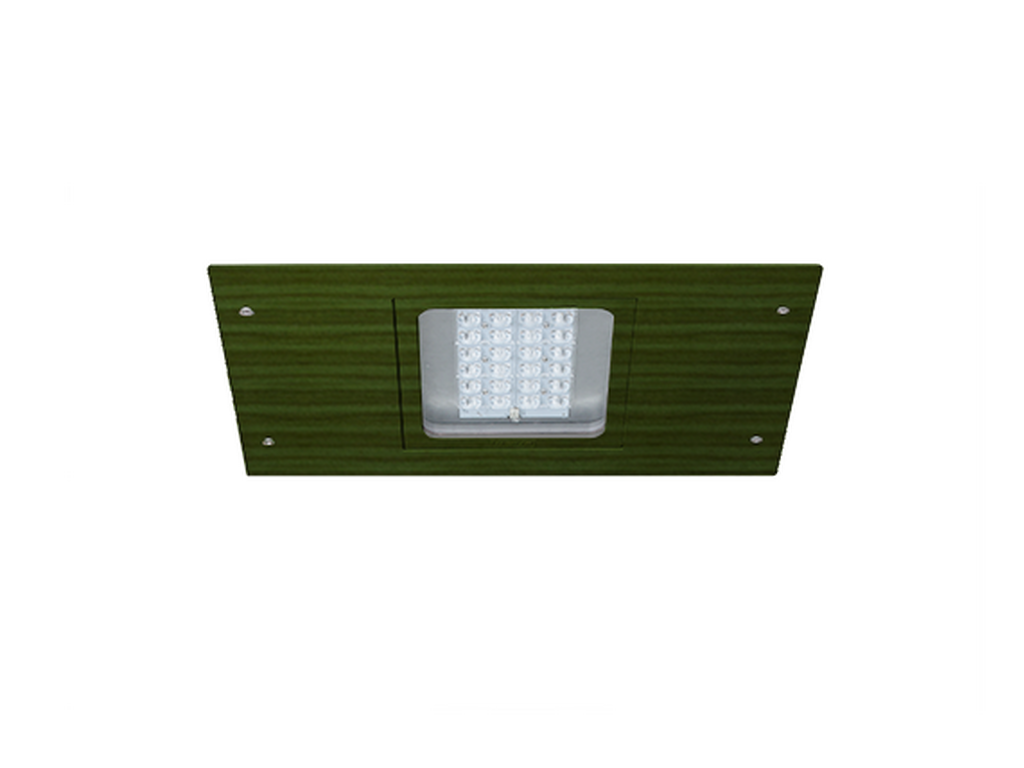

POWERVISION 5Softscape - Urban

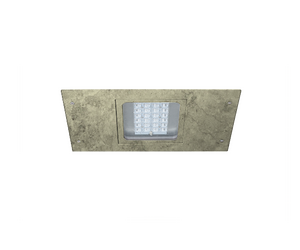

POWERVISION 5Stone - Urban

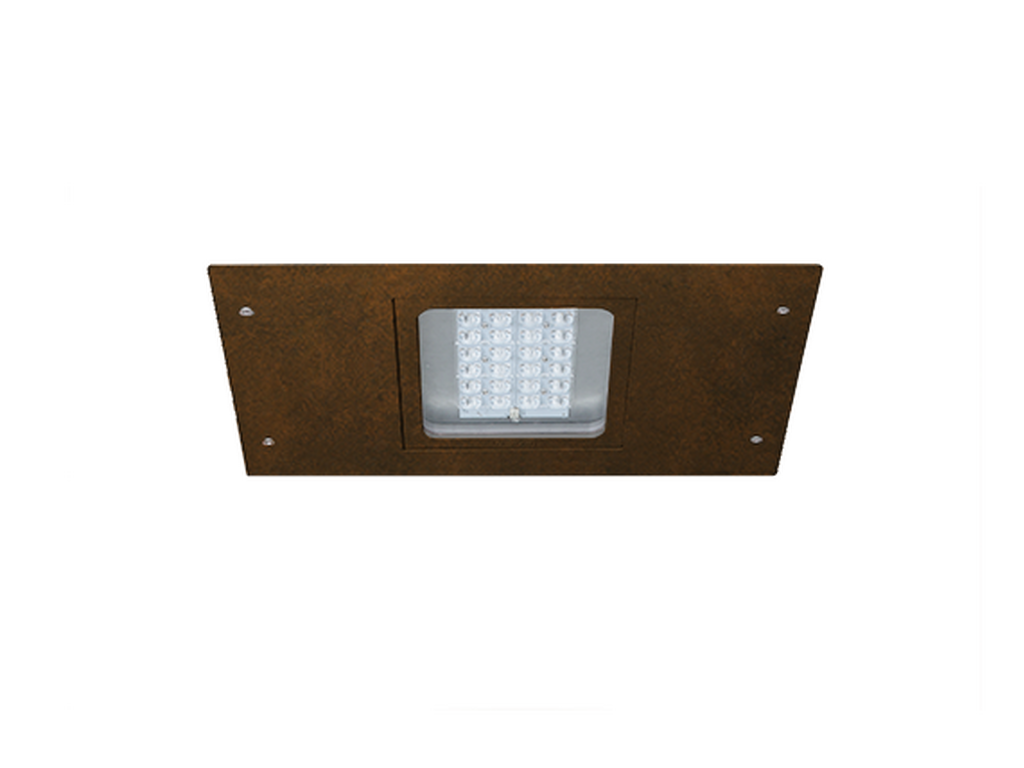

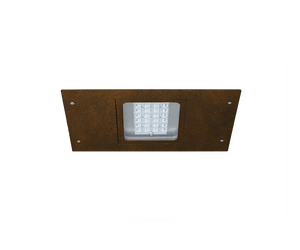

POWERVISION 5Corten - Urban
POWERVISION 5Oak - Woodland

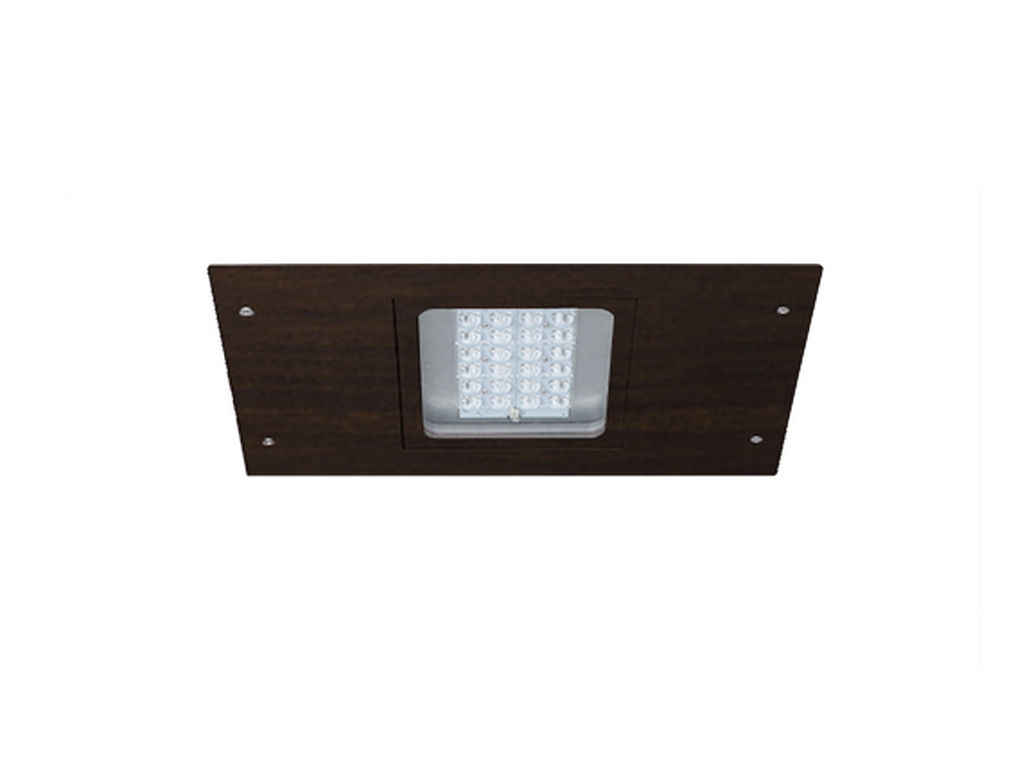

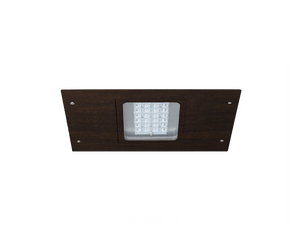

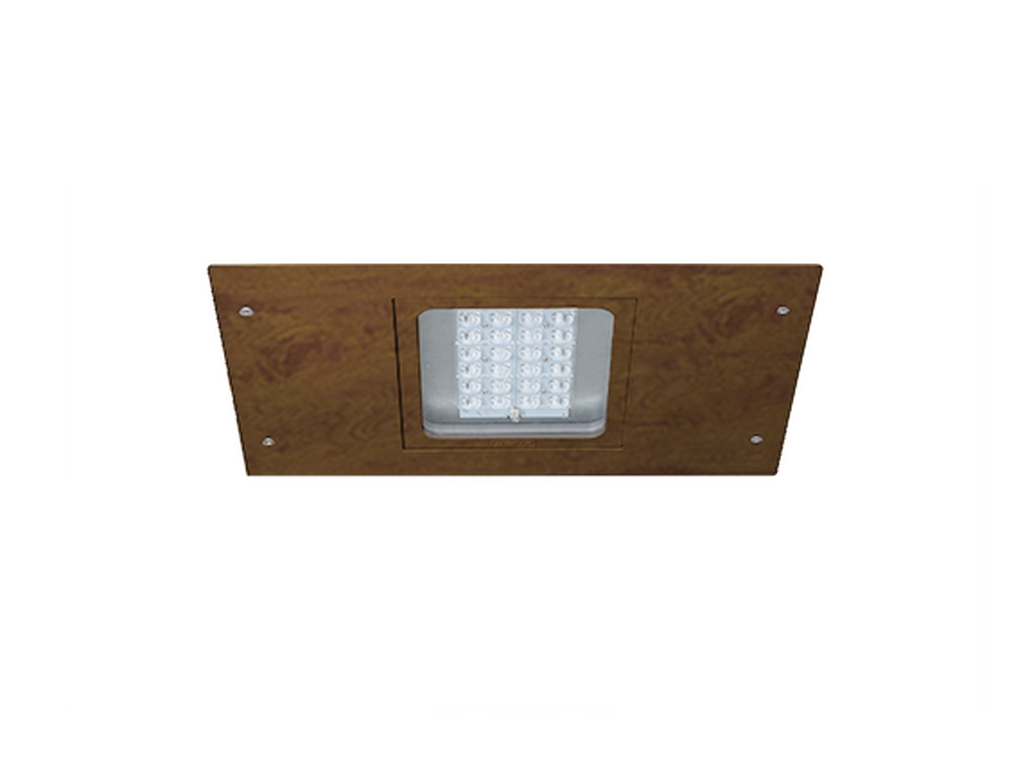

POWERVISION 5Walnut - Woodland

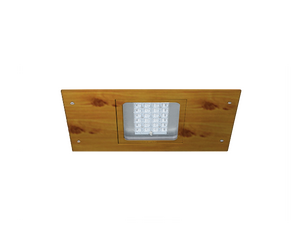

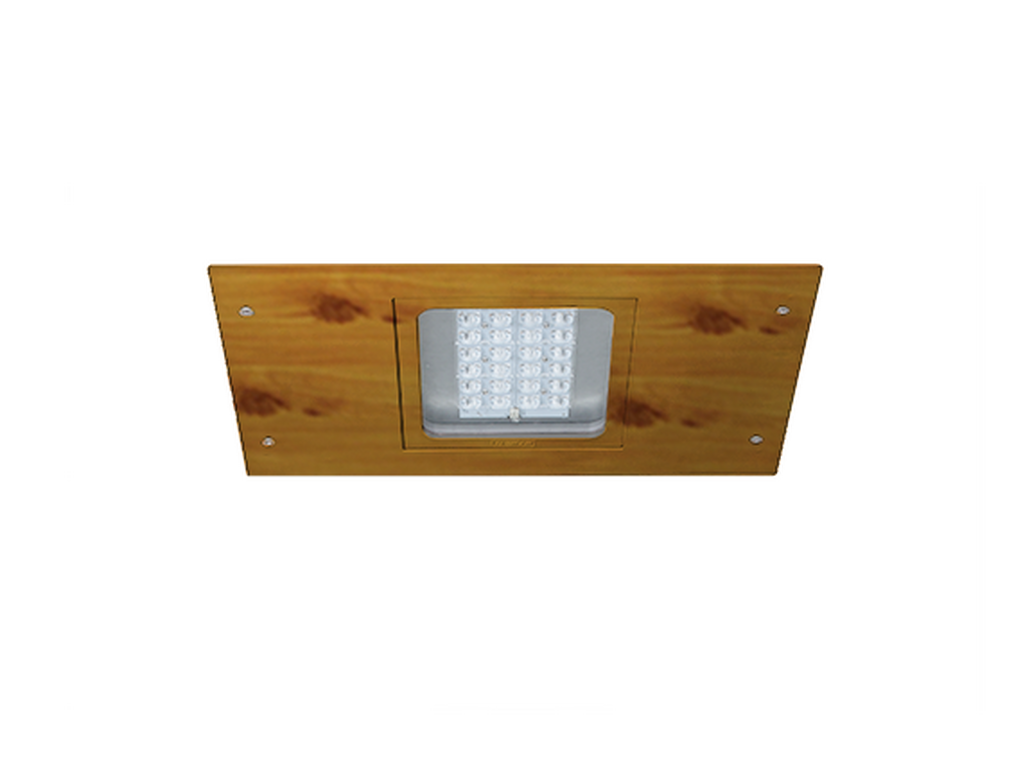

POWERVISION 5Pine - Woodland
POWERVISION 5Black
POWERVISION 5Dark Grey
POWERVISION 5White
POWERVISION 5Matt Silver
POWERVISION 5Bronze

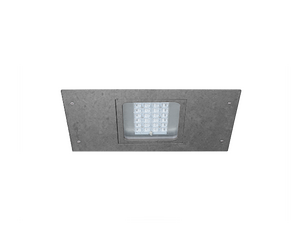

POWERVISION 5Concrete - Urban
POWERVISION 5Softscape - Urban

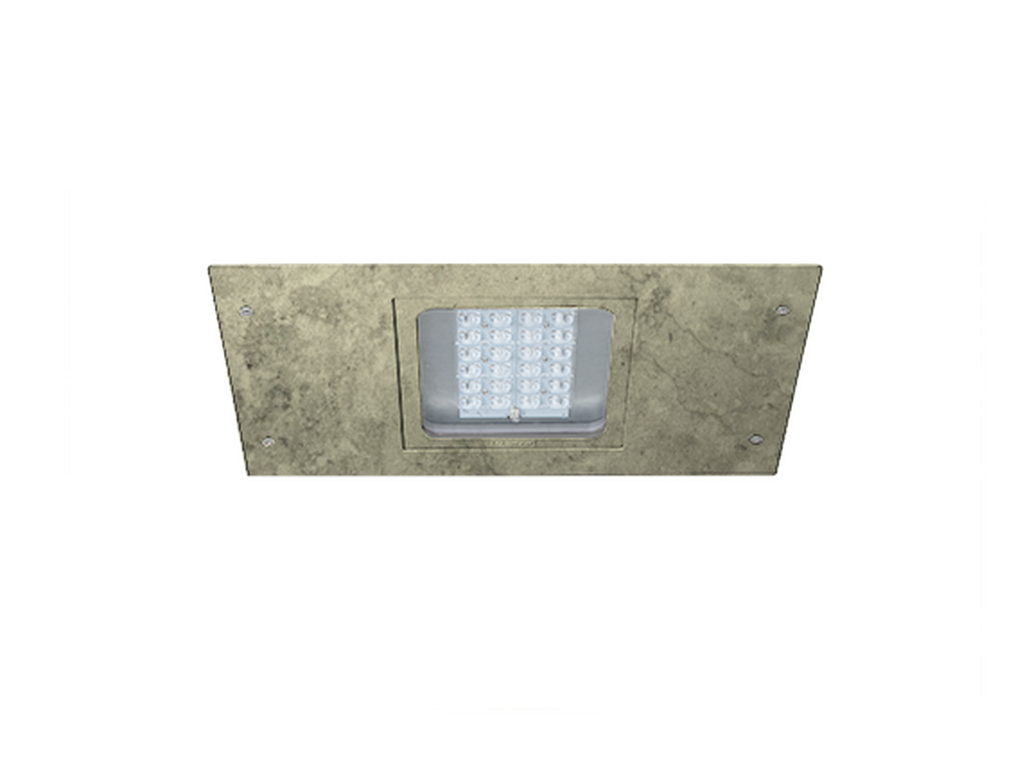

POWERVISION 5Stone - Urban
POWERVISION 5Corten - Urban
POWERVISION 5Oak - Woodland
POWERVISION 5Walnut - Woodland
POWERVISION 5Pine - Woodland
CEClass IIP66IK08

Technical information

Material
Aluminium
Light source
24 LED
Power (W)
38 W
Lumen (lm)
4272 - 4941 lm
Efficacy (lm/W)
112 - 130 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4
Optic value
27°, 51°, 122°, 141°x52°, 141°x69°, 99°x79°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Light effect

Optic

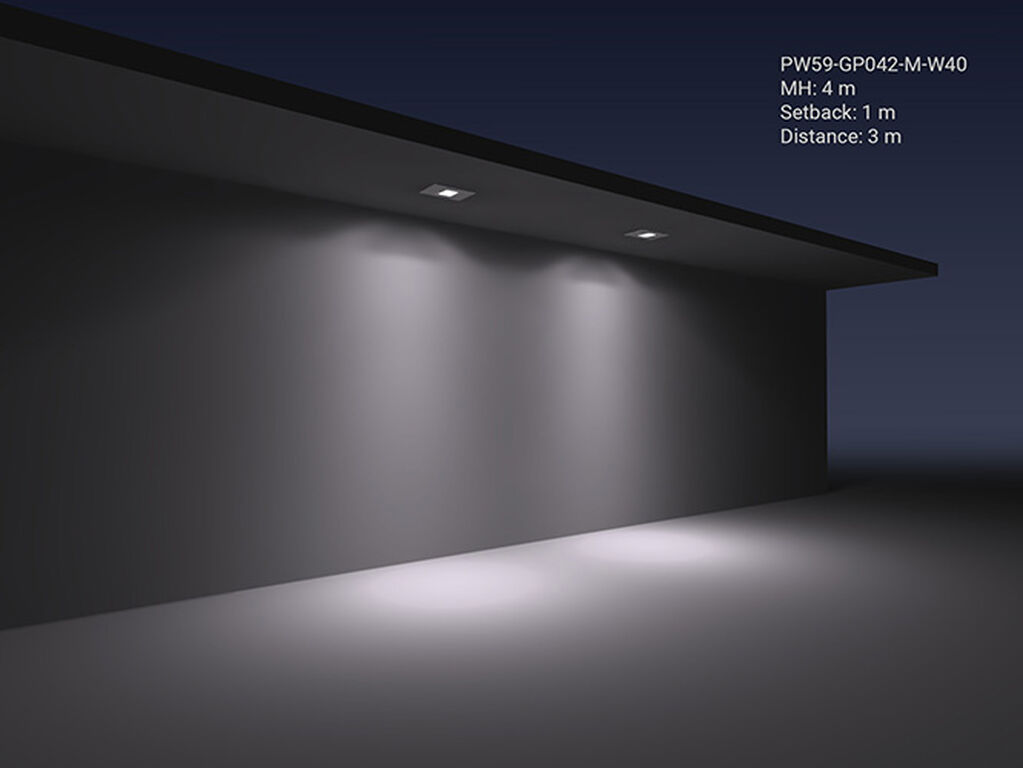

M (27°)
W (51°)
EW (122°)
T2 (141°x52°)
T3 (141°x69°)
T4 (99°x79°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (POWERVISION Recessed low bay luminaires)
