LIGMAN STEAMER 1 SE-90002.

STEAMER 1SE-90002STEAMER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

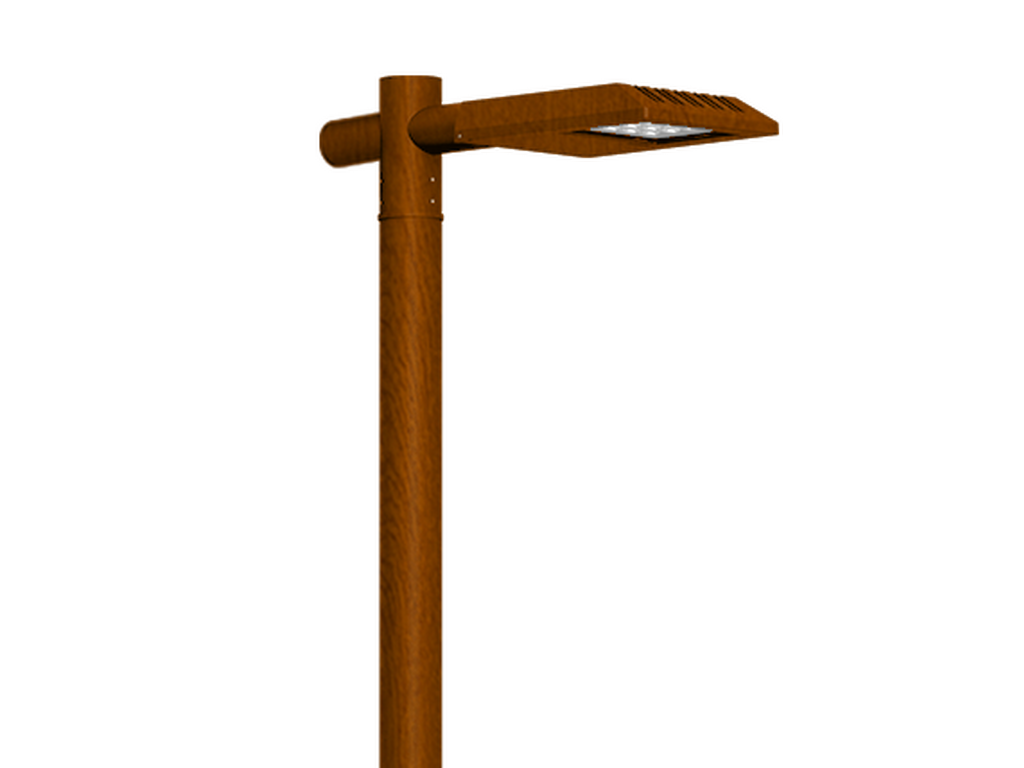

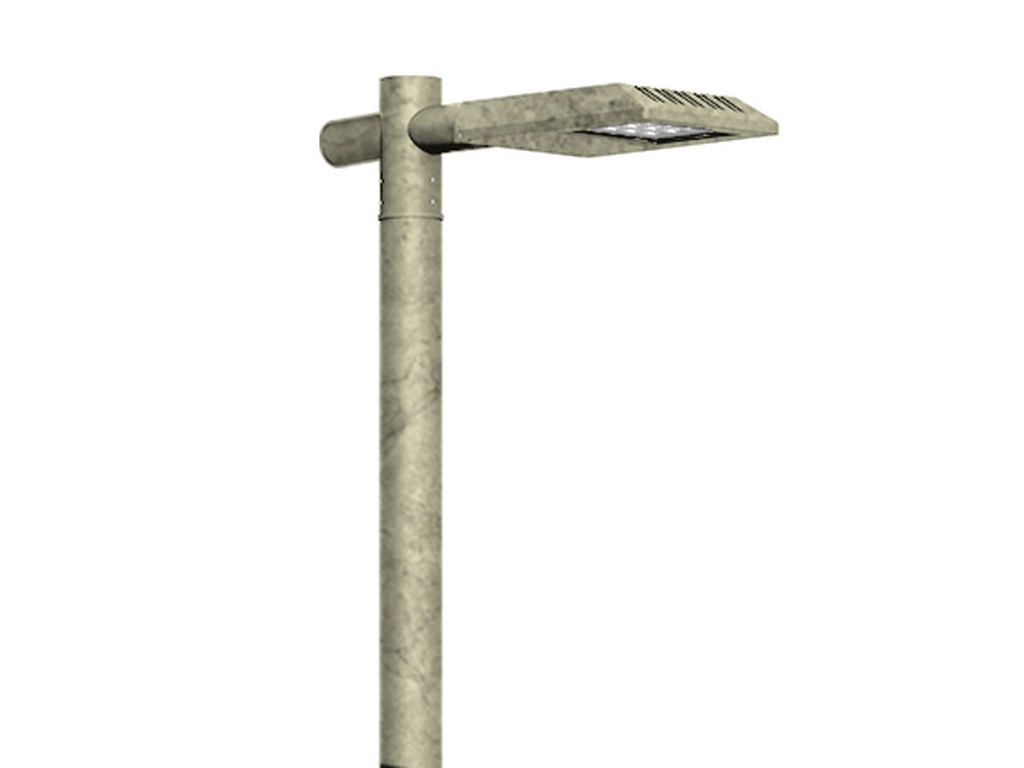

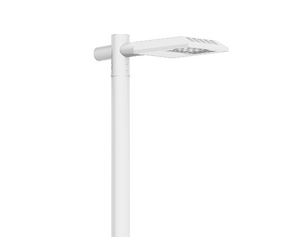

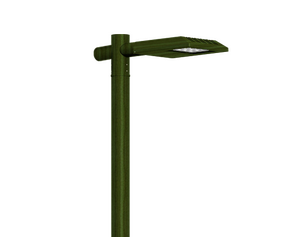

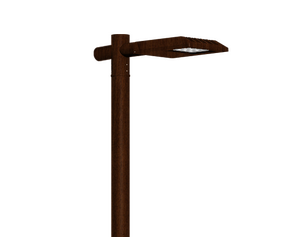

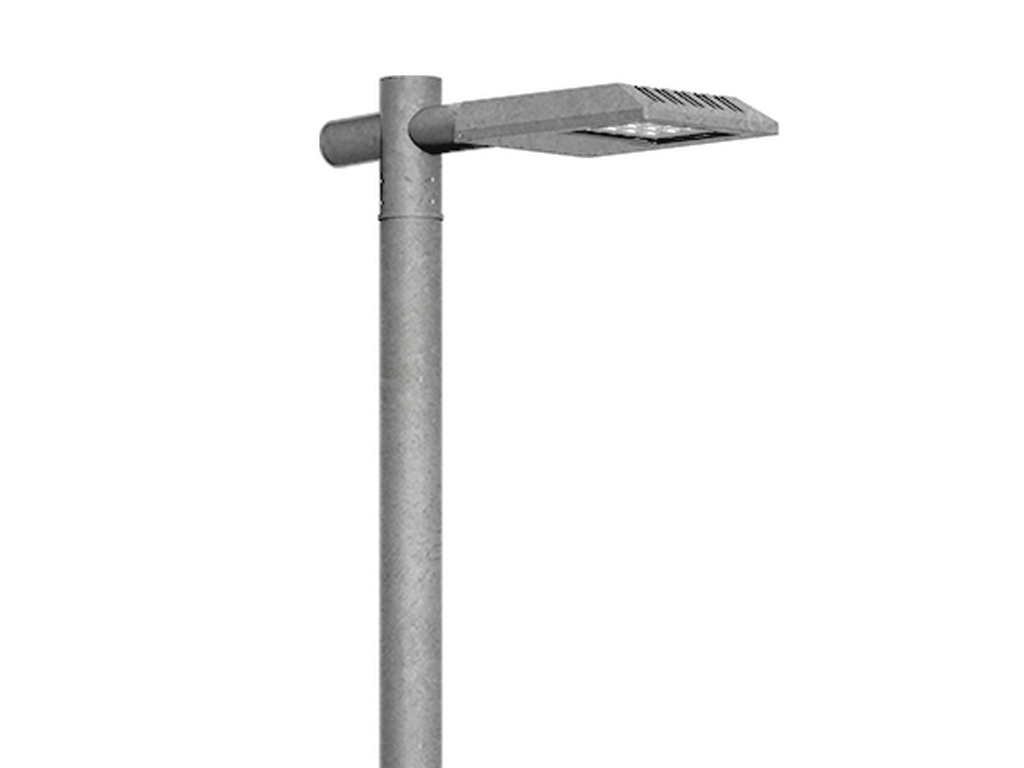

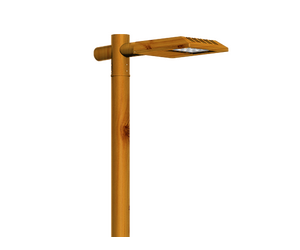

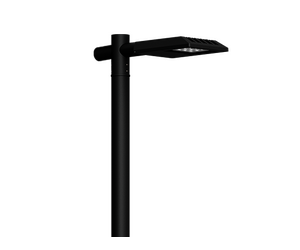

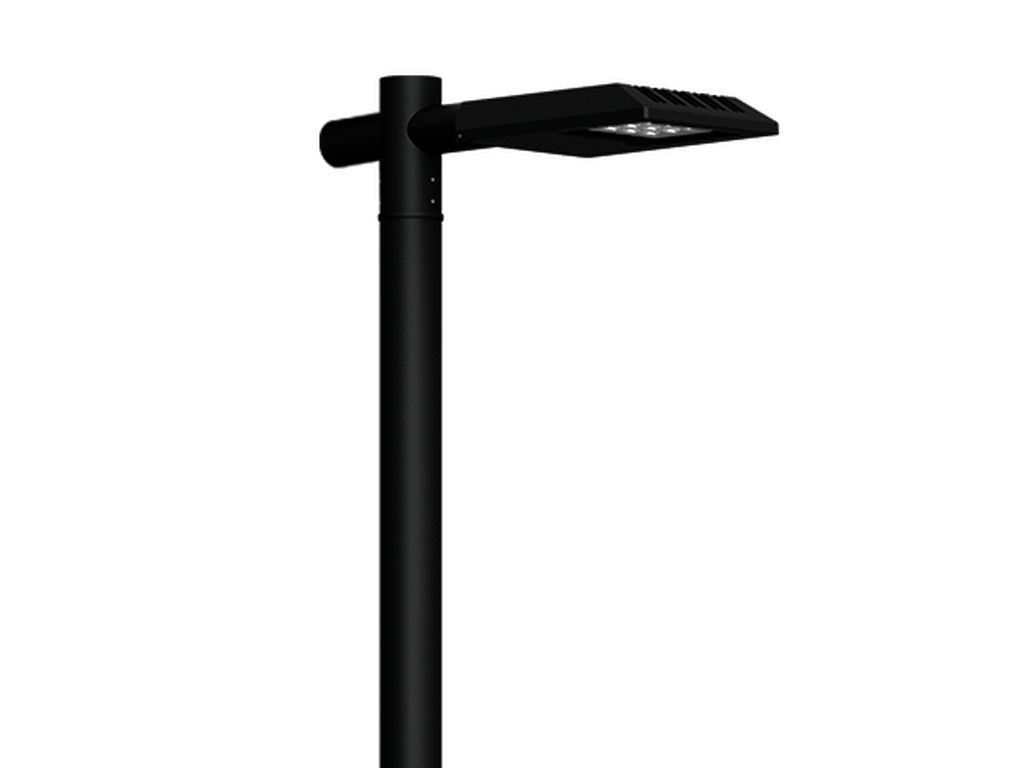

STEAMER 1Black

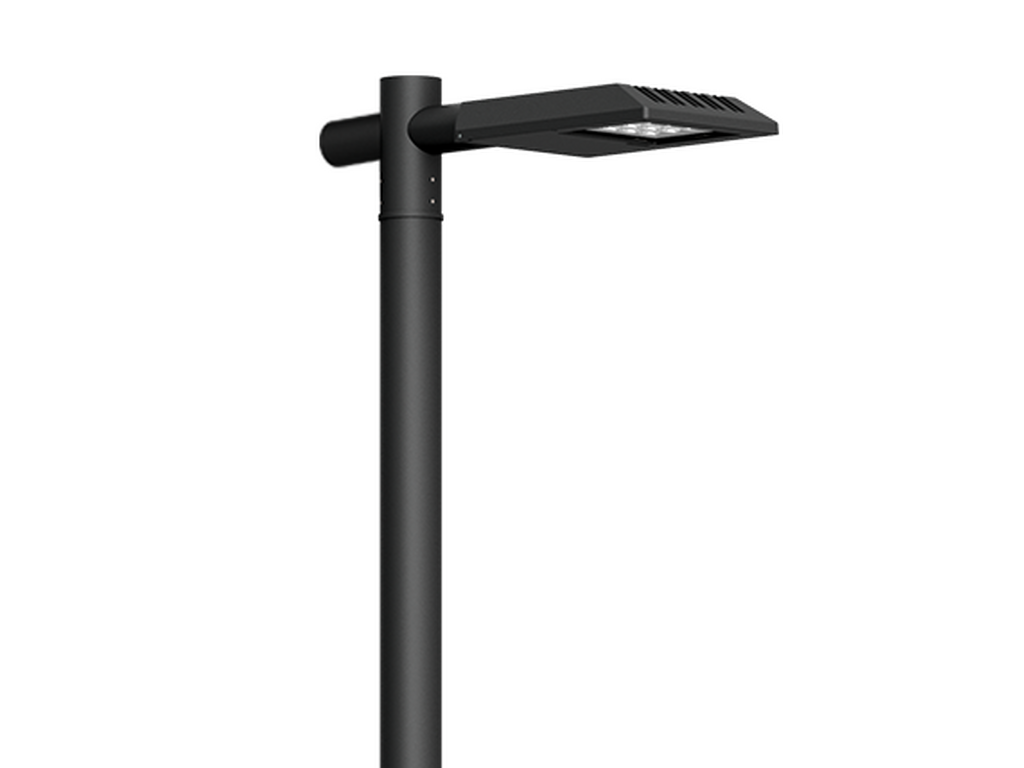

STEAMER 1Dark Grey
STEAMER 1White
STEAMER 1Matt Silver

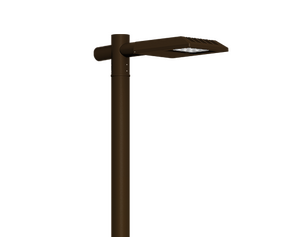

STEAMER 1Bronze

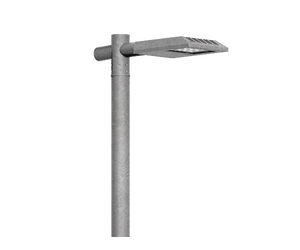

STEAMER 1Concrete - Urban
STEAMER 1Softscape - Urban
STEAMER 1Stone - Urban

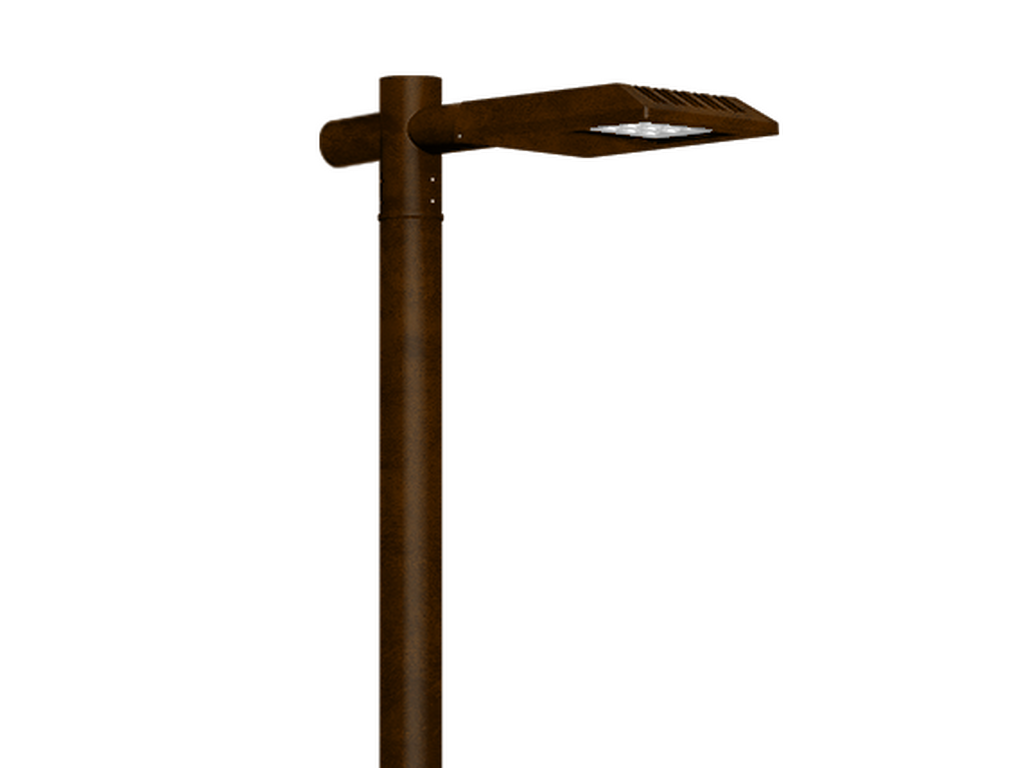

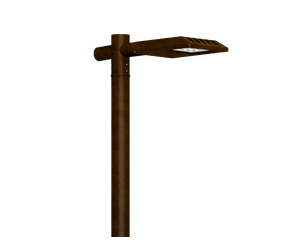

STEAMER 1Corten - Urban
STEAMER 1Oak - Woodland
STEAMER 1Walnut - Woodland

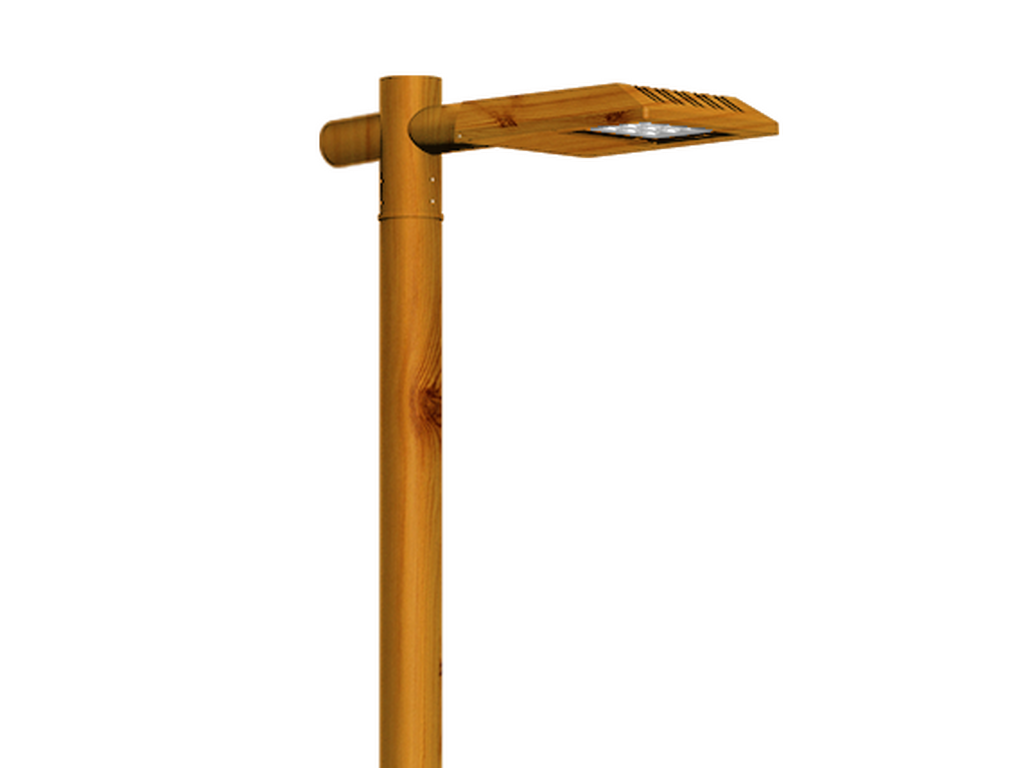

STEAMER 1Pine - Woodland
STEAMER 1Black
STEAMER 1Dark Grey
STEAMER 1White
STEAMER 1Matt Silver
STEAMER 1Bronze
STEAMER 1Concrete - Urban
STEAMER 1Softscape - Urban
STEAMER 1Stone - Urban
STEAMER 1Corten - Urban
STEAMER 1Oak - Woodland
STEAMER 1Walnut - Woodland
STEAMER 1Pine - Woodland
Rectangular - Medium
CEBISClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
105 W
Lumen (lm)
12434 - 14374 lm
Efficacy (lm/W)
118 - 137 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 105°x115°, 136°x51°, 119°x86°, 102°x74°, 137°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.8 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.048
Cable
One IP68 connector supplied with 0.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (105°x115°)
T2 (136°x51°)
T3 (119°x86°)
T4 (102°x74°)
ME (137°x58°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
