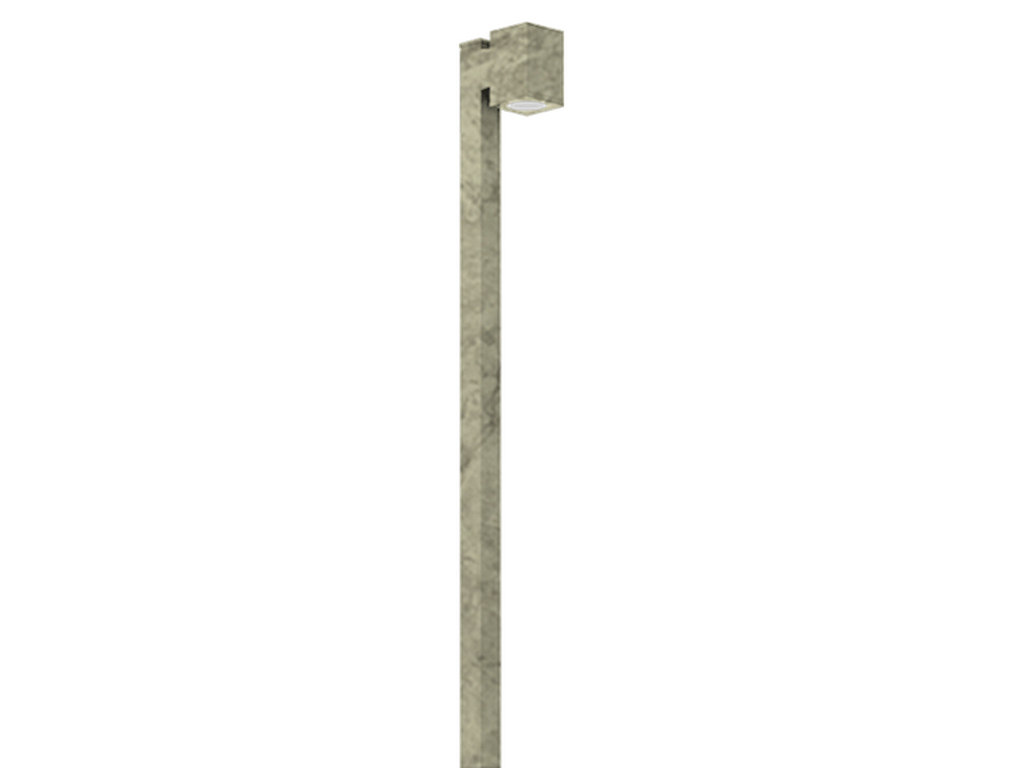

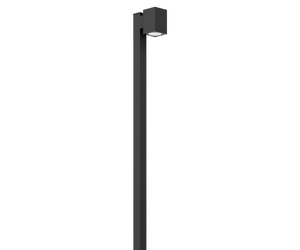

LIGMAN TANGO 35 TA-20731.

TANGO 35TA-20731TANGO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

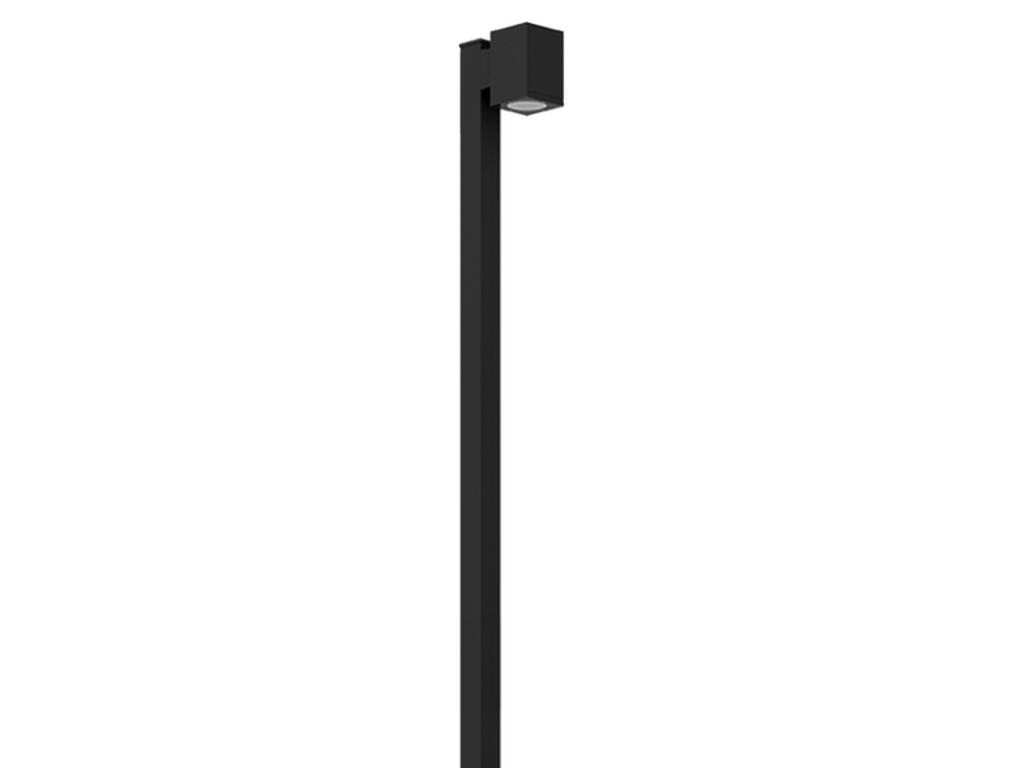

TANGO 35Black
TANGO 35Dark Grey

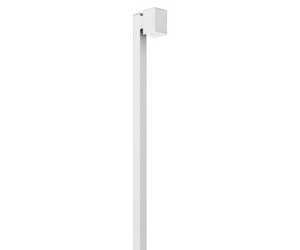

TANGO 35White
TANGO 35Matt Silver
TANGO 35Bronze
TANGO 35Concrete - Urban
TANGO 35Softscape - Urban

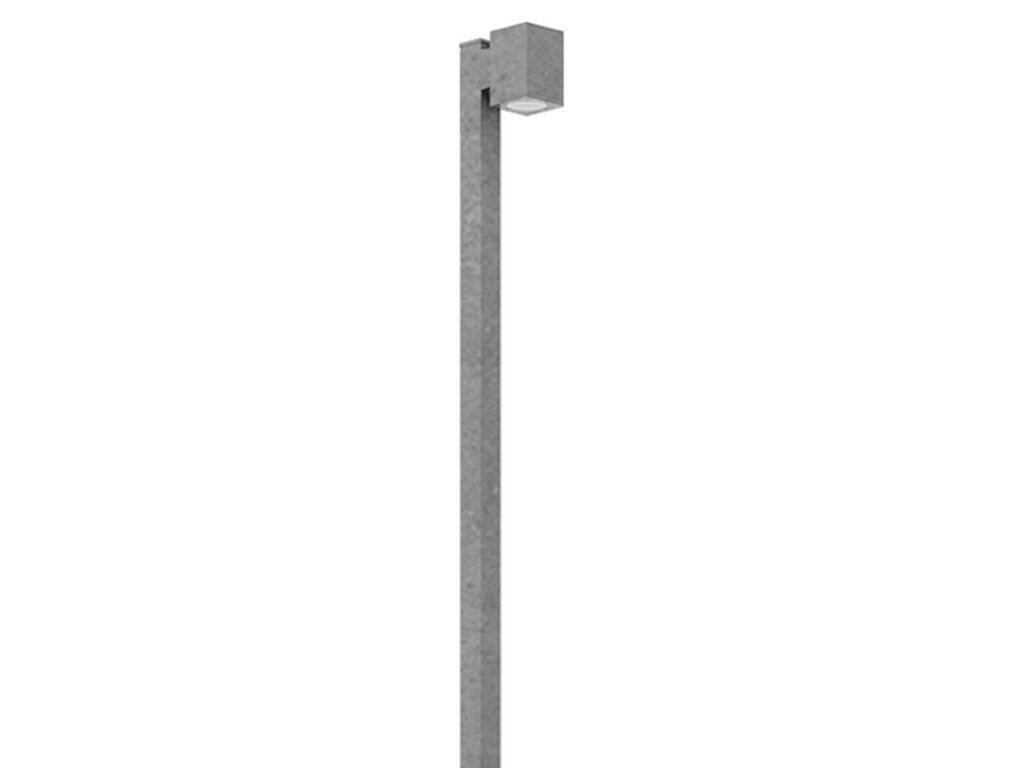

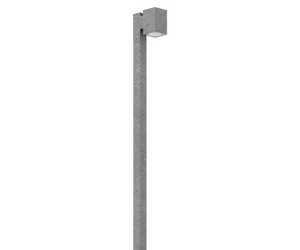

TANGO 35Stone - Urban
TANGO 35Corten - Urban

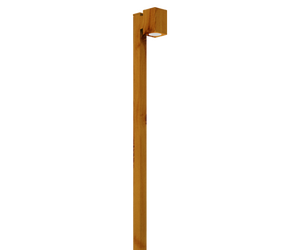

TANGO 35Oak - Woodland

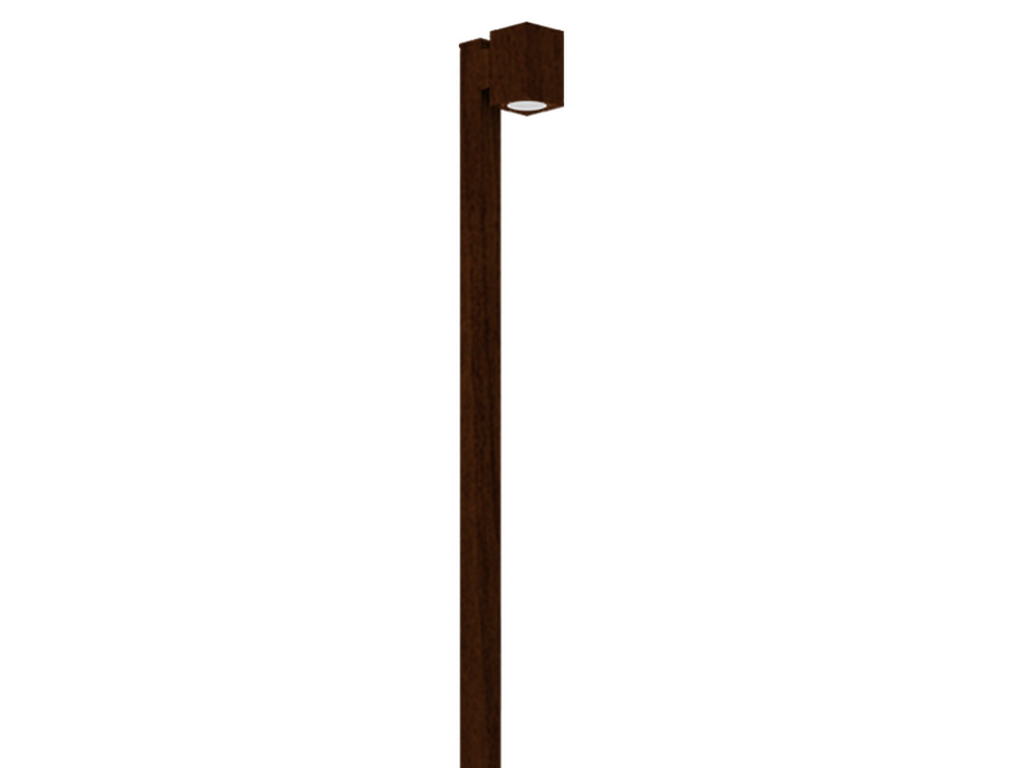

TANGO 35Walnut - Woodland
TANGO 35Pine - Woodland
TANGO 35Black
TANGO 35Dark Grey
TANGO 35White
TANGO 35Matt Silver
TANGO 35Bronze
TANGO 35Concrete - Urban
TANGO 35Softscape - Urban
TANGO 35Stone - Urban
TANGO 35Corten - Urban
TANGO 35Oak - Woodland
TANGO 35Walnut - Woodland
TANGO 35Pine - Woodland
1 side - Square - Supplied with specific 3 m square, straight aluminium pole: APC130102-TA-20731
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
16 LED
Power (W)
35 W
Lumen (lm)
3476 - 3763 lm
Efficacy (lm/W)
99 - 108 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
138°x43°, 147°x78°, 11°x80°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
20.4 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.066
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

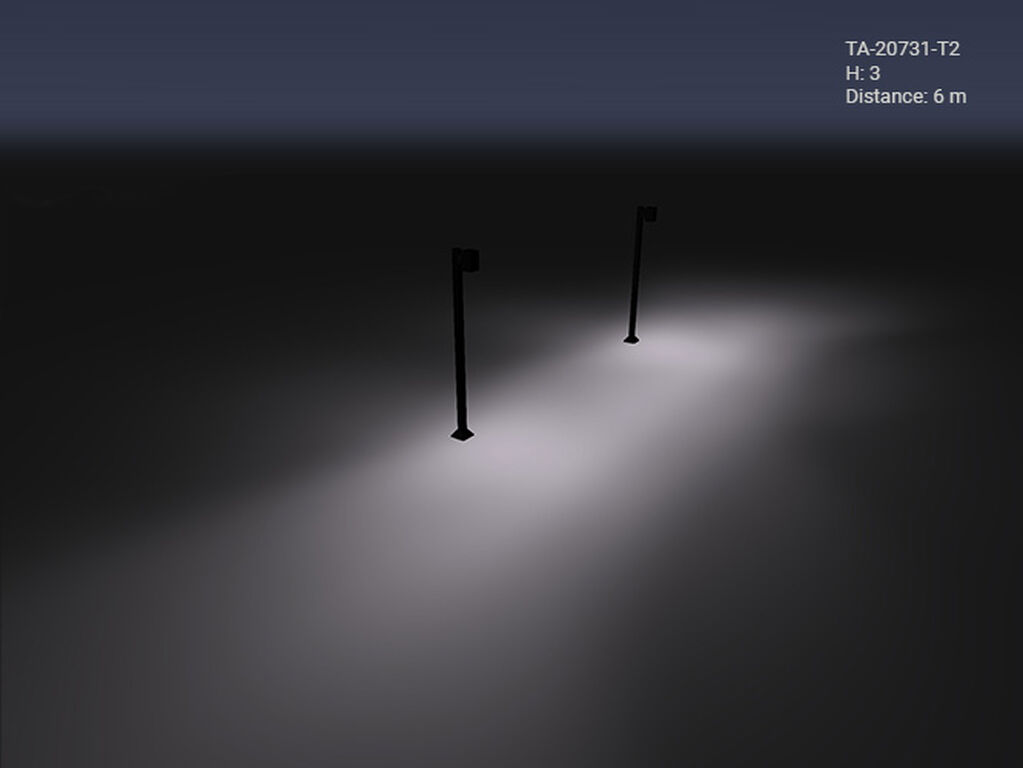

T2 (138°x43°)
T3 (147°x78°)
T4 (11°x80°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)

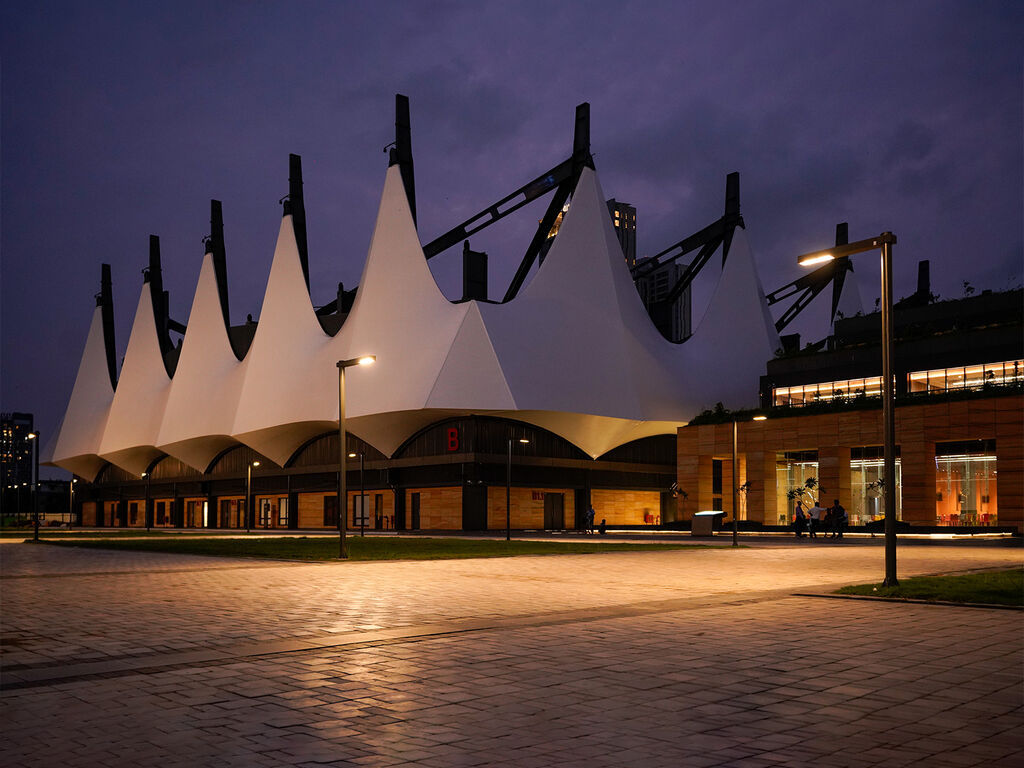

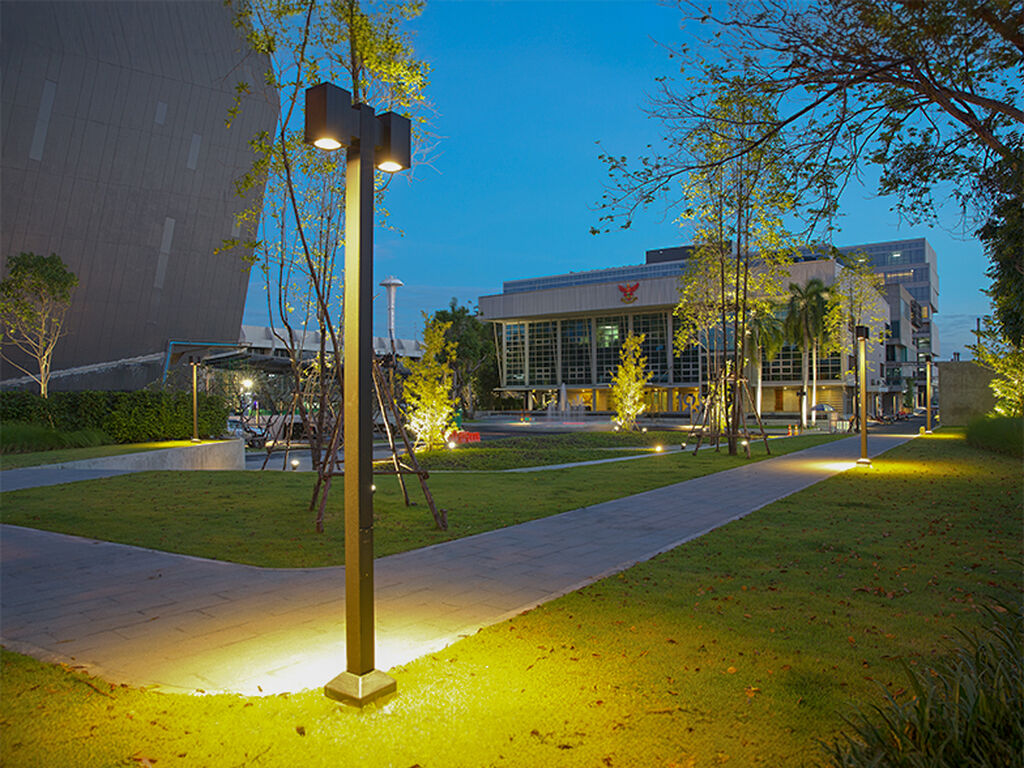

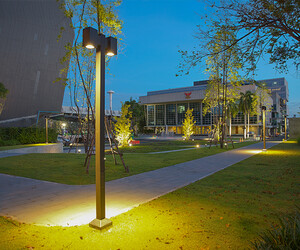

PROJECT REFERENCE (TANGO Light columns)
