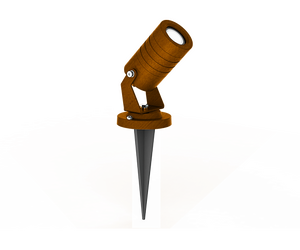

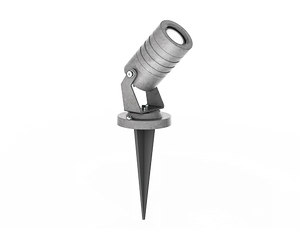

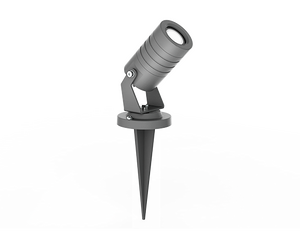

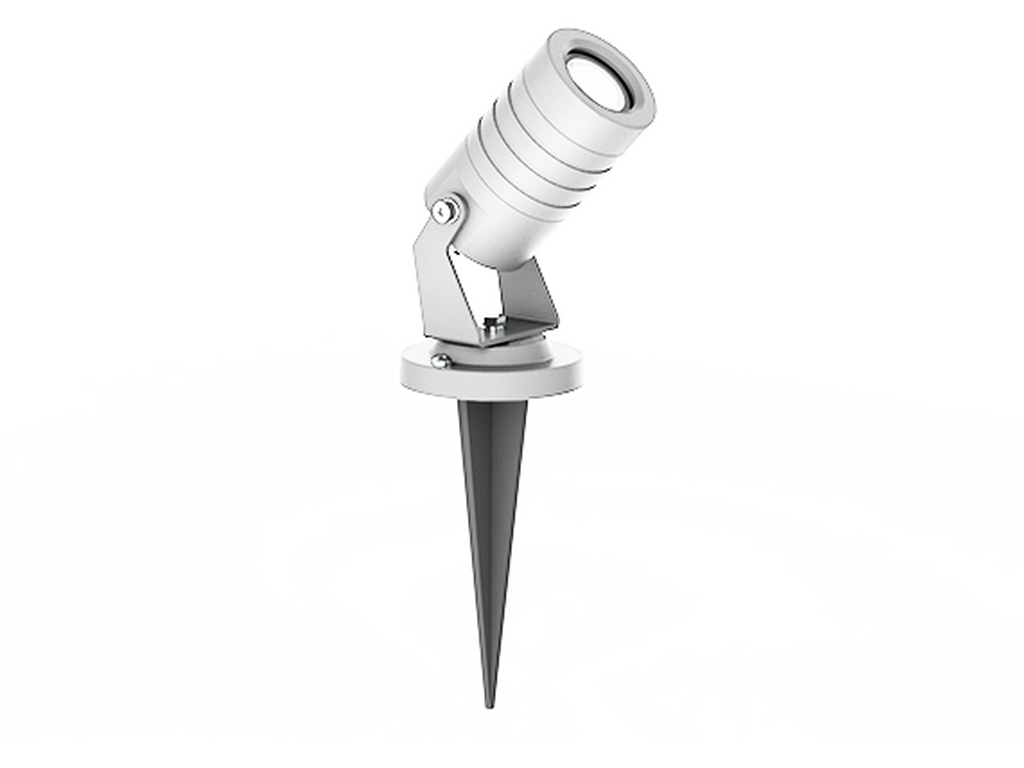

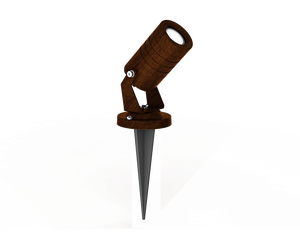

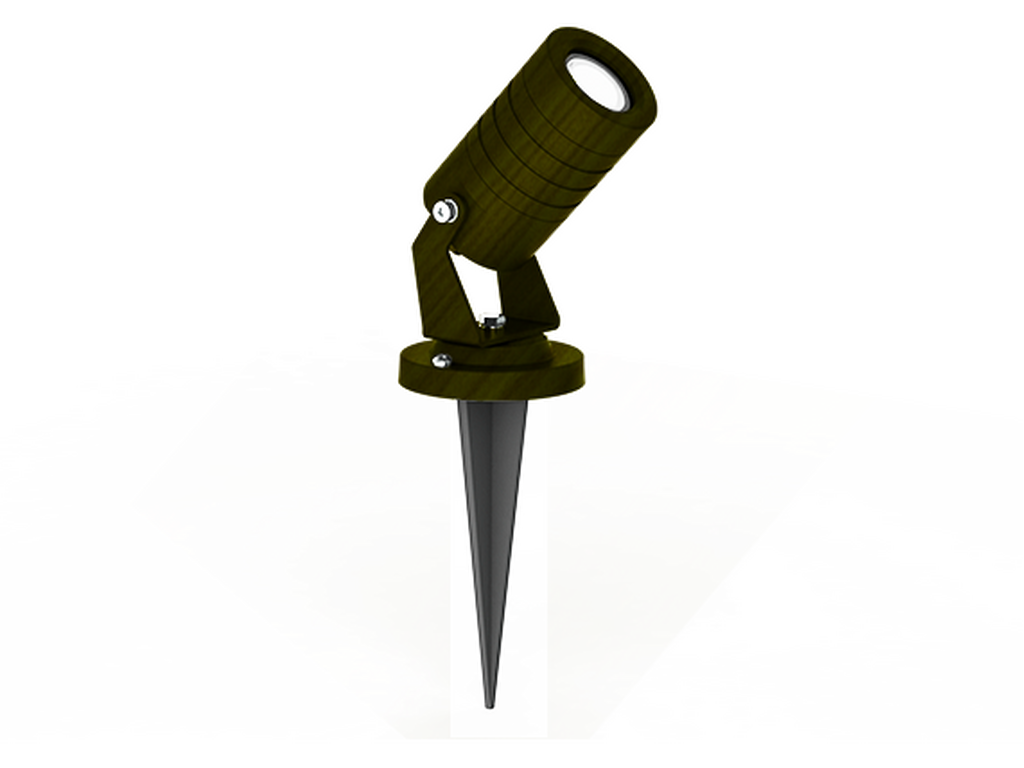

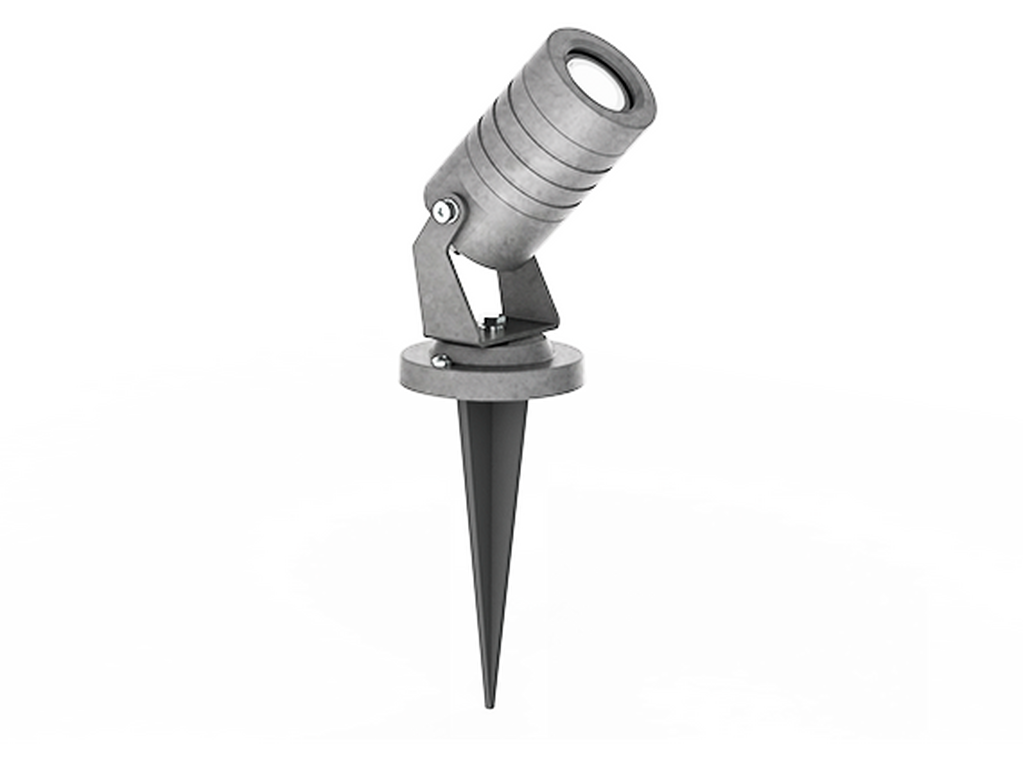

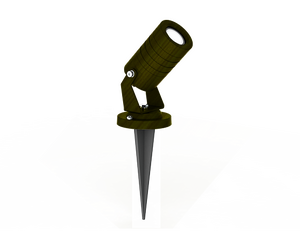

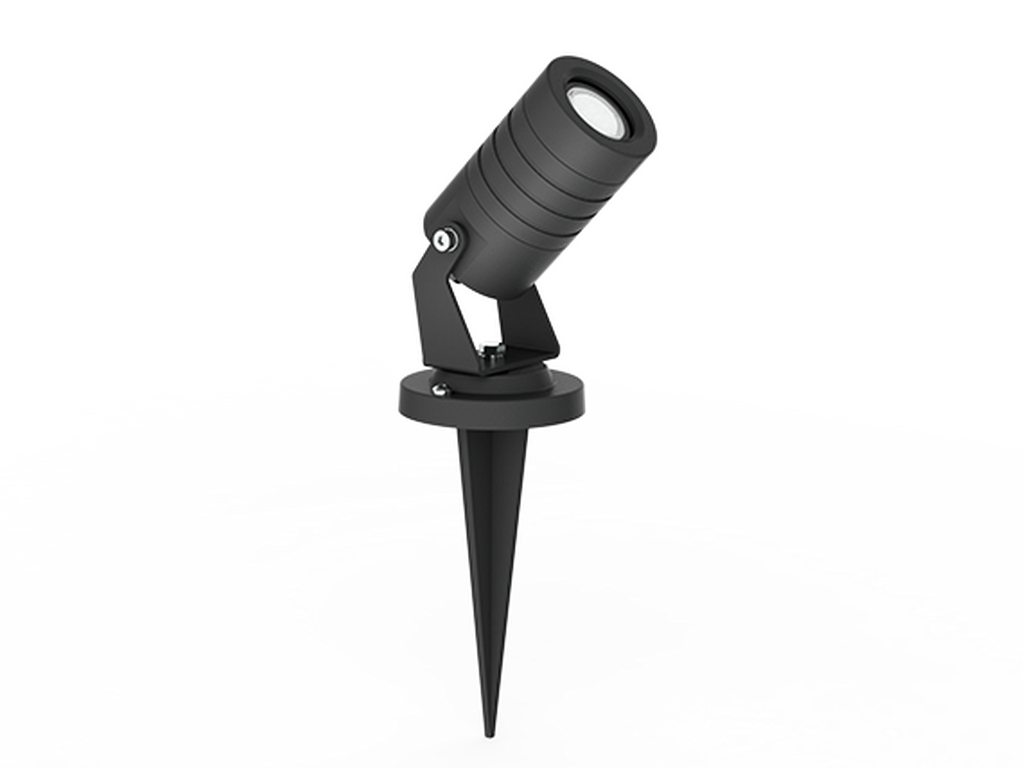

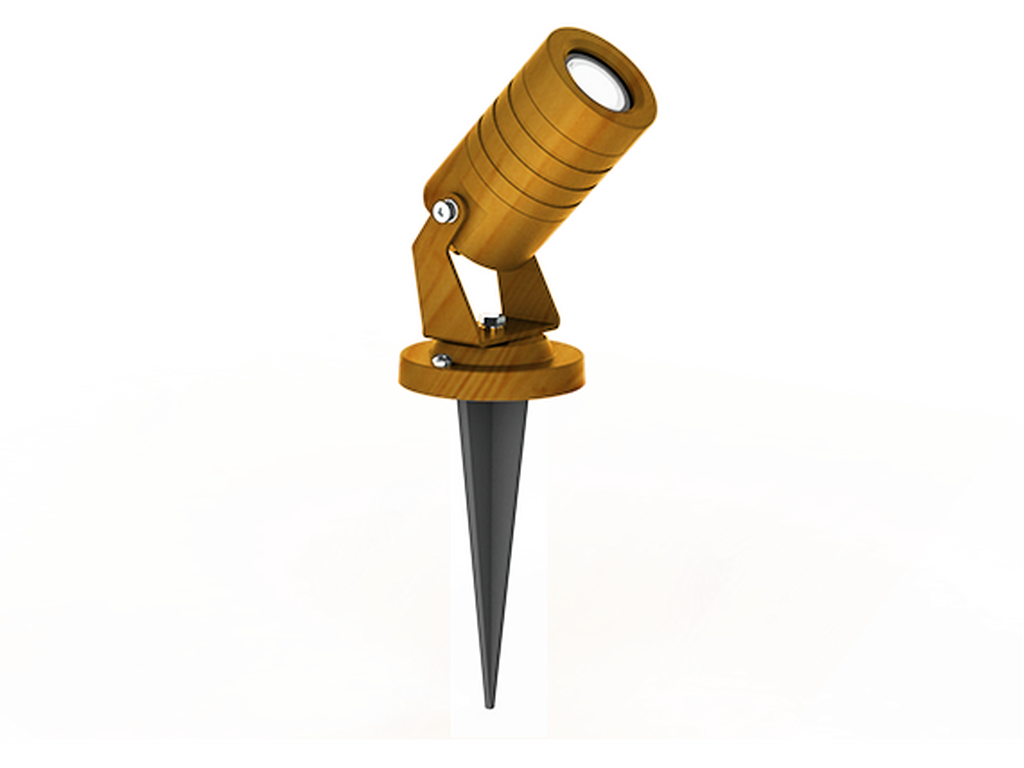

LIGMAN UTAH 4 UT-50565.

UTAH 4UT-50565

(Version 1)

Floodlights, projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

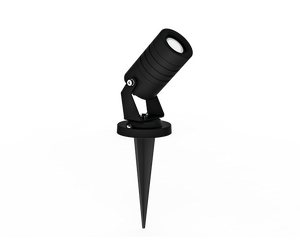

UTAH 4Black

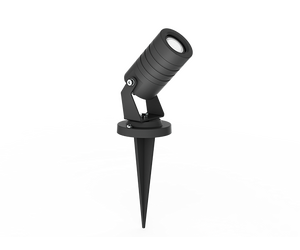

UTAH 4Dark Grey

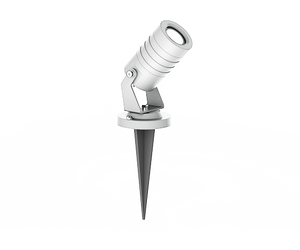

UTAH 4White
UTAH 4Matt Silver
UTAH 4Bronze
UTAH 4Concrete - Urban
UTAH 4Softscape - Urban
UTAH 4Stone - Urban

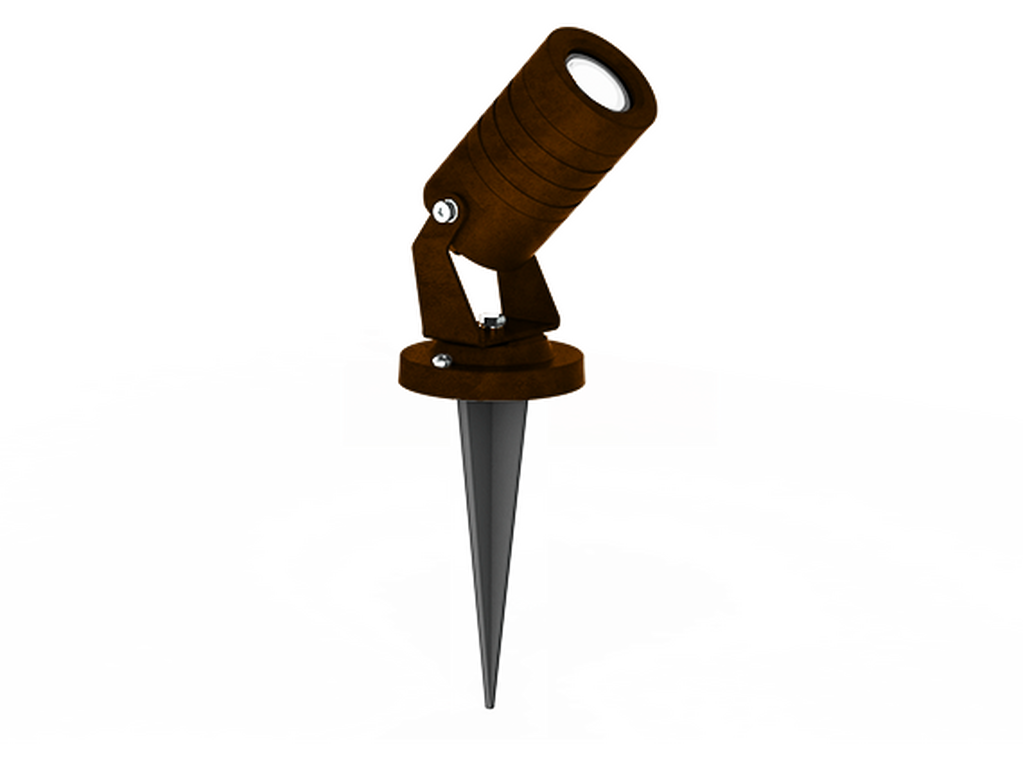

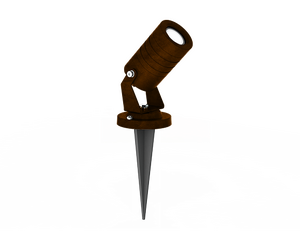

UTAH 4Corten - Urban
UTAH 4Oak - Woodland
UTAH 4Walnut - Woodland
UTAH 4Pine - Woodland
UTAH 4Black
UTAH 4Dark Grey
UTAH 4White
UTAH 4Matt Silver
UTAH 4Bronze
UTAH 4Concrete - Urban
UTAH 4Softscape - Urban
UTAH 4Stone - Urban
UTAH 4Corten - Urban
UTAH 4Oak - Woodland
UTAH 4Walnut - Woodland
UTAH 4Pine - Woodland
Without remote driver - With spike - Constant voltage (CV) 24 V - Class III - RGBW
CEClass IIIIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 LED
Power (W)
5 W
Lumen (lm)
224 lm
Efficacy (lm/W)
45 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
M
Optic value
33°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
99
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.27 kg.
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 0.5 m of 5x0.75 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000

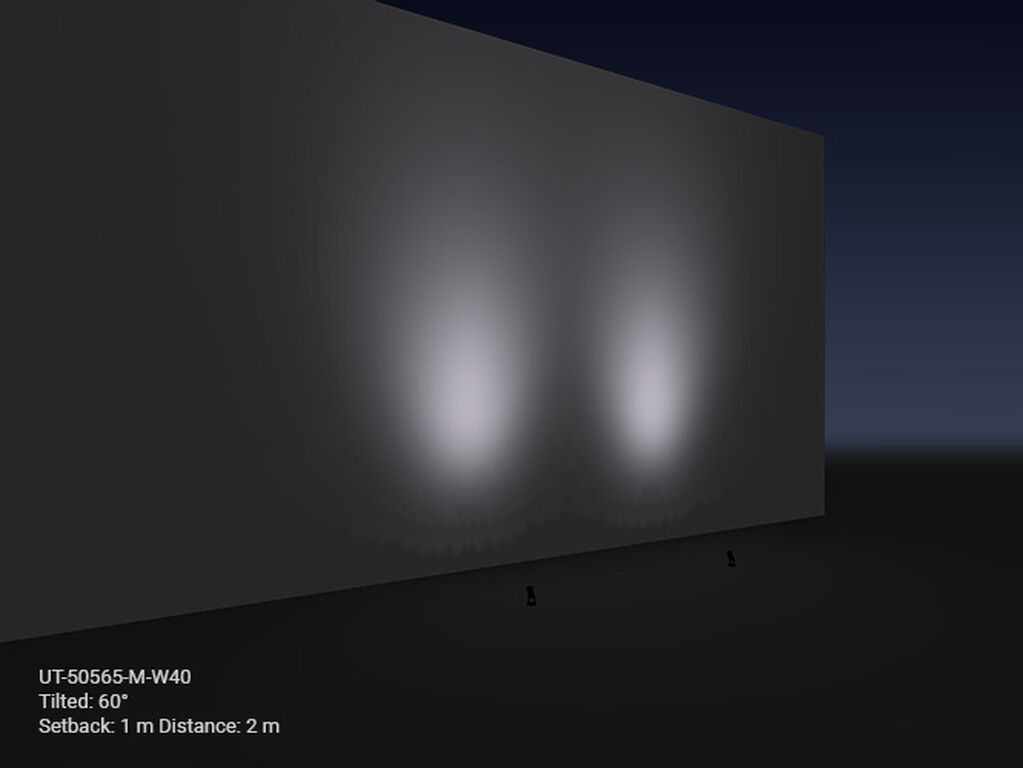

LIGHT EFFECT

Optic
M (33°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: UT-50565-M-30-DMX-01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: UT-50565-M-30-DMX-02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: UT-50565-M-30-DMX-03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: UT-50565-M-30-DMX-05
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: UT-50565-M-30-DMX-06
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: UT-50565-M-30-DMX-SU01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: UT-50565-M-30-DMX-SU02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: UT-50565-M-30-DMX-SU03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: UT-50565-M-30-DMX-SU04
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: UT-50565-M-30-DMX-SW01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: UT-50565-M-30-DMX-SW02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: UT-50565-M-30-DMX-SW03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: UT-50565-M-40-DMX-01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: UT-50565-M-40-DMX-02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: UT-50565-M-40-DMX-03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: UT-50565-M-40-DMX-05
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: UT-50565-M-40-DMX-06
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: UT-50565-M-40-DMX-SU01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: UT-50565-M-40-DMX-SU02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: UT-50565-M-40-DMX-SU03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: UT-50565-M-40-DMX-SU04
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: UT-50565-M-40-DMX-SW01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: UT-50565-M-40-DMX-SW02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: UT-50565-M-40-DMX-SW03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: UT-50565-M-30-DMXRDM-01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: UT-50565-M-30-DMXRDM-02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: UT-50565-M-30-DMXRDM-03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: UT-50565-M-30-DMXRDM-05
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: UT-50565-M-30-DMXRDM-06
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: UT-50565-M-30-DMXRDM-SU01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: UT-50565-M-30-DMXRDM-SU02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: UT-50565-M-30-DMXRDM-SU03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: UT-50565-M-30-DMXRDM-SU04
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: UT-50565-M-30-DMXRDM-SW01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: UT-50565-M-30-DMXRDM-SW02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: UT-50565-M-30-DMXRDM-SW03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: UT-50565-M-40-DMXRDM-01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: UT-50565-M-40-DMXRDM-02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: UT-50565-M-40-DMXRDM-03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: UT-50565-M-40-DMXRDM-05
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: UT-50565-M-40-DMXRDM-06
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: UT-50565-M-40-DMXRDM-SU01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: UT-50565-M-40-DMXRDM-SU02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: UT-50565-M-40-DMXRDM-SU03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: UT-50565-M-40-DMXRDM-SU04
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: UT-50565-M-40-DMXRDM-SW01
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: UT-50565-M-40-DMXRDM-SW02
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: UT-50565-M-40-DMXRDM-SW03
Lumen (lm): 224 lm
Optic: M
Optic value: 33°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
