LIGMAN VANCOUVER 21 VA-20161.

VANCOUVER 21VA-20161VANCOUVER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21Black
VANCOUVER 21Dark Grey
VANCOUVER 21White
VANCOUVER 21Matt Silver
VANCOUVER 21Bronze
VANCOUVER 21Concrete - Urban
VANCOUVER 21Softscape - Urban
VANCOUVER 21Stone - Urban
VANCOUVER 21Corten - Urban
VANCOUVER 21Oak - Woodland
VANCOUVER 21Walnut - Woodland
VANCOUVER 21Pine - Woodland
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21
VANCOUVER 21Black
VANCOUVER 21Dark Grey
VANCOUVER 21White
VANCOUVER 21Matt Silver
VANCOUVER 21Bronze
VANCOUVER 21Concrete - Urban
VANCOUVER 21Softscape - Urban
VANCOUVER 21Stone - Urban
VANCOUVER 21Corten - Urban
VANCOUVER 21Oak - Woodland
VANCOUVER 21Walnut - Woodland
VANCOUVER 21Pine - Woodland

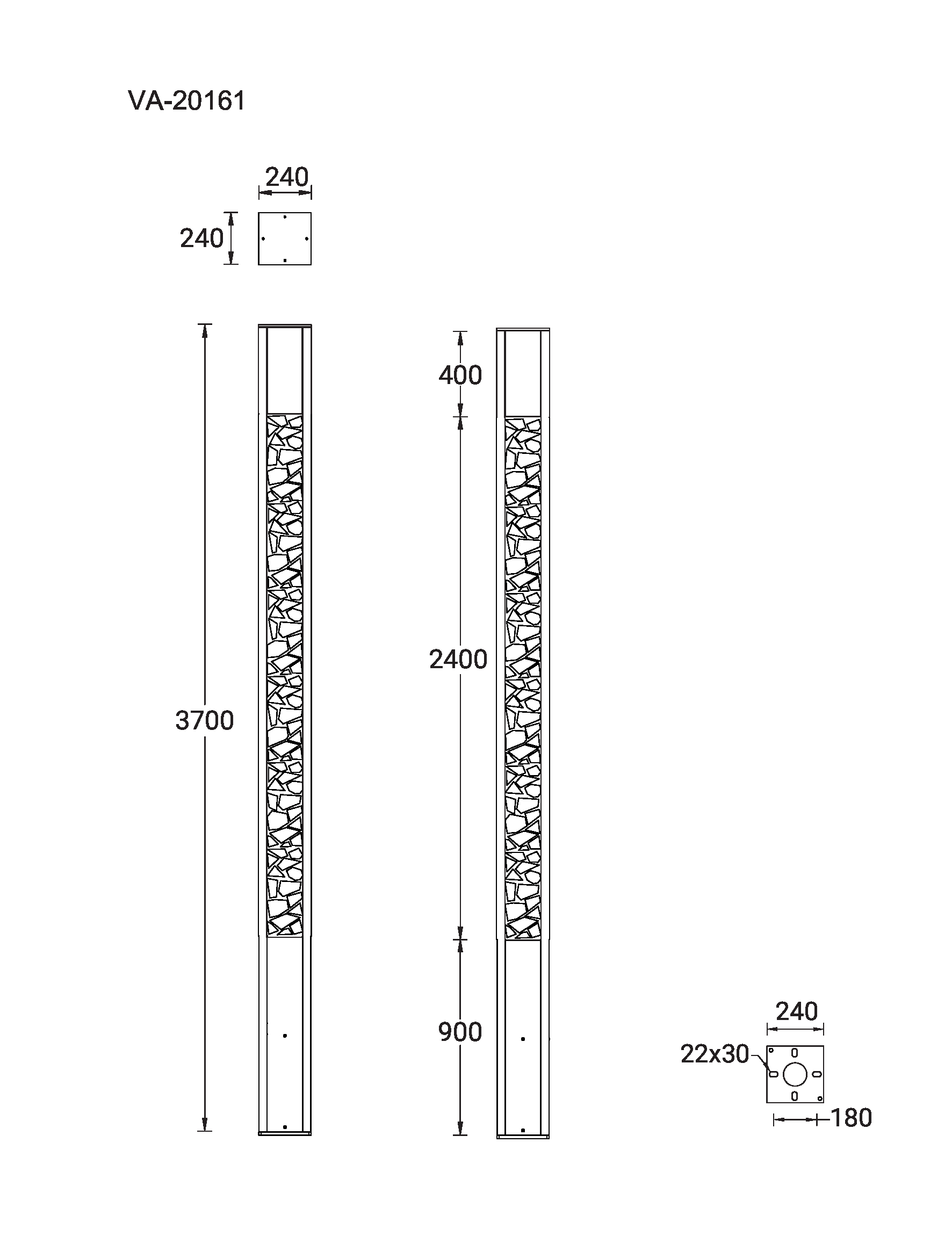

240x240 mm - 3700 mm - Decorative pattern type 1 - IP66 - RGBW
CERETILAPClass IIP66IK08

Technical information

Material
Aluminium
Light source
7 LED
Power (W)
33 W
Lumen (lm)
1119 - 1429 lm
Efficacy (lm/W)
34 - 43 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, E
Optic value
21°, 35°, 48x26°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
55.0 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.888
Cable
One IP68 connector supplied with 0.3 m of 5x1.5 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency polycarbonate lens, Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L90B10 (hours)
> 15,000
Lifetime L80B10 (hours)
> 31,000
Lifetime L80B50 (hours)
> 34,000
Variants (DMX/RDM)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VA-20161-N-30-DMX-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-N-30-DMX-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-N-30-DMX-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-20161-N-30-DMX-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-N-30-DMX-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-N-30-DMX-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-N-30-DMX-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-N-30-DMX-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-N-30-DMX-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-N-30-DMX-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-N-30-DMX-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-N-30-DMX-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-N-40-DMX-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-N-40-DMX-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-N-40-DMX-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20161-N-40-DMX-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-N-40-DMX-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-N-40-DMX-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-N-40-DMX-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-N-40-DMX-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-N-40-DMX-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-N-40-DMX-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-N-40-DMX-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-N-40-DMX-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-N-30-DMXRDM-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-N-30-DMXRDM-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-N-30-DMXRDM-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-N-30-DMXRDM-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-N-30-DMXRDM-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-N-30-DMXRDM-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-N-30-DMXRDM-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-N-30-DMXRDM-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-N-30-DMXRDM-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-N-30-DMXRDM-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-N-30-DMXRDM-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-N-30-DMXRDM-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20161-N-40-DMXRDM-01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-N-40-DMXRDM-02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-N-40-DMXRDM-03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-N-40-DMXRDM-05
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-N-40-DMXRDM-06
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-N-40-DMXRDM-SU01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-N-40-DMXRDM-SU02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-N-40-DMXRDM-SU03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-N-40-DMXRDM-SU04
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-N-40-DMXRDM-SW01
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-N-40-DMXRDM-SW02
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-N-40-DMXRDM-SW03
Lumen (lm): 1429 lm
Optic: N
Optic value: 21°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20161-M-30-DMX-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-M-30-DMX-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-M-30-DMX-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-20161-M-30-DMX-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-M-30-DMX-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-M-30-DMX-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-M-30-DMX-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-M-30-DMX-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-M-30-DMX-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-M-30-DMX-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-M-30-DMX-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-M-30-DMX-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-M-40-DMX-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-M-40-DMX-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-M-40-DMX-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20161-M-40-DMX-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-M-40-DMX-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-M-40-DMX-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-M-40-DMX-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-M-40-DMX-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-M-40-DMX-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-M-40-DMX-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-M-40-DMX-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-M-40-DMX-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-M-30-DMXRDM-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-M-30-DMXRDM-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-M-30-DMXRDM-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-M-30-DMXRDM-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-M-30-DMXRDM-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-M-30-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-M-30-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-M-30-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-M-30-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-M-30-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-M-30-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-M-30-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20161-M-40-DMXRDM-01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-M-40-DMXRDM-02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-M-40-DMXRDM-03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-M-40-DMXRDM-05
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-M-40-DMXRDM-06
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-M-40-DMXRDM-SU01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-M-40-DMXRDM-SU02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-M-40-DMXRDM-SU03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-M-40-DMXRDM-SU04
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-M-40-DMXRDM-SW01
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-M-40-DMXRDM-SW02
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-M-40-DMXRDM-SW03
Lumen (lm): 1158 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20161-E-30-DMX-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-E-30-DMX-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-E-30-DMX-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: VA-20161-E-30-DMX-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-E-30-DMX-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-E-30-DMX-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-E-30-DMX-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-E-30-DMX-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-E-30-DMX-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-E-30-DMX-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-E-30-DMX-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-E-30-DMX-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-E-40-DMX-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: VA-20161-E-40-DMX-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: VA-20161-E-40-DMX-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: VA-20161-E-40-DMX-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: VA-20161-E-40-DMX-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: VA-20161-E-40-DMX-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: VA-20161-E-40-DMX-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: VA-20161-E-40-DMX-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: VA-20161-E-40-DMX-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: VA-20161-E-40-DMX-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: VA-20161-E-40-DMX-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: VA-20161-E-40-DMX-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: VA-20161-E-30-DMXRDM-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-E-30-DMXRDM-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-E-30-DMXRDM-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-E-30-DMXRDM-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-E-30-DMXRDM-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-E-30-DMXRDM-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-E-30-DMXRDM-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-E-30-DMXRDM-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-E-30-DMXRDM-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-E-30-DMXRDM-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-E-30-DMXRDM-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-E-30-DMXRDM-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: VA-20161-E-40-DMXRDM-01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: VA-20161-E-40-DMXRDM-02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: VA-20161-E-40-DMXRDM-03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: VA-20161-E-40-DMXRDM-05
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: VA-20161-E-40-DMXRDM-06
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: VA-20161-E-40-DMXRDM-SU01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: VA-20161-E-40-DMXRDM-SU02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: VA-20161-E-40-DMXRDM-SU03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: VA-20161-E-40-DMXRDM-SU04
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: VA-20161-E-40-DMXRDM-SW01
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: VA-20161-E-40-DMXRDM-SW02
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: VA-20161-E-40-DMXRDM-SW03
Lumen (lm): 1119 lm
Optic: E
Optic value: 48x26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland

Accessory

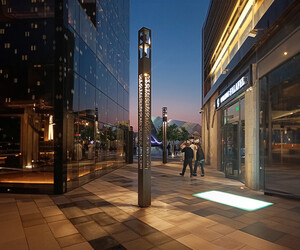

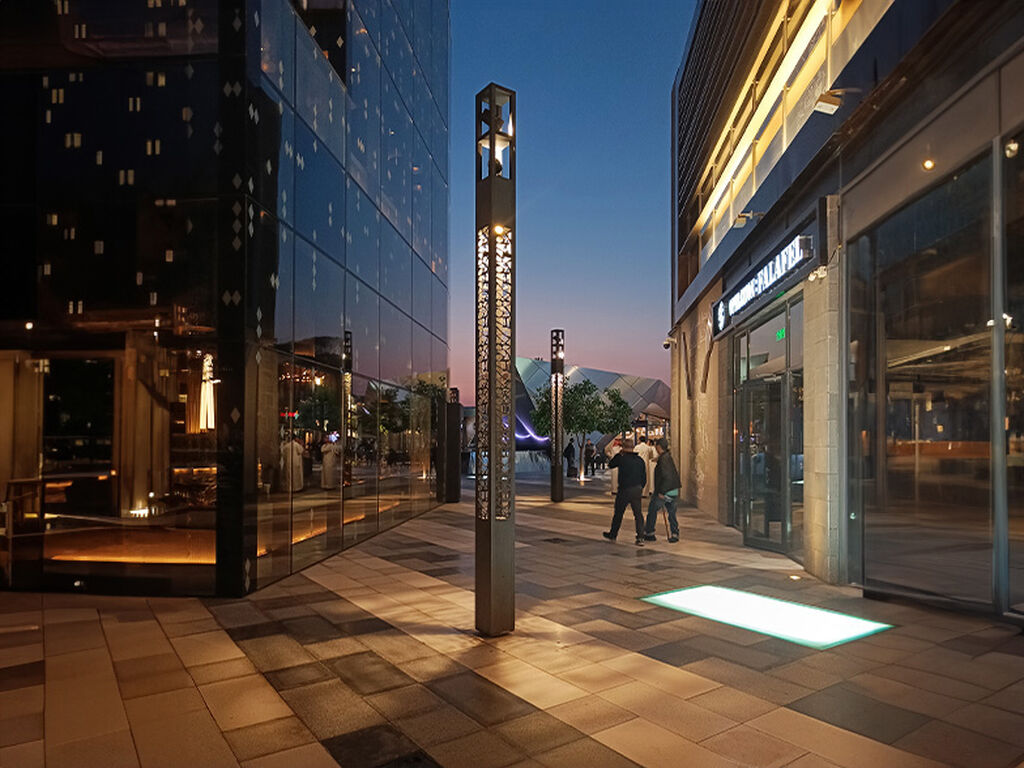

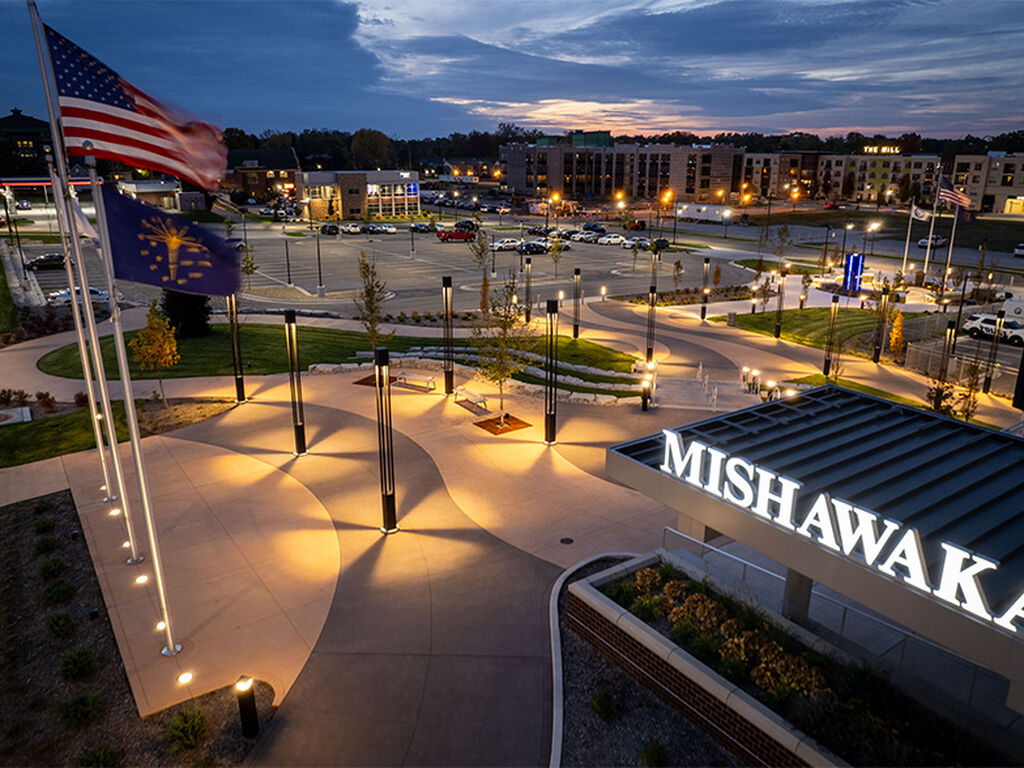

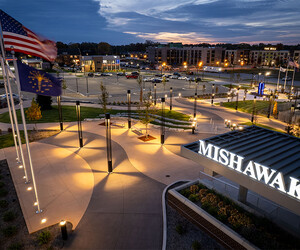

Project reference (VANCOUVER Light columns)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
Rename
