FUNEN 2FUN-50011 (Version 2)
Underwater projectors, floodlights
Without remote box IP-rated - With remote driver - Constant current (CC) 800 mA
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
4 LED
Power (W)
11 W
Lumen (lm)
798 - 1068 lm
Efficacy (lm/W)
73 - 97 lm/W
Driver option
Remote driver (included)
Driver
Constant current (CC)
Input voltage
700 mA, 12 VDC
Optic
N, M, W, VW, E
Optic value
11°, 17°, 33°, 71°, 11°x41°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
On/Off, 1-10V
Product colours
Stainless Steel
Weight
0.9 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
Variants (1-10V)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FUN-50011-N-8030-ND-00
Lumen (lm): 999 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel

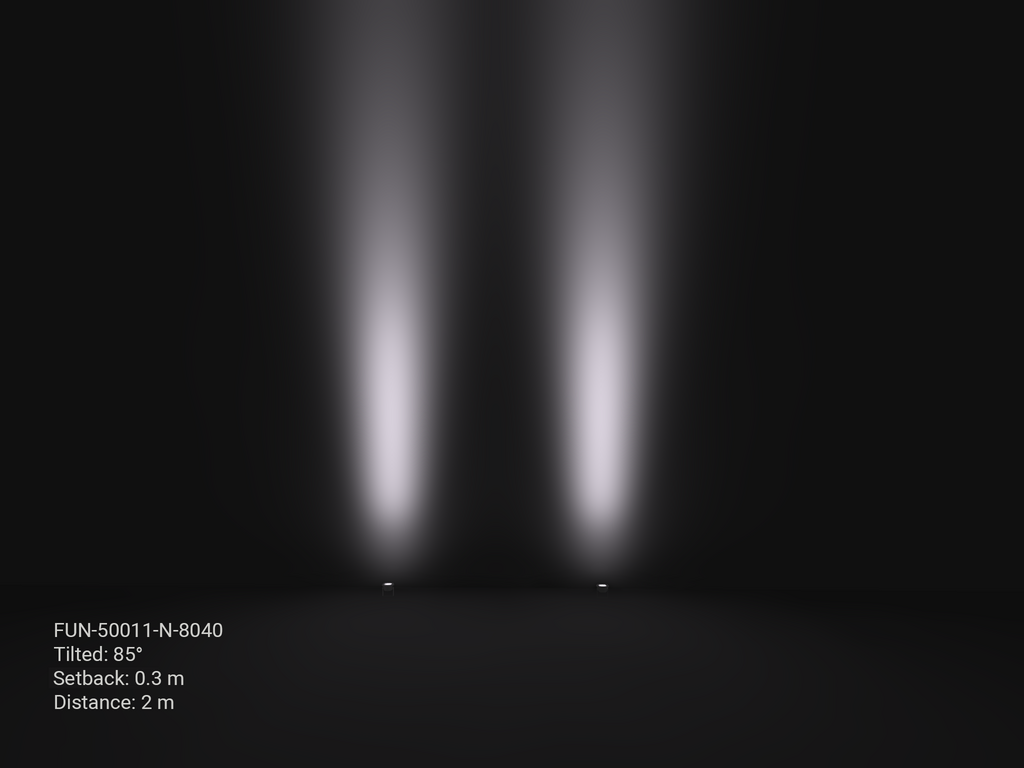

Variant code: FUN-50011-N-8040-ND-00
Lumen (lm): 1068 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-N-8030-DI-00
Lumen (lm): 999 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-N-8040-DI-00
Lumen (lm): 1068 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-M-8030-ND-00
Lumen (lm): 847 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-M-8040-ND-00
Lumen (lm): 906 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-M-8030-DI-00
Lumen (lm): 847 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-M-8040-DI-00
Lumen (lm): 906 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-W-8030-ND-00
Lumen (lm): 881 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-W-8040-ND-00
Lumen (lm): 942 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-W-8030-DI-00
Lumen (lm): 881 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-W-8040-DI-00
Lumen (lm): 942 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-VW-8030-ND-00
Lumen (lm): 798 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-VW-8040-ND-00
Lumen (lm): 853 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-VW-8030-DI-00
Lumen (lm): 798 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-VW-8040-DI-00
Lumen (lm): 853 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-E-8030-ND-00
Lumen (lm): 918 lm
Optic: E
Optic value: 11°x41°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-E-8040-ND-00
Lumen (lm): 982 lm
Optic: E
Optic value: 11°x41°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: FUN-50011-E-8030-DI-00
Lumen (lm): 918 lm
Optic: E
Optic value: 11°x41°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: FUN-50011-E-8040-DI-00
Lumen (lm): 982 lm
Optic: E
Optic value: 11°x41°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
